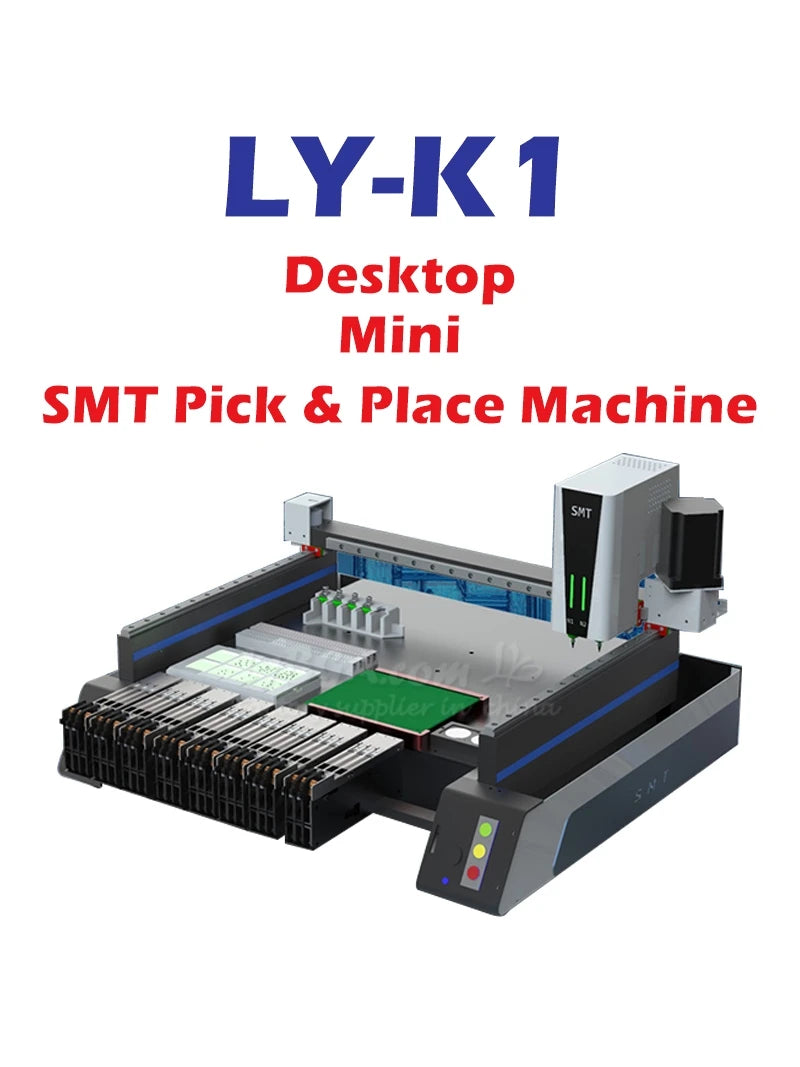

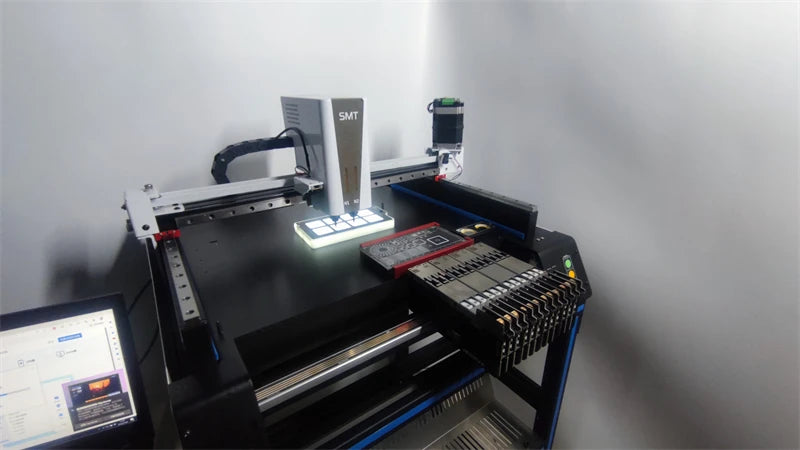

K1 Triple Vision Camera System High Speed Desktop Mini Automatic SMT Pick And Place Machine Chip Mounter LED SMD Dual Heads Nozzles For PCB Assembly Line 220V Or 110V

1. Overview

It is an advanced desktop pick-and-place machine designed for precise and efficient PCB assembly. With a three-vision camera system, automatic feeders, and dual placement heads.

Its compact design suits both home and professional environments, offering intelligent, high-speed features for small-scale prototyping and diverse production needs.

*Work flow: 1) Solder paste printing/dispensing solder paste 2) SMT 3) Reflow soldering.

2. Feature

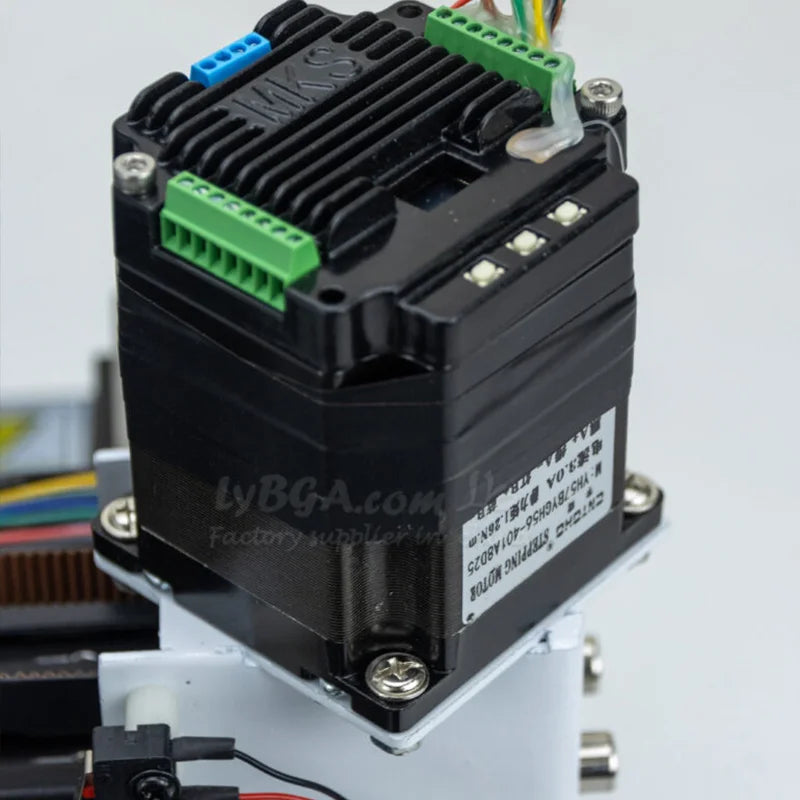

2.1. High Precision: Simultaneous top and bottom camera capture, with up to three cameras on the machine. Closed-loop stepper motor control ensures stability with no missed steps. Custom nozzle motor is durable, and the linear guide structure ensures smooth movement.

2.2. Fast & Efficient: Thanks to powerful S-curve motion control, speed is 80% faster thansimilar machines, with a maximum placement speed of up to 3000 CPH, ensuring stabilityand minimal vibration.

2.3. Easy Operation: Proprietary intelligent placement software with a simple interface andclear logic. Guided tutorial-style help files are available. Supports passive automatic headchange and multiple types of Mark recognition.

2.4. Versatile Feeding: 1.Vision-assisted loose part feeder, capable of handling polarizedcomponents with ease. 2.Electric feeder with automatic barcode marking, driven by all-metal gears, compact and supports 0402 components. 3.Loose part feeder. 4.Tray feeder.

2.5. Sturdy &Stable: Integrated welded sheet metal frame, stable at high speeds with no vibration. Linear guide ensures smooth and steady motion.

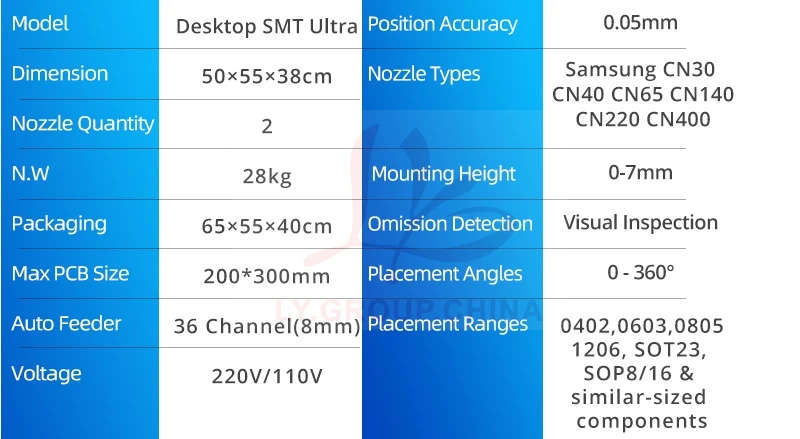

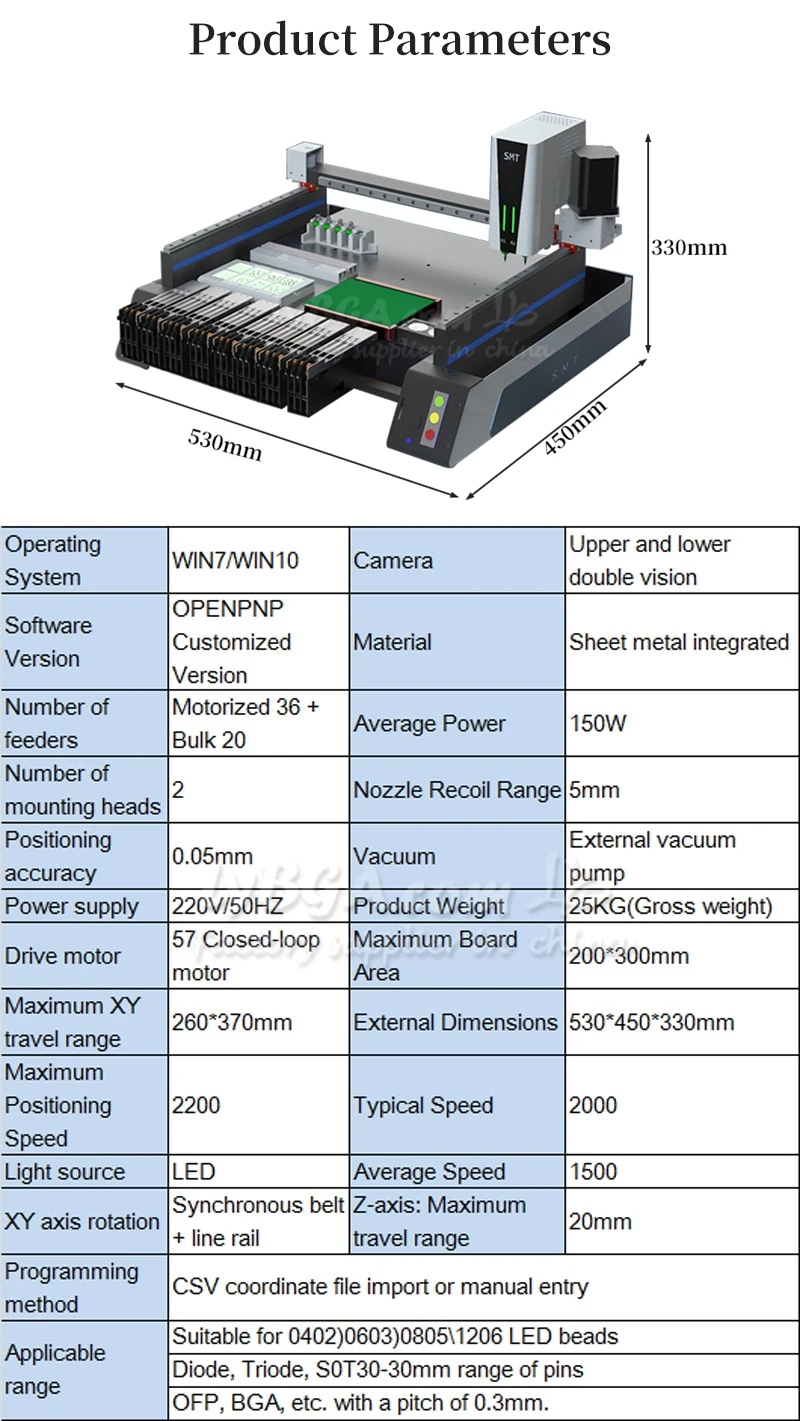

Parameters

Operating System WIN7/WIN10 Camera Upper and lower double vision

Software Version OPENPNP Customized Version Material Sheet metal integrated

Number of feeders Motorized 36 + Bulk 20 Average Power 150W

Number of mounting heads 2 Nozzle Recoil Range 5mm

Positioning accuracy 0.05mm Vacuum External vacuum pump

Power supply 220V/50HZ Product Weight 25KG(Gross weight)

Drive motor 57 Closed-loop motor Maximum Board Area 200*300mm

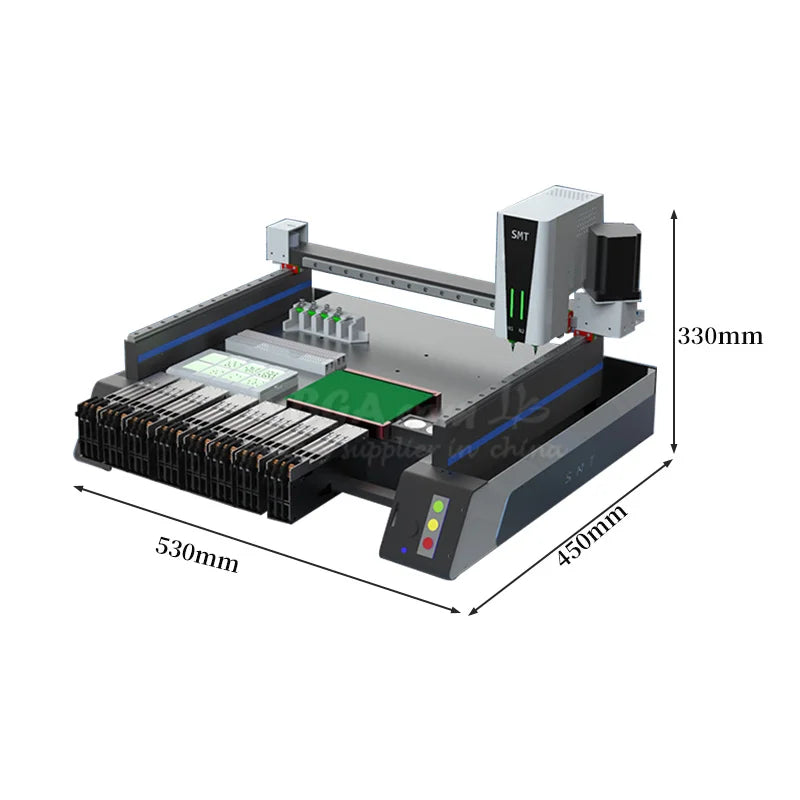

Maximum XY travel range 260*370mm External Dimensions 530*450*330mm

Maximum Positioning Speed 2200 Typical Speed 2000

Light source LED Average Speed 1500

XY axis rotation Synchronous belt + line rail Z-axis: Maximum travel range 20mm

Programming method CSV coordinate file import or manual entry

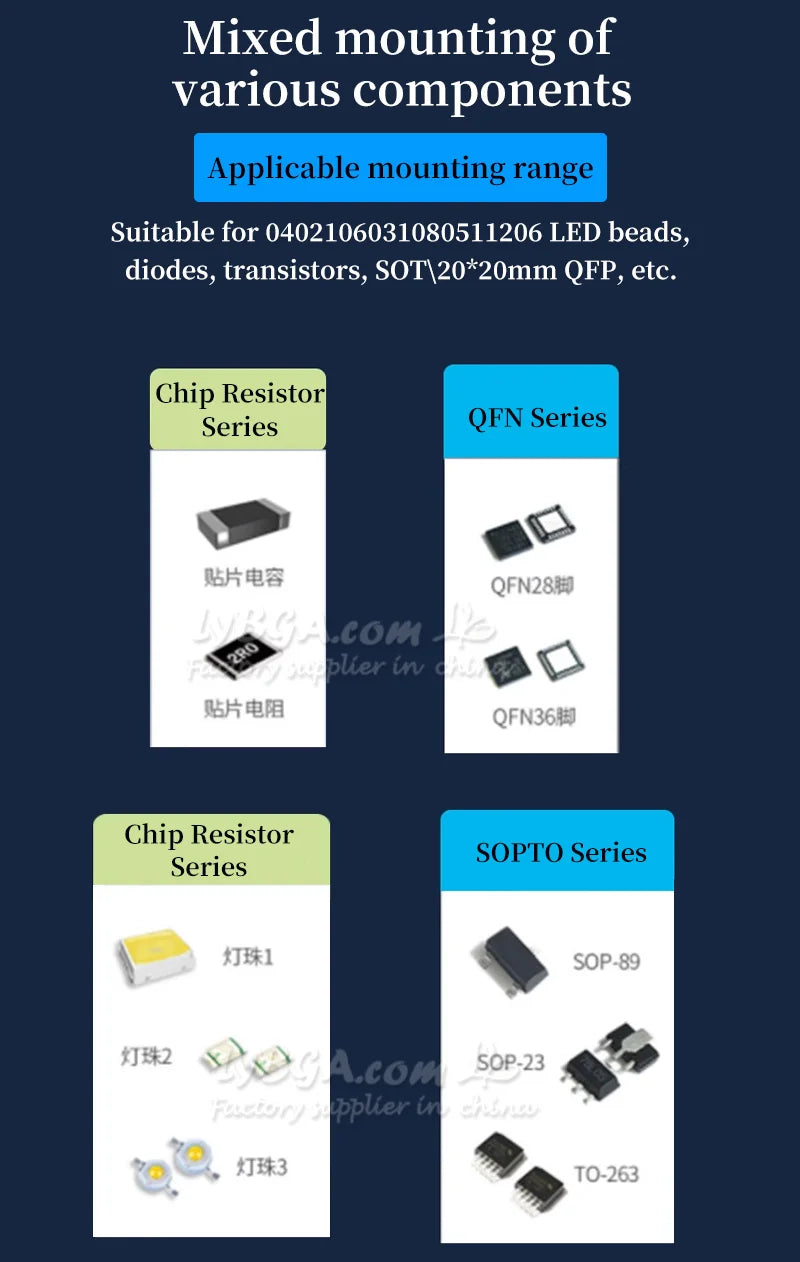

Applicable range Suitable for 0402)0603)0805\1206 LED beads

Diode, Triode, S0T30-30mm range of pins

OFP, BGA, etc. with a pitch of 0.3mm.

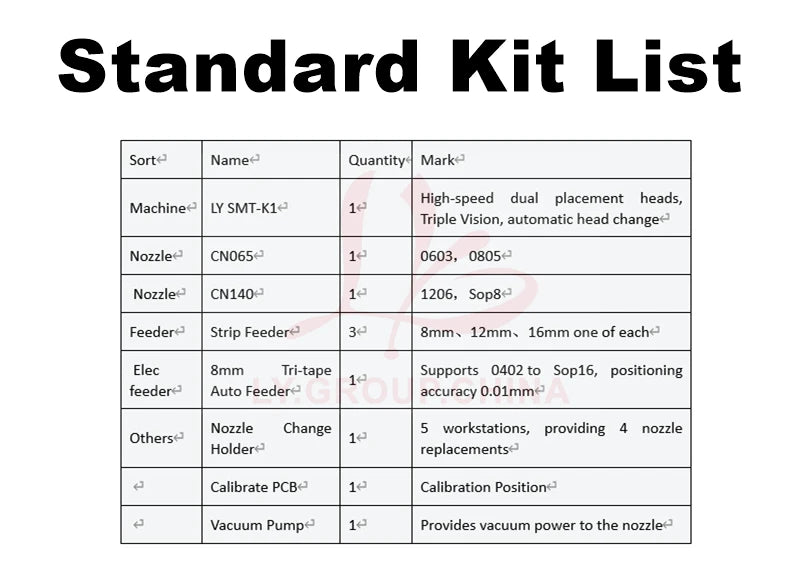

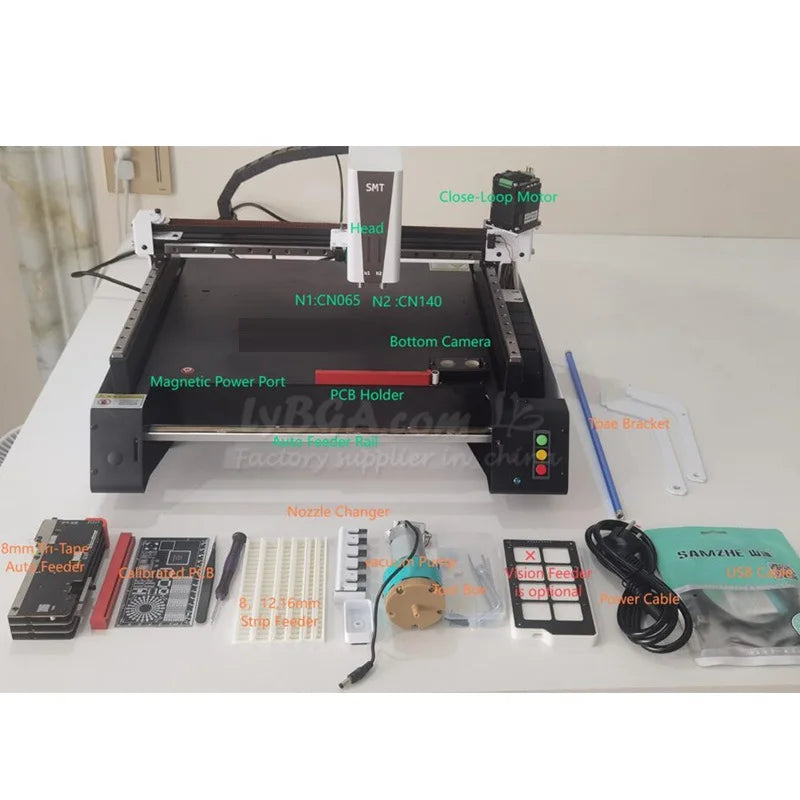

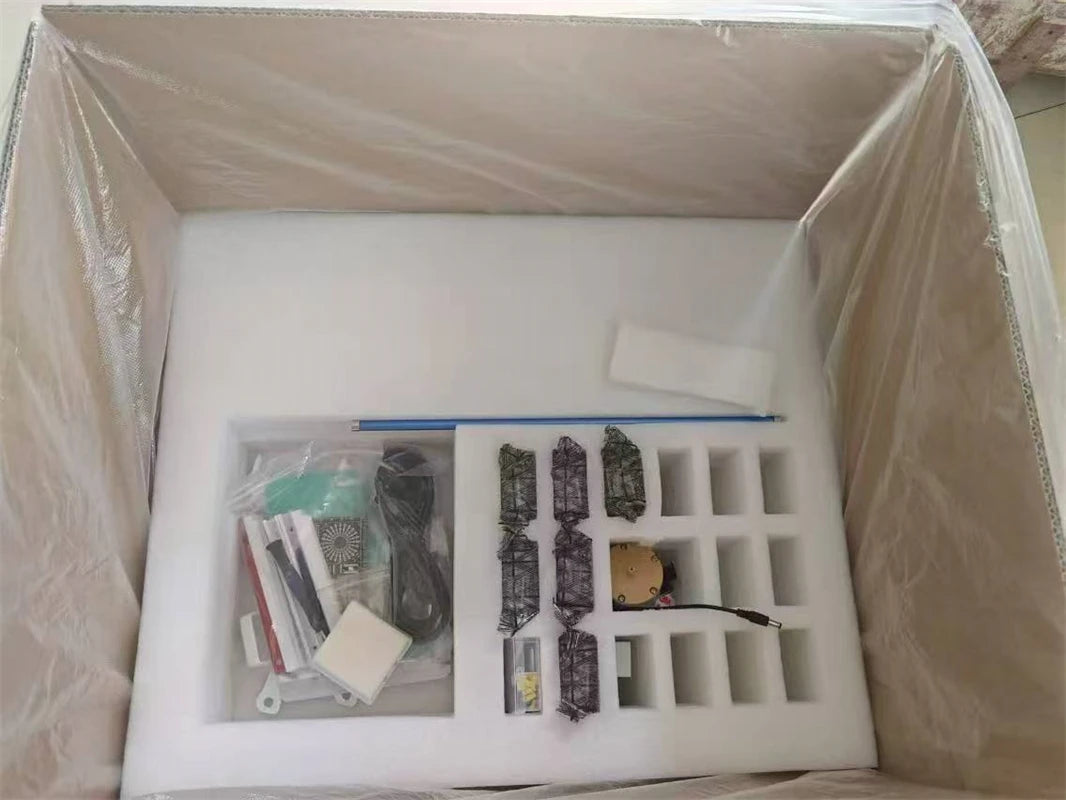

Standard Kit Packing List:

Sort Name Quantity Mark

Machine LY SMT-K1 1 High-speed dual placement heads, Triple Vision, automatic head change

Nozzle CN065 1 0603，0805

Nozzle CN140 1 1206，Sop8

Feeder Strip Feeder 3 8mm、12mm、16mm one of each

Elec feeder 8mm Tri-tape Auto Feeder 1 Supports 0402 to Sop16, positioning accuracy 0.01mm

Others Nozzle Change Holder 1 5 workstations, providing 4 nozzle replacements

Calibrate PCB 1 Calibration Position

Vacuum Pump 1 Provides vacuum power to the nozzle

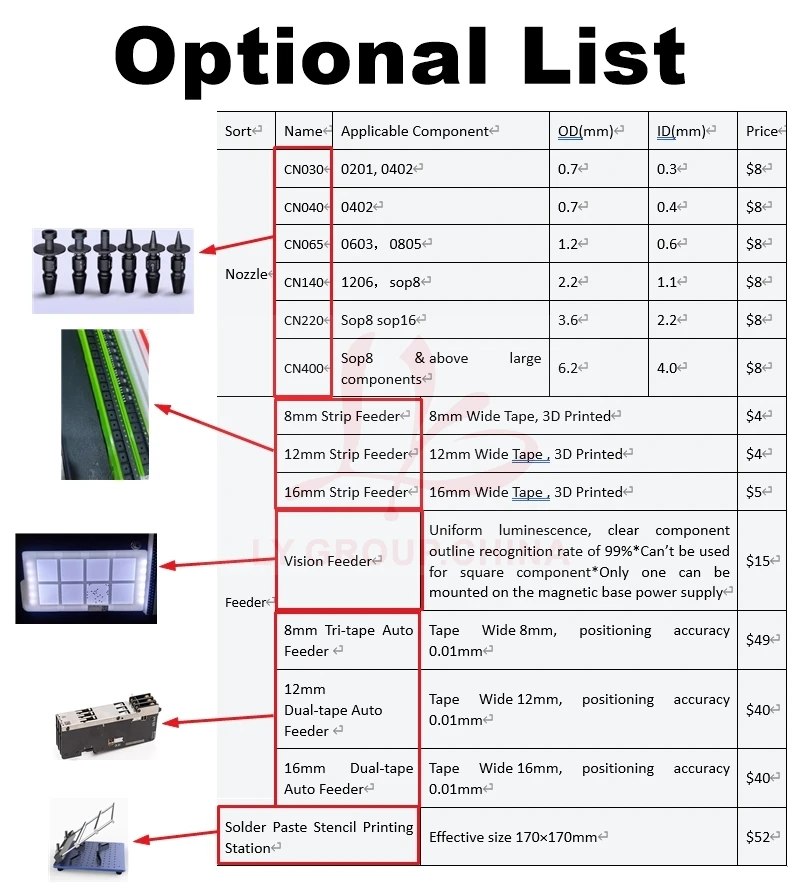

Optional Accessories:

(RE: If need to buy optional accessories pls contact with sales to change total or pay extra.

Machine max support 12 electric feeders.)

Sort Name Applicable Component OD(mm) ID(mm) Price

Nozzle CN030 0201, 0402 0.7 0.3 $8

CN040 0402 0.7 0.4 $8

CN065 0603，0805 1.2 0.6 $8

CN140 1206，sop8 2.2 1.1 $8

CN220 Sop8 sop16 3.6 2.2 $8

CN400 Sop8 & above large components 6.2 4.0 $8

Feeder 8mm Strip Feeder 8mm Wide Tape, 3D Printed $4

12mm Strip Feeder 12mm Wide Tape , 3D Printed $4

16mm Strip Feeder 16mm Wide Tape , 3D Printed $5

Vision Feeder Uniform luminescence, clear component outline recognition rate of 99%*Can’t be used for square component*Only one can be mounted on the magnetic base power supply $15

8mm Tri-tape Auto Electric Feeder Tape Wide 8mm, positioning accuracy 0.01mm $49

12mm Dual-tape Auto Electric Feeder Tape Wide 12mm, positioning accuracy 0.01mm $40

16mm Dual-tape Auto Electric Feeder Tape Wide 16mm, positioning accuracy 0.01mm $40

Solder Paste Stencil Printing Station Effective size 170×170mm $52

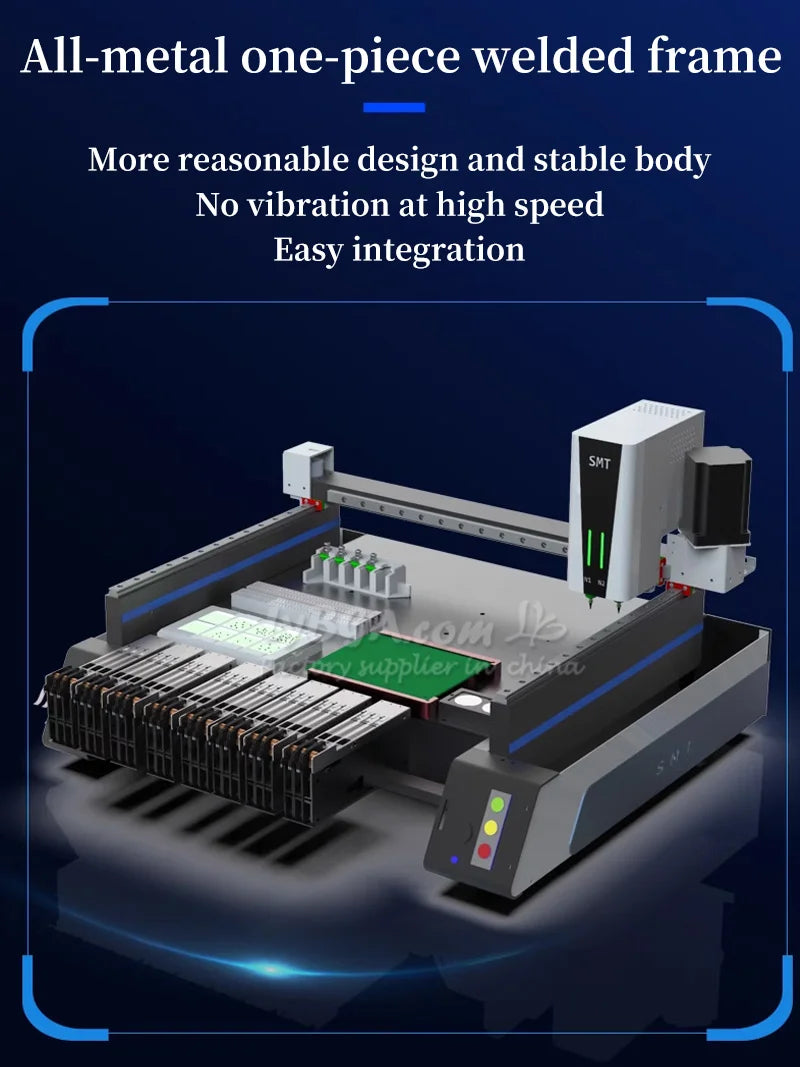

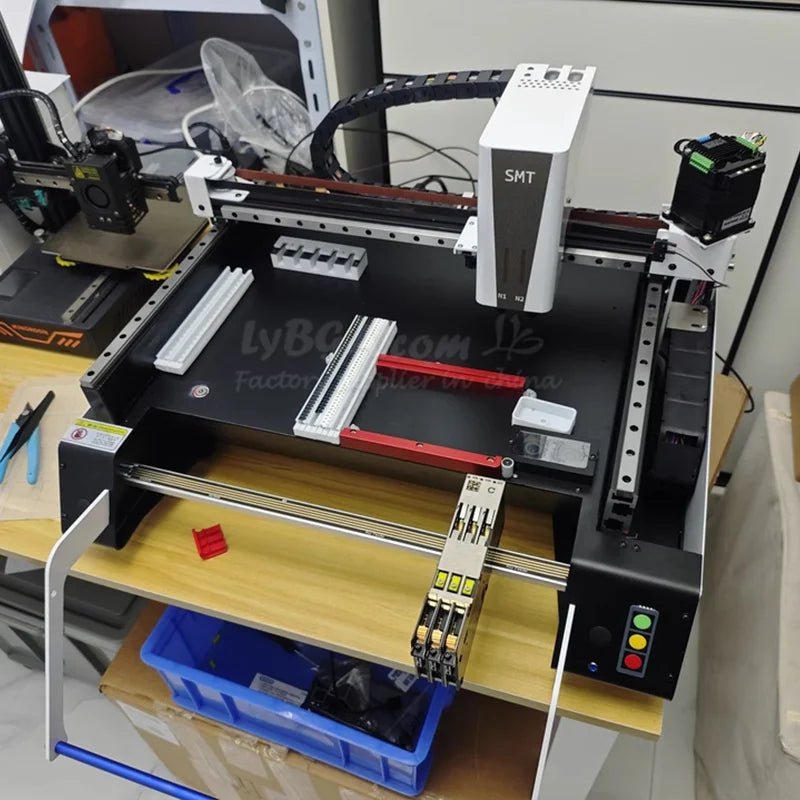

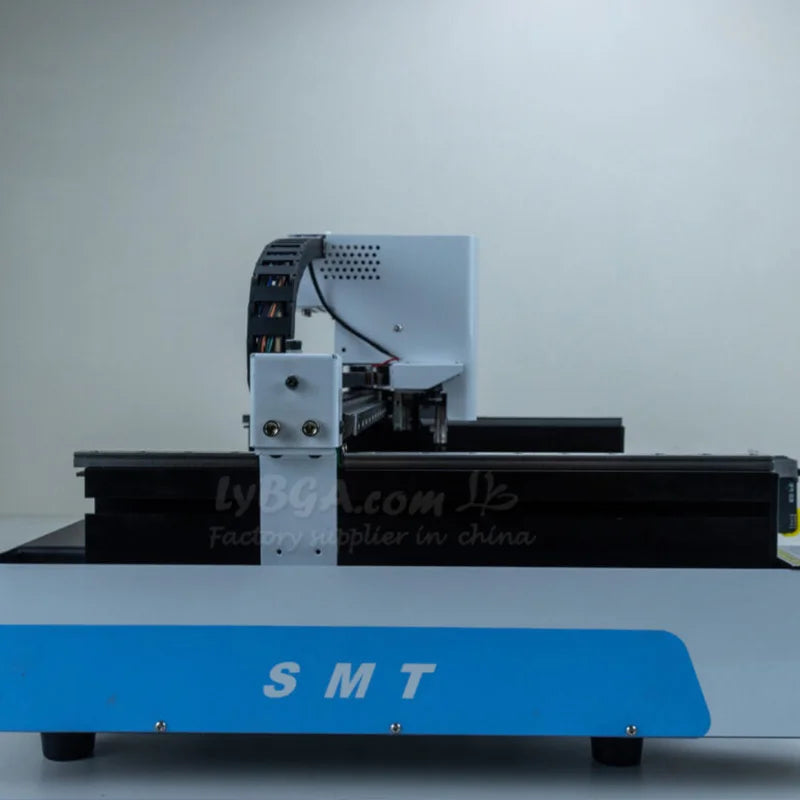

All-metal one- piece welded frame

More reasonable design and stable body

No vibration at high speed

Easy integration

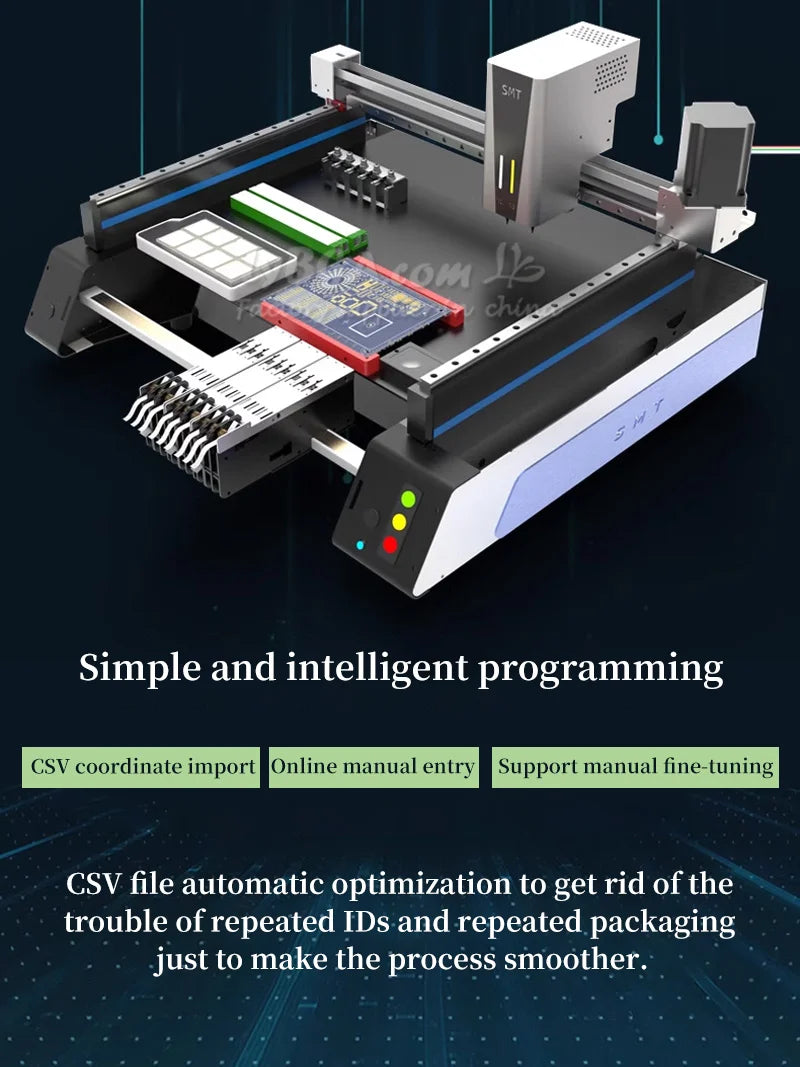

Simple and intelligent programming

1. CSV coordinate import

2. online manual entry

3. Support manual fine tuning

CSV file automatic optimization to get rid of the trouble of repeated IDs and repeated packaging just to make the process smoother.

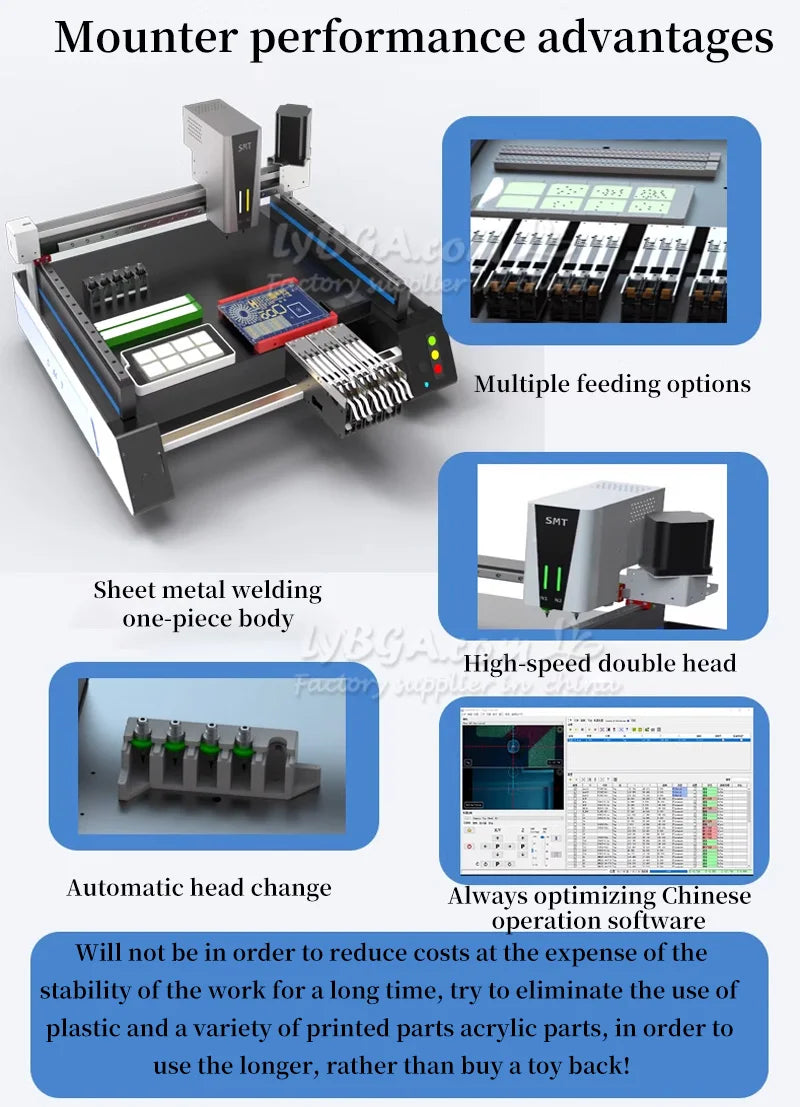

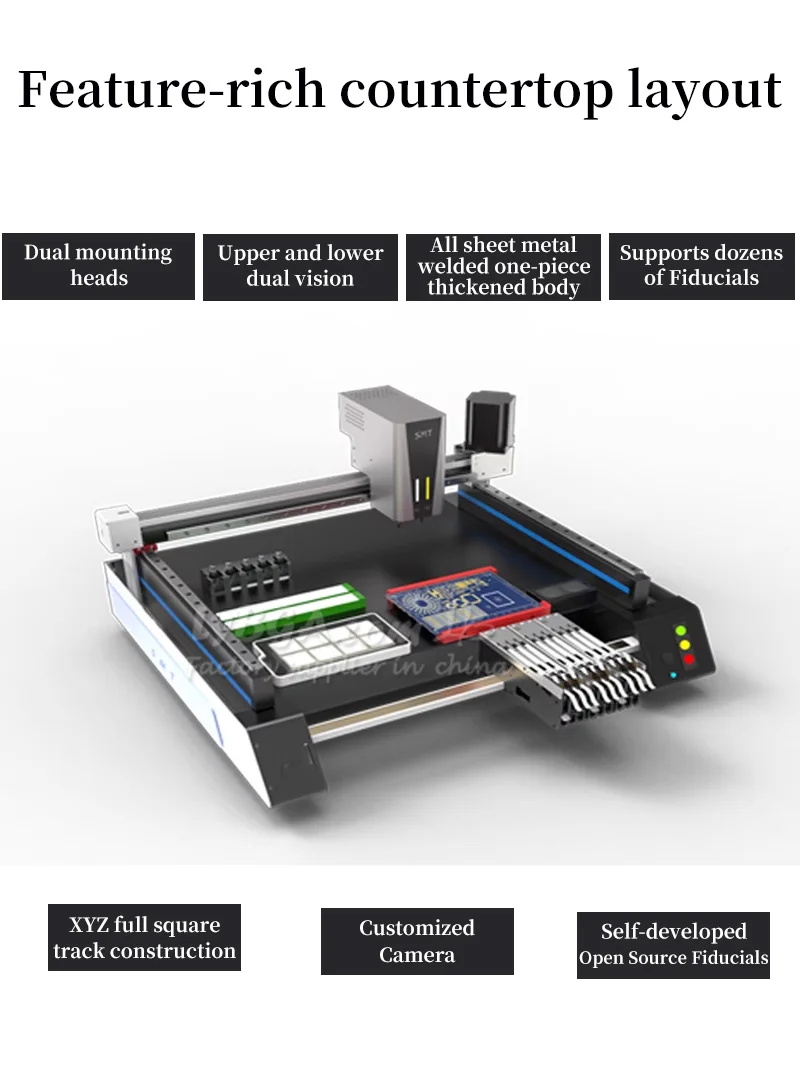

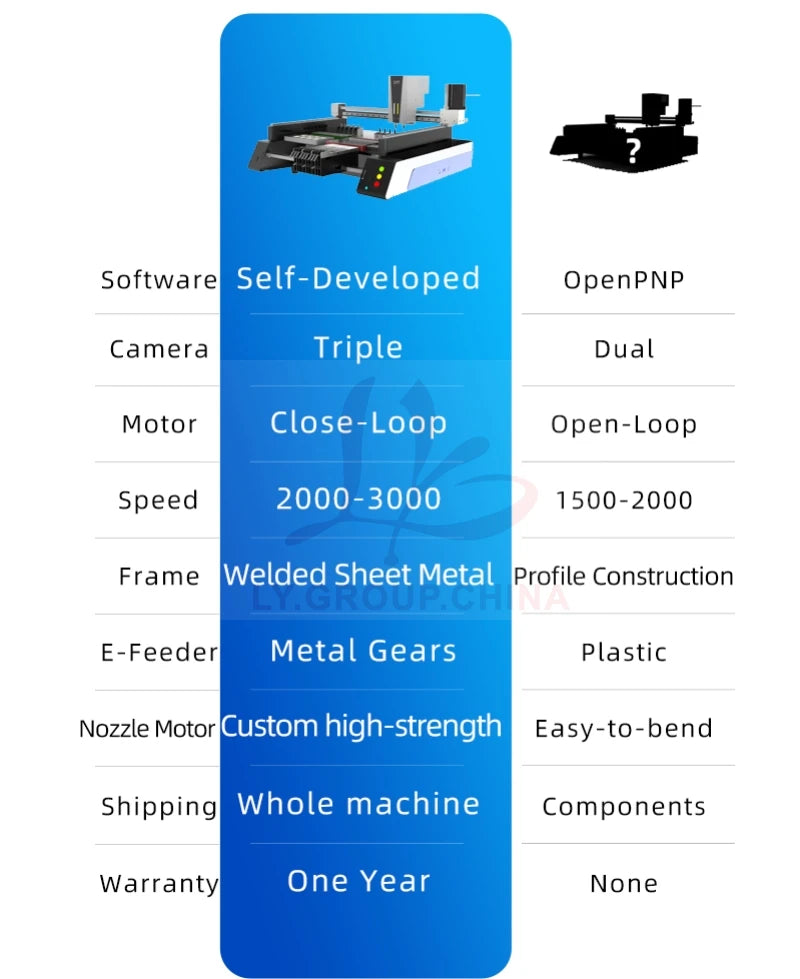

Mounter performance advantages

Multiple feeding options

Sheet metal welding one-piece body

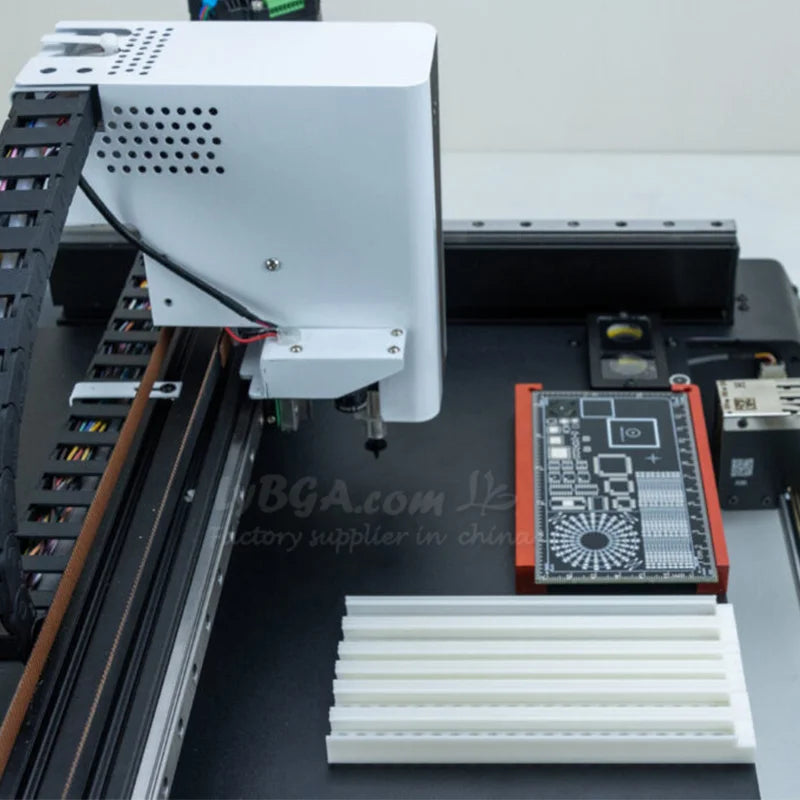

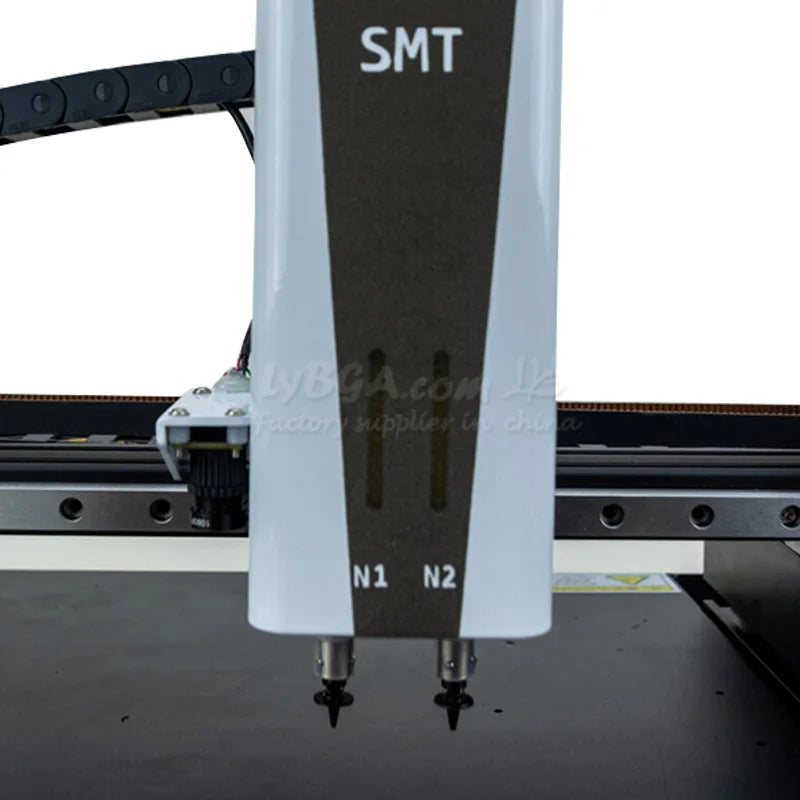

High- speed double head

Automatic head change

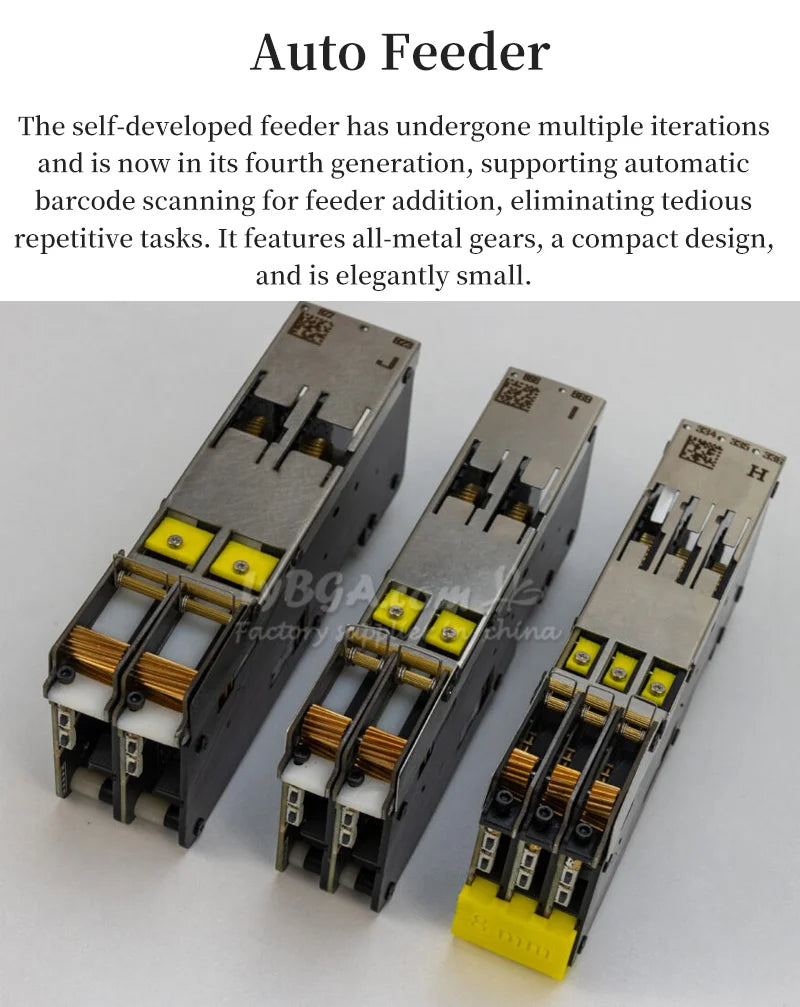

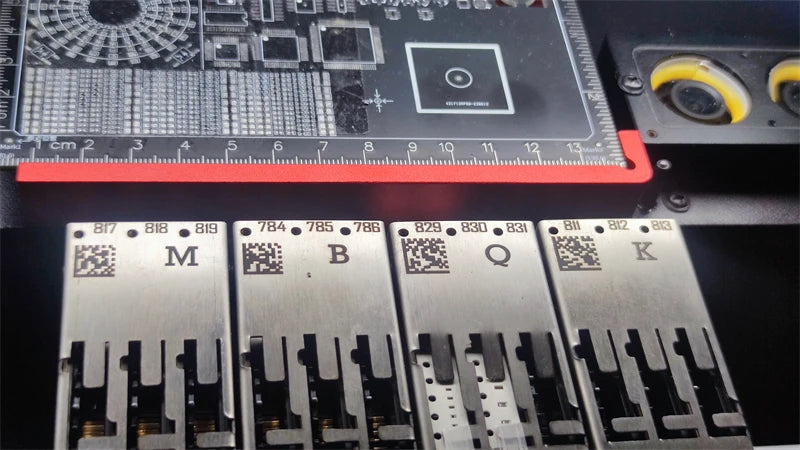

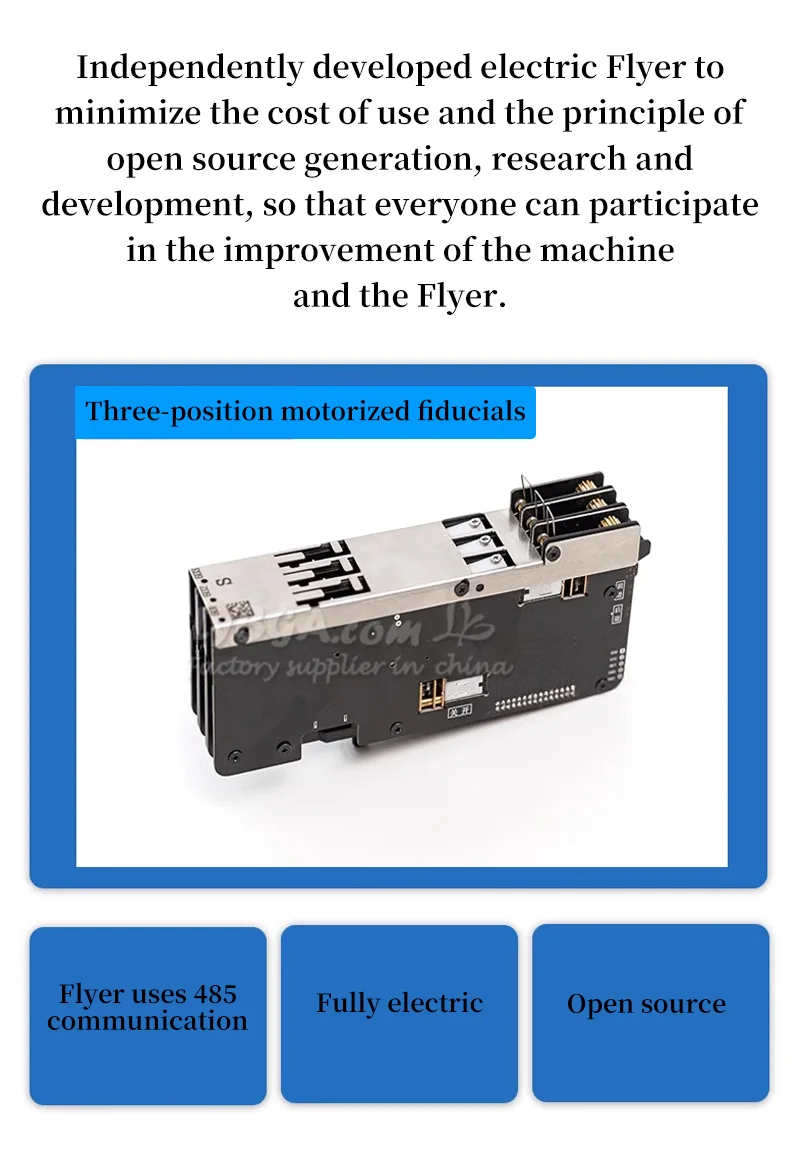

Auto Feeder

The self-developed feeder has undergone multiple iterations and is now in its fourth generation, supporting automatic barcode scanning for feeder addition, eliminating tedious repetitive tasks. It features all-metal gears, a compact design, and is elegantly small.

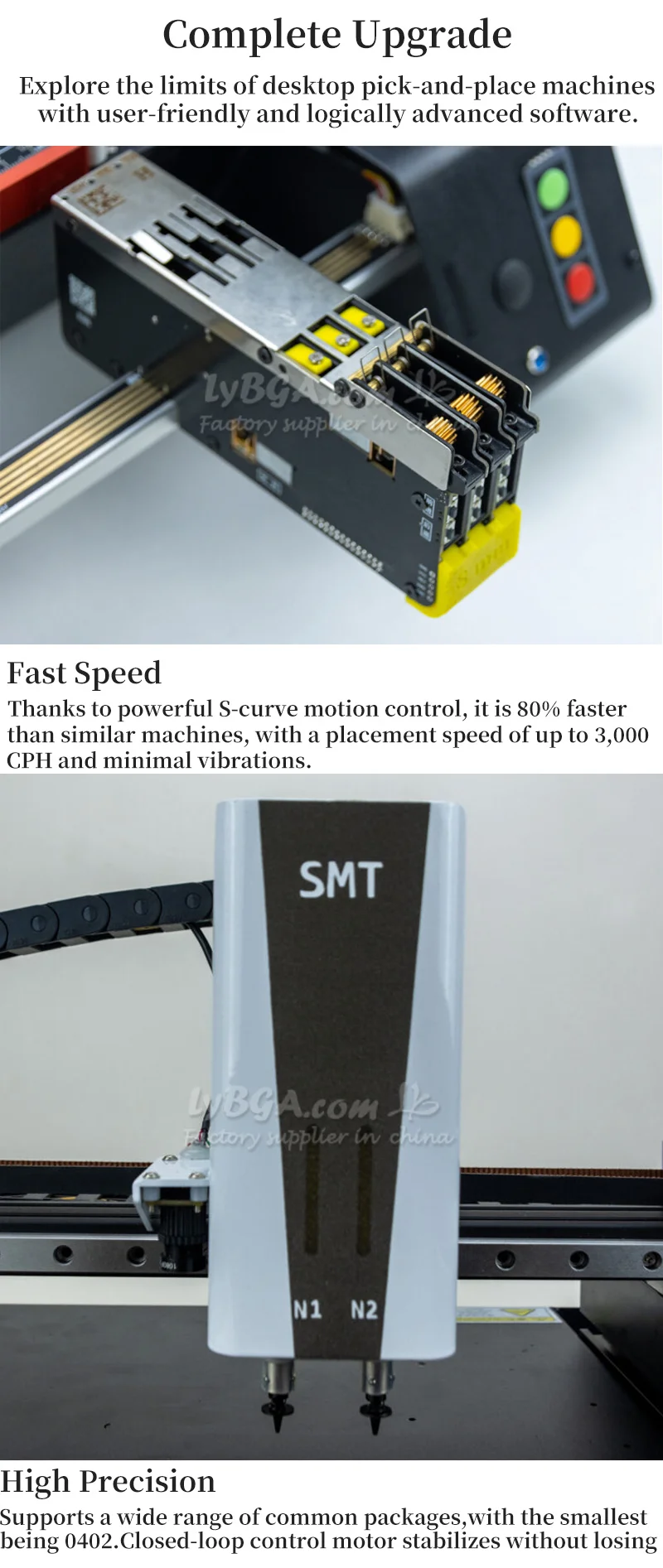

Complete Upgrade

1. Fast Speed

Thanks to powerful S-curve motion control, it is 80% faster than similar machines, with a placement speed of up to 3,000 CPH and minimal vibrations.

2. High Precision

Supports a wide range of common packages, with the smallest being 0402.Closed-loop control motor stabilizes without losing

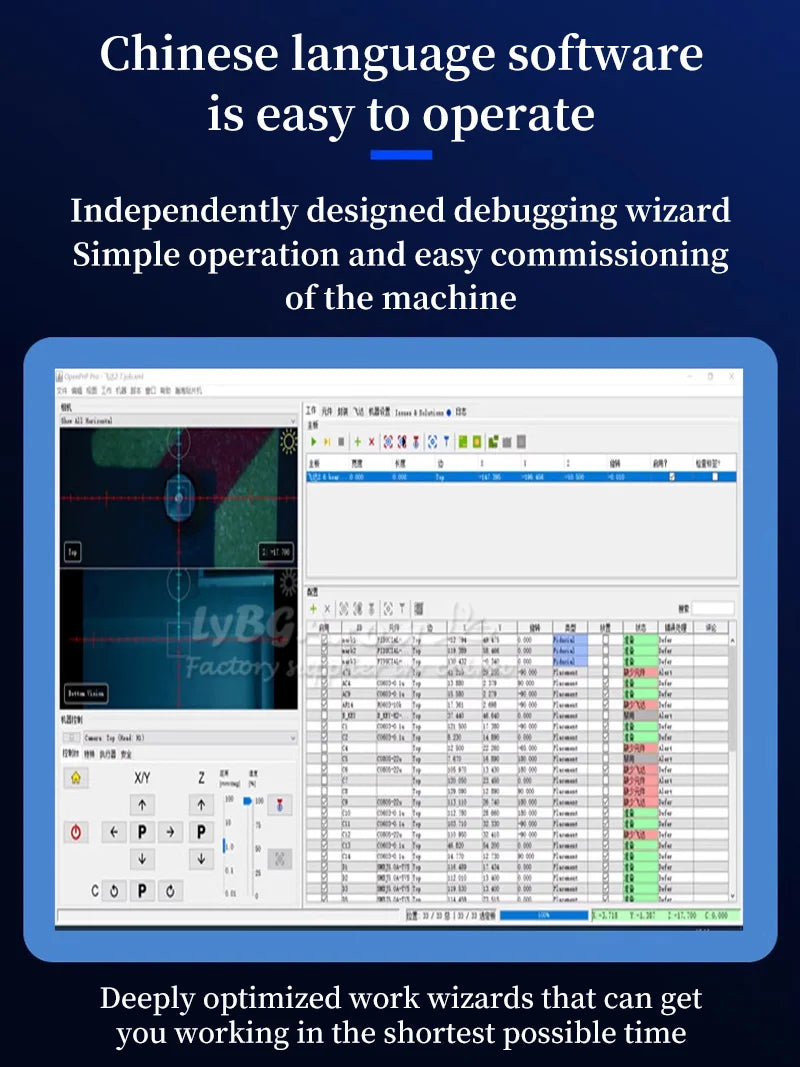

3. Intelligent Software

Simplifies operations with user-friendly controls, ensuring precision placement every time

4. Various Feeder

Supports visual scatter feeders, easily recognizing even polarized components, Vision Feeder, Auto Feeder, Strip Feeder, etc

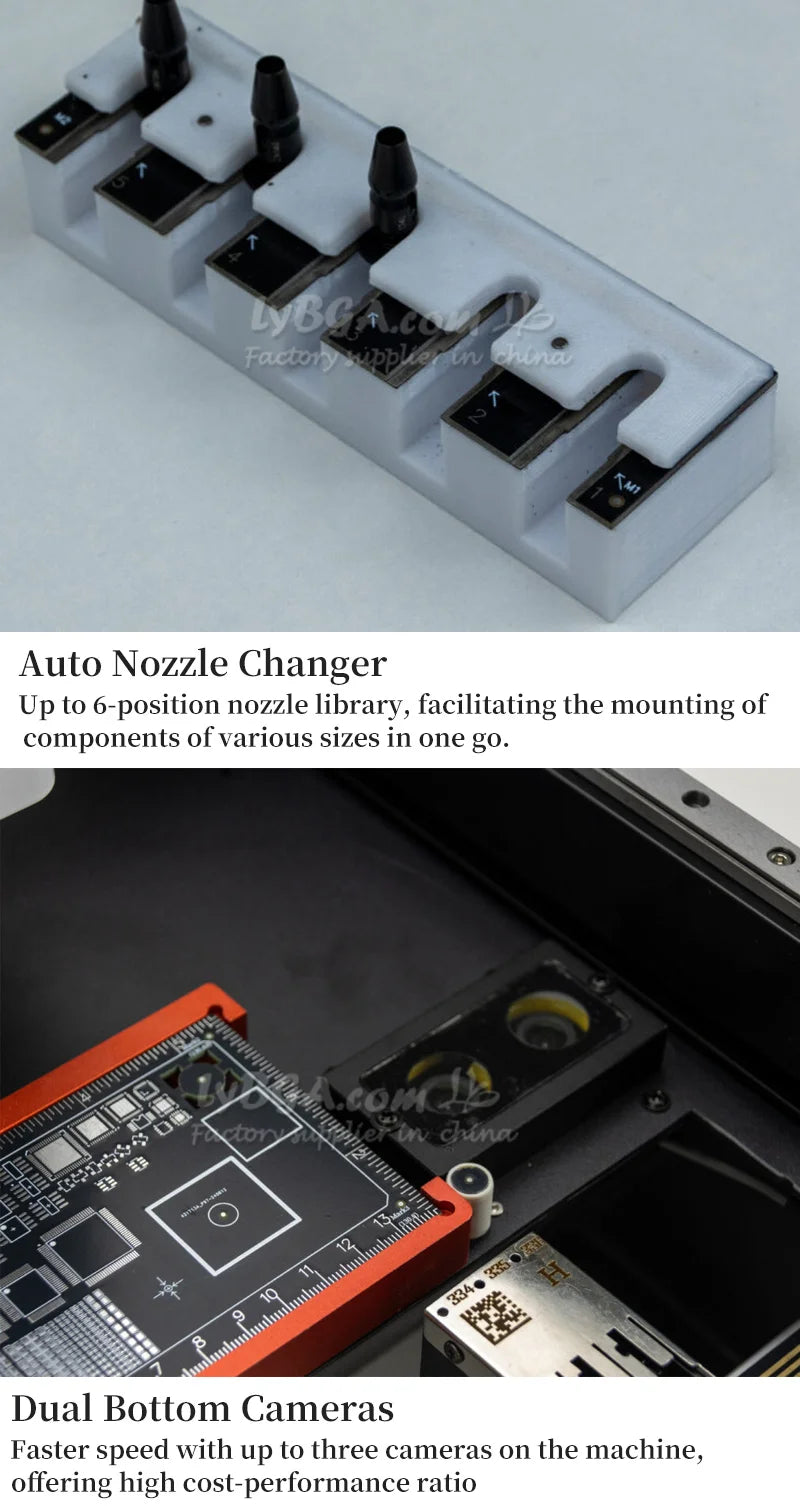

5. Auto Nozzle Changer

Up to 6- position nozzle library, facilitating the mounting of components of various sizes in one go.

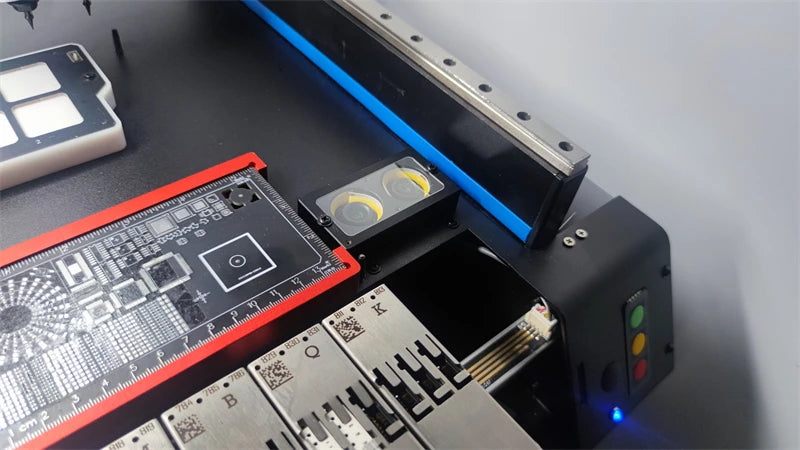

6. Dual Bottom Cameras

Faster speed with up to three cameras on the machine, offering high cost-performance ratio
