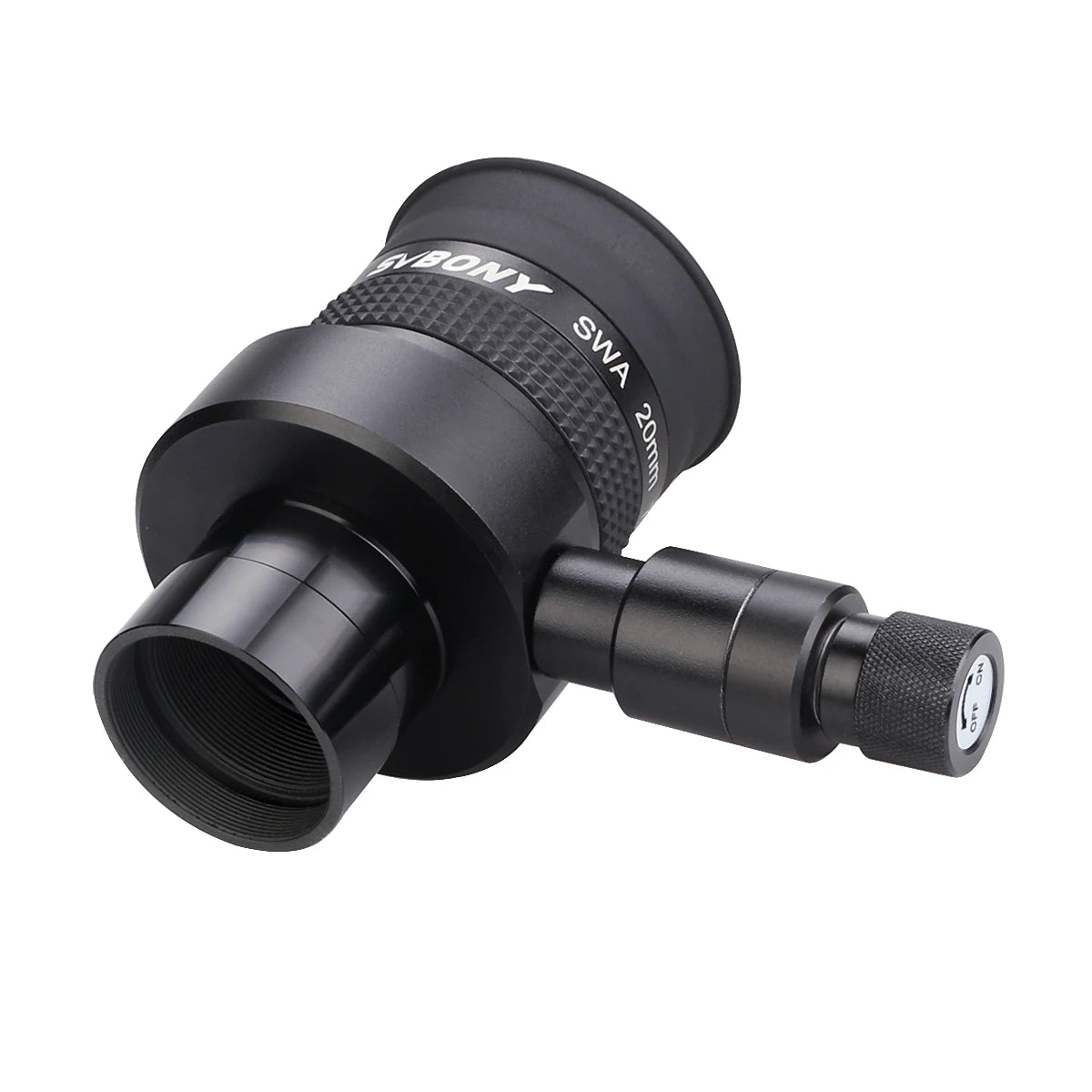

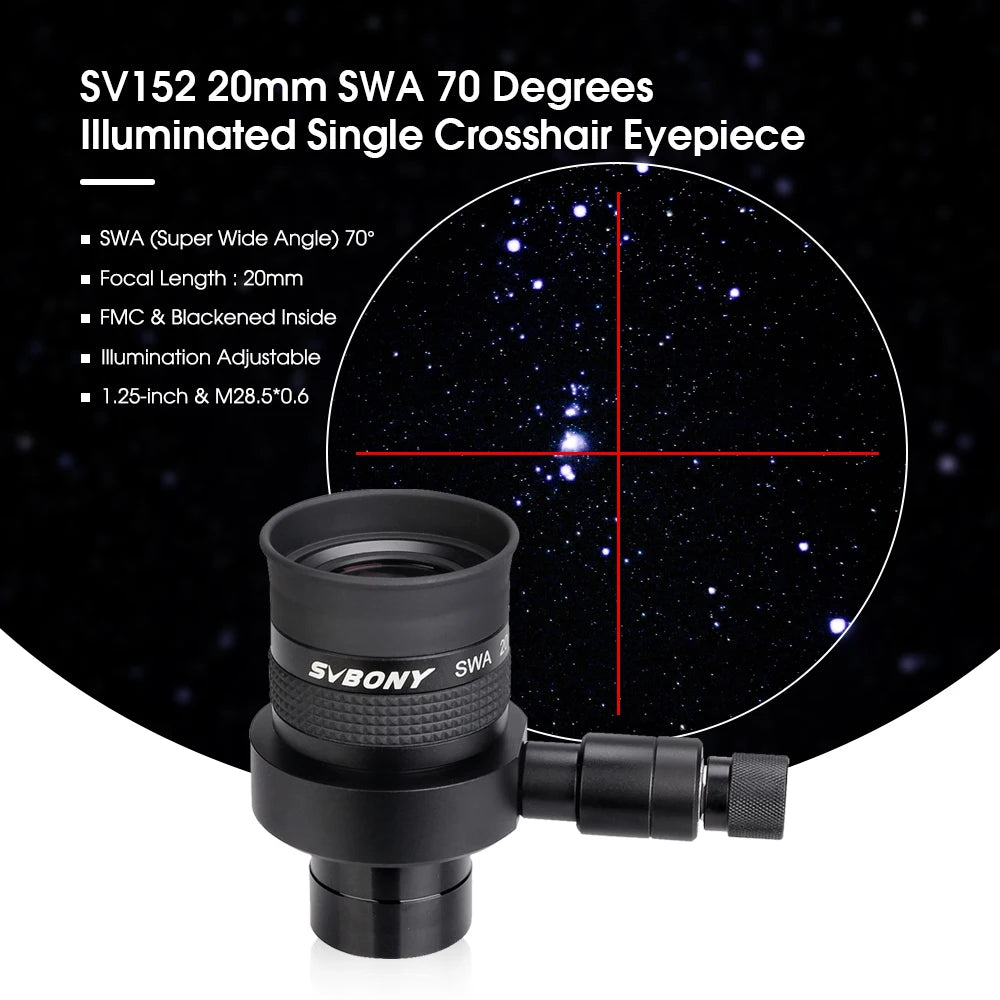

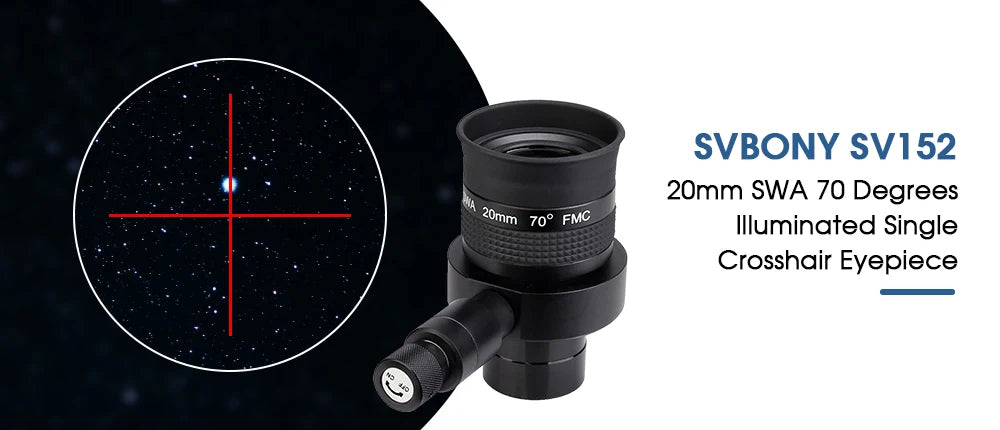

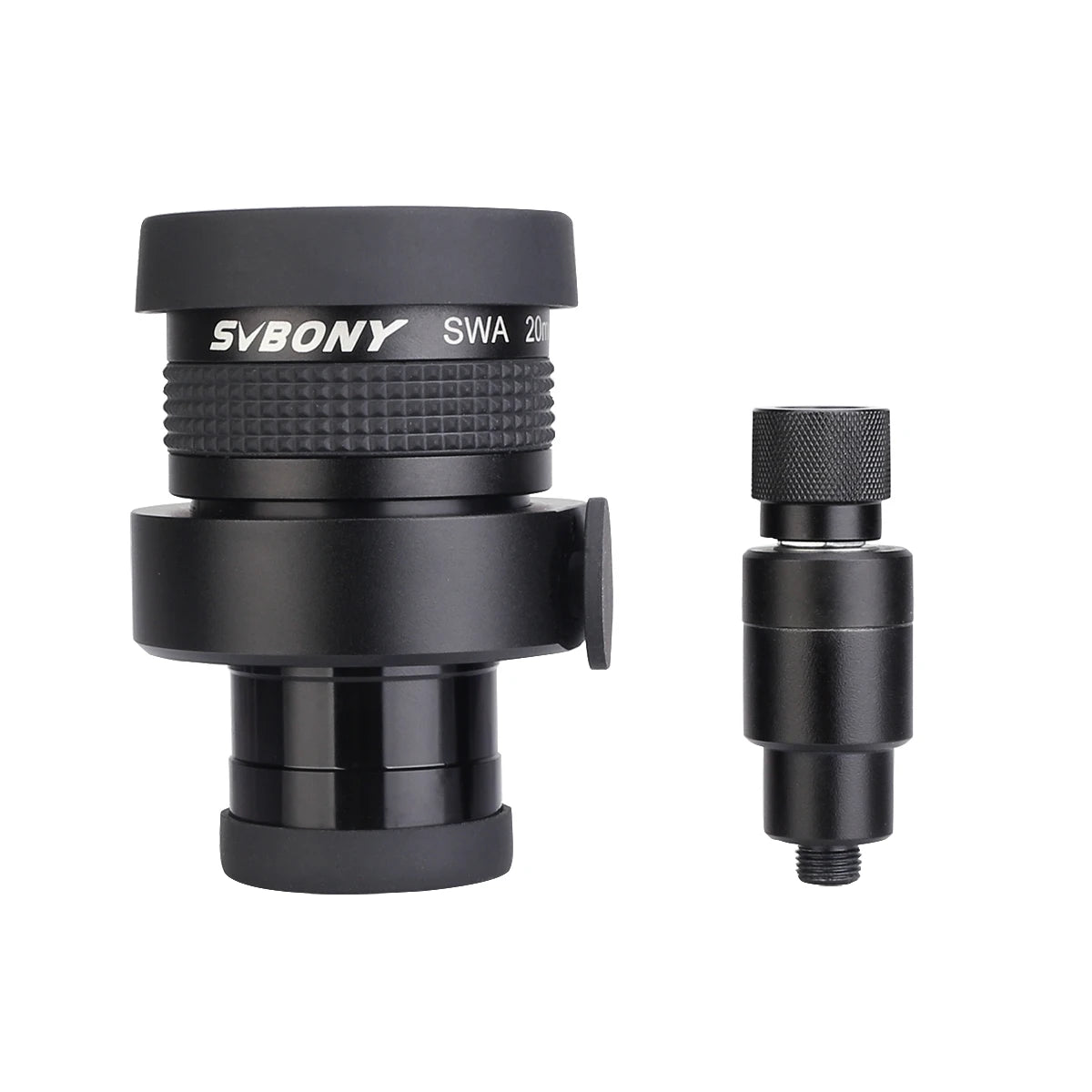

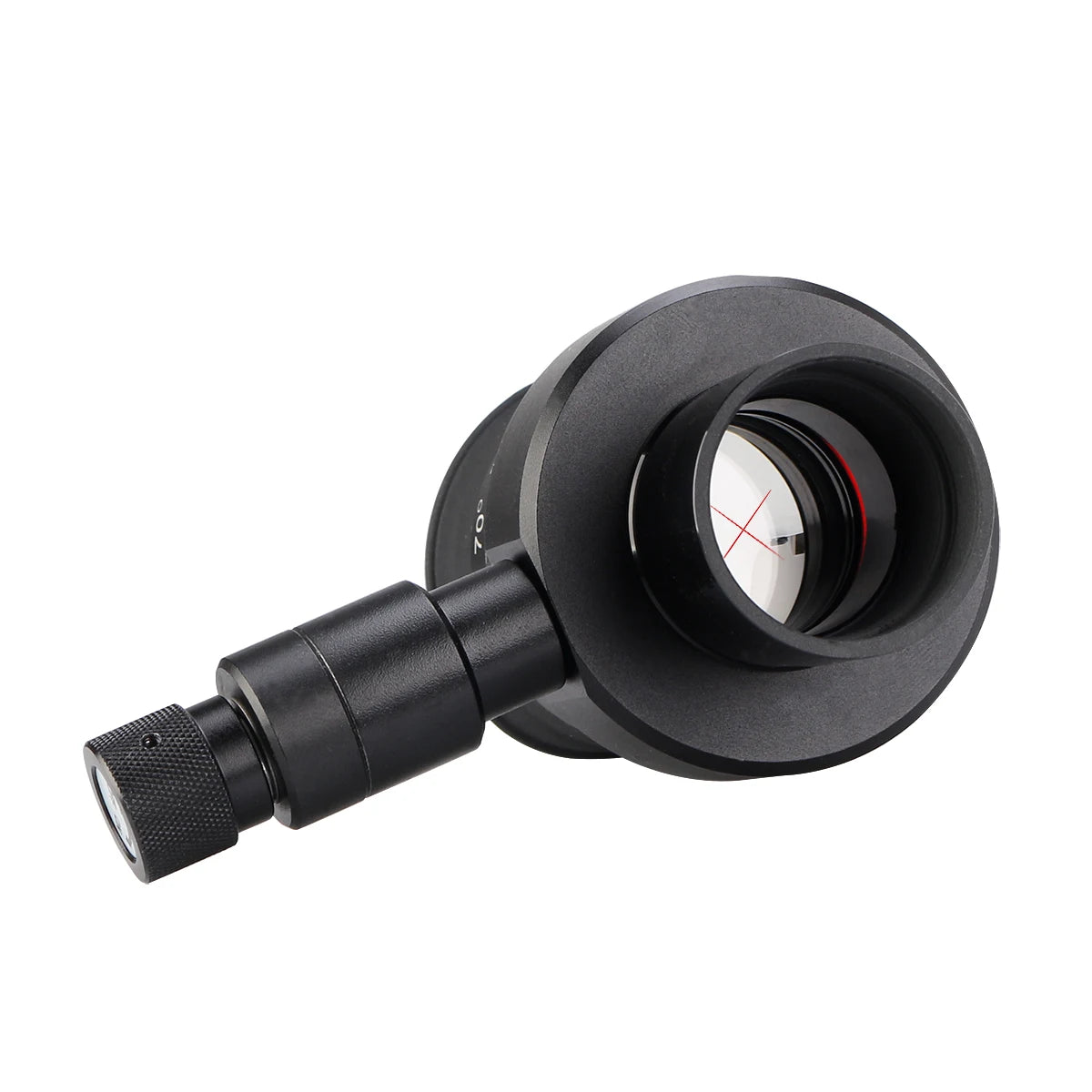

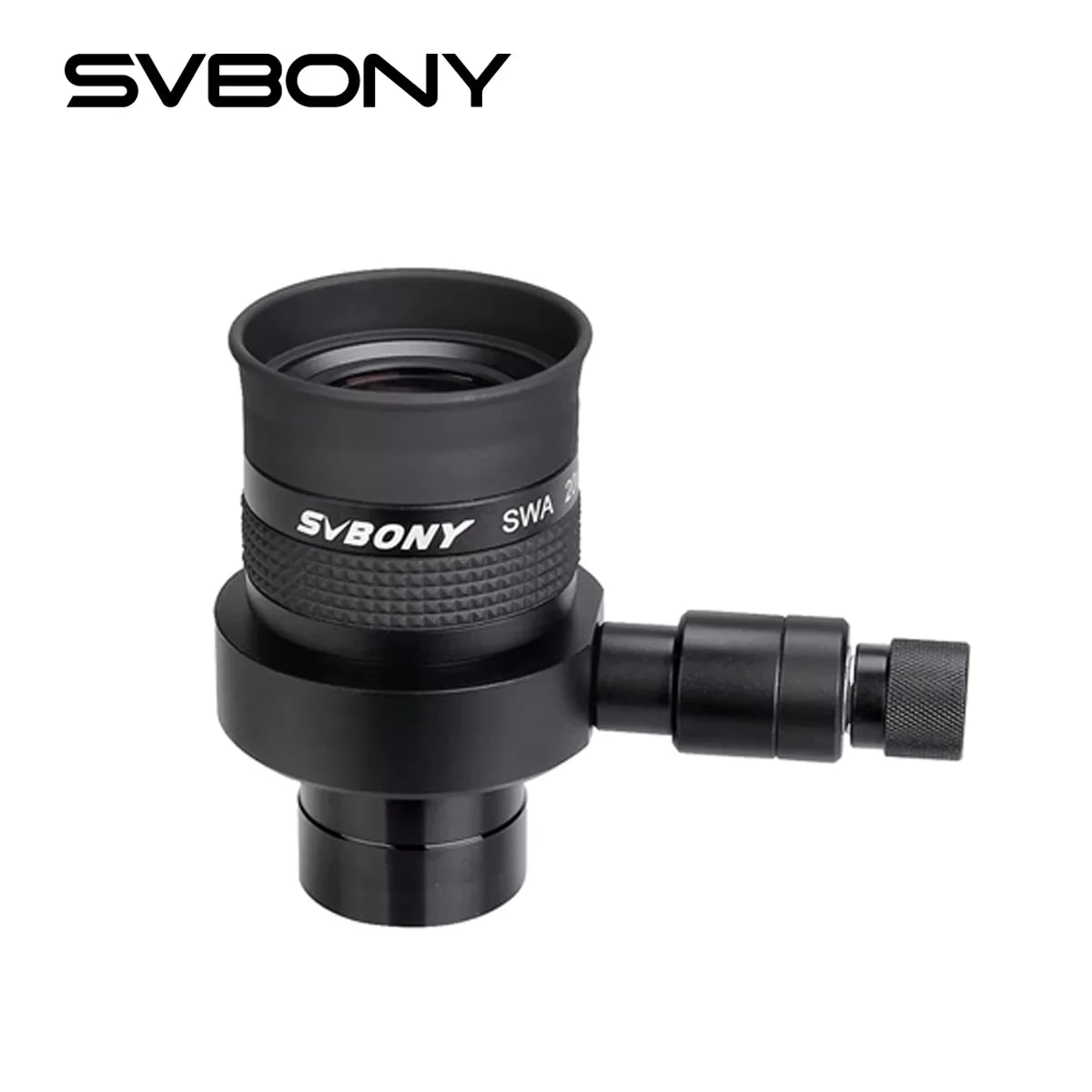

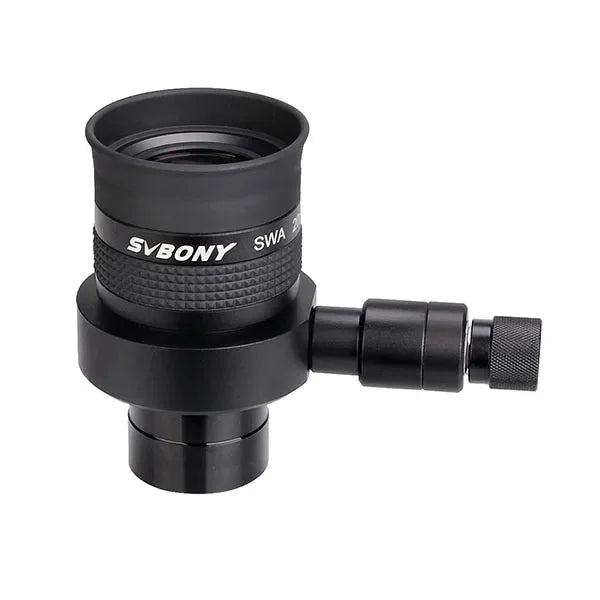

SV152 20mm SWA 70 Degrees Illuminated Single Crosshair Eyepiece

This eyepiece for the following applications:
- setting the exact alignment of the telescope and finder
- polar alignment (by drift method)
- an invaluable aid to centering guide stars and astrophotography target objects
- the perfect eyepiece for alignment of computerized GoTo systems

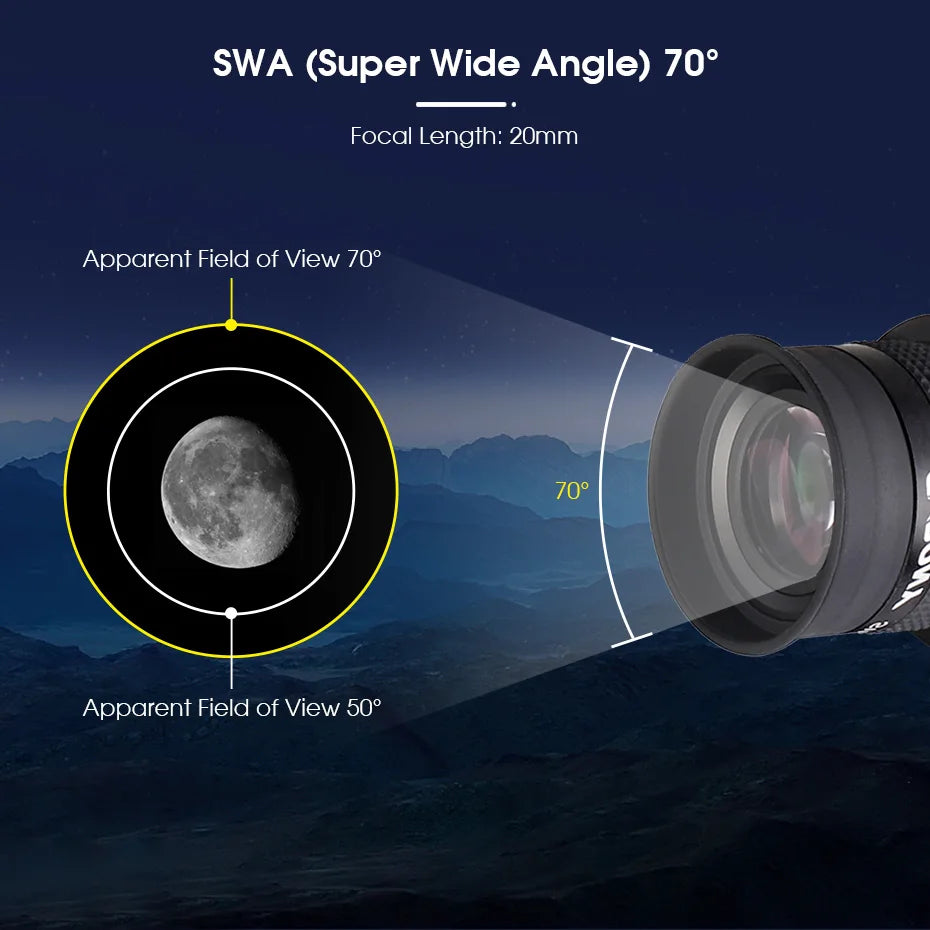

SWA (Super Wide Angle) 70°

The illuminated 1.25” 20mm reticle eyepiece with a 70°apparent field of view, is designed for refining the alignment and pointing accuracy of your goto telescope, helping to find your target star easily and do very precise centering of the alignment stars. And reticle eyepiece is essential for precise polar alignment when doing long exposure astrophotography.

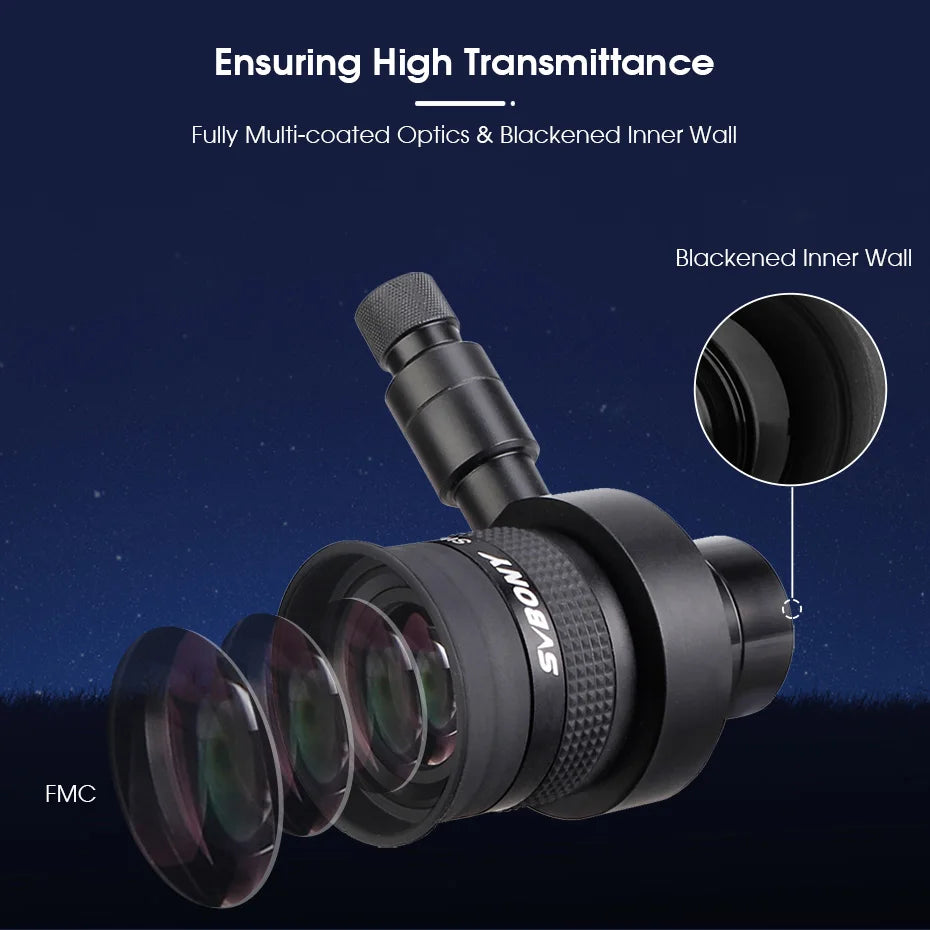

Ensuring High Transmittance

The five-element optical system is fully multi-coated on all air-to-glass surfaces with high transmission anti-reflection coatings, allowing greater optical through-put across the entire visible light spectrum, for bright, crisp views. The edges and the inner wall of the lenses are blackened for high contrast.

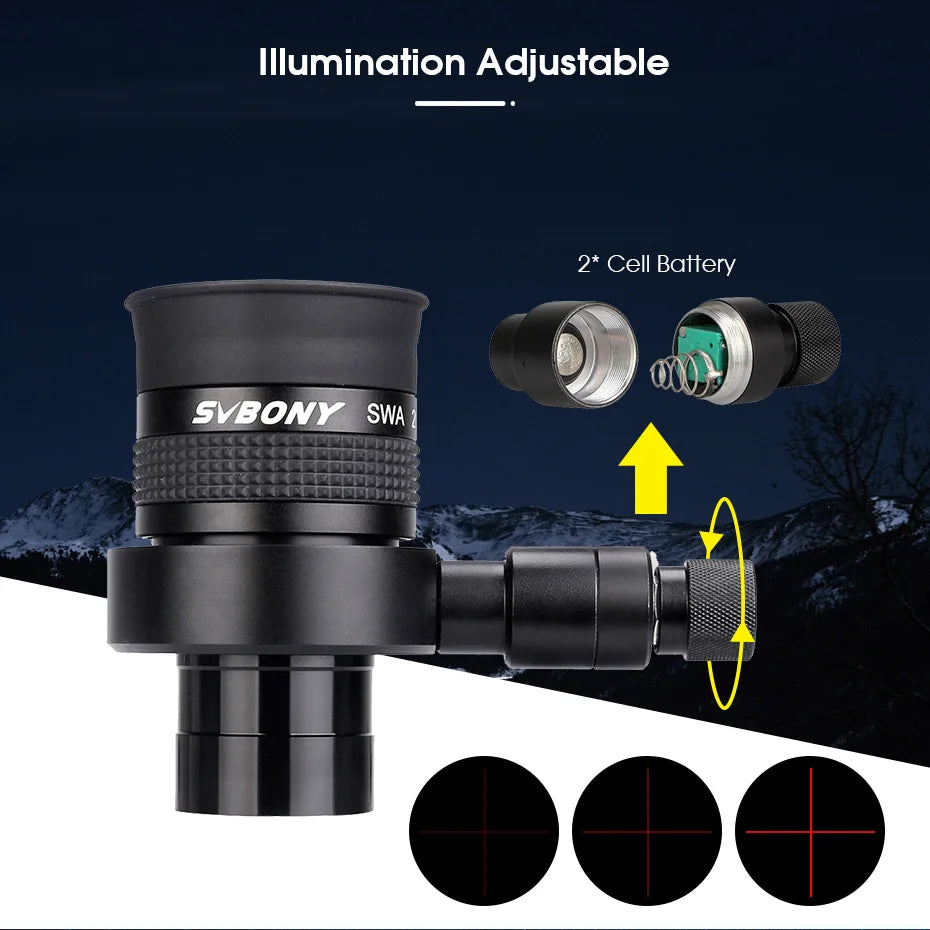

Illumination Adjustable

The crosshair illumination is variable over a very wide range, and gets quite dim at the lower end, so that dimmer stars may be seen. They are also bright enough to use in daylight at the upper end of the range. The crosshairs are narrow and well defined, which helps with precision.

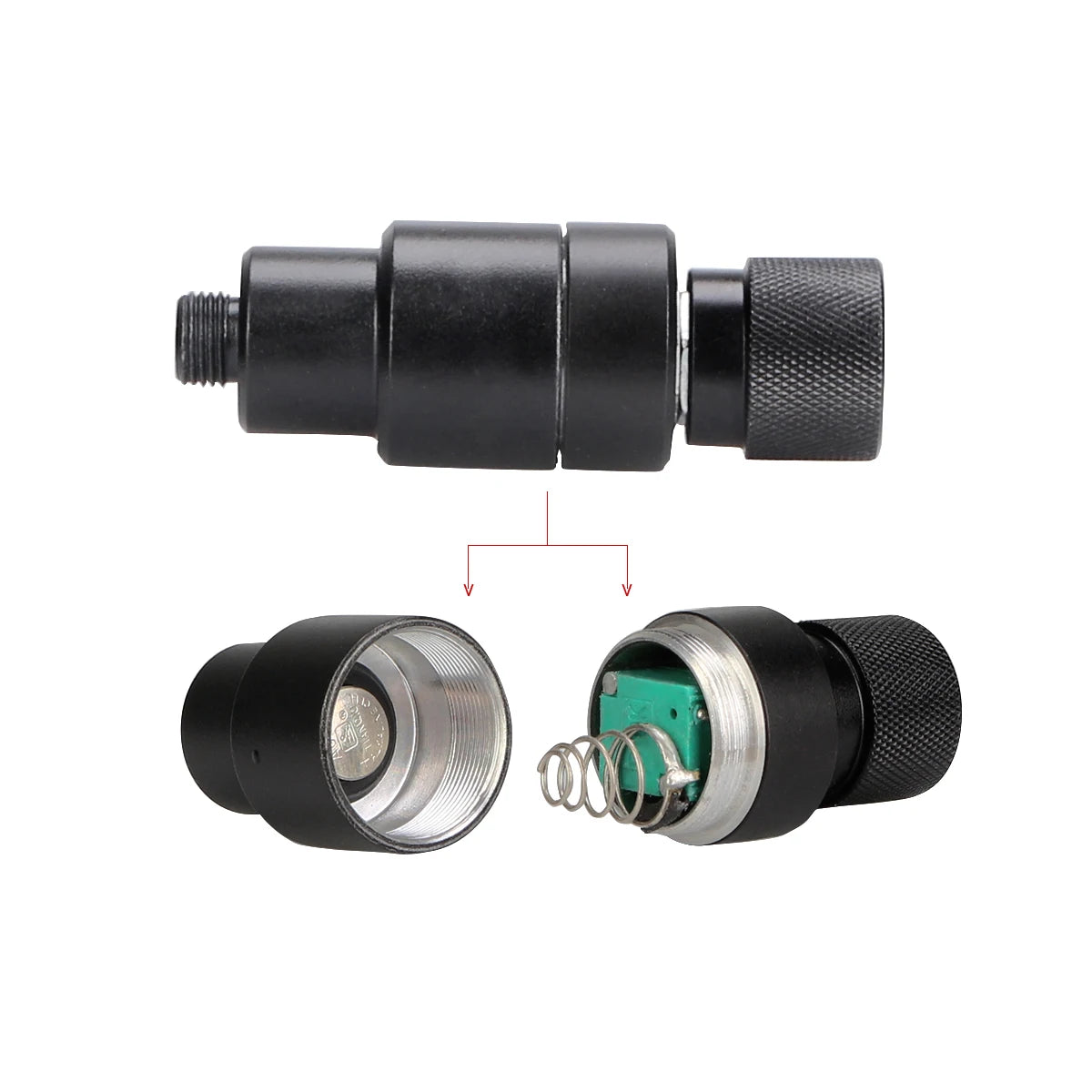

The eyepiece is powered by 2 cell batteries and they are easy to get in the local store when running out.

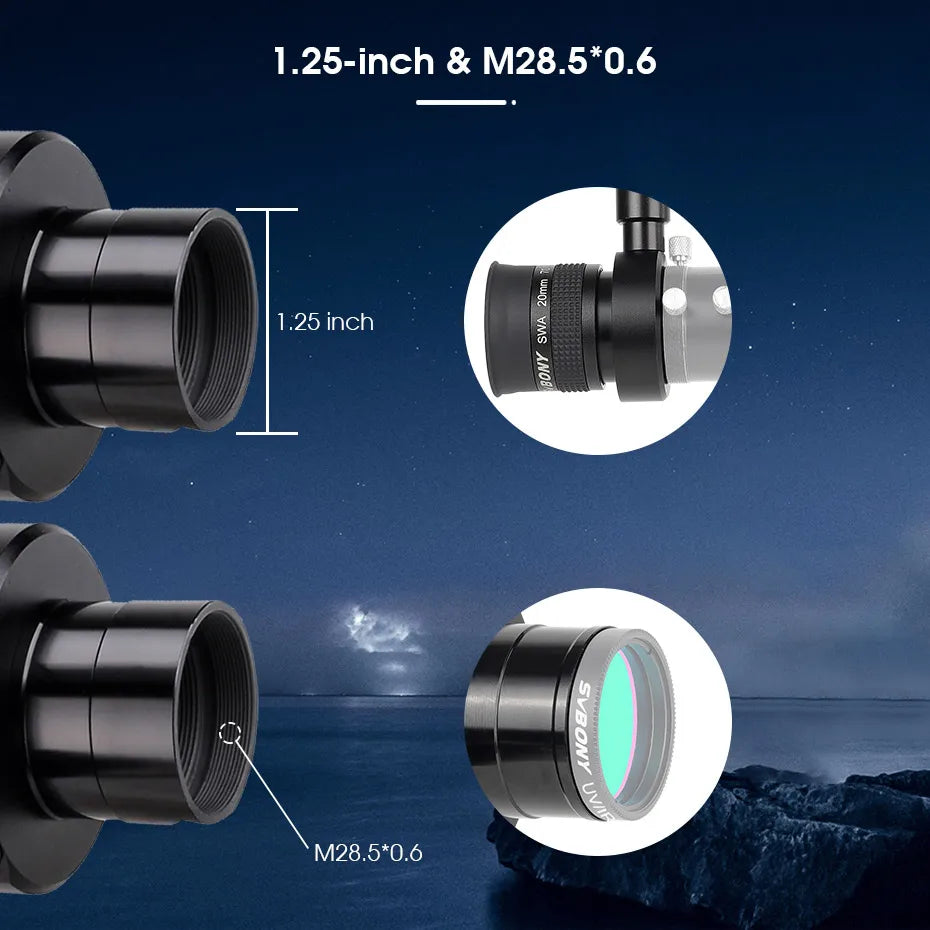

1.25-inch & M28.5*0.6

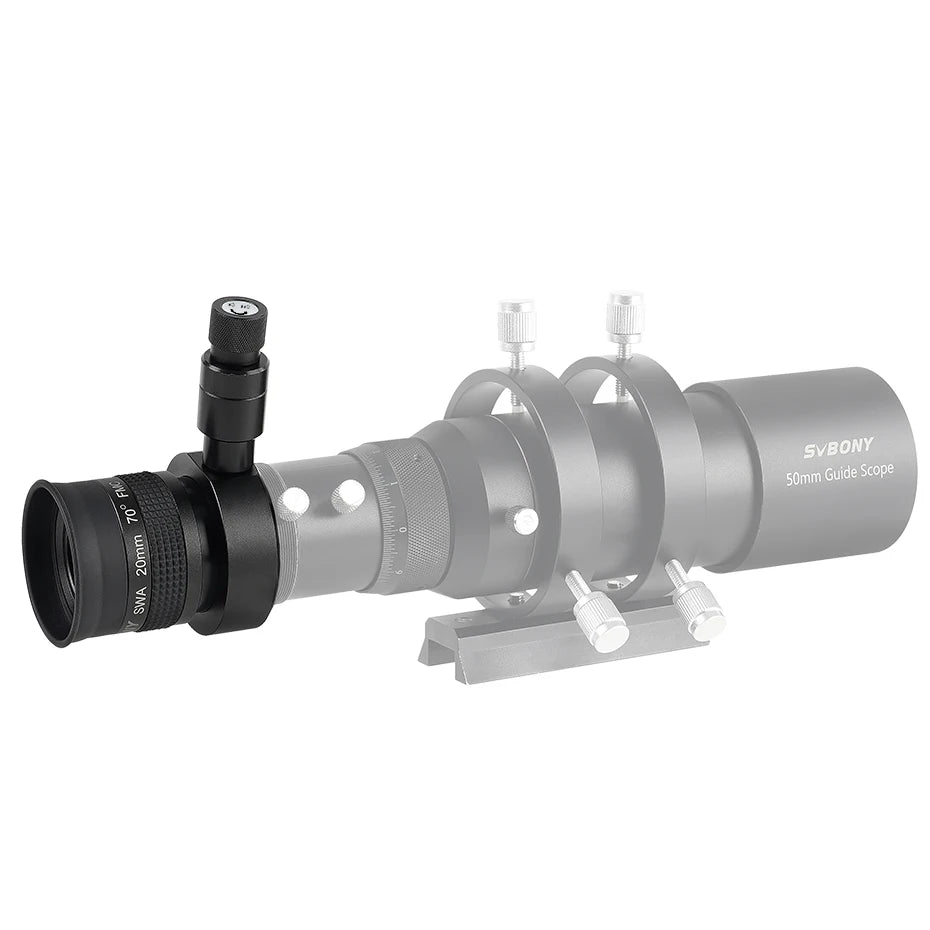

The interface is standard 1.25-inch so that it is available to attach to standard 1.25-inch guiding scope.
The M28.5*0.6 threads are for standard 1.25-inch filter.

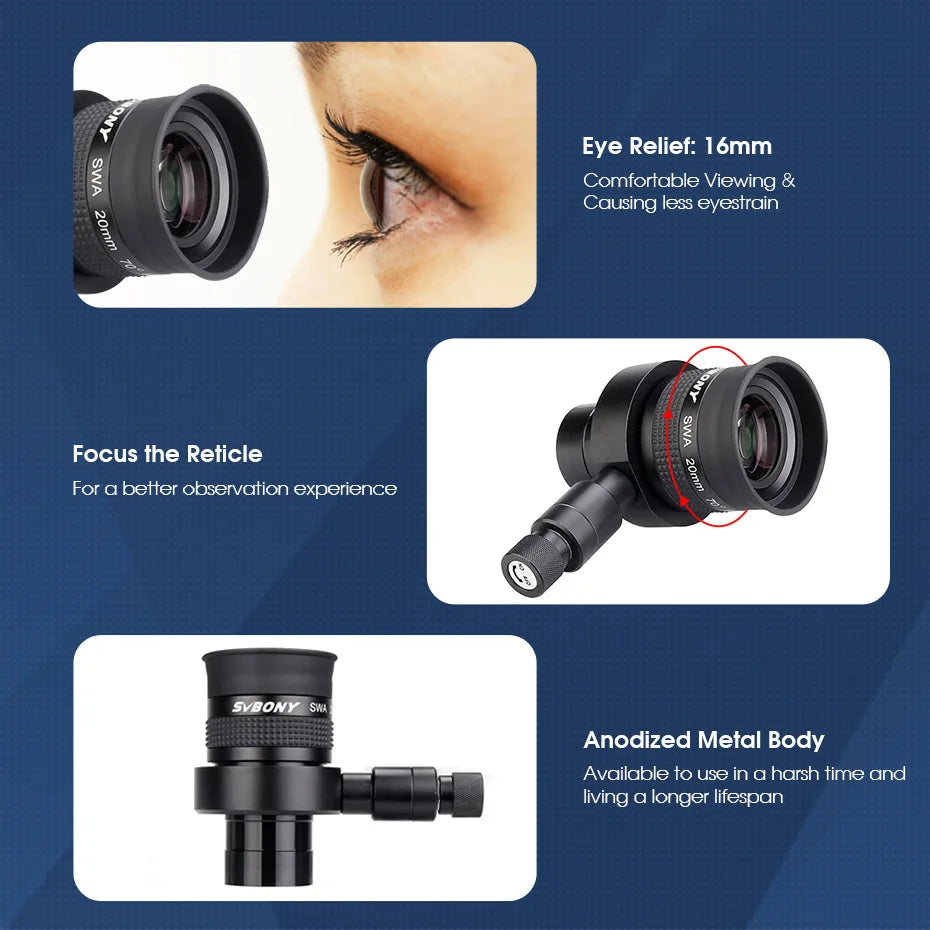

Eye Relief: 16mm;Focus the Reticle;Anodized Metal Body

Comfortable Viewing & Causing less eyestrain
For a better observation experience
Available to use in a harsh time and living a longer lifespan

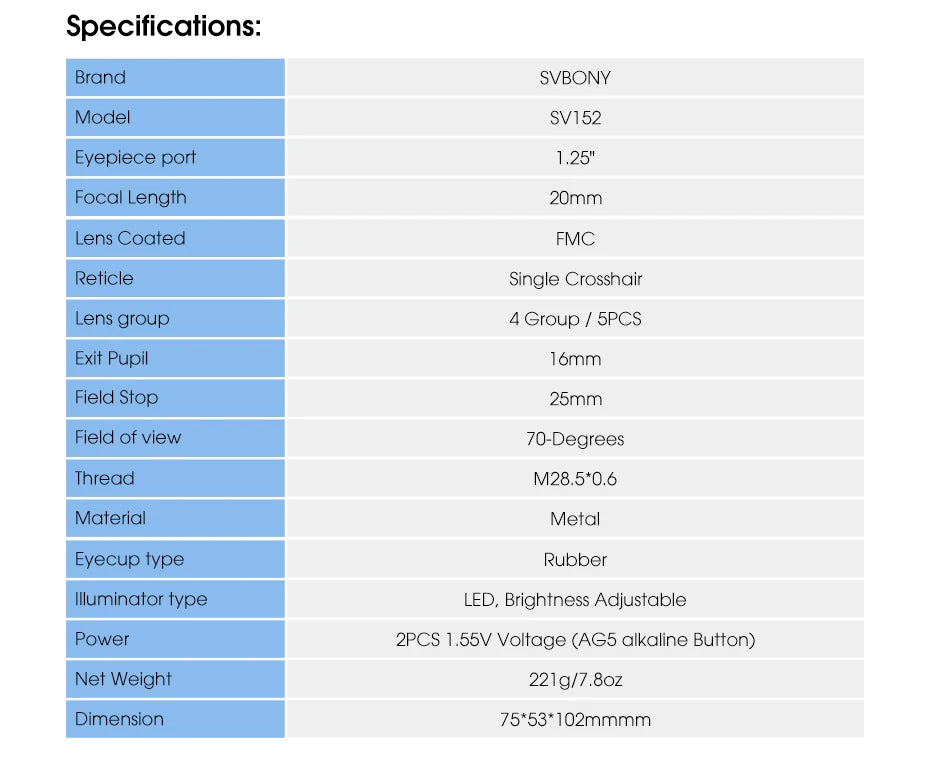

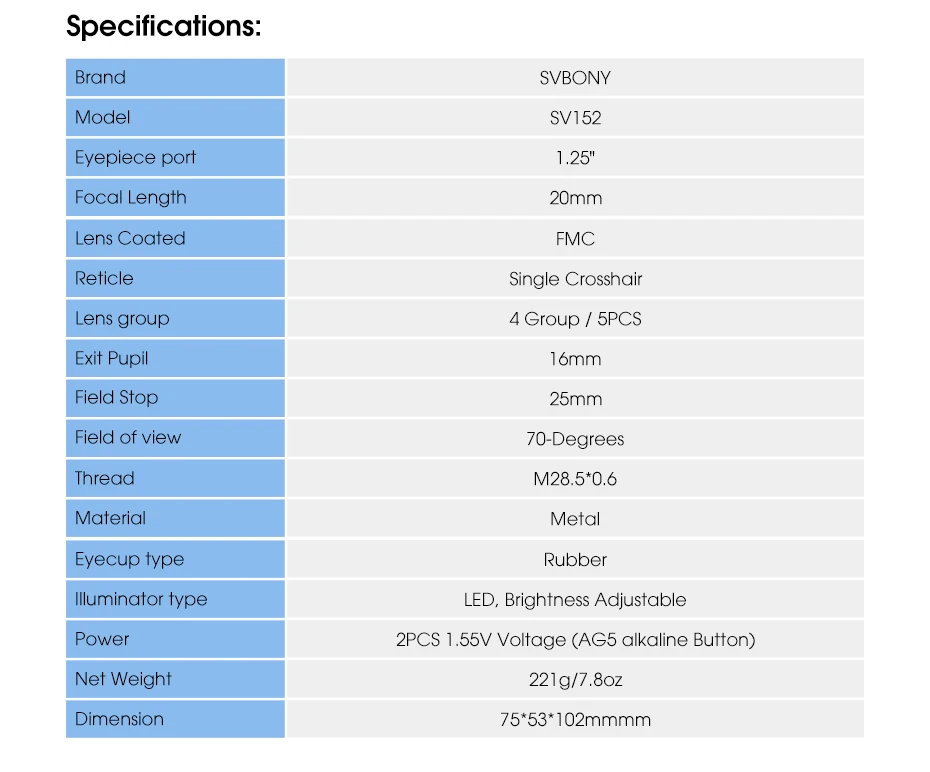

Specifications:

1.Brand: SVBONY
2.Model: SV152
3.Eyepiece port: 1.25"
4.Focal length: 20mm
5.Lens Coated: FMC
6.Reticle: Single Crosshair
7.Lens group: 4 Group / 5PCS
8.Exit Pupil: 16mm
9.Field of view: 70-Degrees
10.Field Stop: 25mm
11.Thread: M28.5*0.6
12.Material: Metal
13.Eyecup type: Rubber
14.Illuminator type: LED, Brightness Adjustable
15.Power: 2PCS 1.55V Voltage (AG5 alkaline Button)
16.Net Weight: 221g/7.8oz
17.Dimension: 75*53*102mmmm

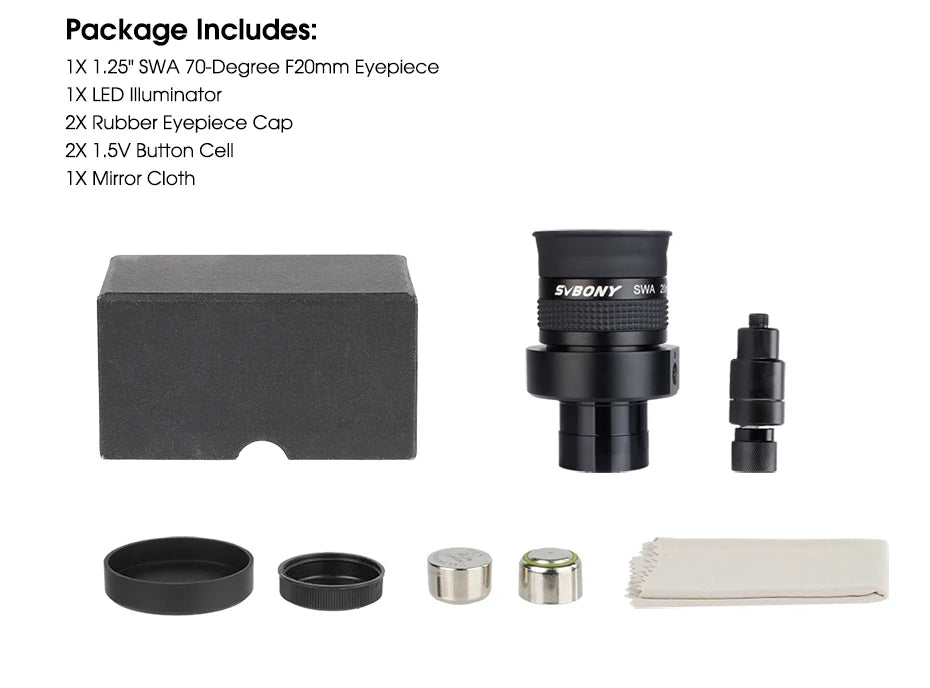

Package Includes:

1X 1.25" SWA 70-Degree F20mm Eyepiece

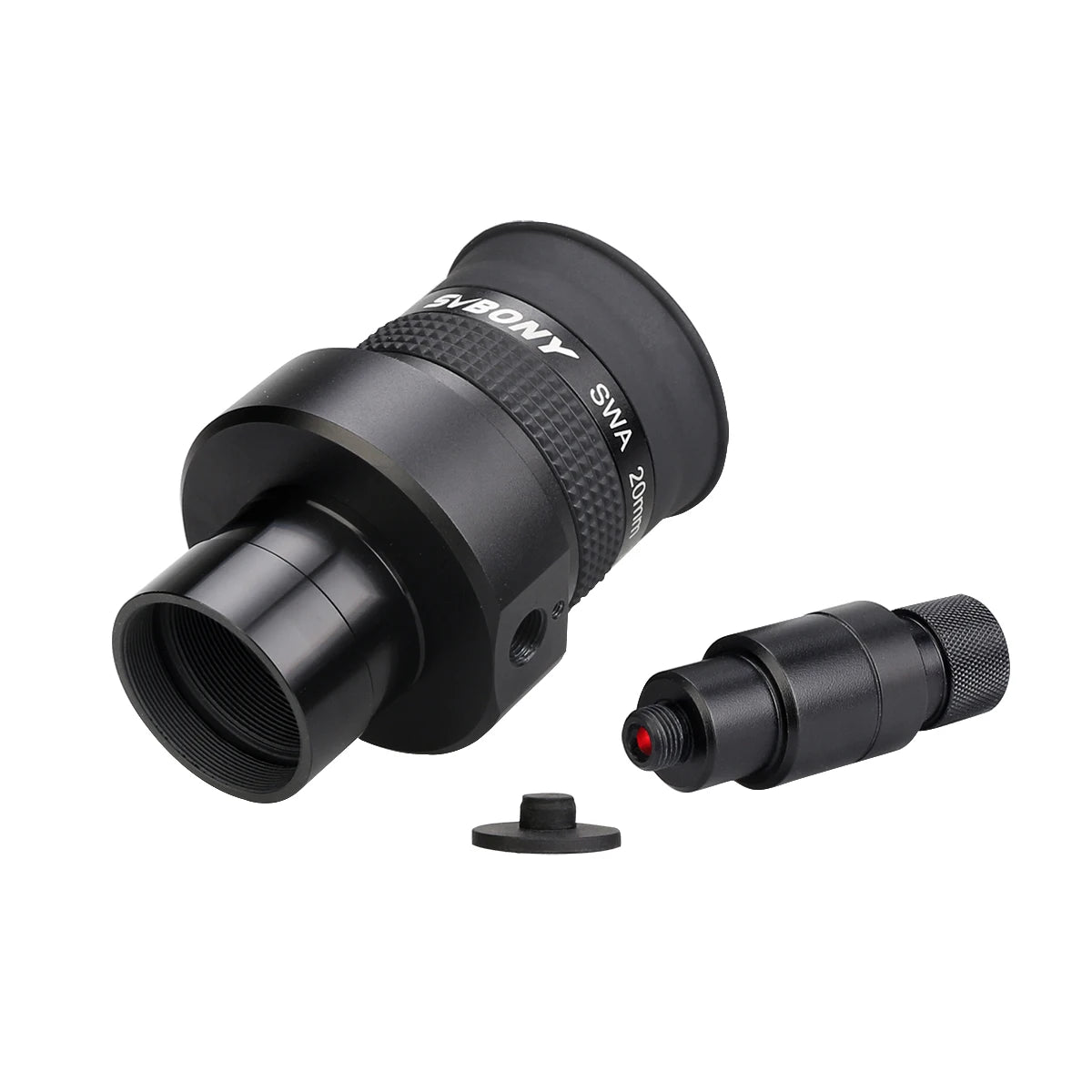

1X LED Illuminator
2X Rubber Eyepiece Cap
2X 1.5V Button Cell
1X Mirror Cloth
