Introduction

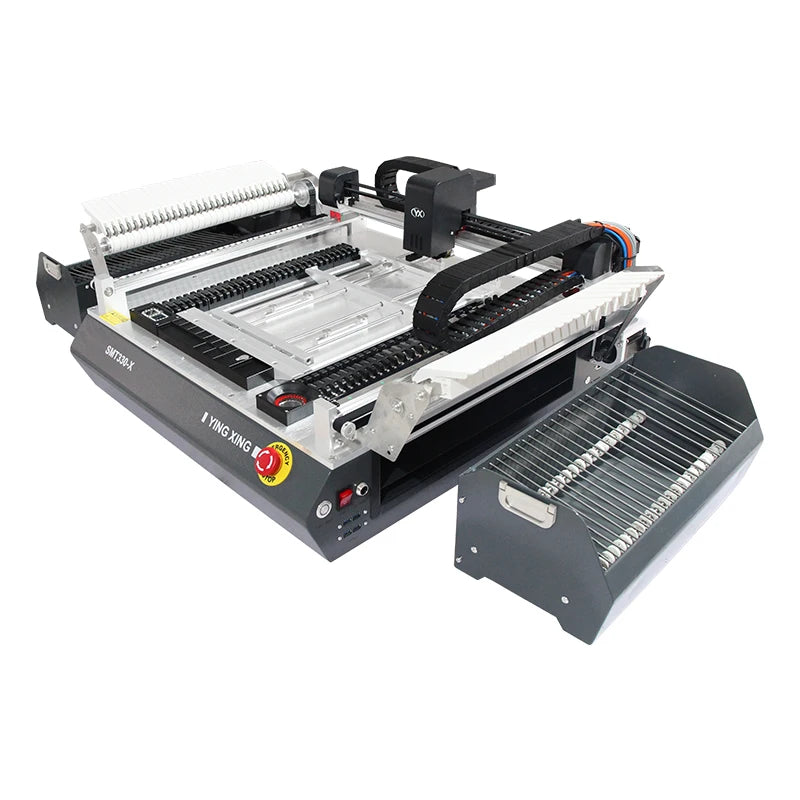

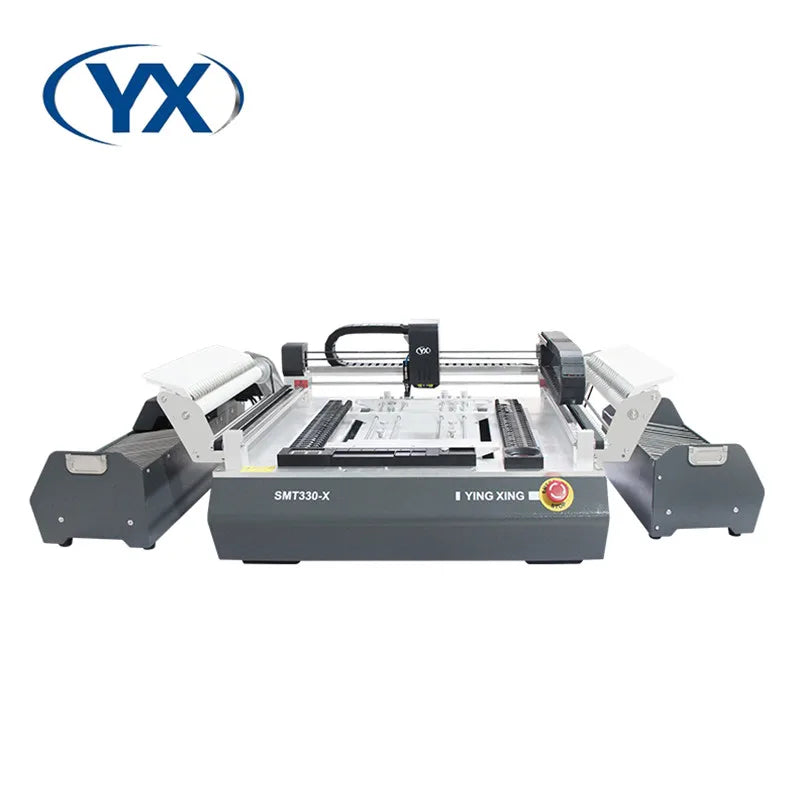

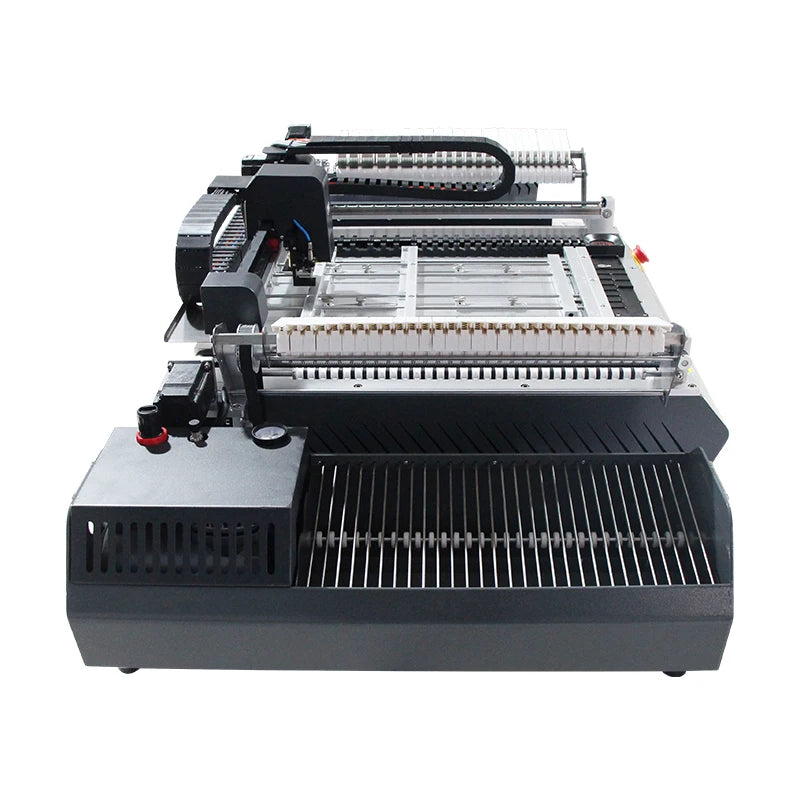

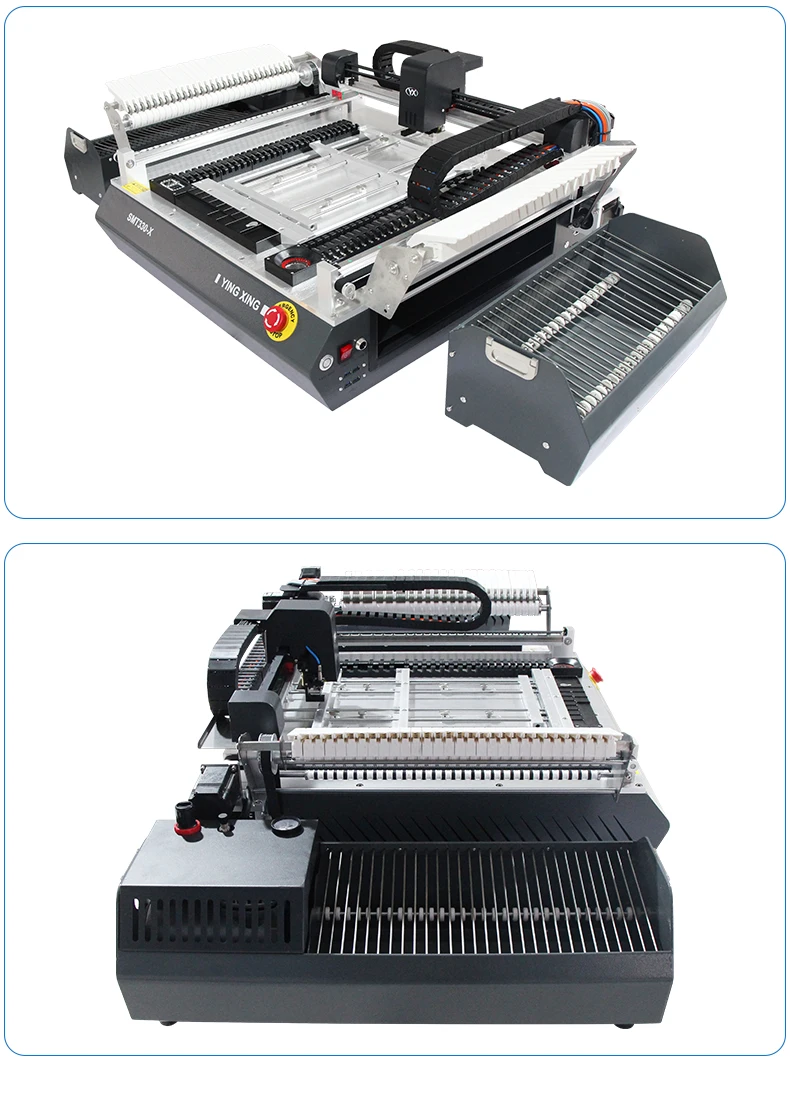

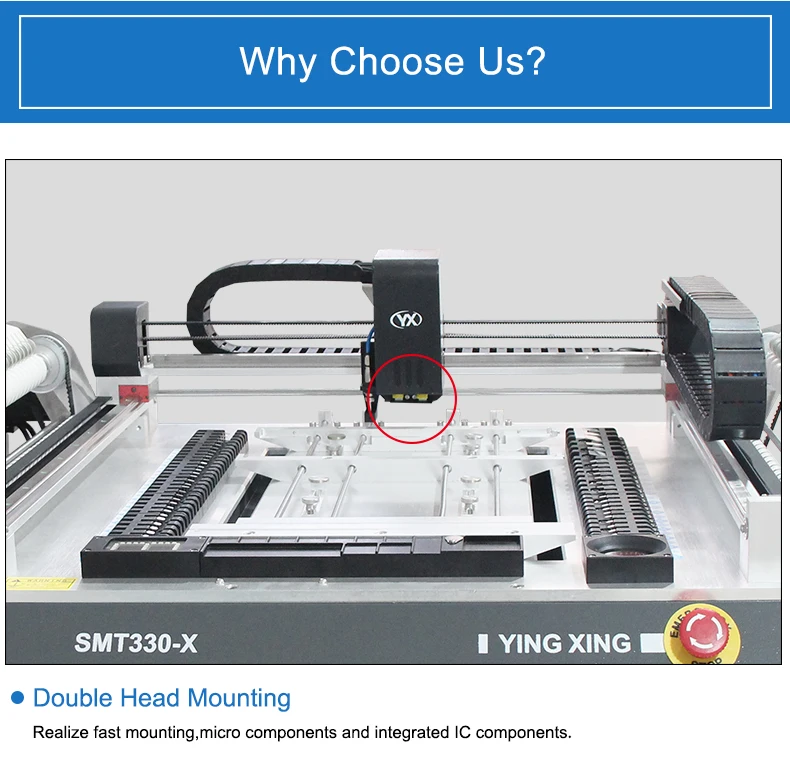

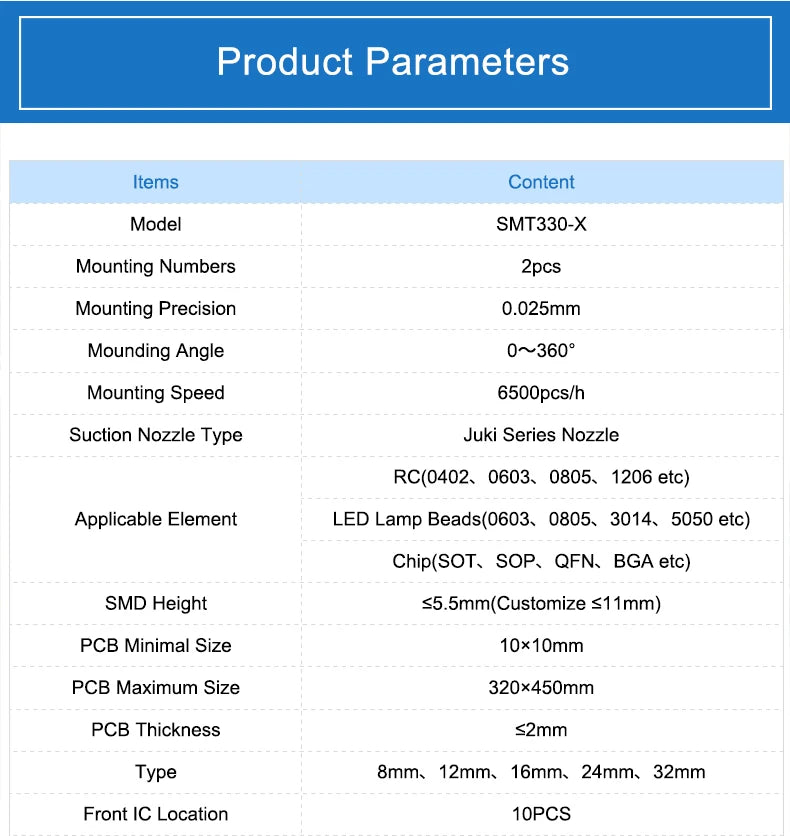

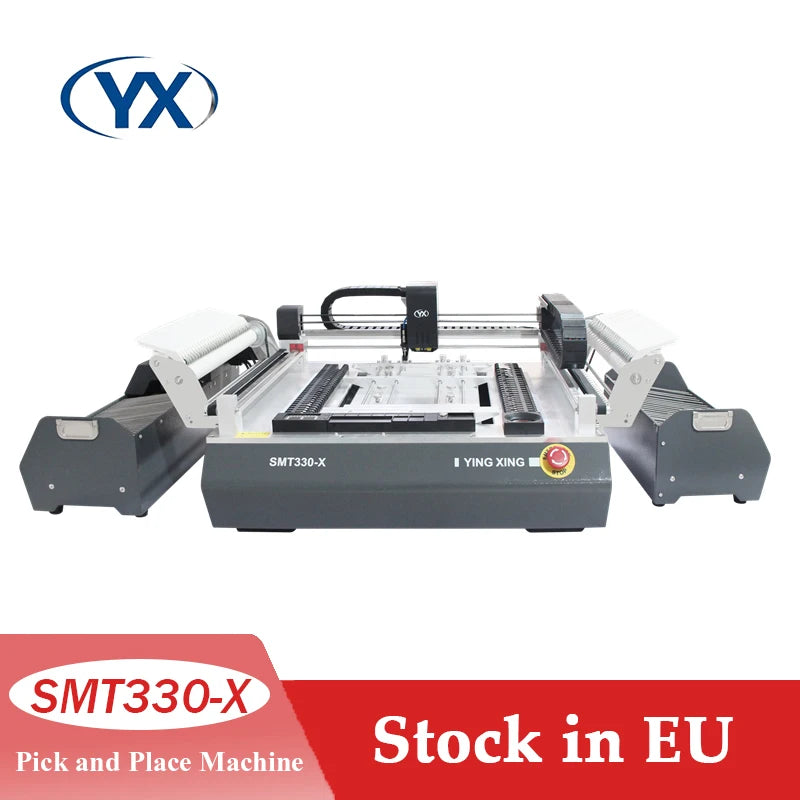

The SMT330-X series mounter with 2heads ,can pick and place at the same time. Independent 54 feeder station, 19" display, multiple sets of high resolution CCD industry dual camera vision.The transmission mechanism is equipped with high precision synchronous belt.and Linear Guideway, stepping servo motor.support CSV.document edit.Maximum PCB 320*450mm, suit for general resistance capacity LED lamp bead and IC components easy operation.

This machine is designed for small amount PCB production like R&D design,experimental teaching etc.

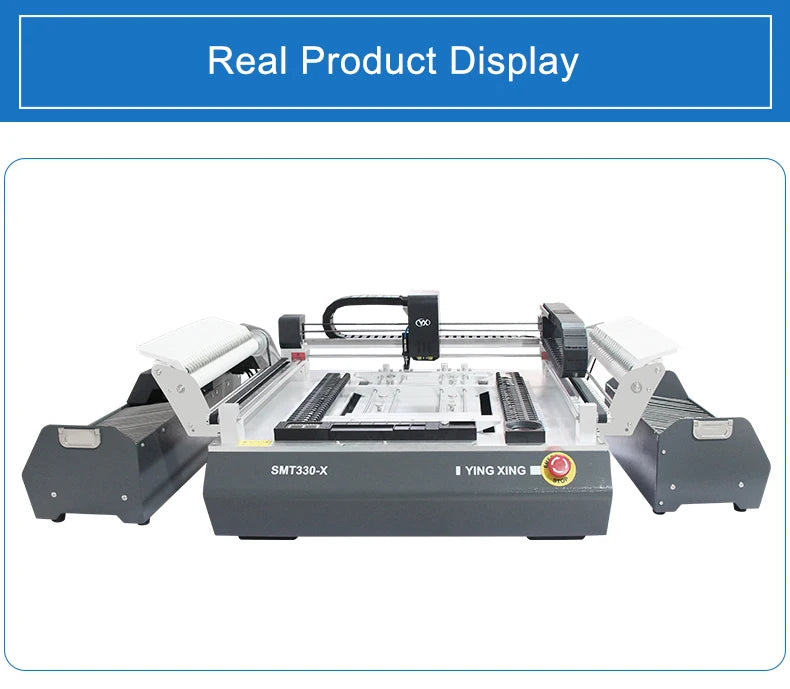

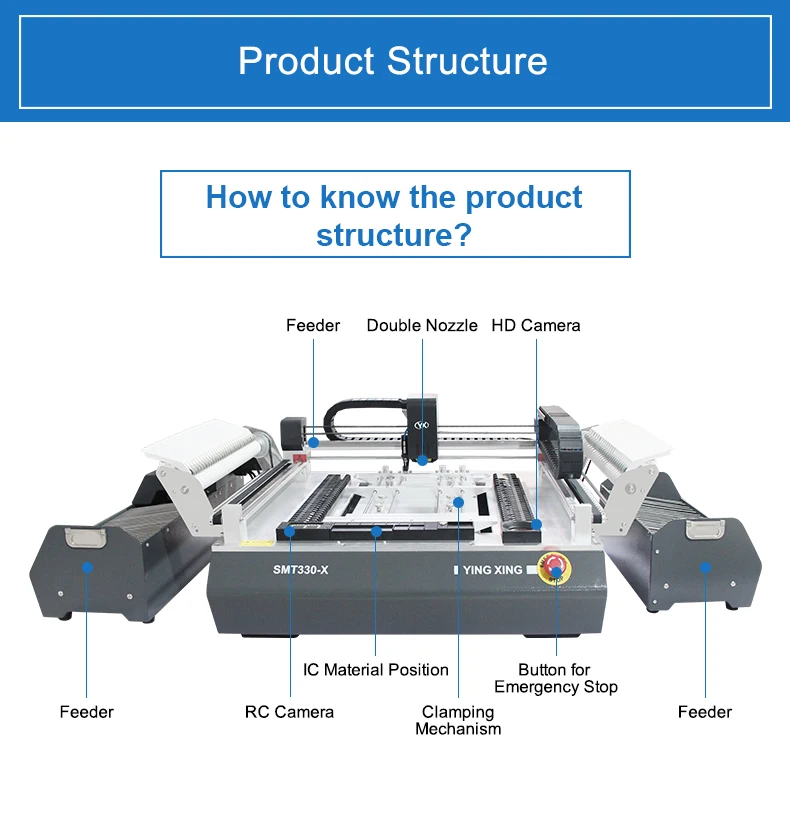

The machine SMT330-X with the 4 cameras+stepping servo motor+54pcs feeders.

Feature

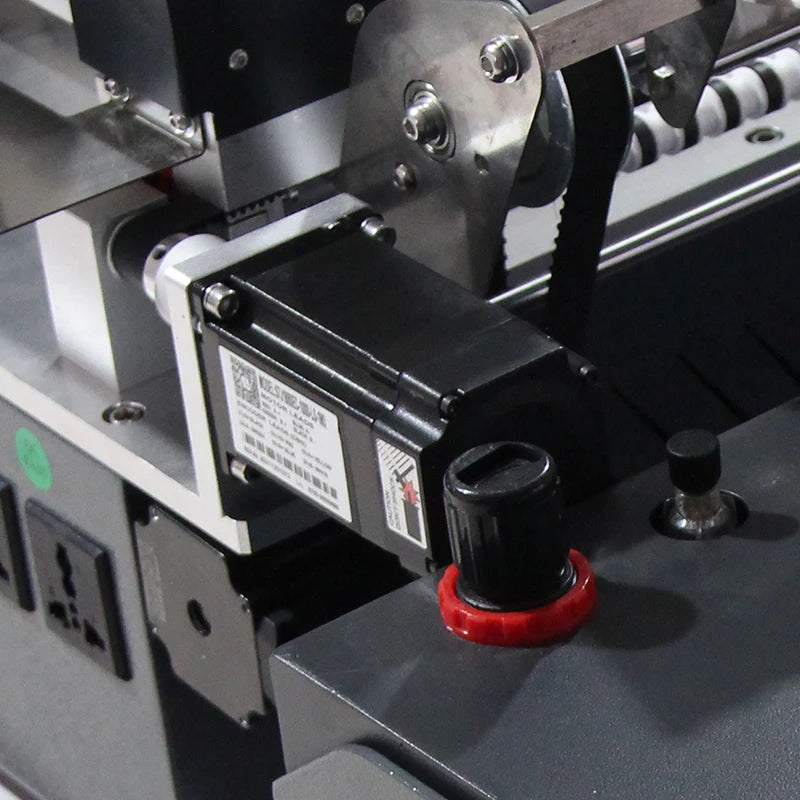

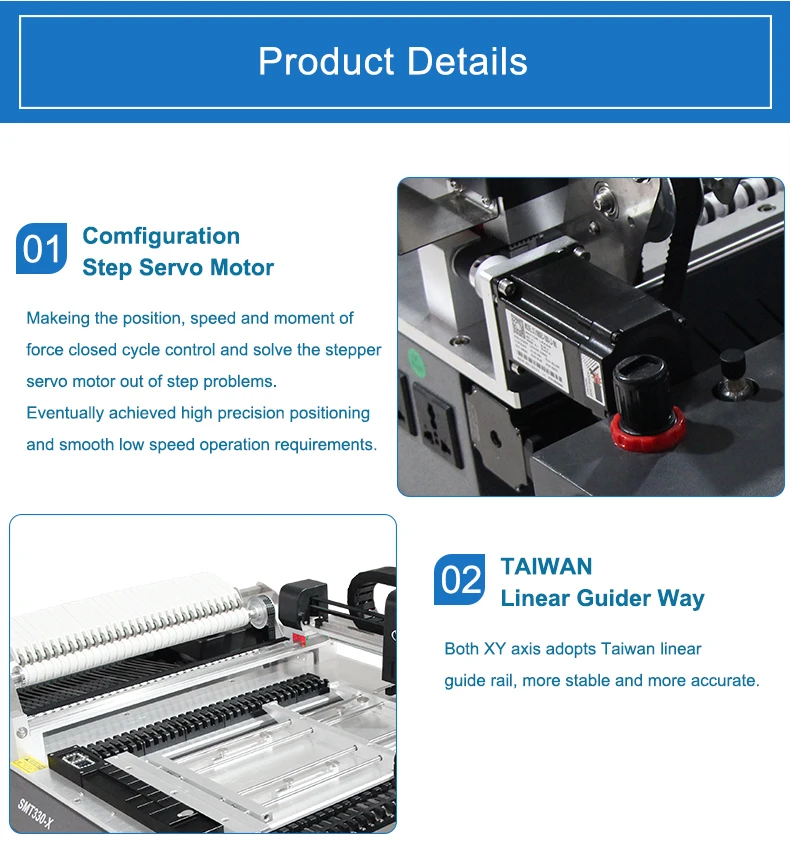

1. Configuration Step Servo Motor.

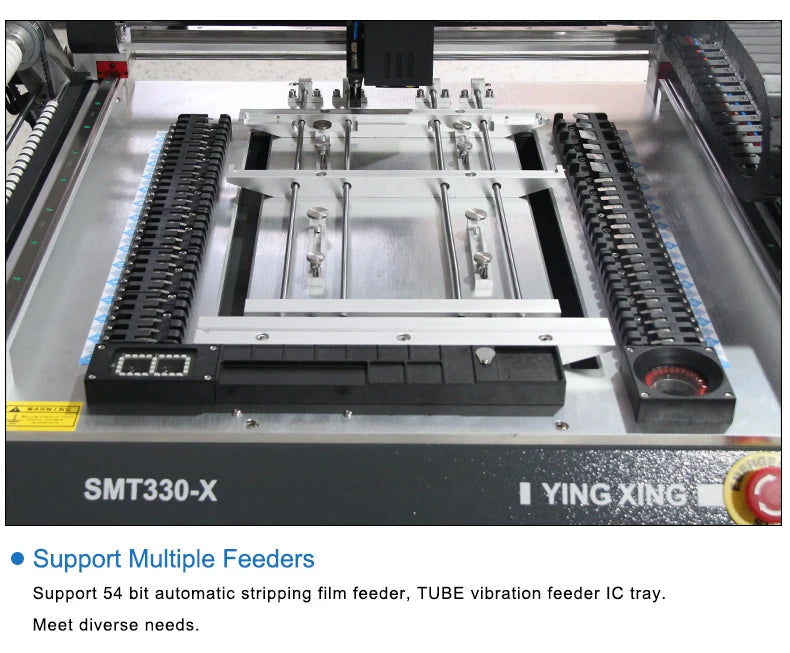

2. Support Multiple Feeders.

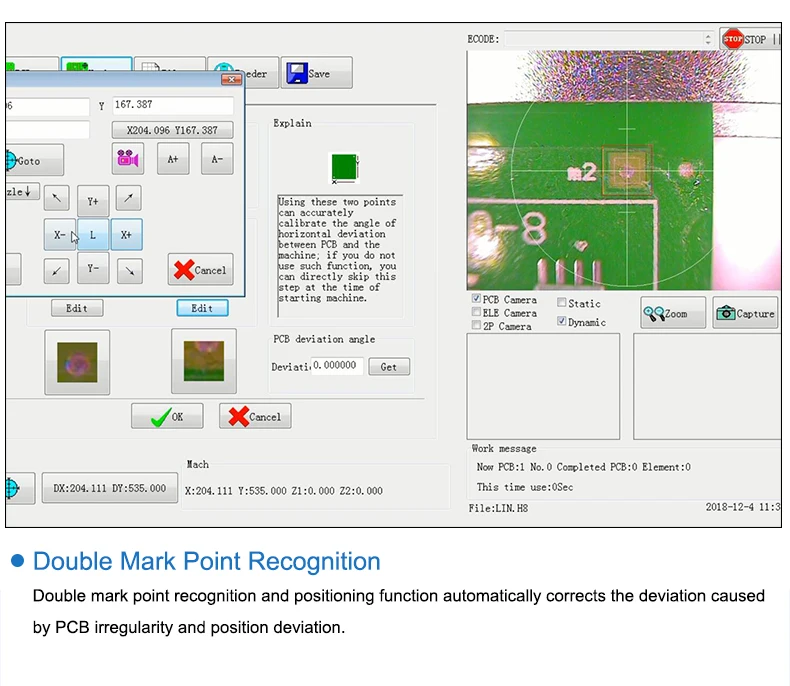

3. Double Mark Point Recognition.

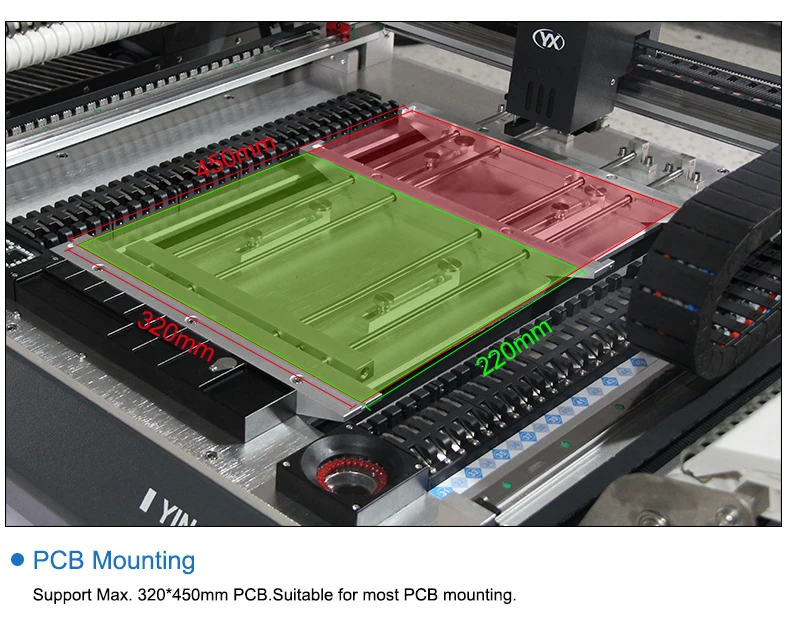

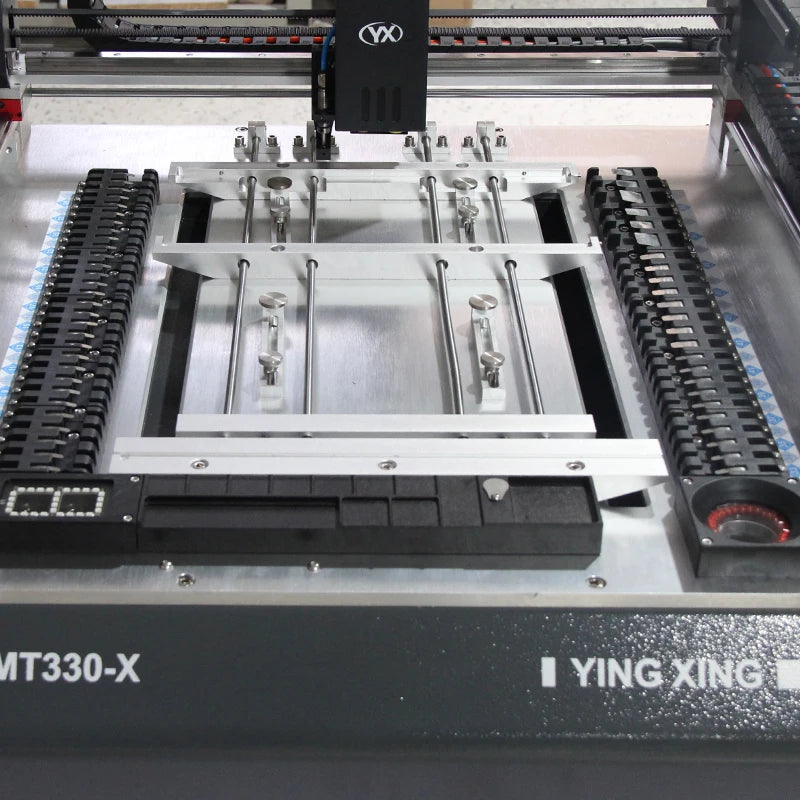

4. PCB Mounting:320*450mm PCB Support.

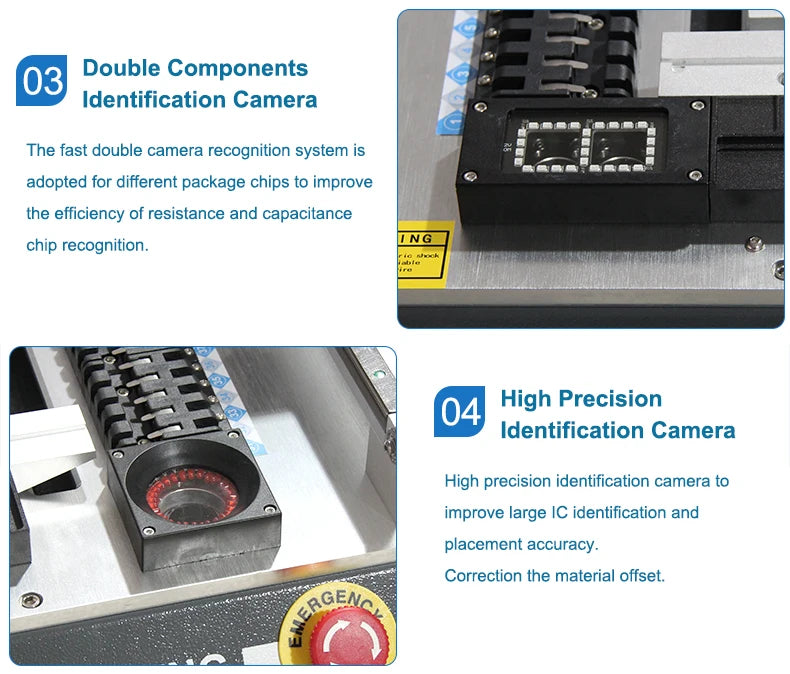

5. Double Components Identification.

6.High Precision Identification Camera.

7.5500pcs/h Mounting.

8.TAIWAN Import Linear Guider Way.

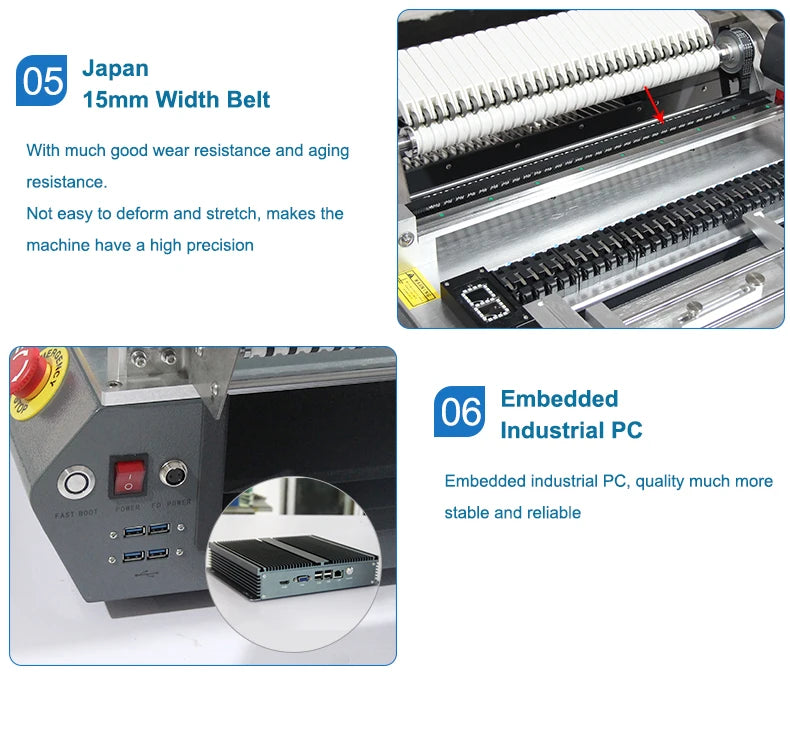

9.Drive Belt.

10.Automactic Stripping Film Feeder.

11.Patented Bilateral Feed System.

Part list

1.Pick and place machine SMT330-X:1 set

2.Feeder location feeder no.27pcs:2 set

3.Display 19":1pcs

4.Keyboard :1pcs

5.Mouse :1pcs

6.Power cord:1pcs

7.Nozzle 502-506:each 5pcs.

8.Manual:1pcs

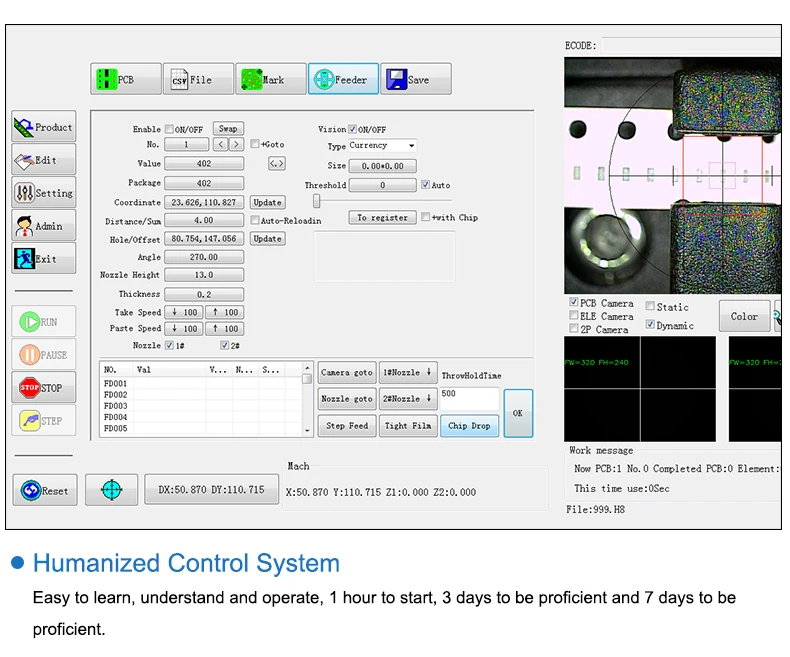

The mahcine software was developed by ourselves. The software is available in English. And our software will be updated, as soon as there is an update, the salesman will send new software to your mailbox.

The mahcine machine has one year warranty, lifetime maintenance. We have a professional after-sales team. As long as there is a problem with the machine within one year after purchase, we will repair it for free. If there is a need to replace the accessories, we will send them to your hands for free.(Generally we use TNT/DHL. 3-5 business days to your hands).
