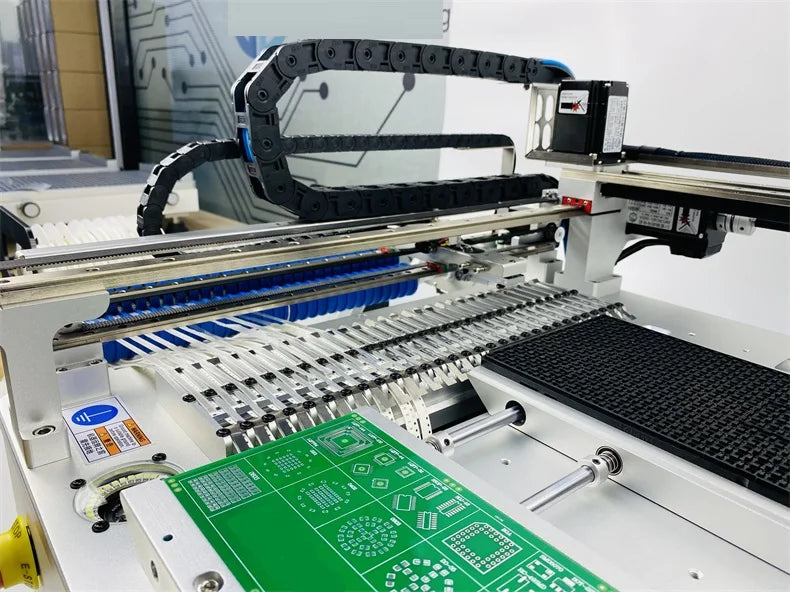

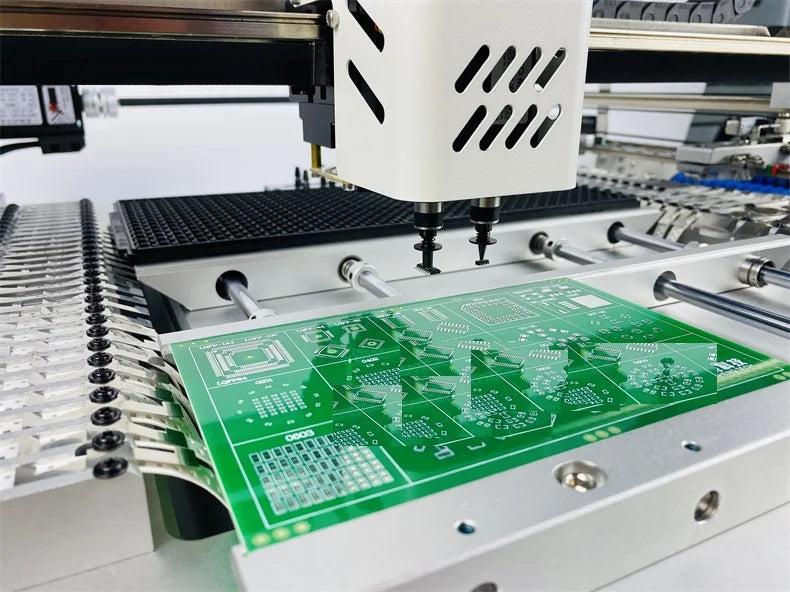

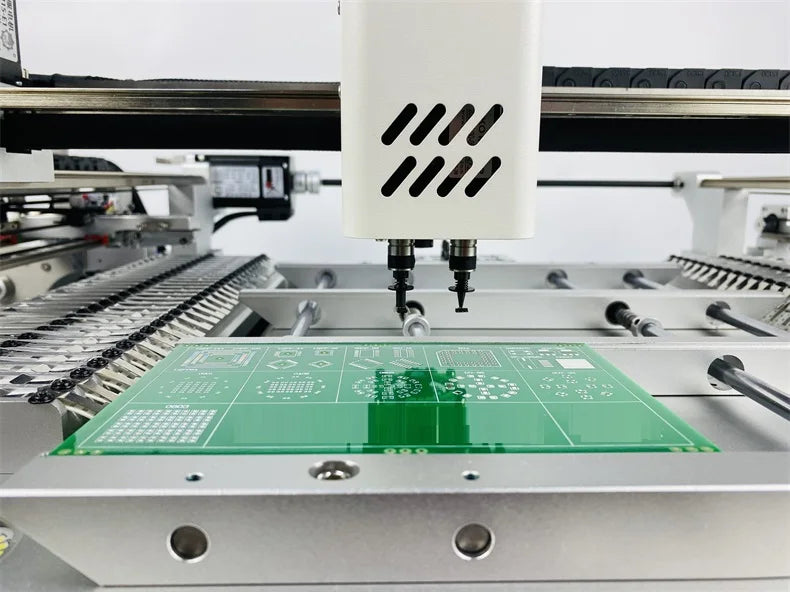

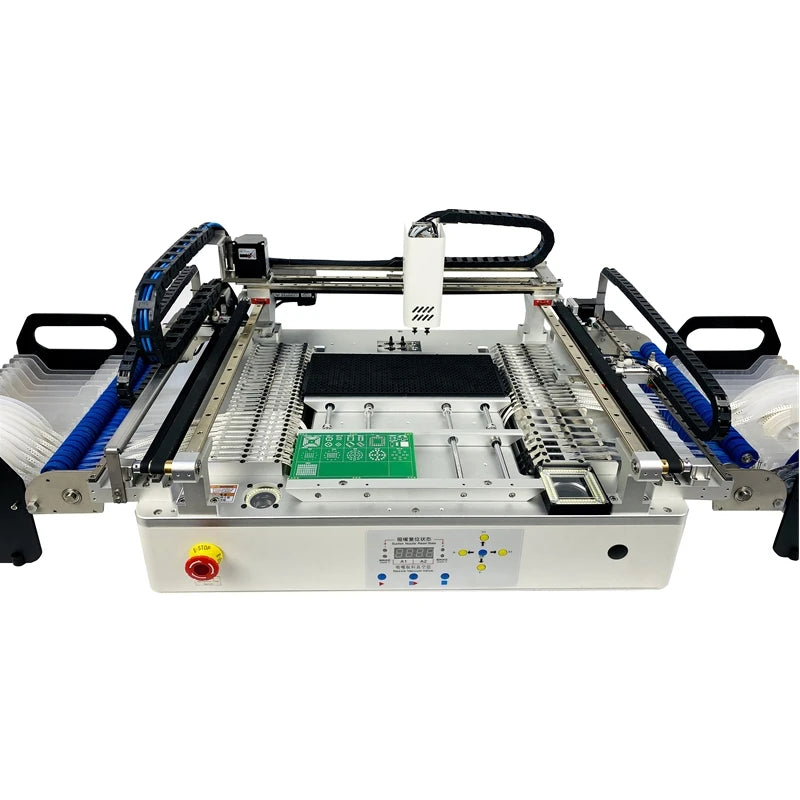

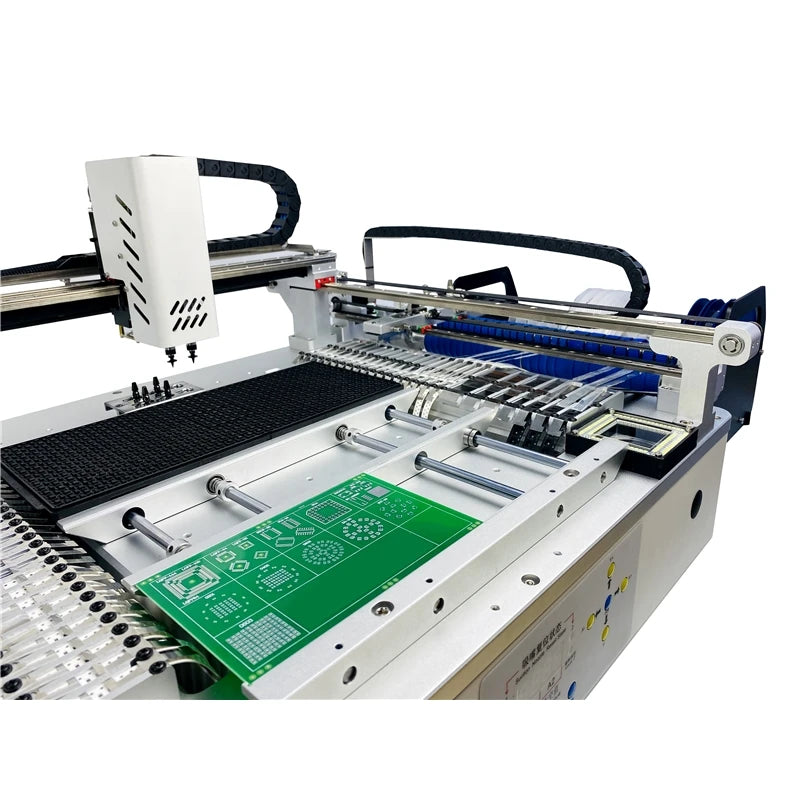

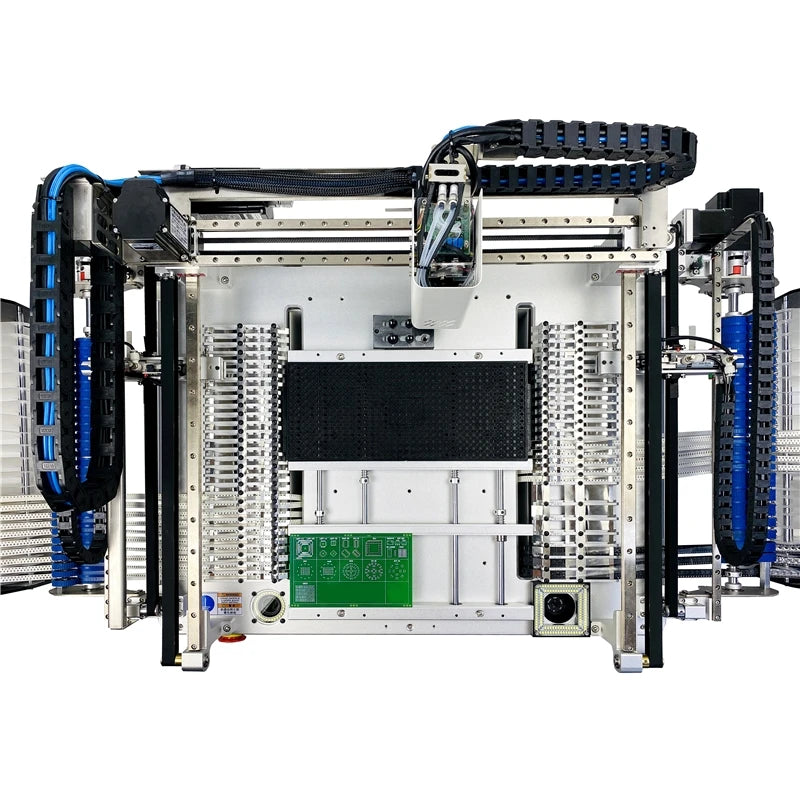

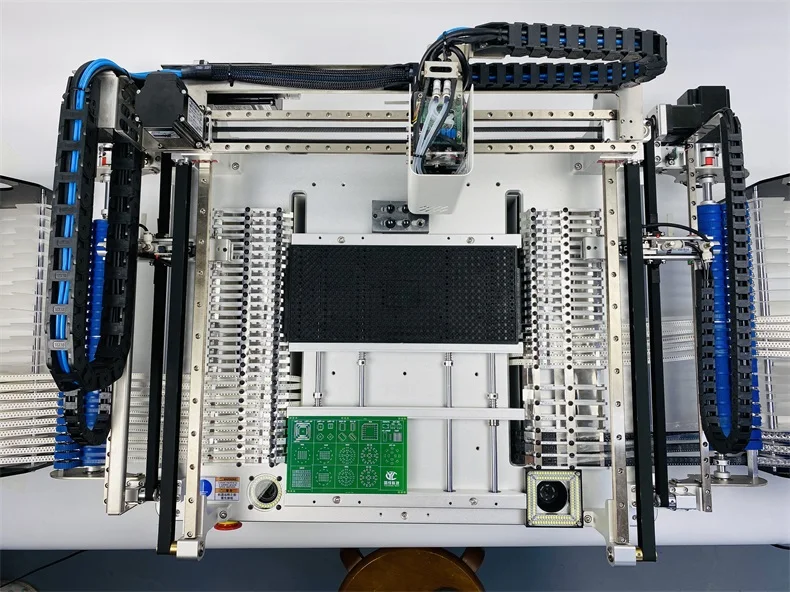

Q2S Dual 6 Heads 54 Bits Full Vision Desktop Automatic SMT Pick And Place Machine Chip Mounter With Air Compressor And Solder Paste Mixer

RE:

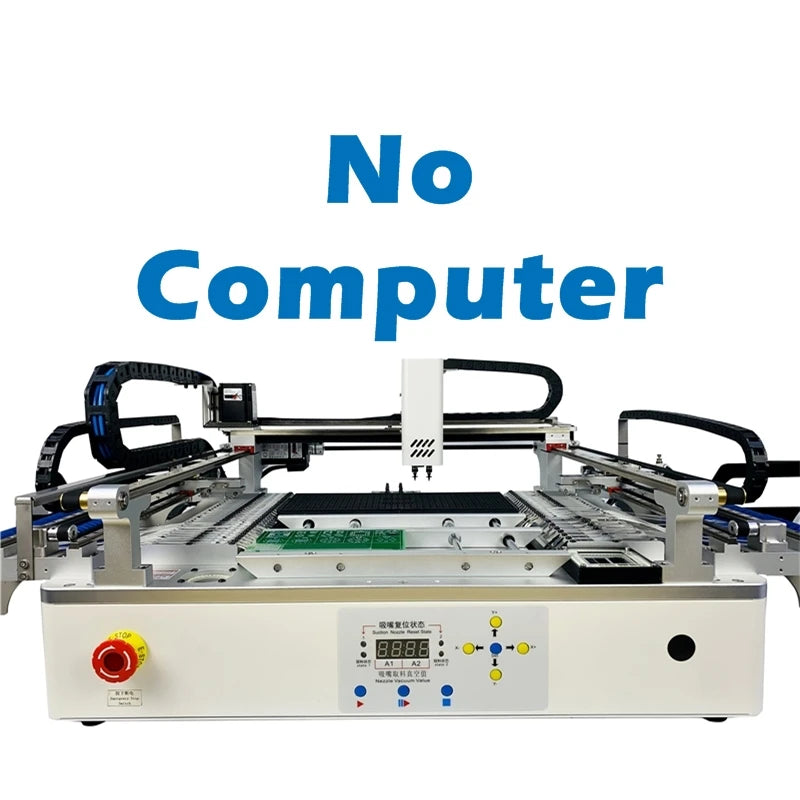

1.Without computer:

Need to link with external computer to use.

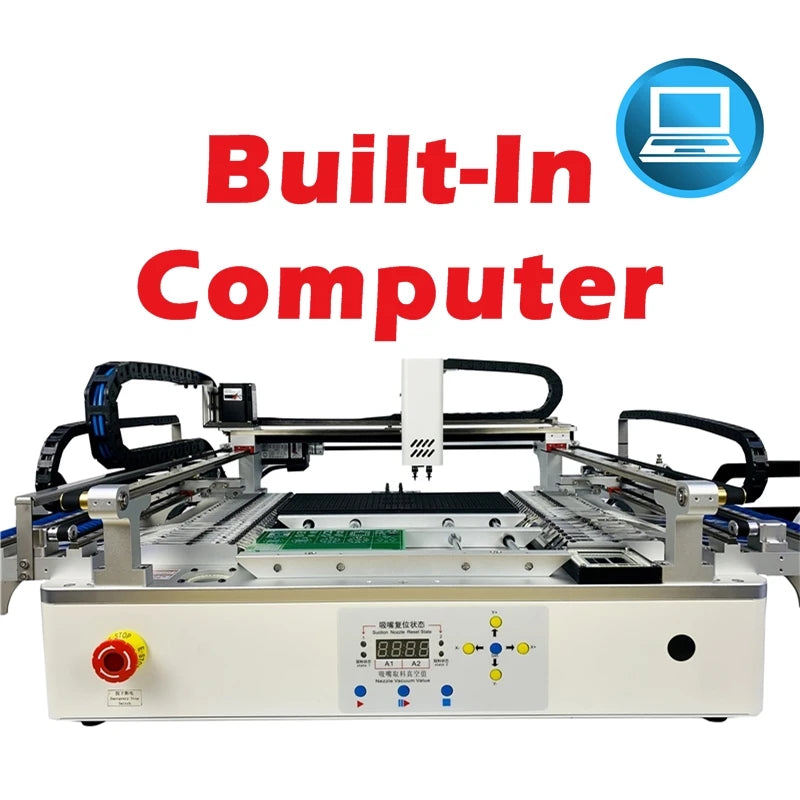

2.Built-in computer:

With 2 USB ports, customer need to prepare keyboard & mouse by themselves.

3.The left & right 2 feed trays in Demo pictures not included in real package.

4.Need to connect with air compressor to use.

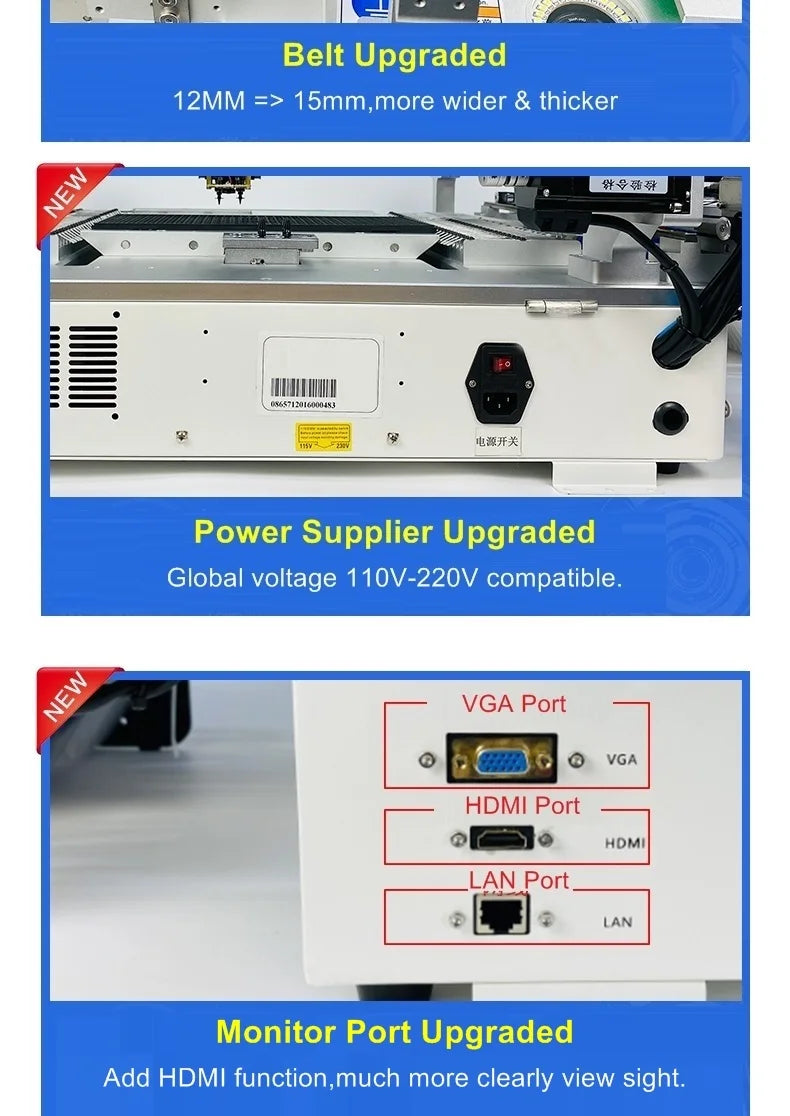

Power: 220V or 110V. 50HZ/400W

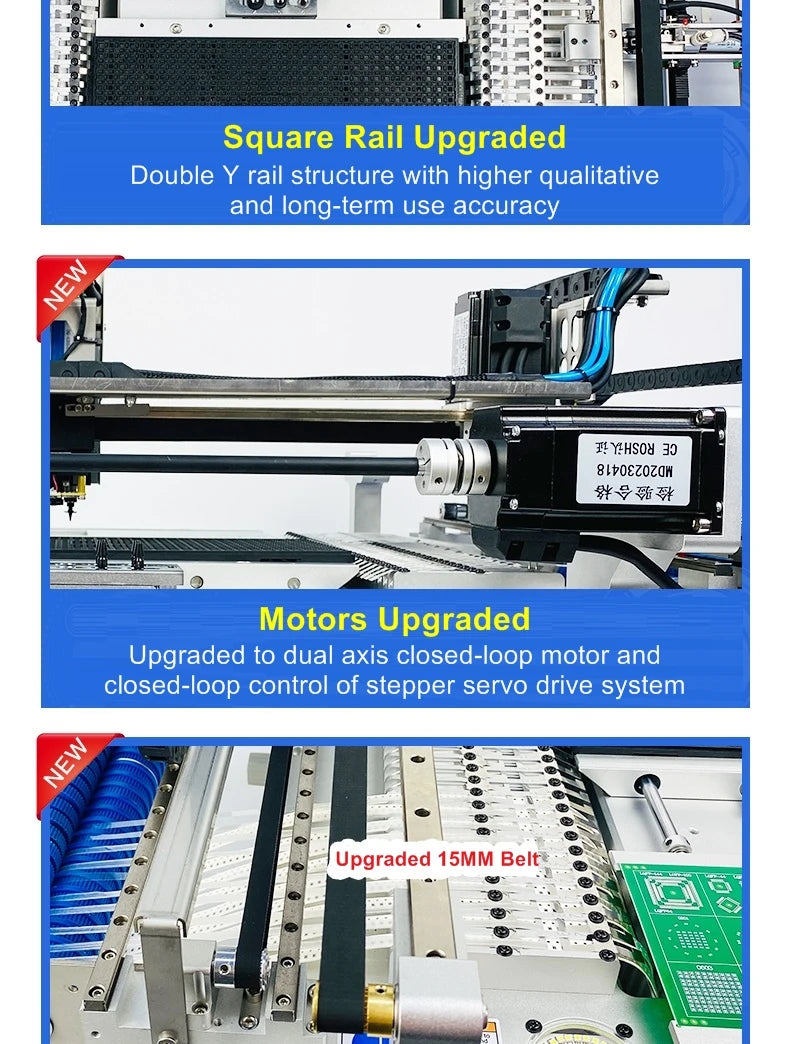

Motor: Stepper And Servo

Size:100*60*40CM

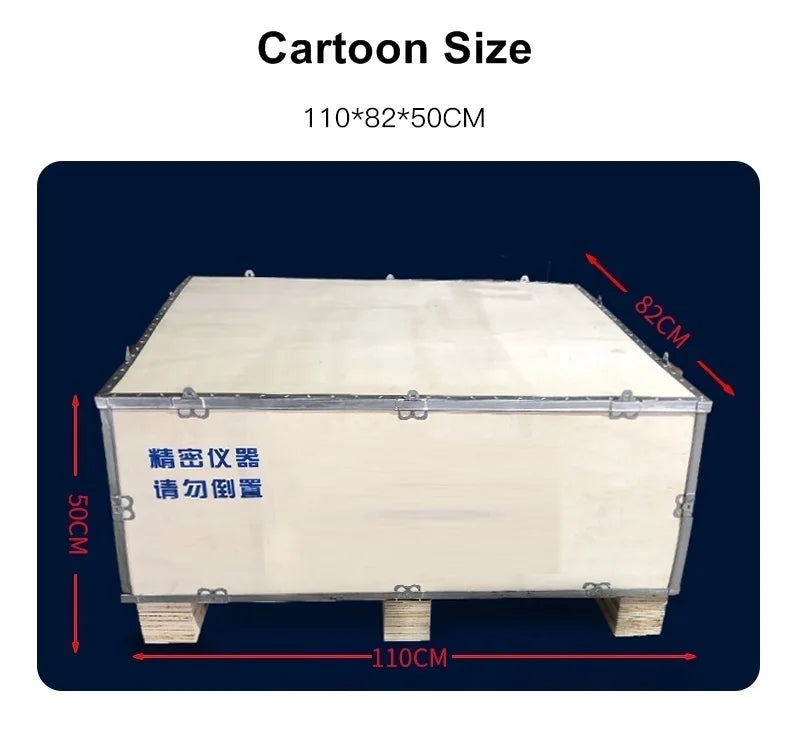

Cartoon size: 110*82*50CM

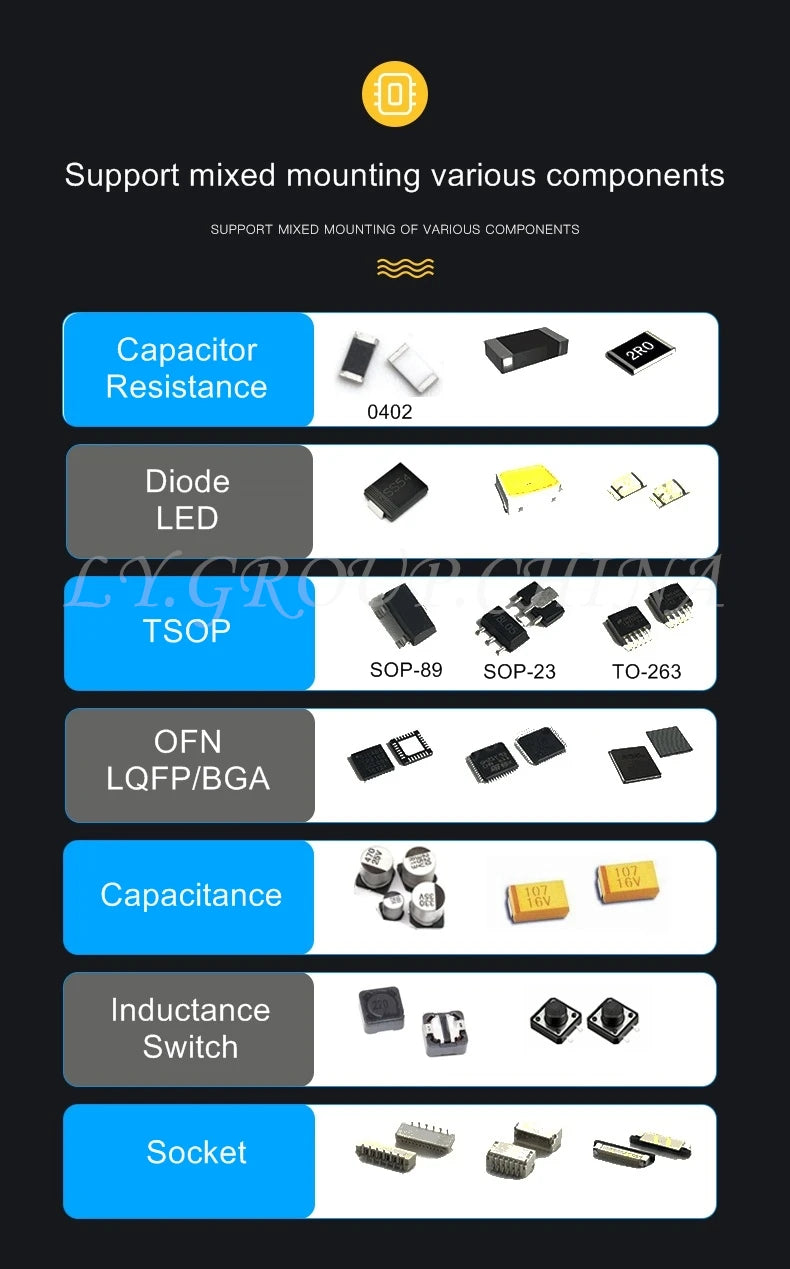

QFP Type: 0402,0603,0805,1206,CD12,BGA,SOP,SSOP,QFN, High Capacitor

Air In: Air Compress 0.5MPA-0.7MPA,0.04L/Min

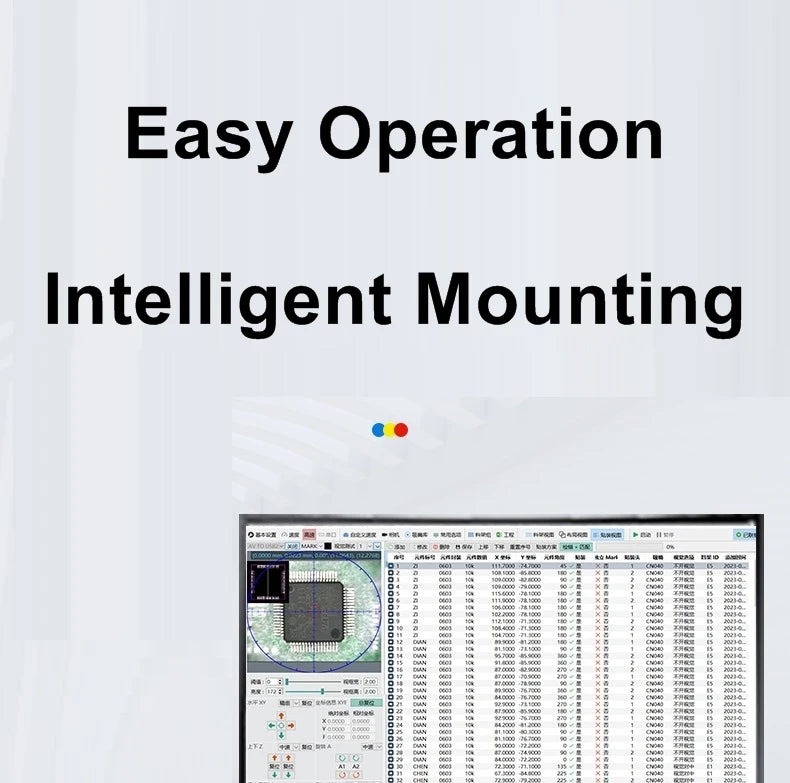

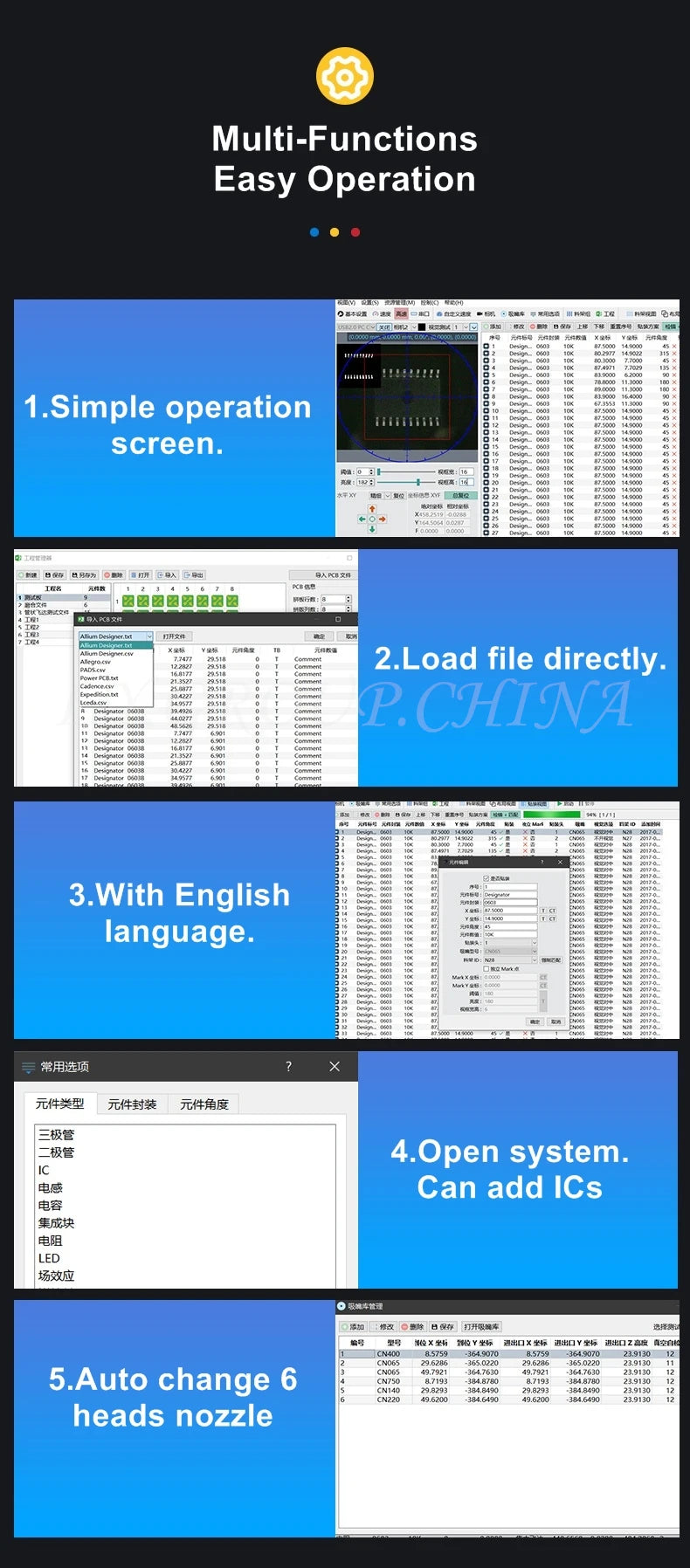

Operation: Win7 or above

File form: CSV,TXT

Program way: Online/ Offline/ Excel

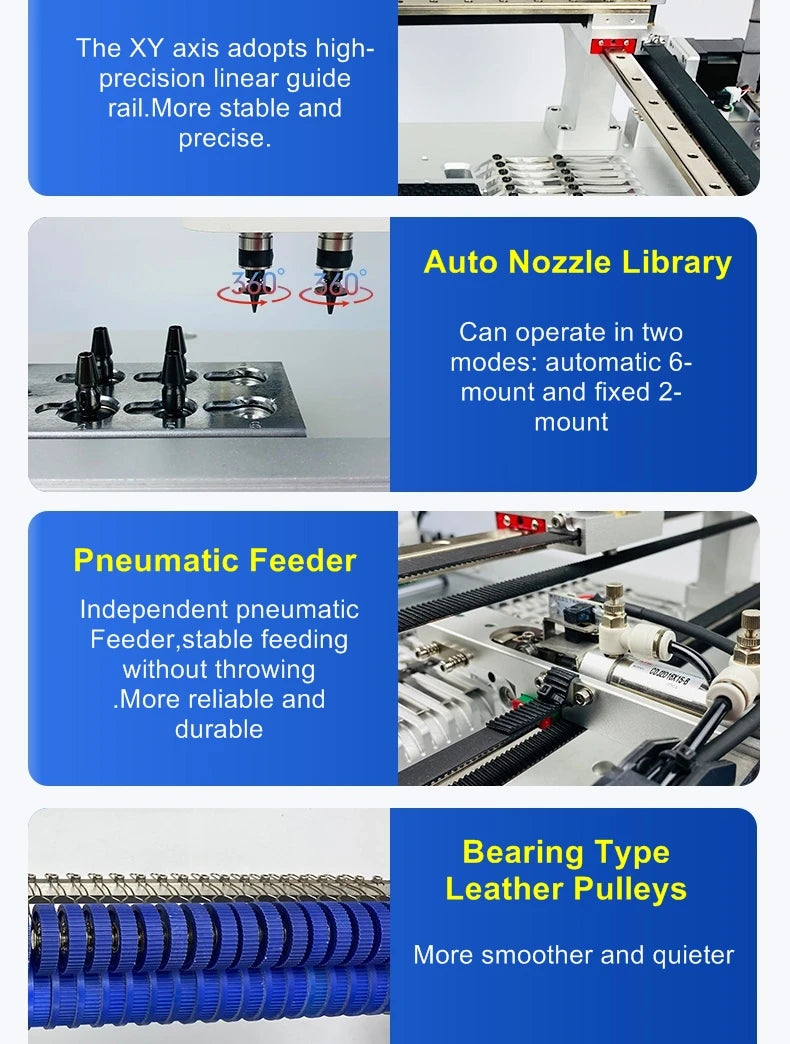

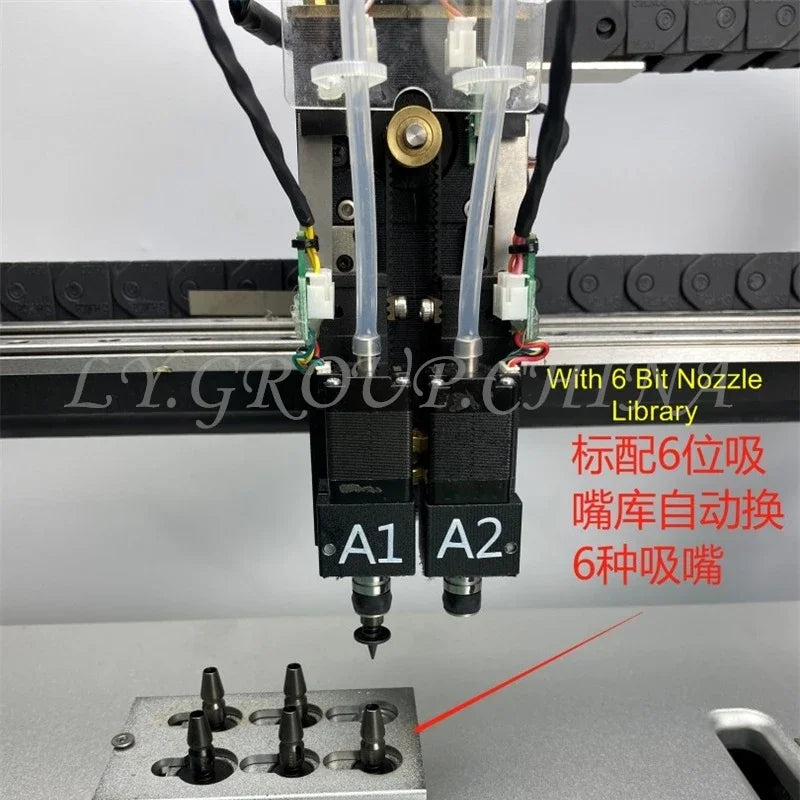

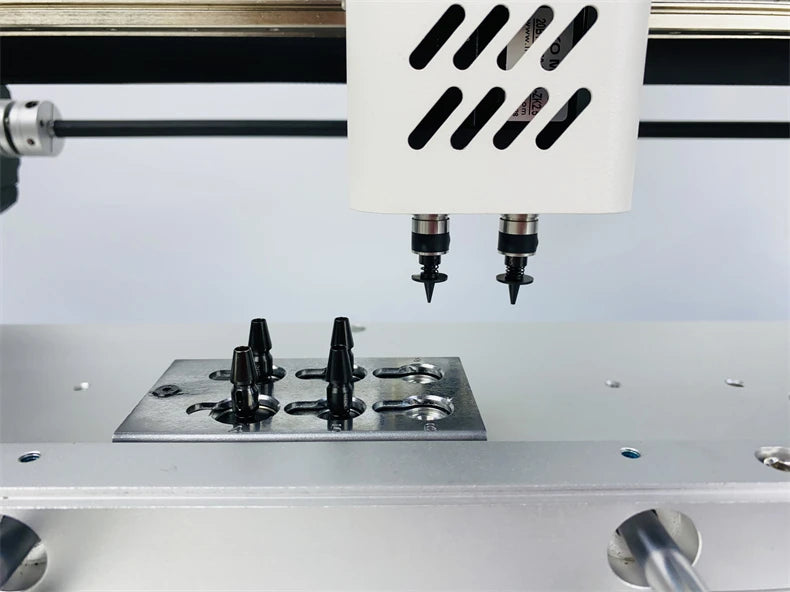

Nozzle QY: 2 x 6 (Auto change 6 pcs)

Accuracy: 0.028mm

Speed: Resistance 3500pcs/hour, Full vision 2500pcs/hour

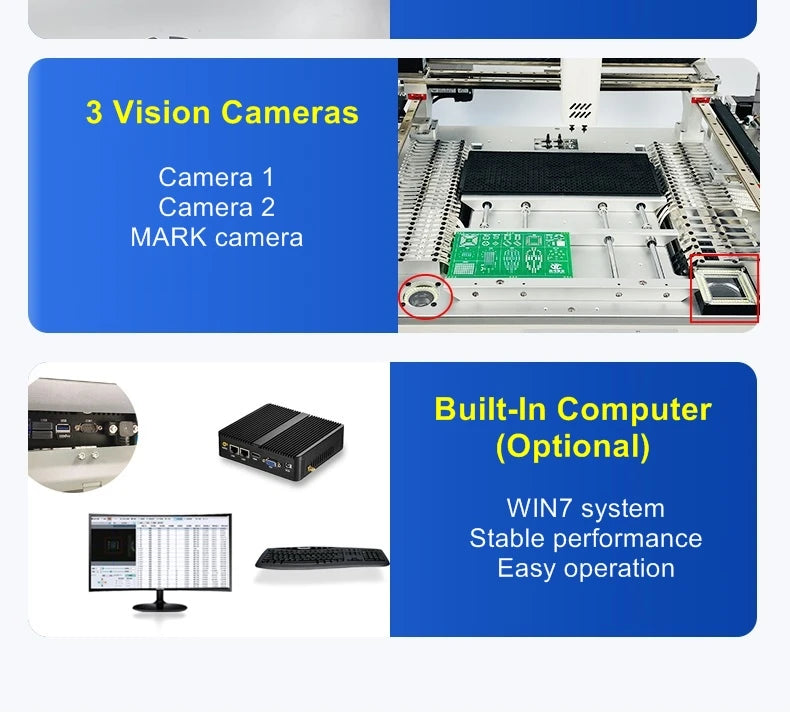

Camera: 3pcs

Recognition : MAX, 17*17MM

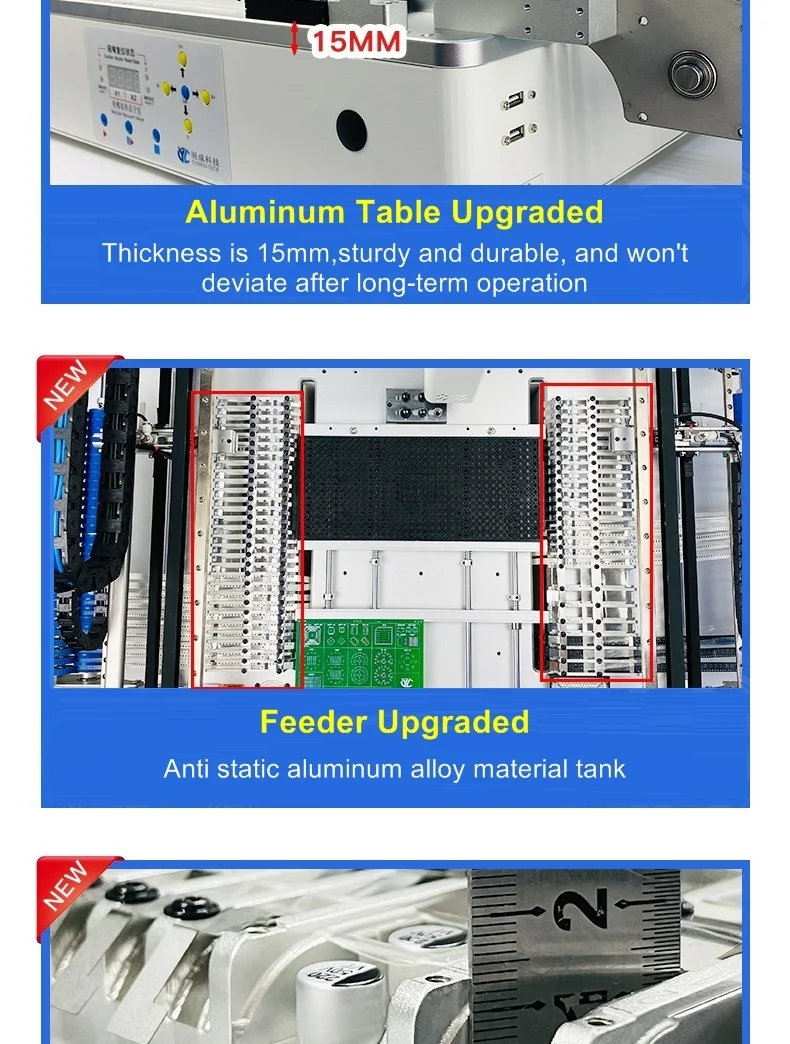

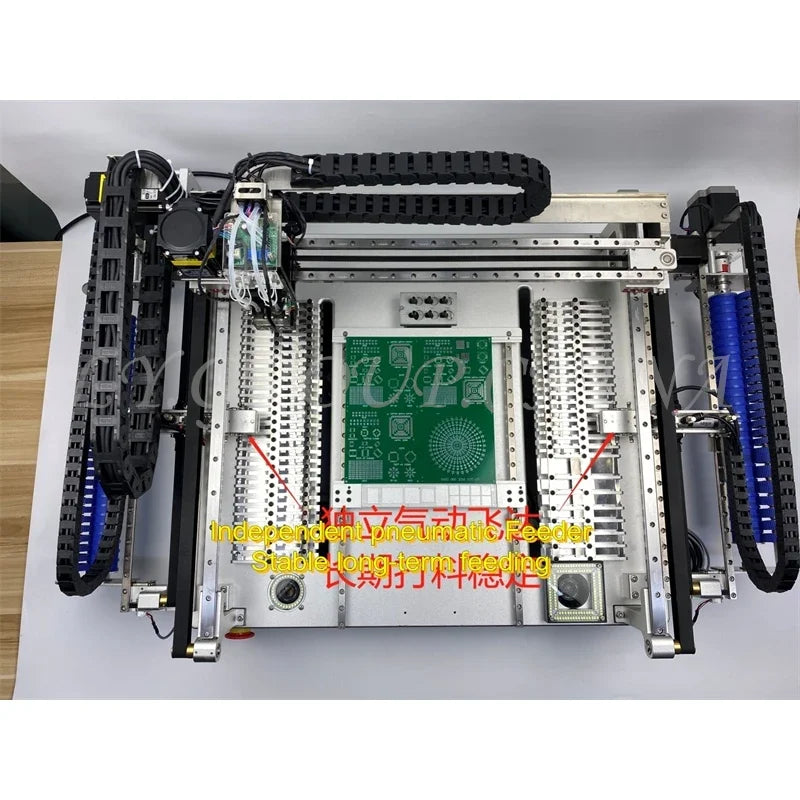

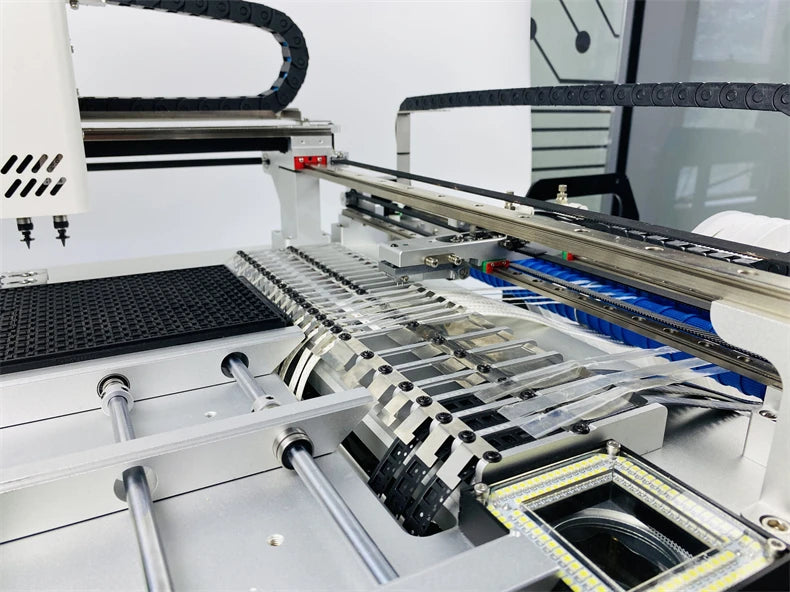

Feeder: 54 Bits (OEM Support)

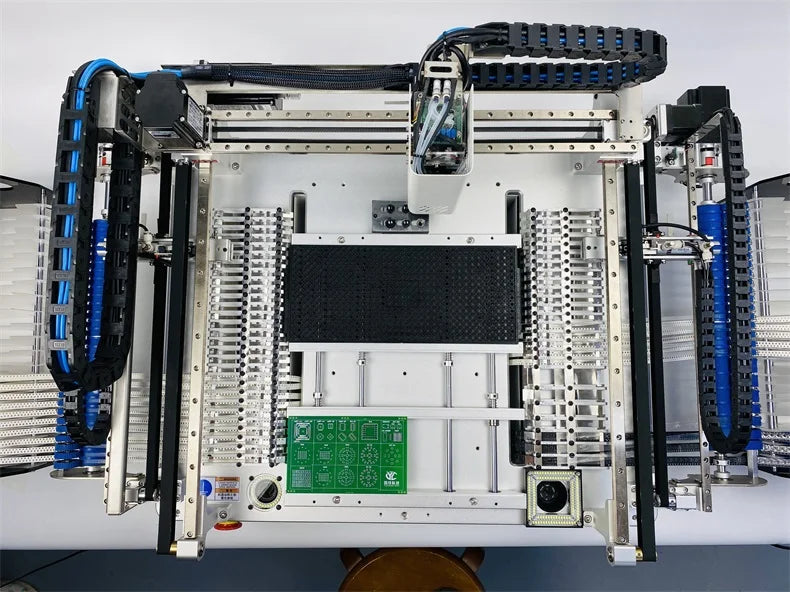

West:8mm*29 bits/East:8mm*18bits; 12mm*4 bits; 16mm*2 bits; 24mm*1bit

Tube feeder: 5 tubes, Size: 290*90*140mm (Optional)

Max Base board: 620*540mm

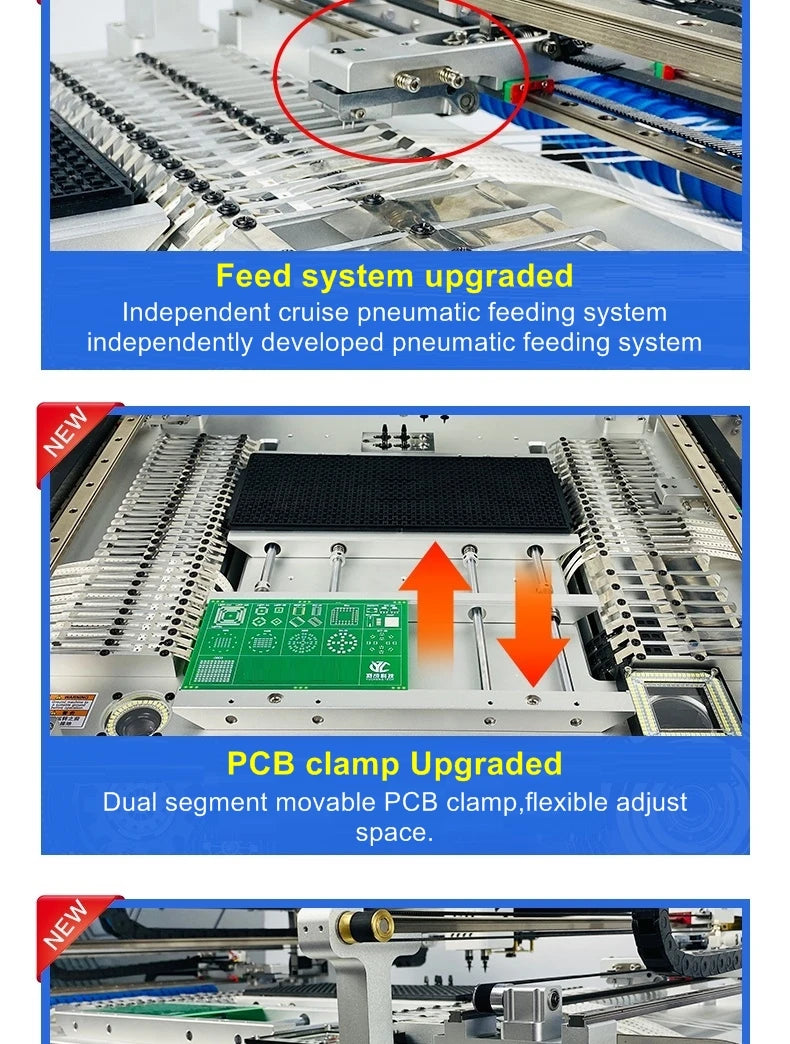

Max PCB Size: 350*240mm

Max range: X:430MM/ Y:450MM/ Z:22MM

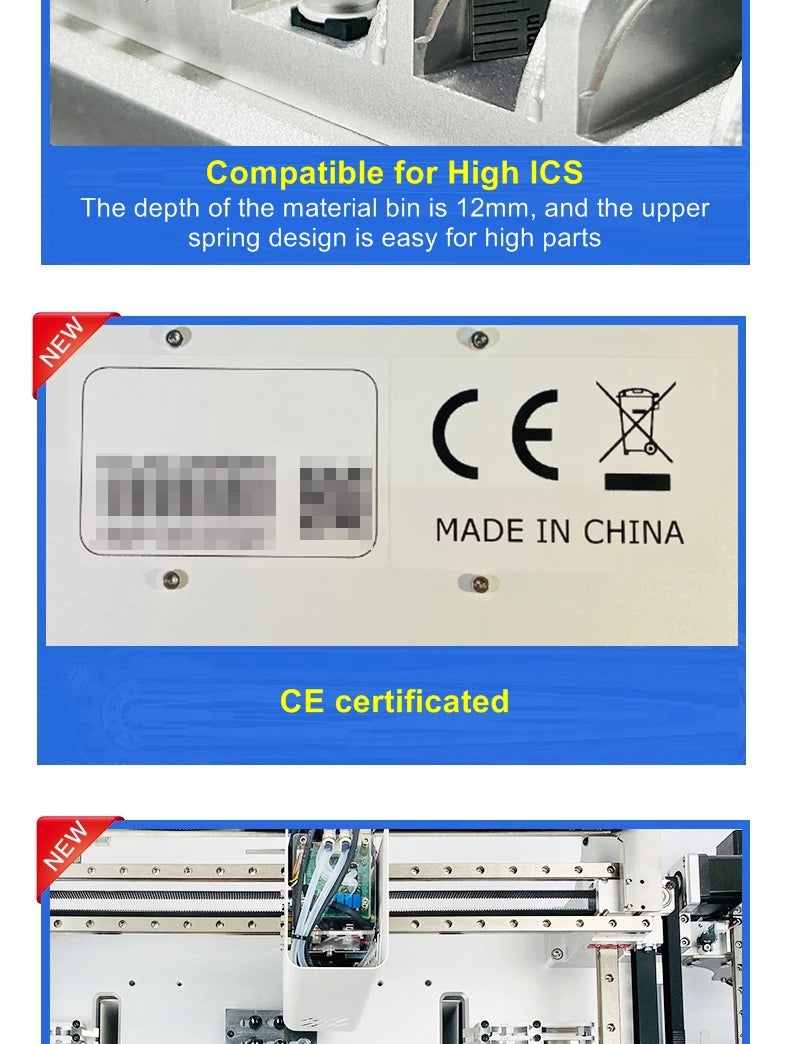

Front IC Feeder: 10 Bits

Weight:75KG
