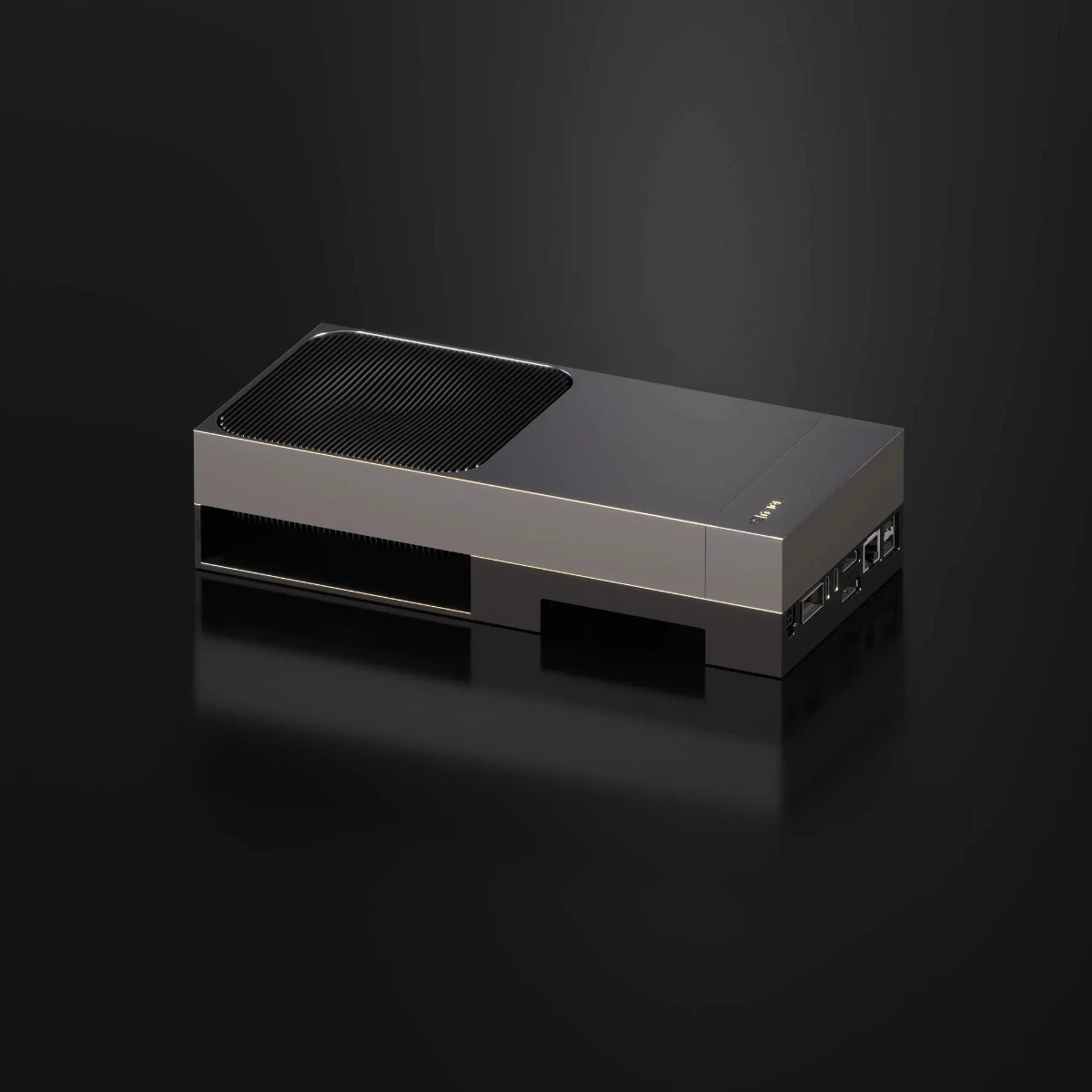

NVIDIA Jetson AGX Thor Developer Kit, Blackwell GPU 2070 FP4 TFLOPS, 128 GB LPDDR5X Memory,for Physical AI and Humanoid Robotics

$7,641.90 USD

~~$9,551.65 USD~~ $7,641.90 USD

Sale Sold out

Taxes included.

Default Title Default Title

SPECIFICATIONS

Battery Included: No

Brand Name: seeed studio

High-concerned chemical: None

Model Number: jetson AGX thor

Origin: Mainland China

Typical Application Fields: Edge Computing and AI Applications

Description

The NVIDIA® Jetson AGX Thor™ Developer Kit is the ultimate platform tailored for next-generation humanoid robotics, delivering up to 2070 FP4 TFLOPS AI perfromance with Blackwell GPU and 128 GB of high-speed memory—all in a compact 130W power envelope.

Compared to Jetson AGX Orin™, it offers up to 7.5× more AI performance to run the latest generative AI models seamlessly, and 3.5× better energy efficiency, enabling real-time multimodal perception, decision-making, and control, all for accelerating the development of intelligent, responsive, and highly sophisticated robotic systems.

Feature

Extreme AI Performance for Robotics

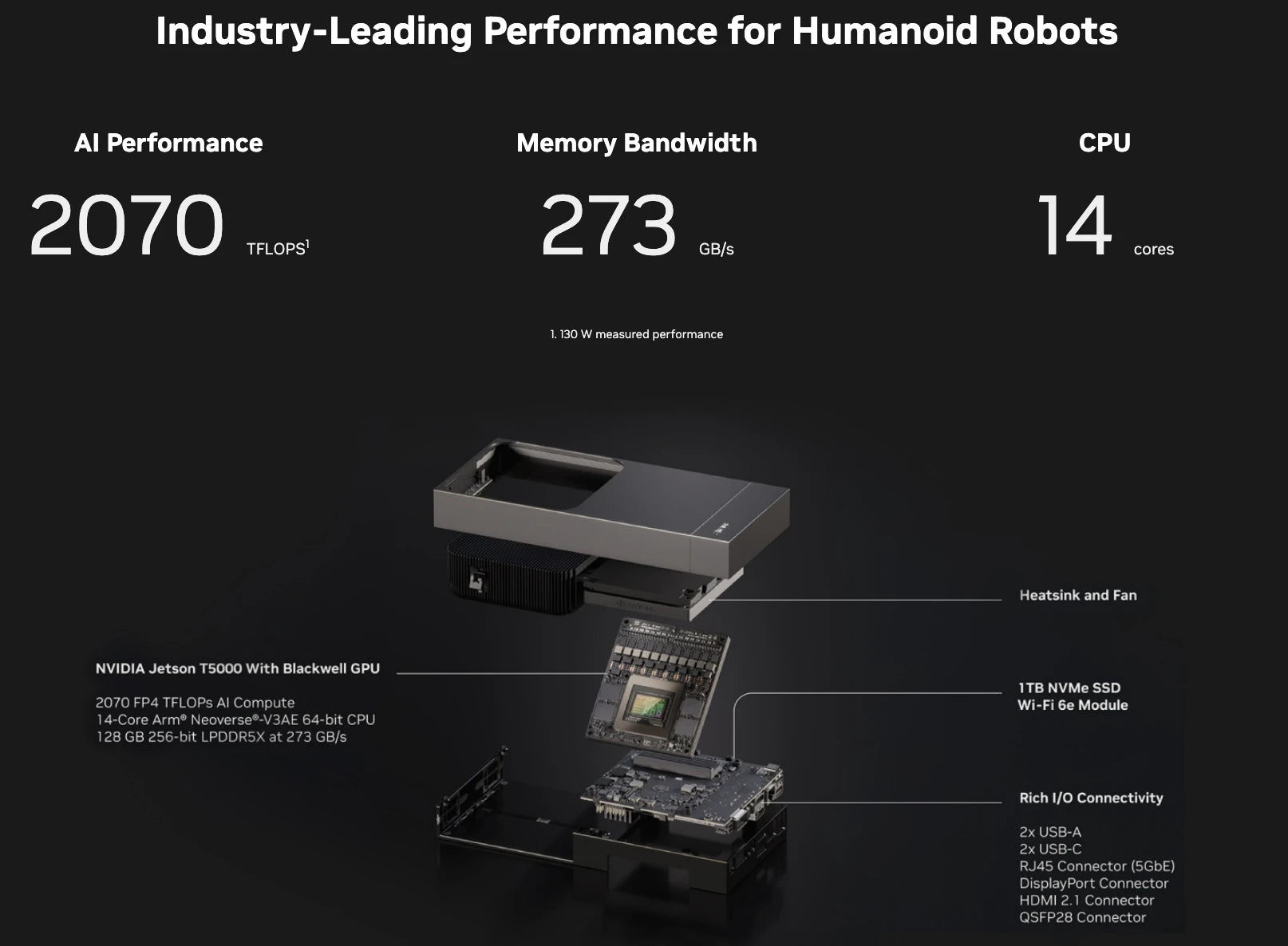

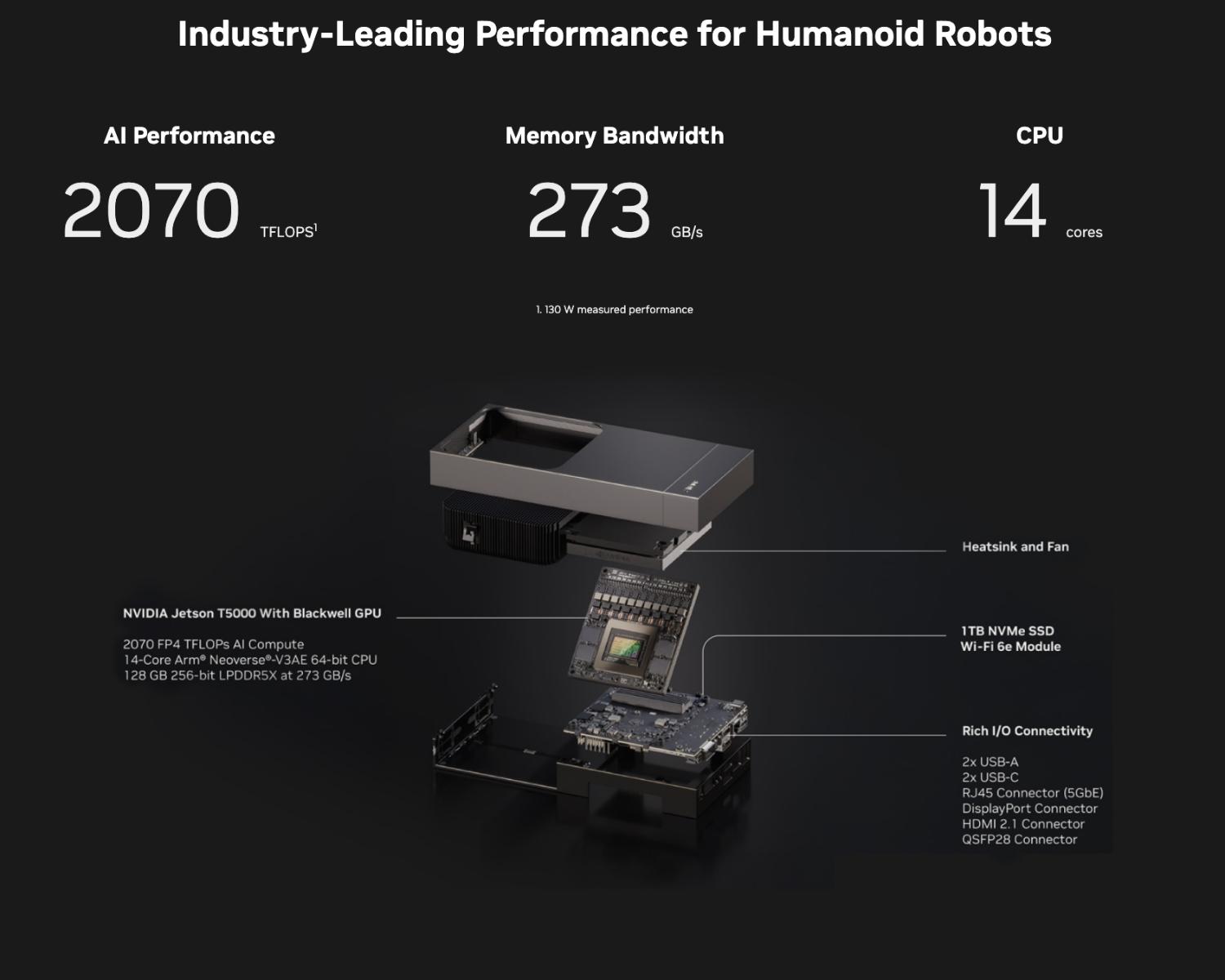

Powered by Jetson T5000 module, the Blackwell GPU with 2560 cores and 96 Tensor Cores, delivering up to 2070 FP4 / 1035 FP8 TFLOPS—ideal for running a wide range of generative AI models such as LLM, VLA (like NVIDIA® Issac™ GR00T N), ViT, etc.

Optimized for Transformer and Multimodal Workloads

Built-in Transformer engine, MIG (Multi-Instance GPU) support, and 128 GB LPDDR5X (273 GB/s) memory enable efficient training and inference at the edge.

Real-Time Processing and Control

Features a 14-core Arm® Neoverse®-V3AE CPU for fast, deterministic performance in real-time robotic applications.

High-Speed Sensor and Network Integration

Supports up to 4× 25GbE connections, 140W power supply, and a rich I/O set including HDMI, DP, USB 3.2/USB-C, CAN, and GbE for high-bandwidth and low-latency real-time sensor fusion.

Specification

	Jetson AGX Thor Developer Kit
AI Performance	2070 TFLOPS (FP4—Sparse)
GPU	2560-core NVIDIA Blackwell architecture GPU with 96 fifth-gen Tensor Cores Multi-Instance GPU (MIG) with 10 TPCs
GPU Max Frequency	1.57 GHz
CPU	14-core Arm® Neoverse®-V3AE 64-bit CPU 1 MB L2 cache per core 16 MB shared system L3 cache
CPU Max Frequency	2.6 GHz
Vision Accelerator	1 个 PVA v3
Memory	128 GB 256-bit LPDDR5X 273 GB/s
Storage	1 TB NVMe M.2 Key M Slot
Video Encode	6x 4Kp60 (H.265) 12x 4Kp30 (H.265) 24x 1080p60 (H.265) 50x 1080p30 (H.265) 48x 1080p30 (H.264) 6x 4Kp60 (H.264)
Video Decode	4x 8Kp30 (H.265) 10x 4Kp60 (H.265) 22x 4Kp30 (H.265) 46x 1080p60 (H.265) 92x 1080p30 (H.265) 82x 1080p30 (H.264) 4x 4Kp60 (H.264)
Camera	HSB camera via QSFP slot USB camera
PCIe*	M.2 Key M slot with x4 PCIe Gen5 M.2 Key E slot with x1 PCIe Gen5
USB*	2x USB-A (3.2 Gen2) 2x USB-C (3.1)
Networking*	1x 5GBe RJ45 connector 1x QSFP28 (4x 25 GbE)
Display	1x HDMI 2.0b 1x DisplayPort 1.4a
Other I/O	QSFP connector M.2 Key E expansion slot (WLAN/BT, x1 PCIe, USB2.0, UART, I2C, I2S) M.2 Key M connector (NVMe for storage) PCIe x4 lane, I2C, PCIe x2 lane 2x 13-pin CAN header 2x 6-pin automation header LED JTAG connector (2x 5-pin header) 1x fan connector —12V, PWM, and Tach Audio panel header (2x 5-pin) Microfit power jack RTC backup battery connector 2-pin
Power	40W – 130W
Mechanical	243.19 mm x 112.40 mm x 56.88 mm Thermal Transfer Plate (TTP) and optional fan or heat sink

* Refer to the Software Features section of the latest NVIDIA Jetson Linux Developer Guide for a list of supported features.

** Low-speed I/O spec is subject to change.

Application

Part List

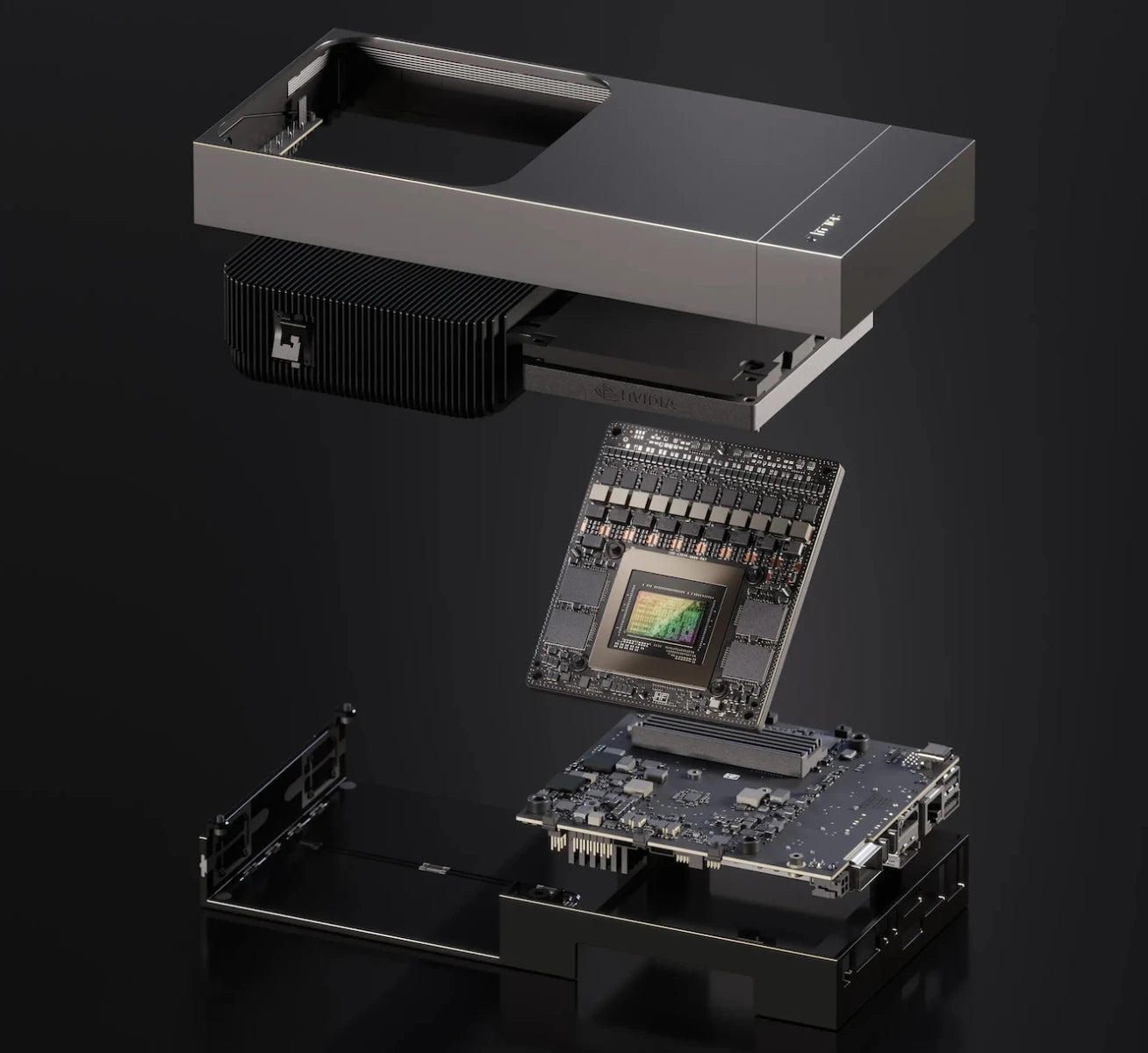

NVIDIA® Jetson T5000 module with heat sink and reference carrier board	x1
DC power 140W	x1
WiFi Module	x1
1 TB NVMe	x1
Quick Start Guide	x1
