Product function instruction

1. AUTO
2. Optical function
OPM mode is turned on by default once the device turns on.
The real-time detected optical power intensity is displayed at the bottom of the screen. When the light intensity is too weak and exceeds the testrange, "LoLo" will be displayed.
2.1 Optical power measurement
2.2 Unit switching
2.3 REF
2.4 Frequency test
The device can work with 270Hz/1KHz/2KHz light source.
Connect the light source with the OPM interface. And the frequency test results will be displayed in the upper right corner.
3. Continuity Test
4. VFL
5. QC function
6. Lamp

Accessories

Transmitter 1pc
User manual 1pc
Remote 1pc
Color box 1pc
Carry bag 1pc
USB Type-C cable 1pc
Lithium battery precautions card 1pc
Quality certificate 1pc

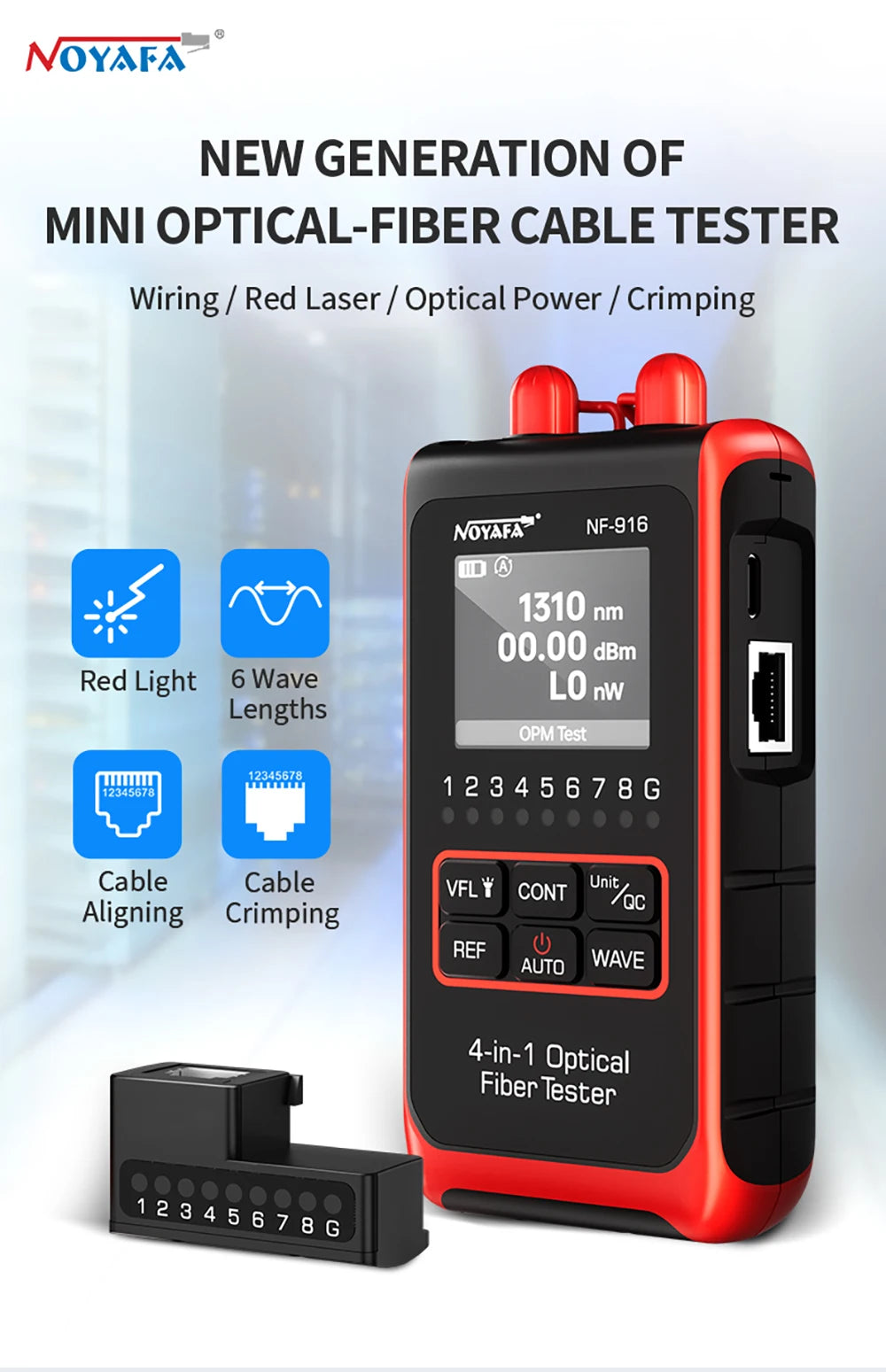

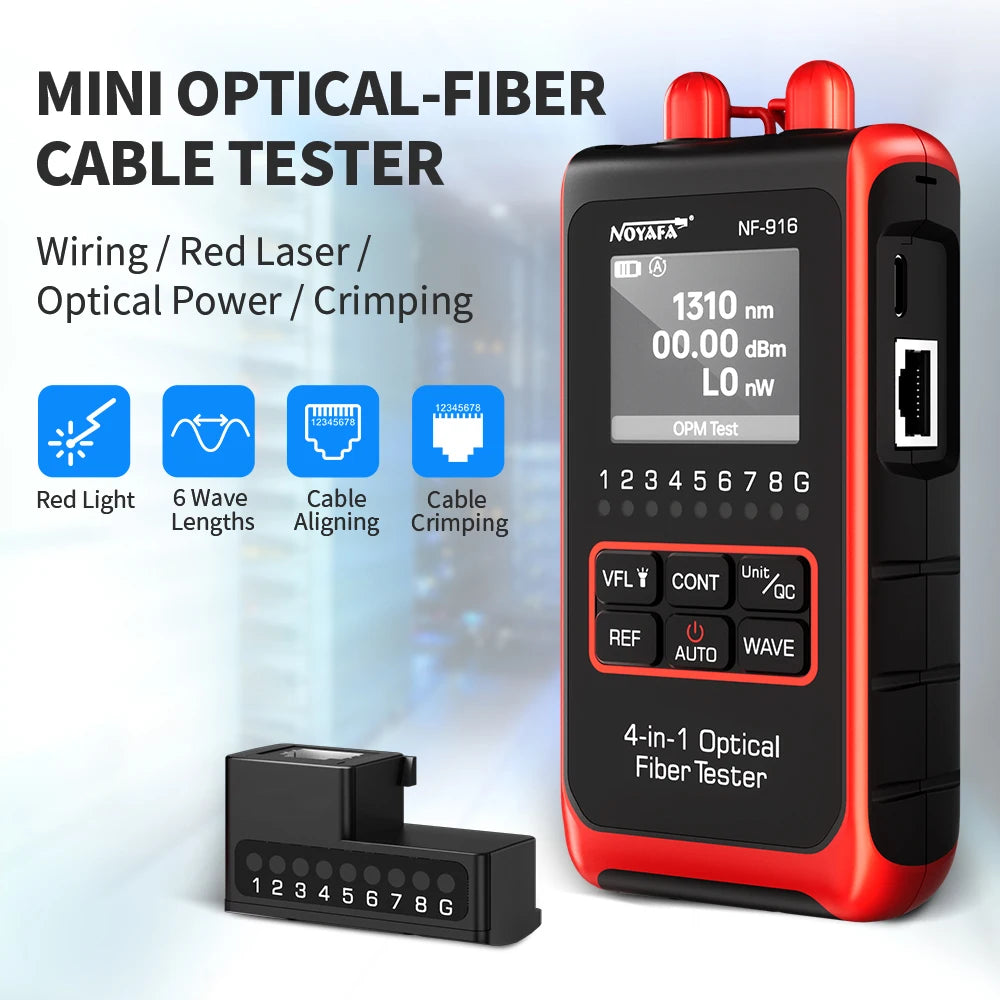

NEW GENERATION OF MINI OPTICAL-FIBER CABLE TESTER

Wiring/Red Laser/Optical Power /Crimping

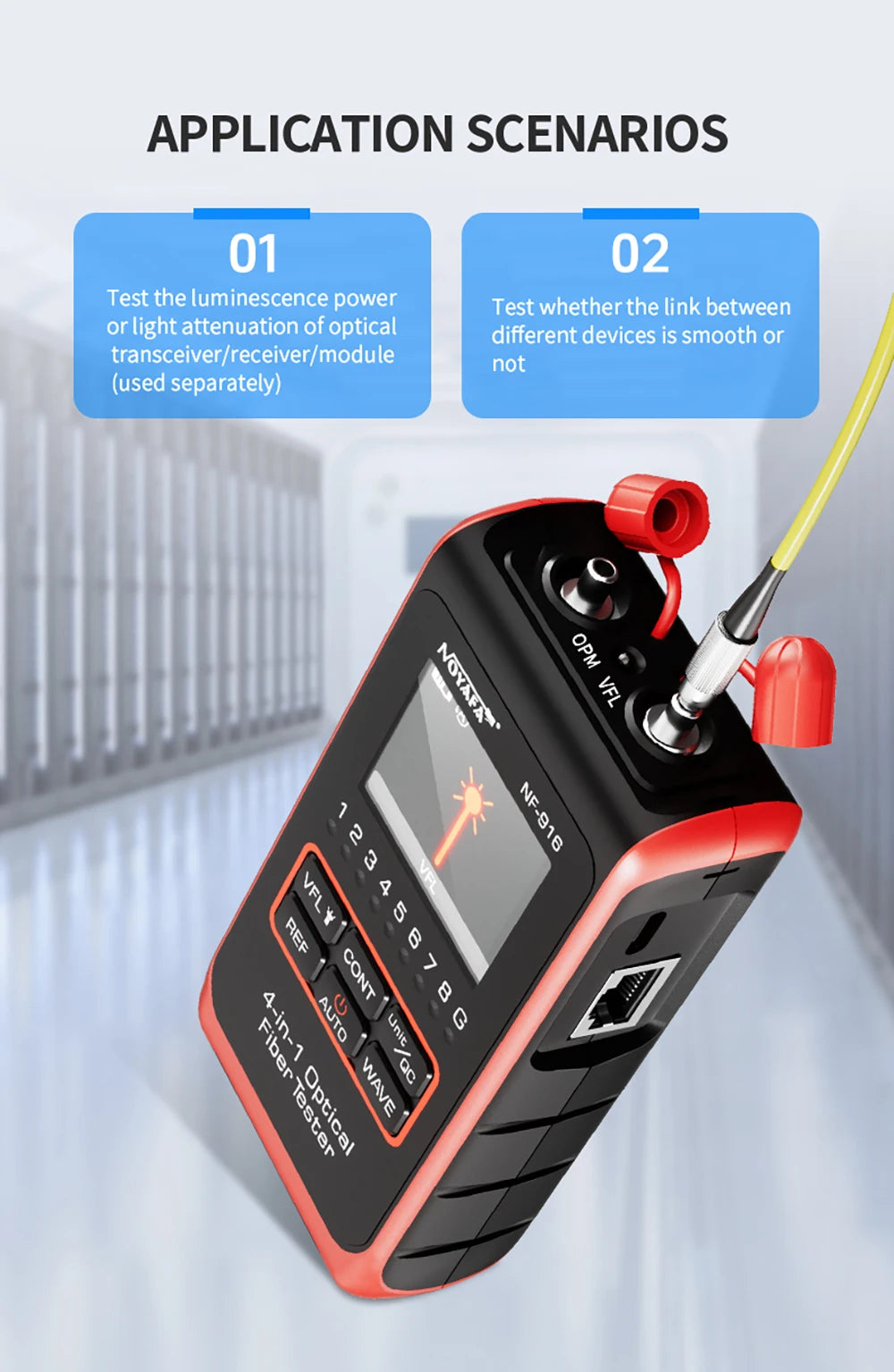

APPLICATION SCENARIOS

1.Test the luminescence power or light attenuation of optical transceiver/receiver/module (used separately)

2.Test whether the link between different devices is smooth or not

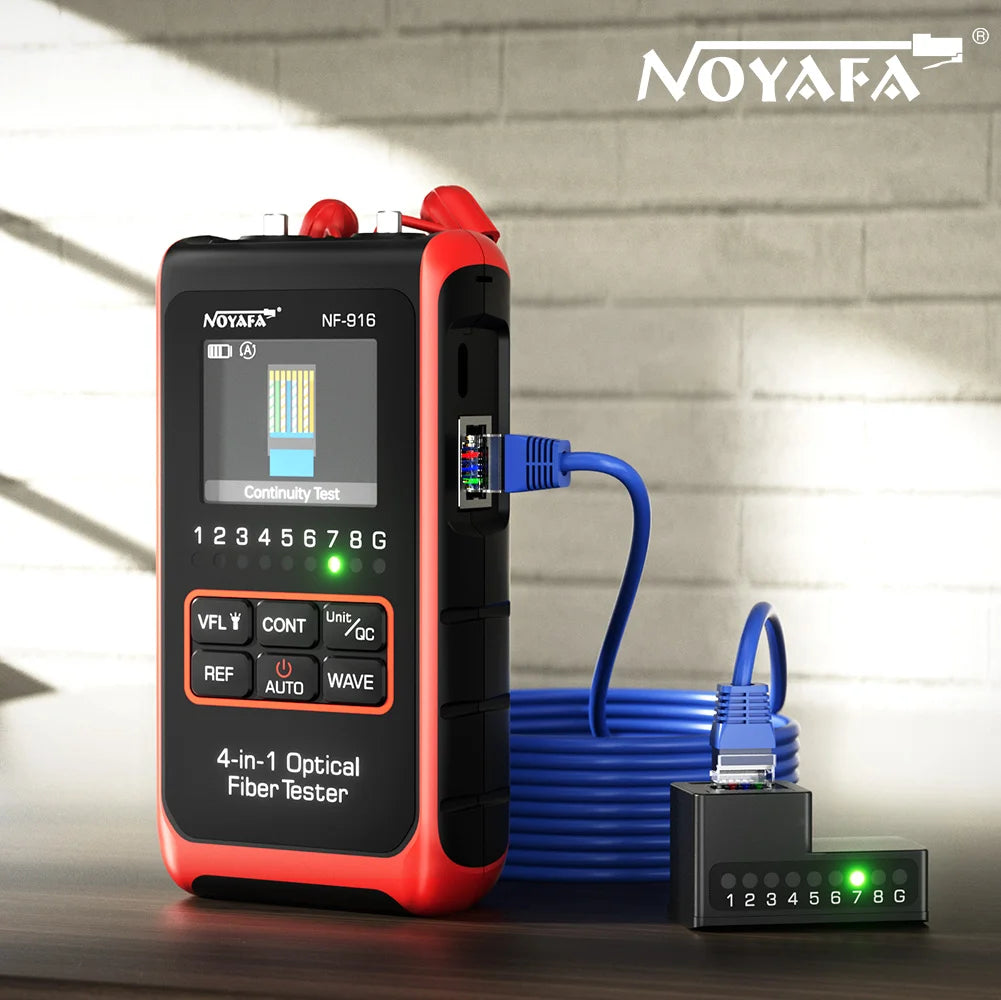

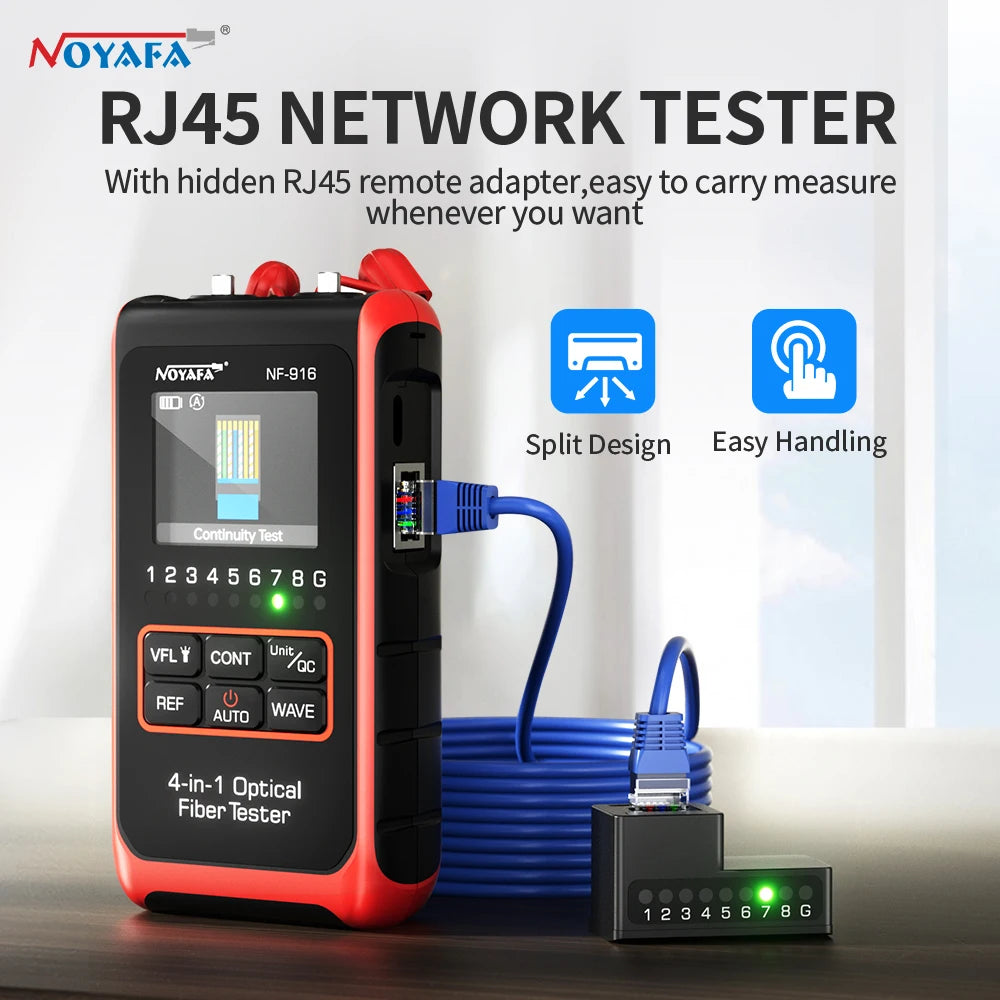

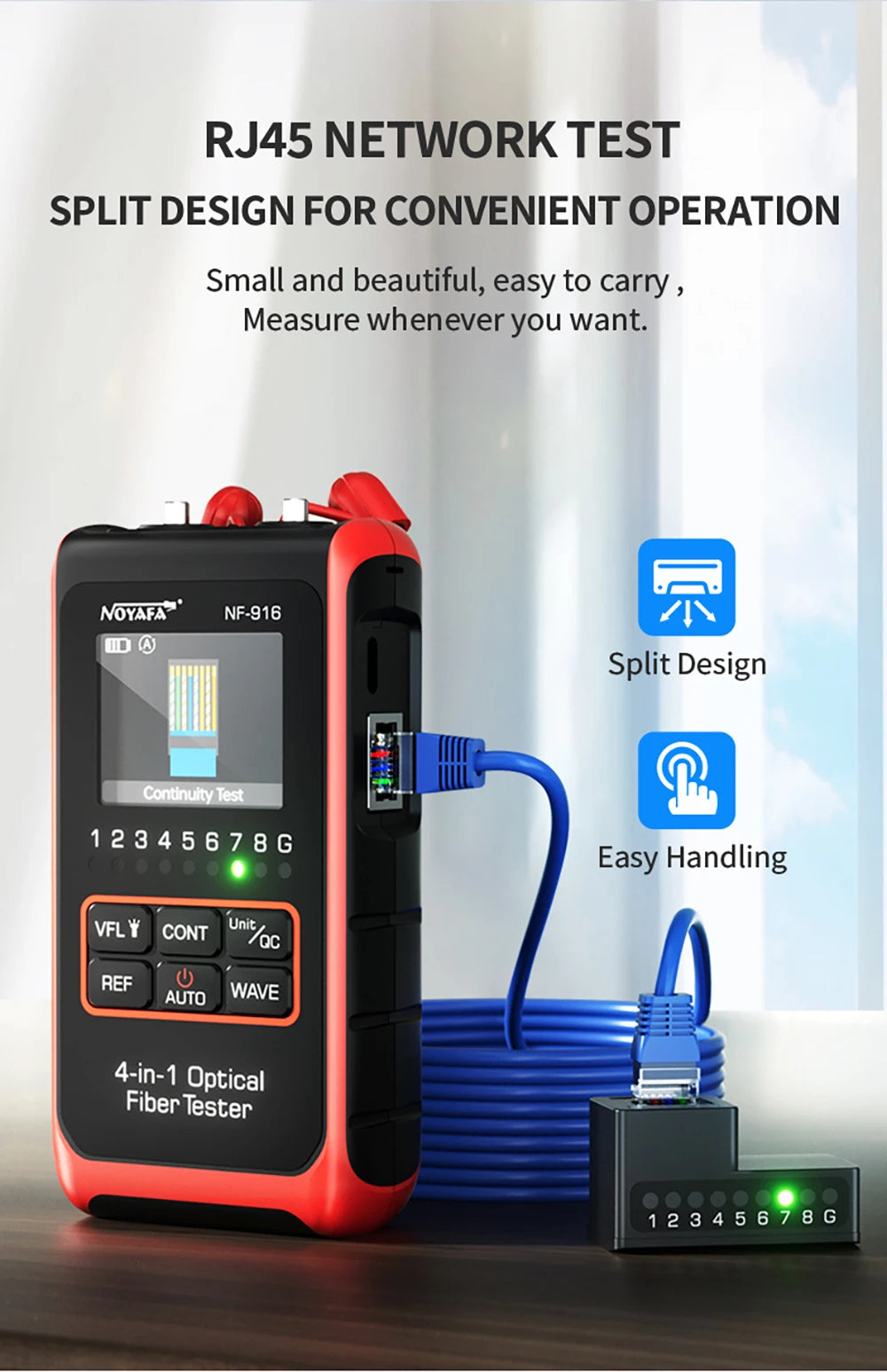

RJ45 NETWORK TEST SPLIT DESIGN FOR CONVENIENT OPERATION

Small and beautiful, easy to carry , Measure whenever you want.

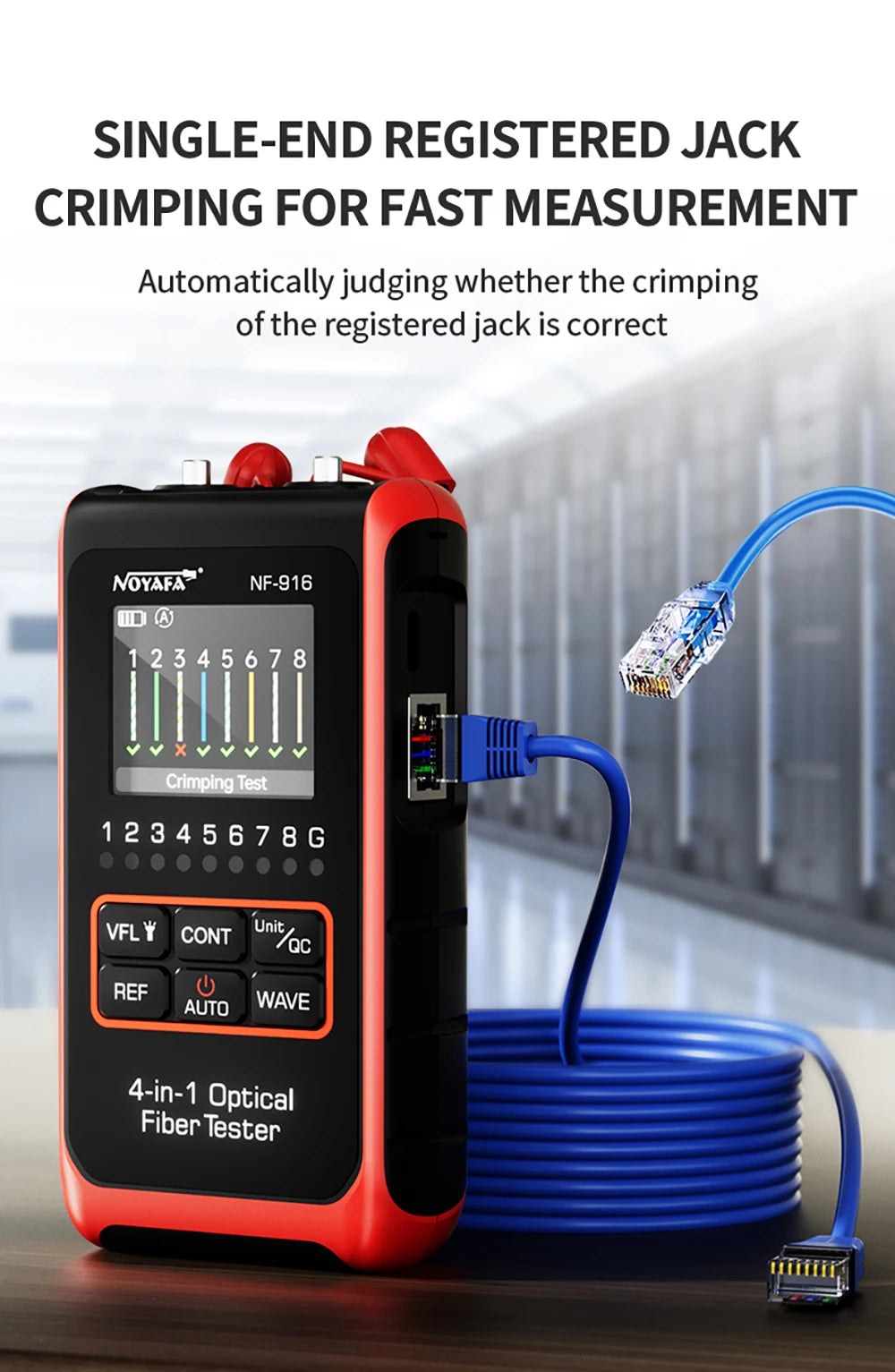

SINGLE-END REGISTERED JACK CRIMPING FOR FAST MEASUREMENT

Automatically judging whether the crimping
of the registered jack is correct

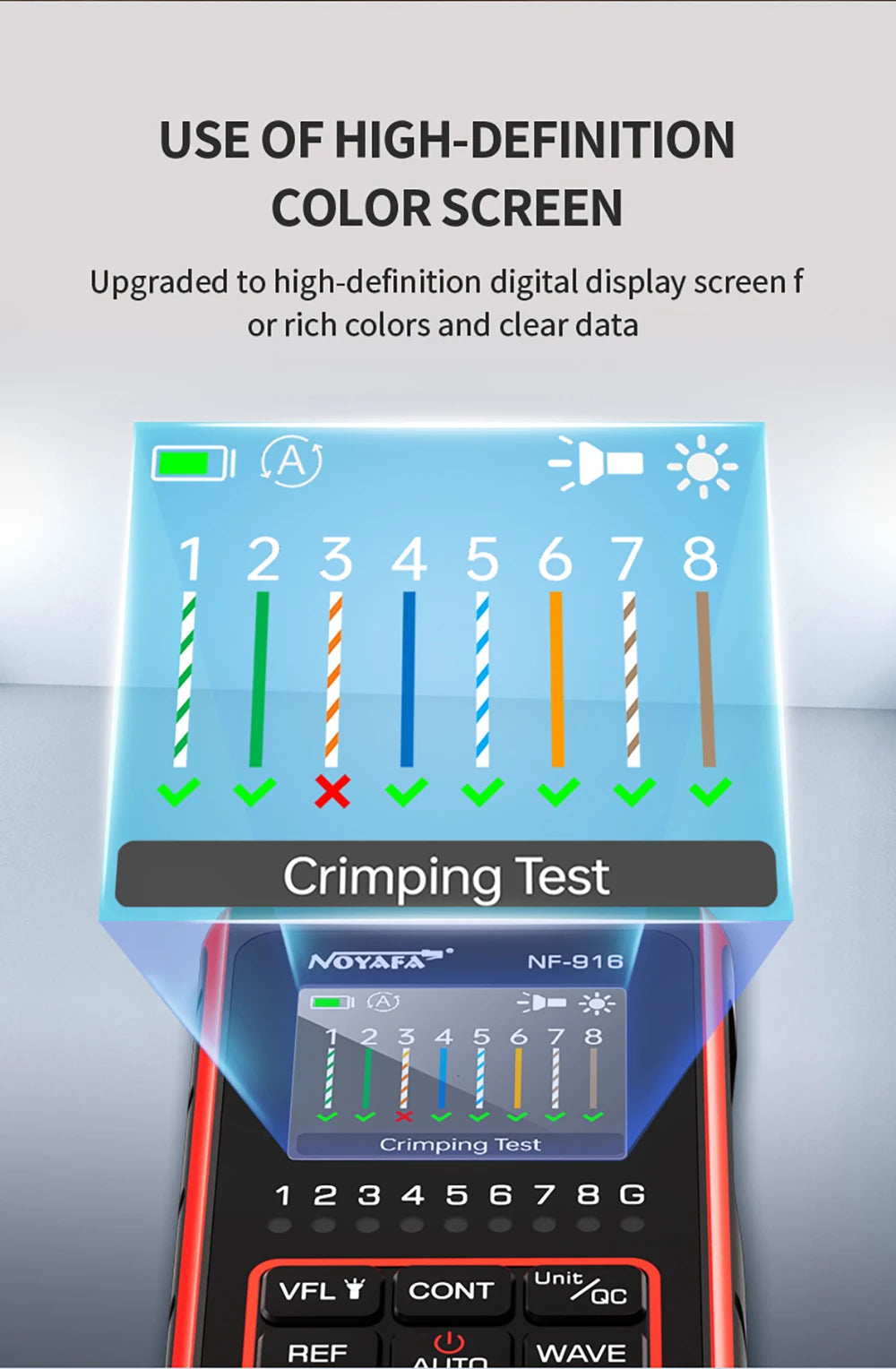

USE OF HIGH-DEFINITION COLOR SCREEN

Upgraded to high-definition digital display screen for rich colors and clear data

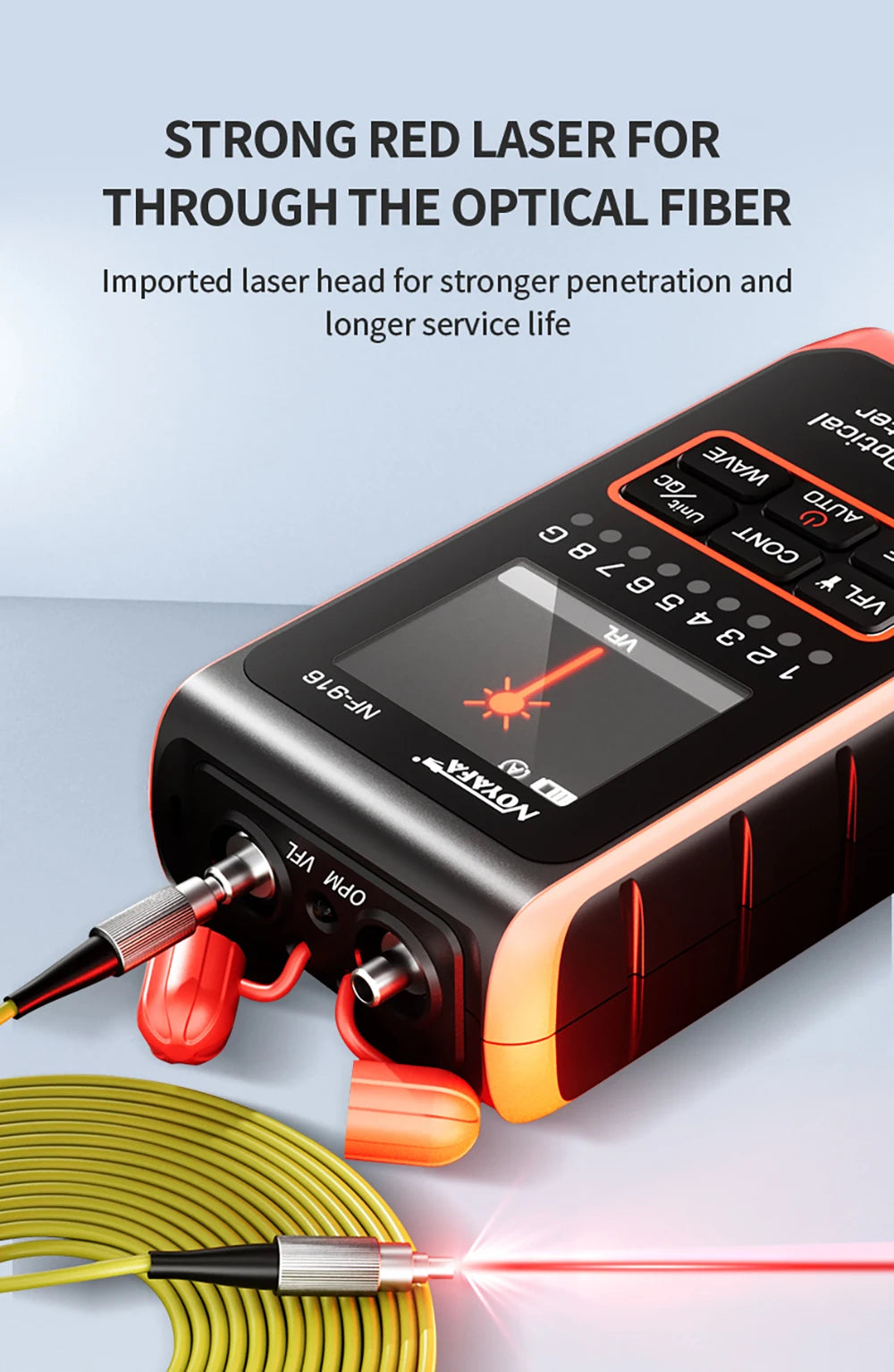

STRONG RED LASER FOR THROUGH THE OPTICAL FIBER

Imported laser head for stronger penetration and
longer service life

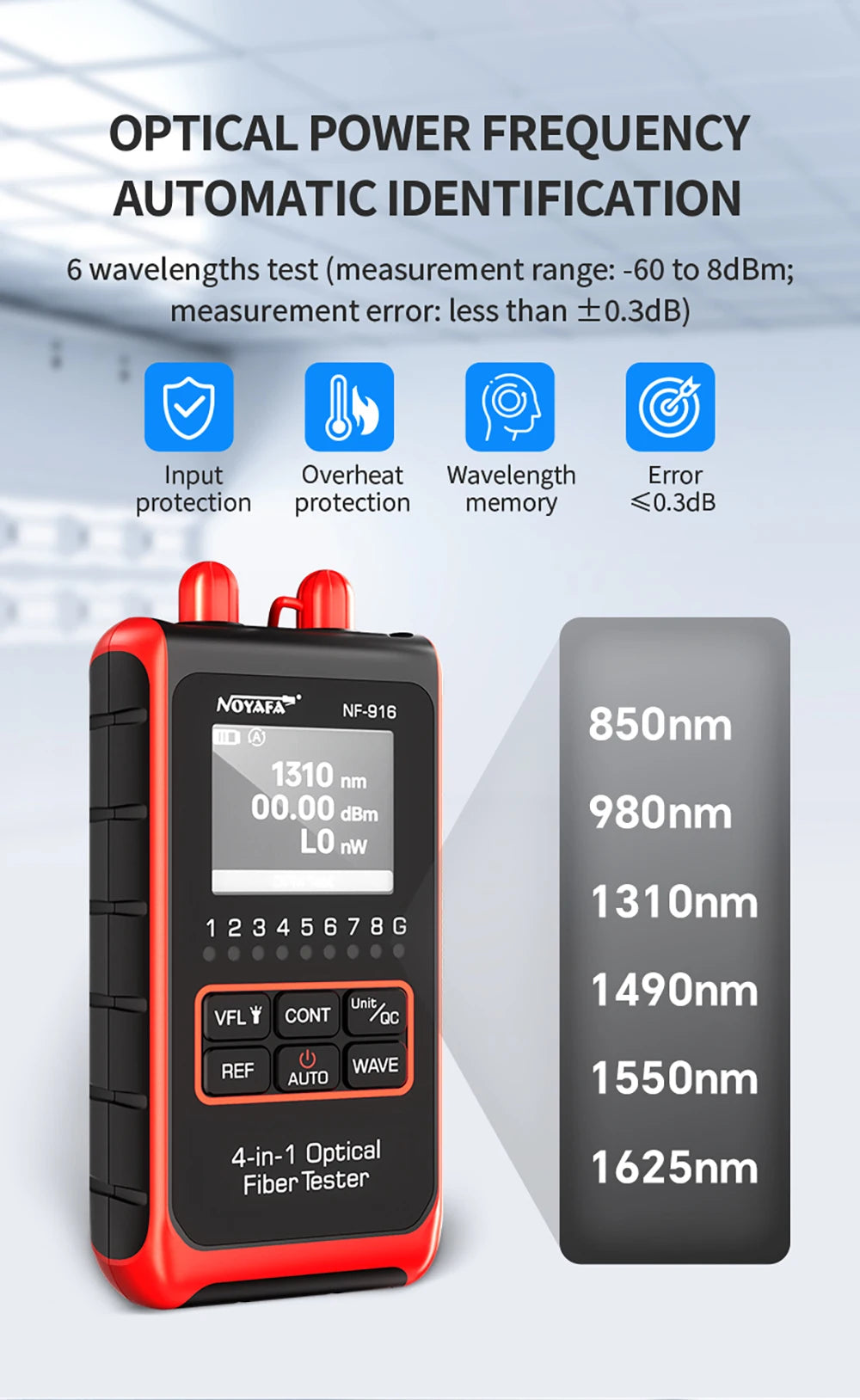

OPTICAL POWER FREQUENCY AUTOMATIC IDENTIFICATION

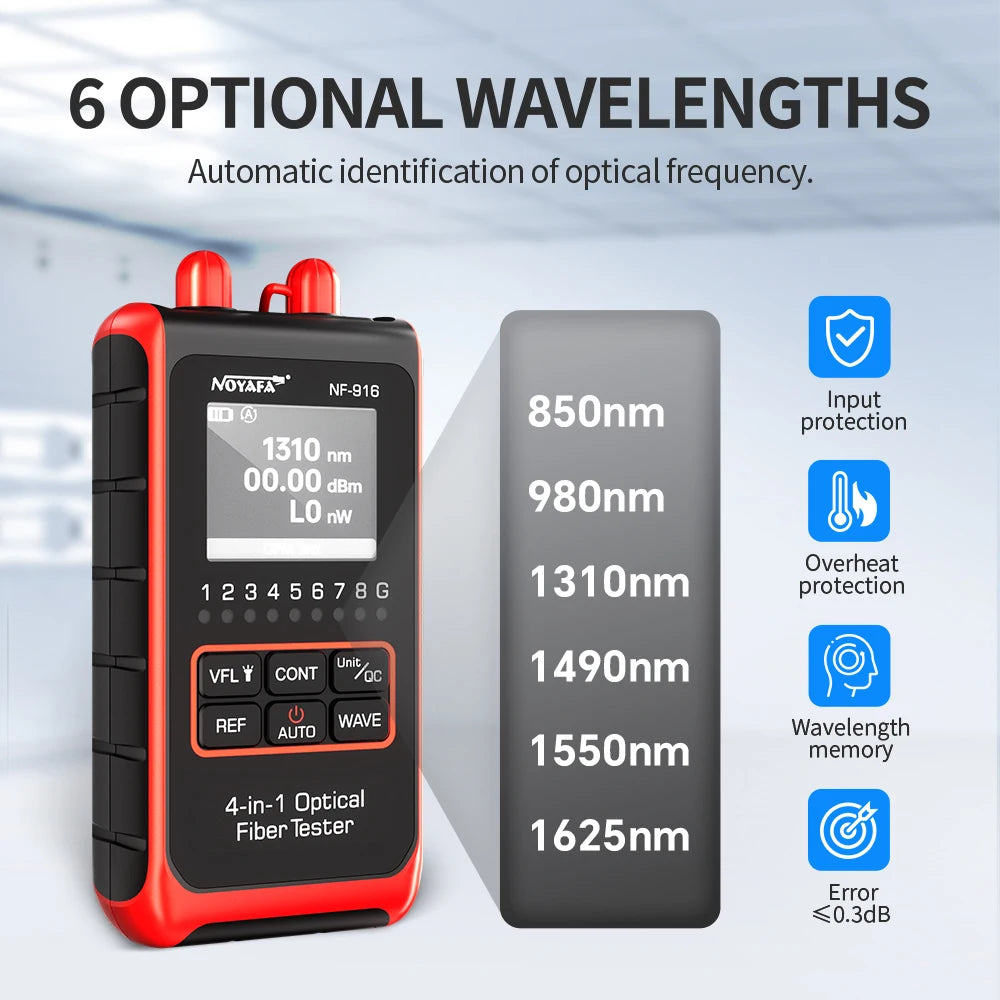

6 wavelengths test (measurement range:-60 to 8dBm; measurement error: less than 0.3dB)

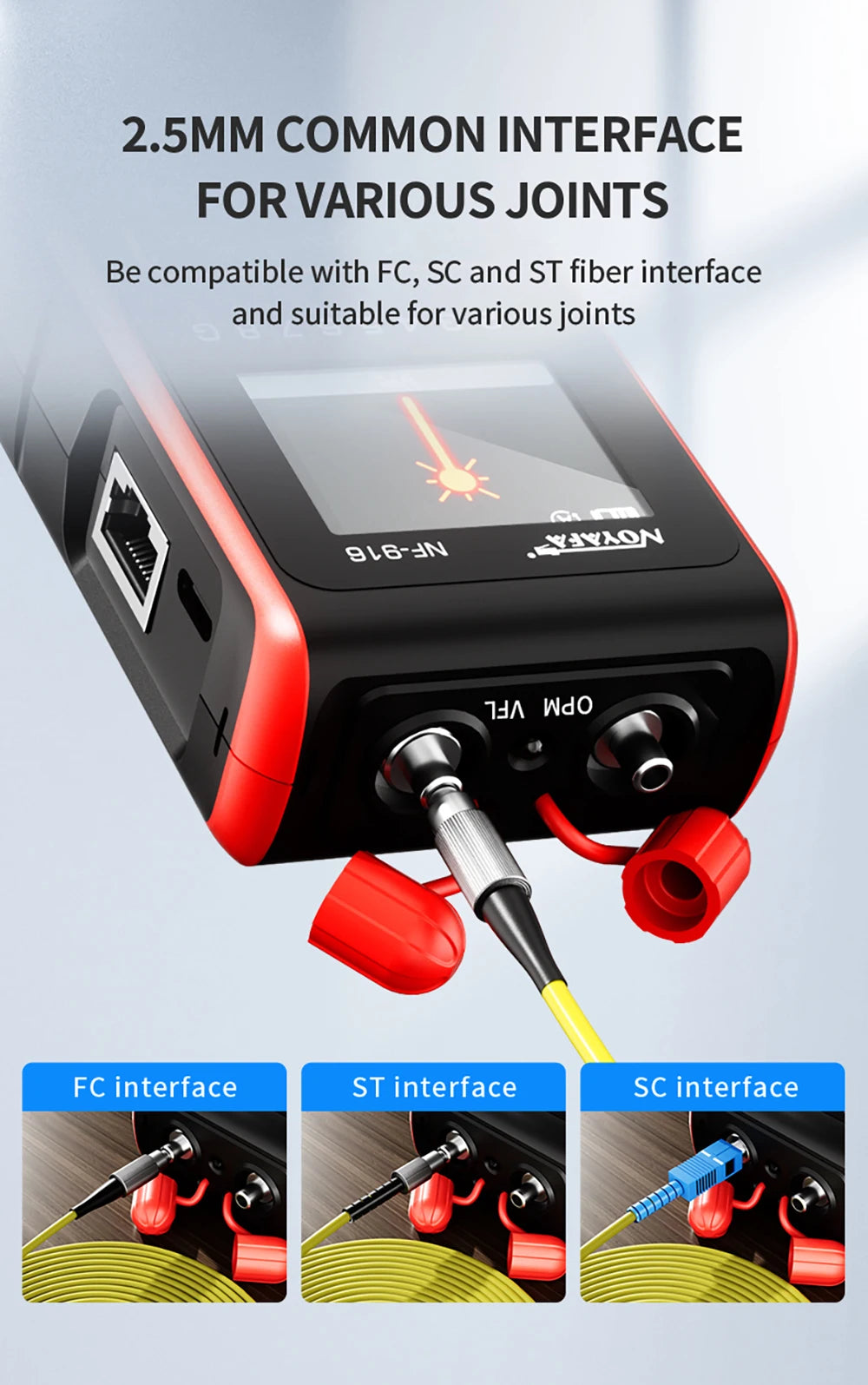

2.5MM COMMON INTERFACE FOR VARIOUS JOINTS

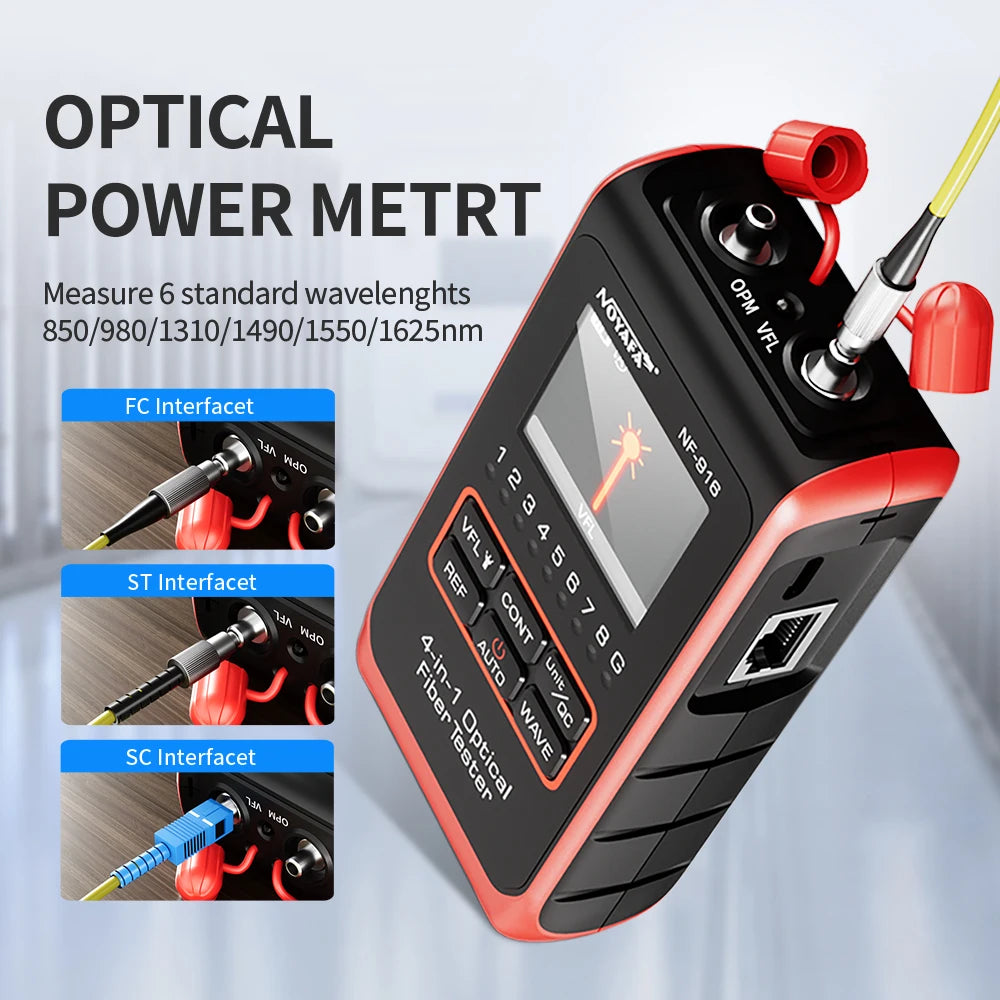

Be compatible with FC, SC and ST fiber interface and suitable for various joints

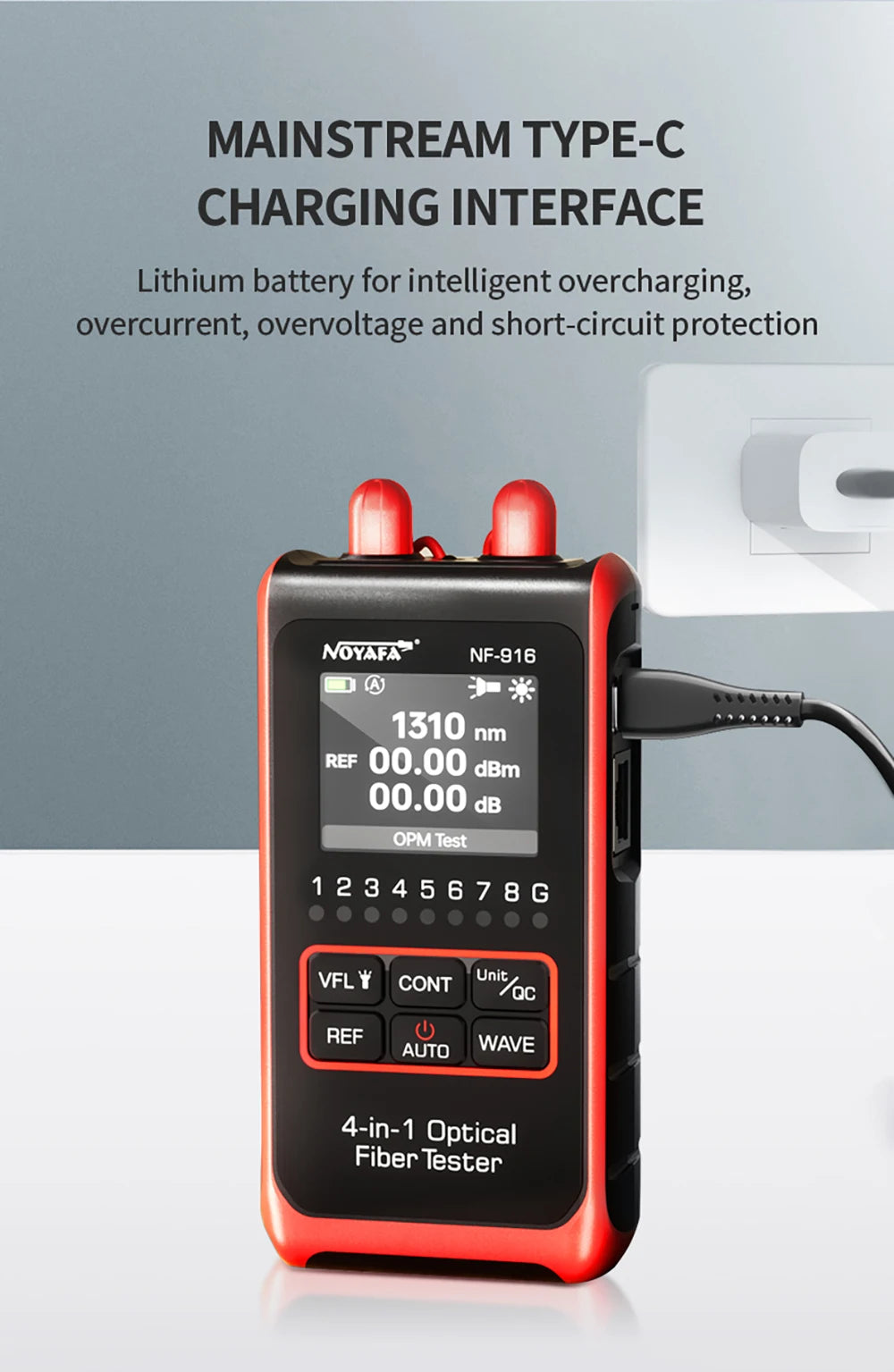

MAINSTREAM TYPE-C CHARGING INTERFACE

Lithium battery for intelligent overcharging, overcurrent, overvoltage and short-circuit protection

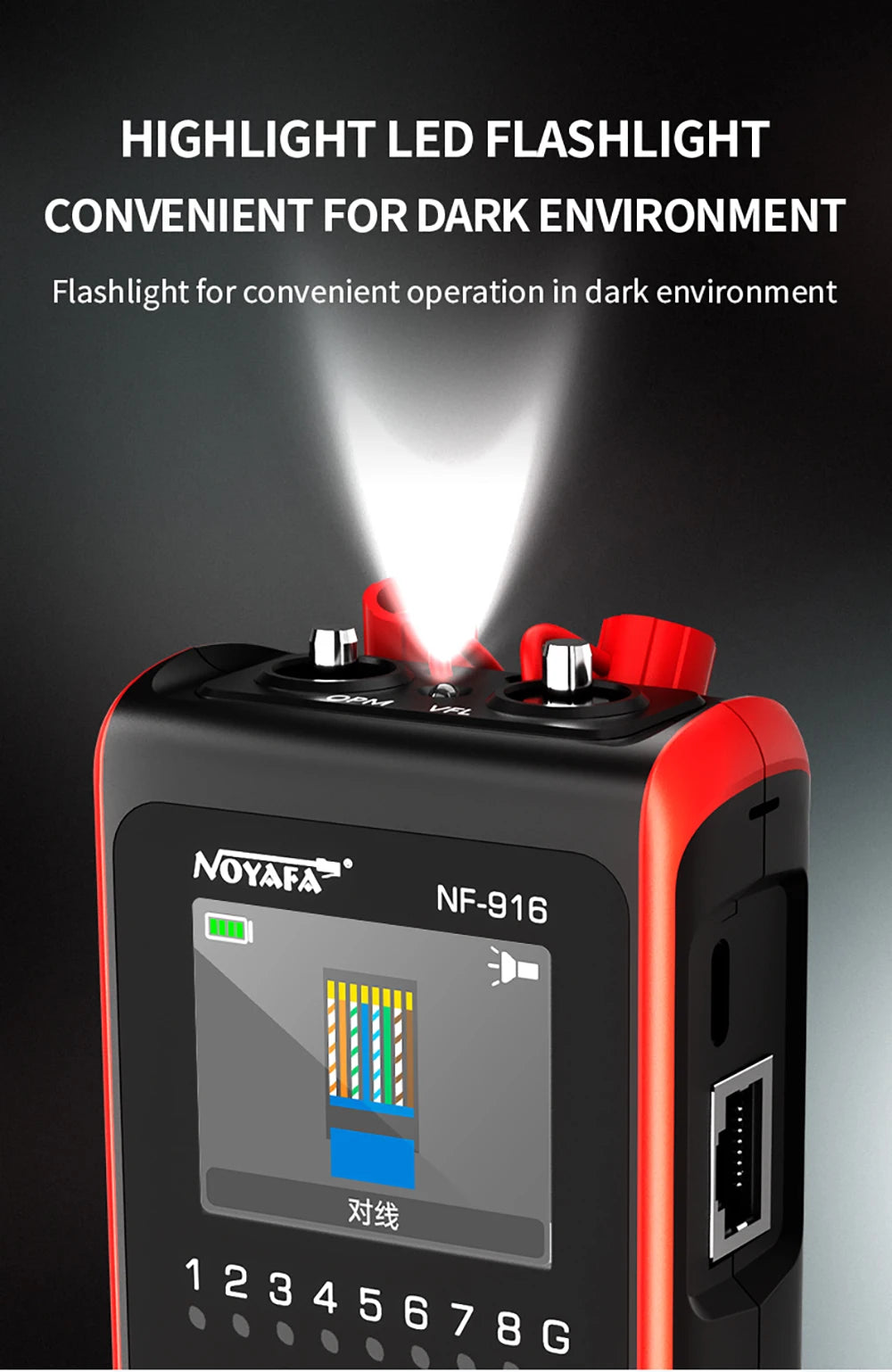

HIGHLIGHT LED FLASHLIGHT CONVENIENT FOR DARK ENVIRONMENT

Flashlight for convenient operation in dark environment

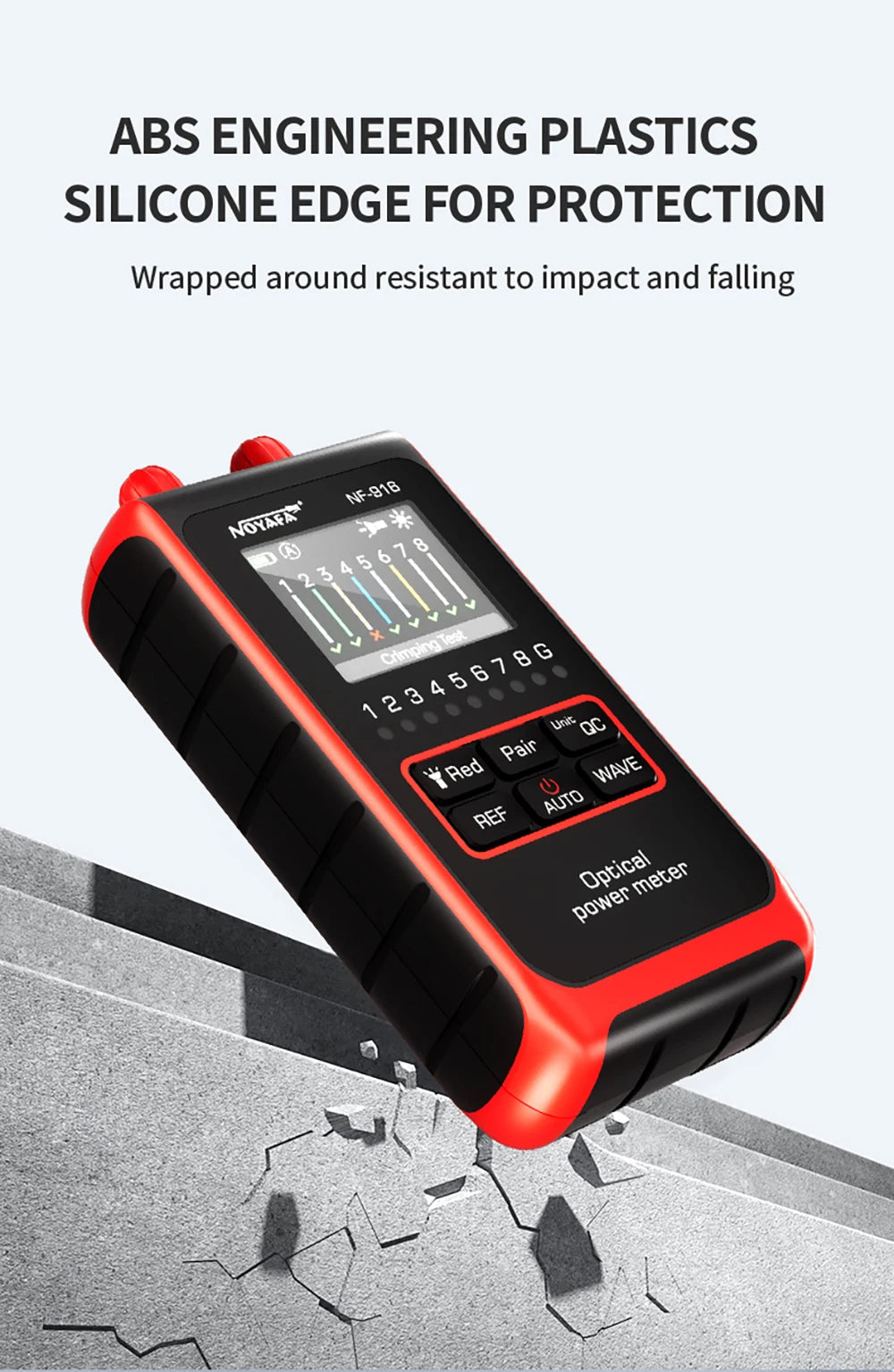

ABS ENGINEERING PLASTICS SILICONE EDGE FOR PROTECTION

Wrapped around resistant to impact and falling

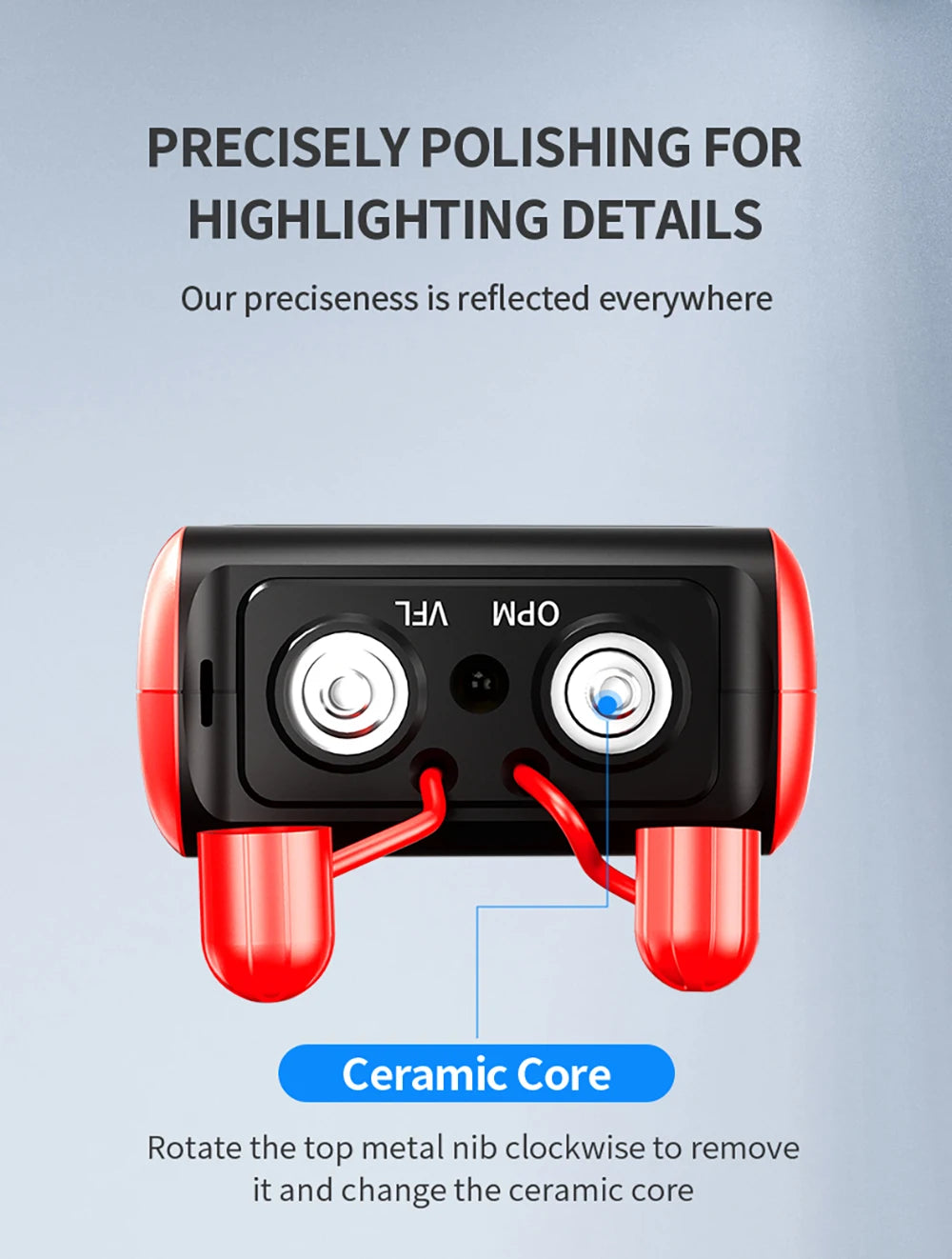

PRECISELY POLISHING FOR HIGHLIGHTING DETAILS

Our preciseness is reflected everywhere

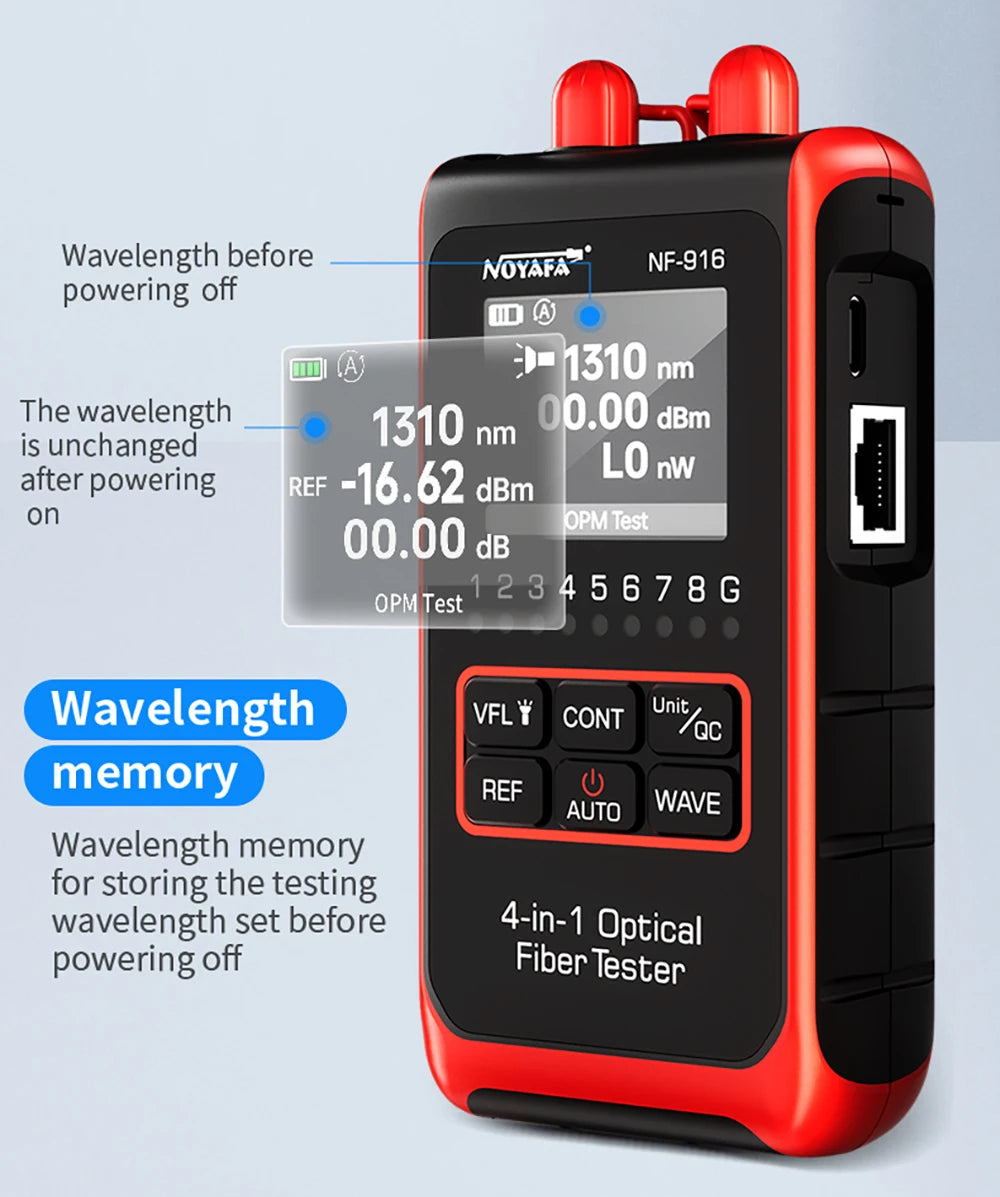

Wavelength memory

Wavelength memory for storing the testing wavelength set before powering off

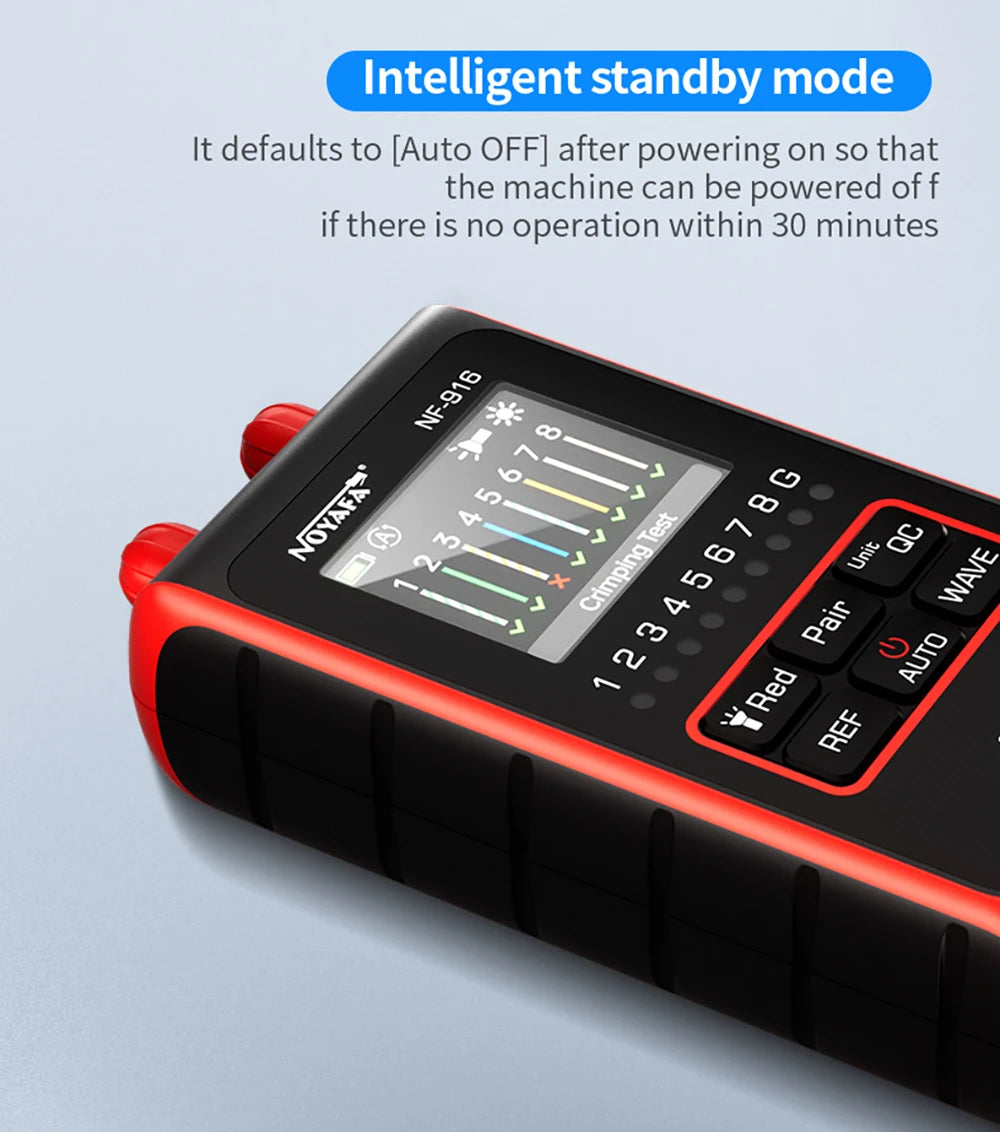

Intelligent standby mode

It defaults to [Auto OFF] after powering on so that
the machine can be powered off
if there is no operation within 30 minutes

PORTABLE IN ONE HAND

Light and convenient for carry in one hand or the pocket

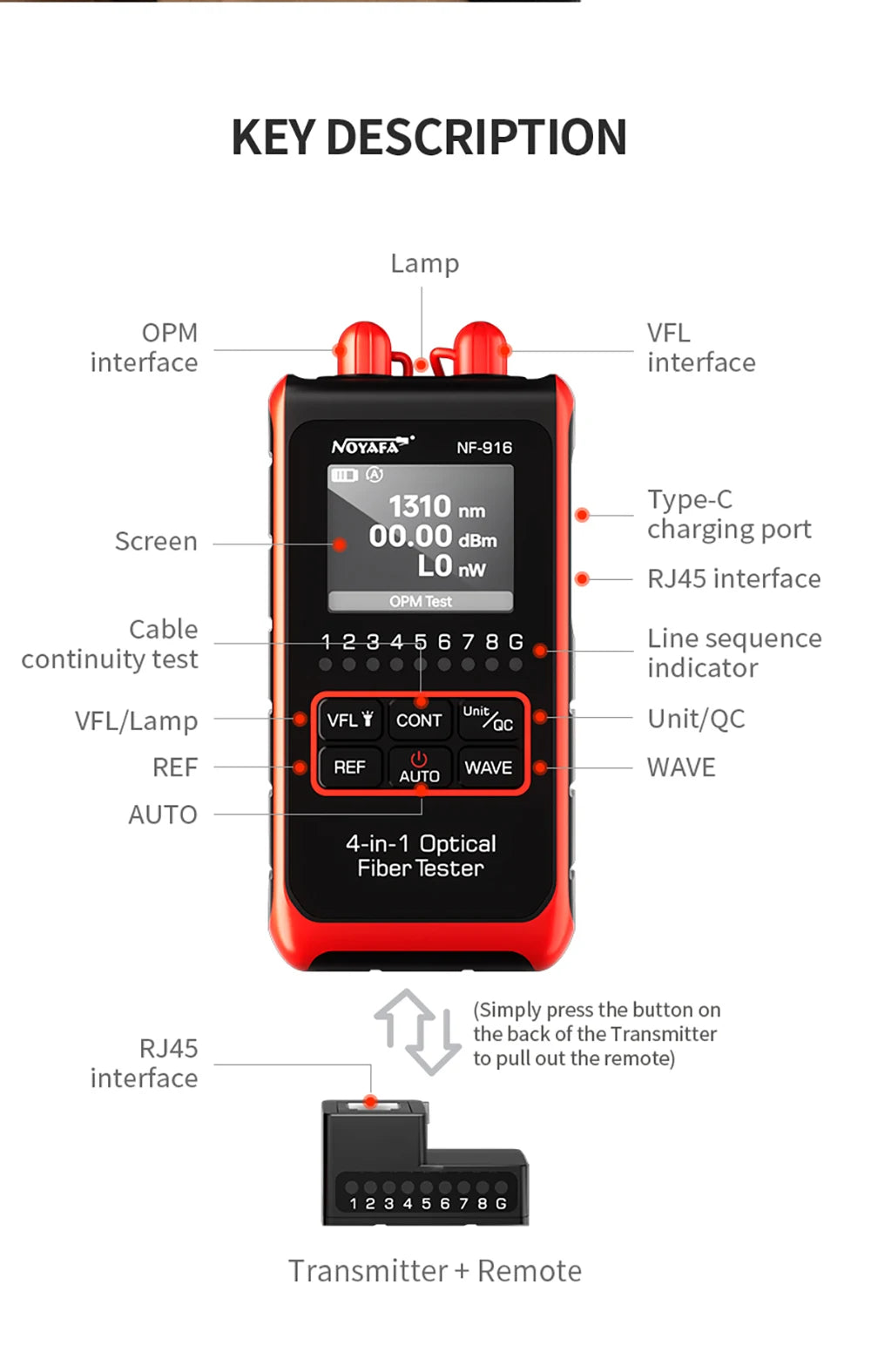

KEY DESCRIPTION

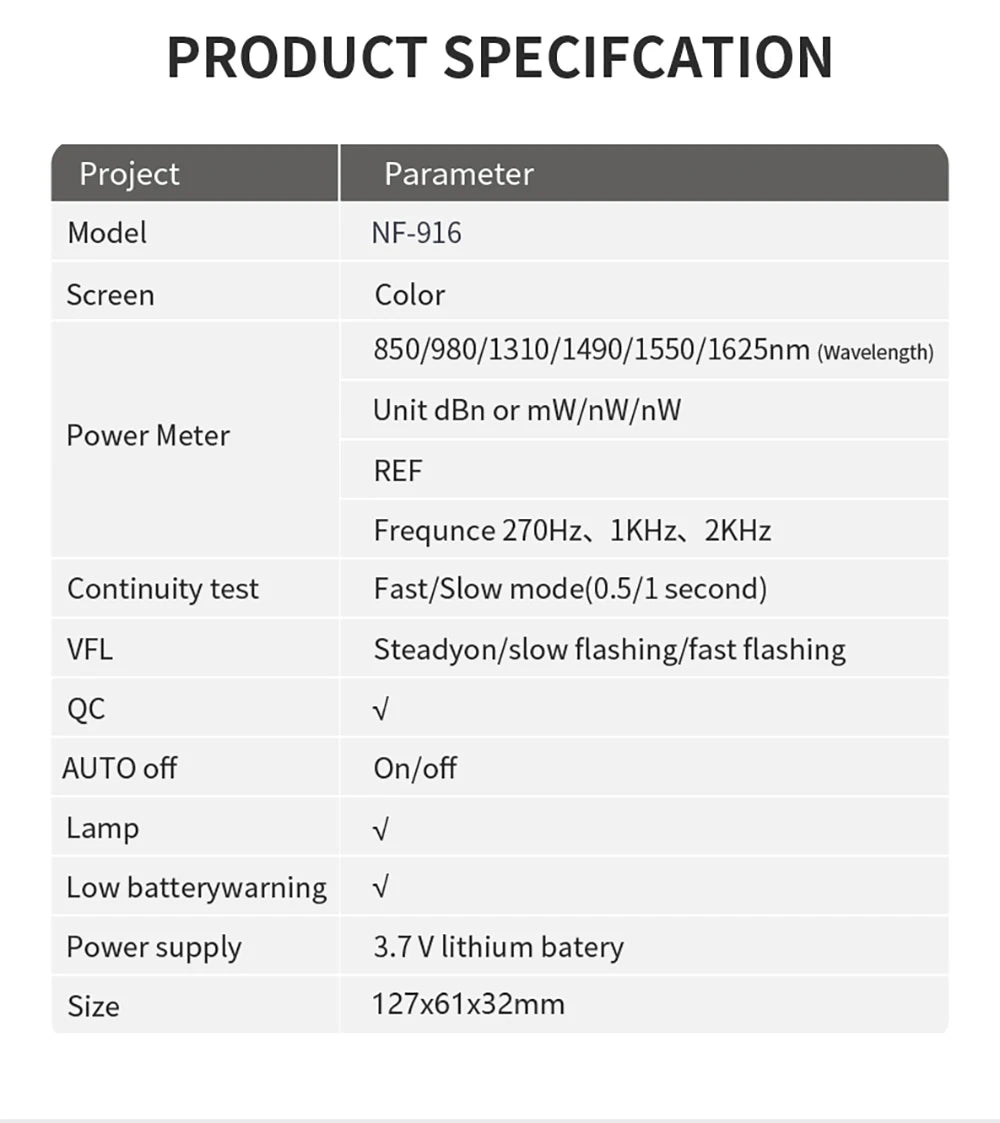

PRODUCT SPECIFCATION

Model：NF-916
Screen：Color model
Power Meter：850/980/1310/1490/1550/1625nm (Wavelength)
Unit dBn or mW/nW/nW
Frequnce 270Hz、 1KHz、 2KHz
Continuity test：Fast/Slow mode (0.5/1 second)
VFL：Steadyon/slow flashing/fast flashing
QC：√
AUTO off：On/off
Lamp：√
Low batterywarning：√
Power supply：3.7 V lithium batery
Size：127x61x32mm

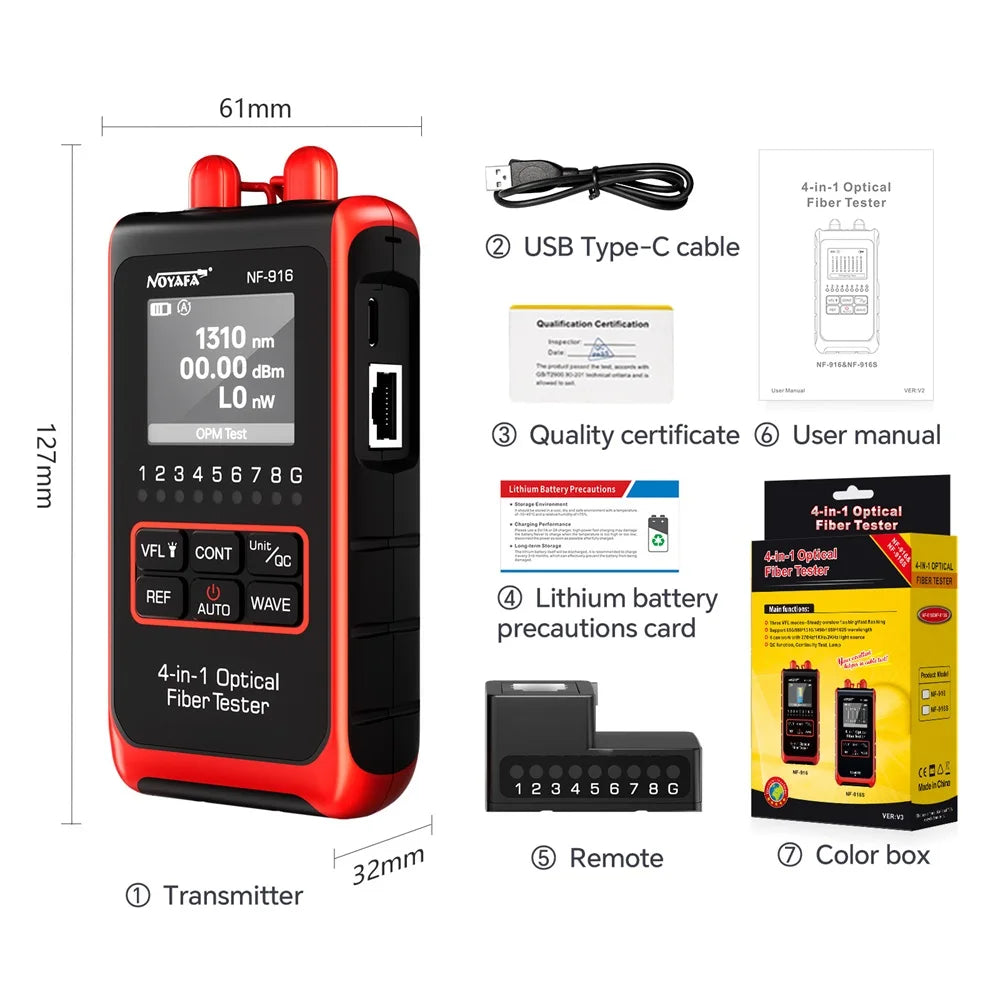

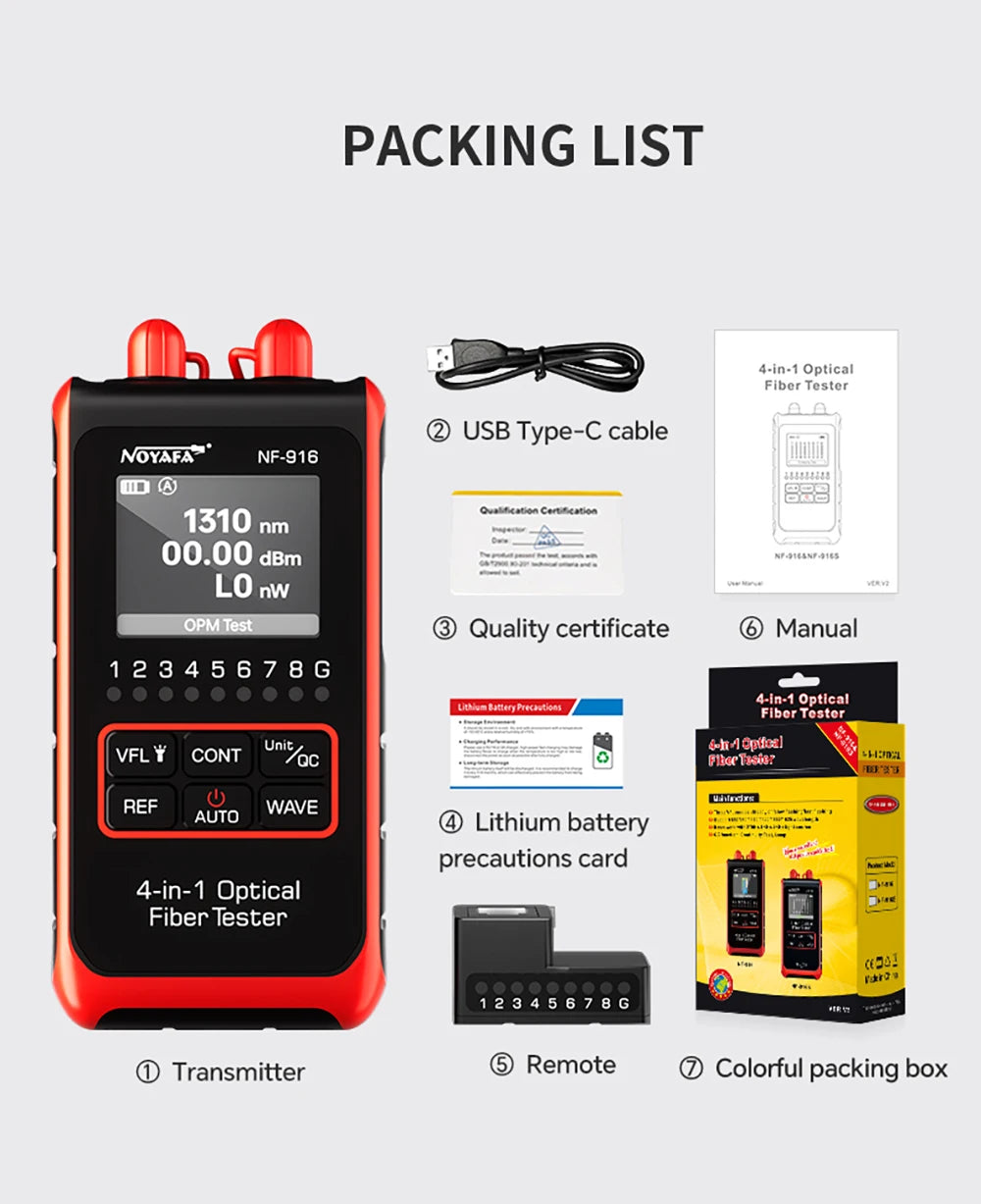

PACKING LIST
