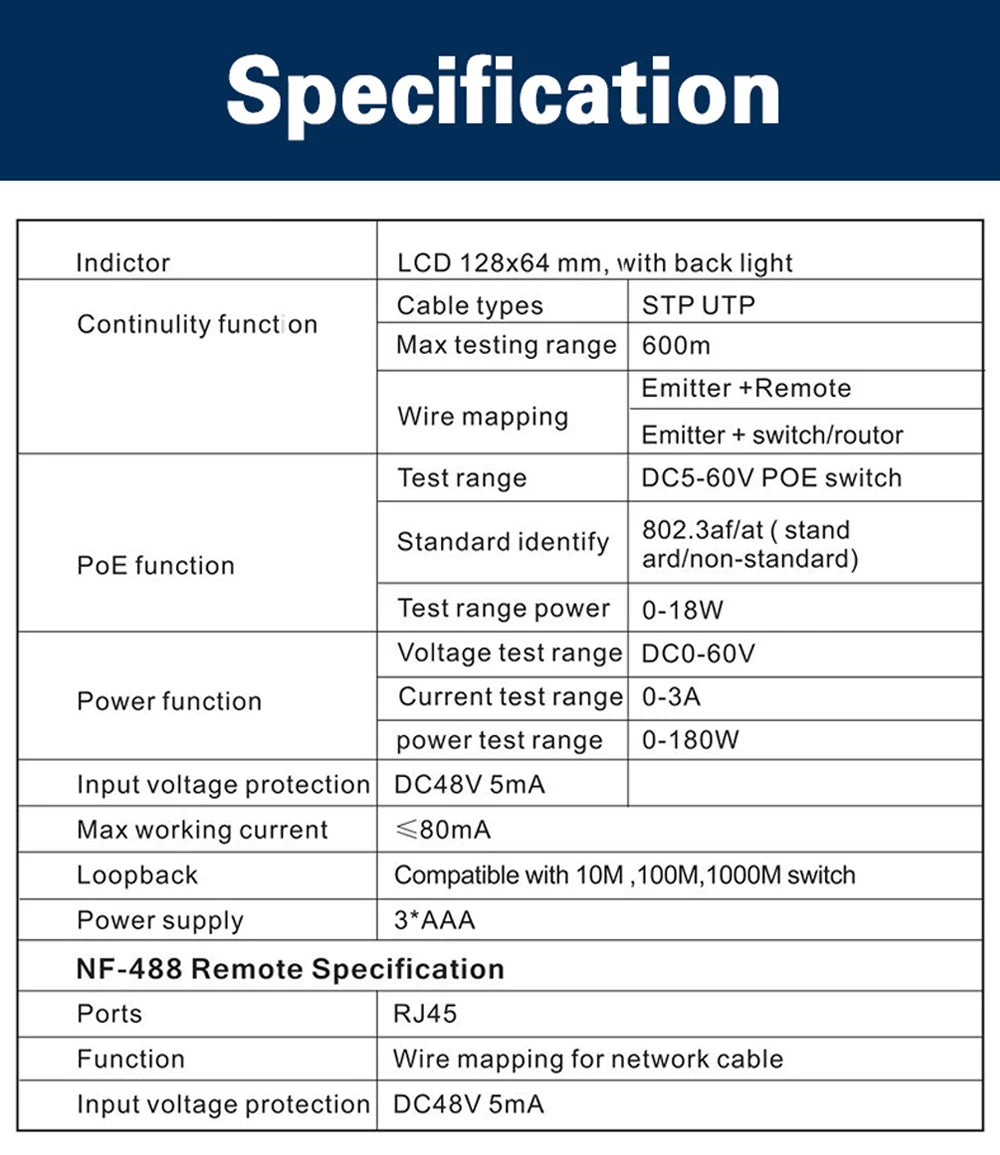

NF-488 Product parameters

Product Description:

Brand: NOYAFA

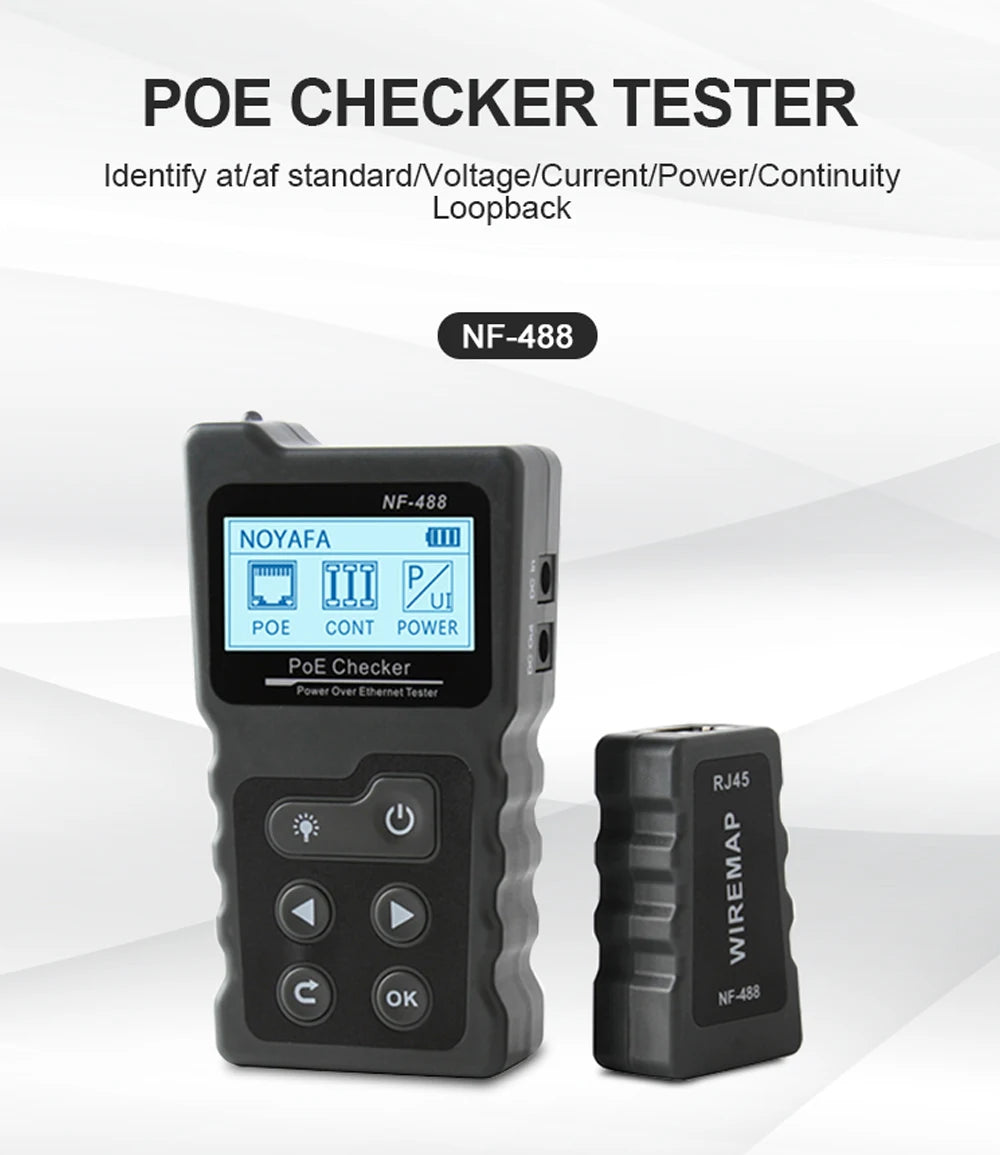

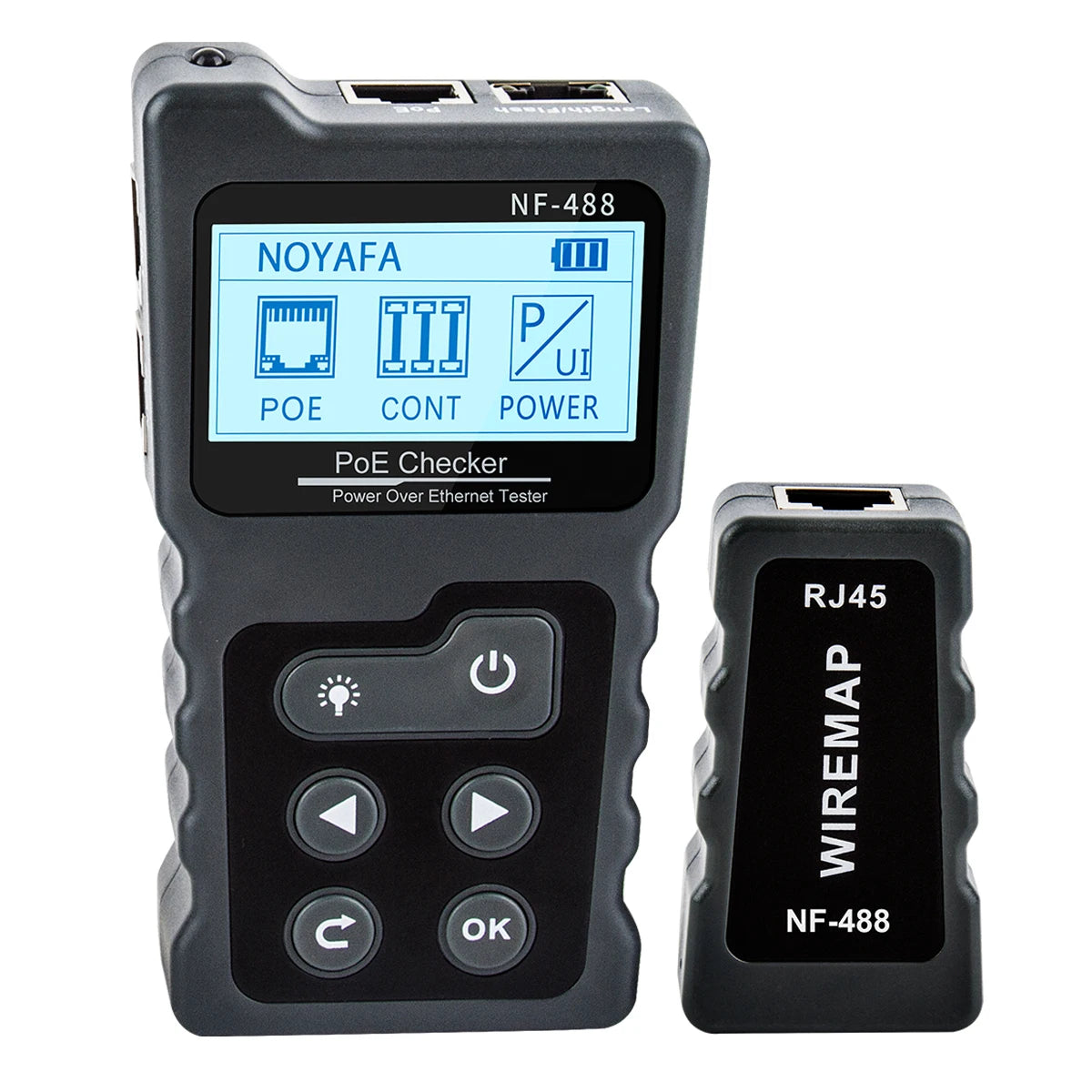

Product Name: Network Cable Tester

Type: NF-488

Display: 128x64 dot matrix, with backlight

Language display: Simplified Chinese or English

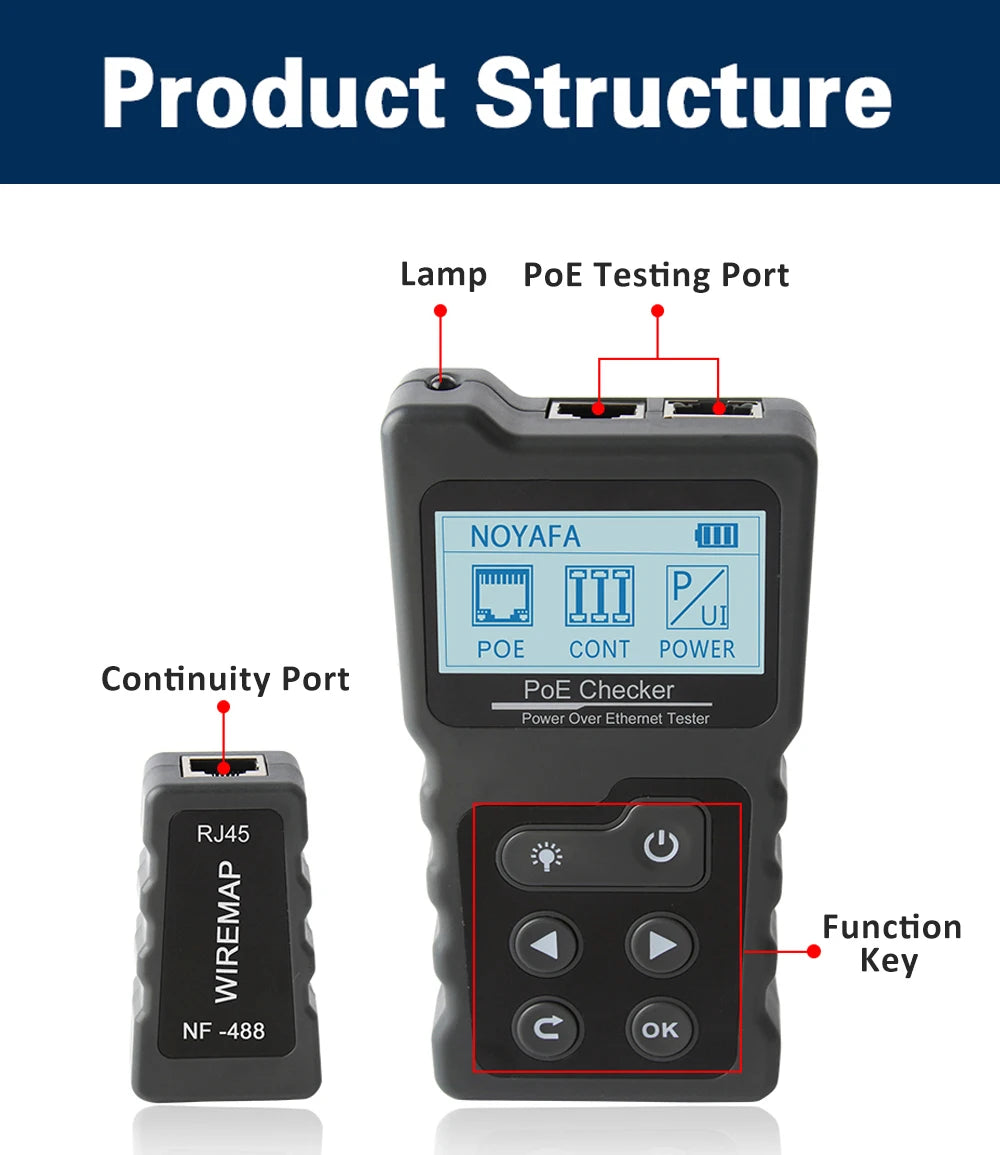

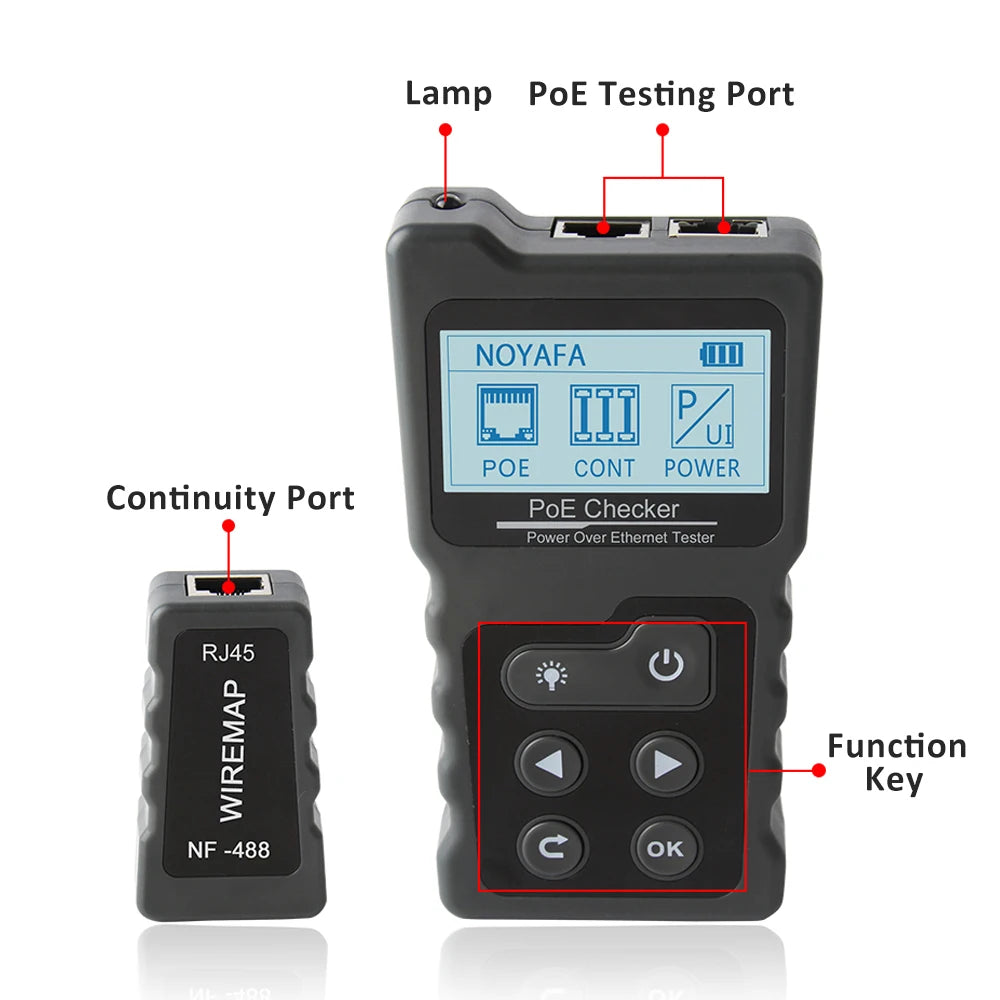

Interface description: 4 RJ45, 2 DC interfaces

Applicable cables: CAT5, CAT6

Max Testing Range: 600m

Voltage Test Range: DC0-60V

Current Test Range: 0-3A

Test Range Power: 0-18W(PoE Test)

Power Test Range: 0-180W(Power test)

Low battery indicator: Yes, 2.7V

Automatic shutdown function: 15min, 30min, 60min

Power: AAA Battery

Product Features:

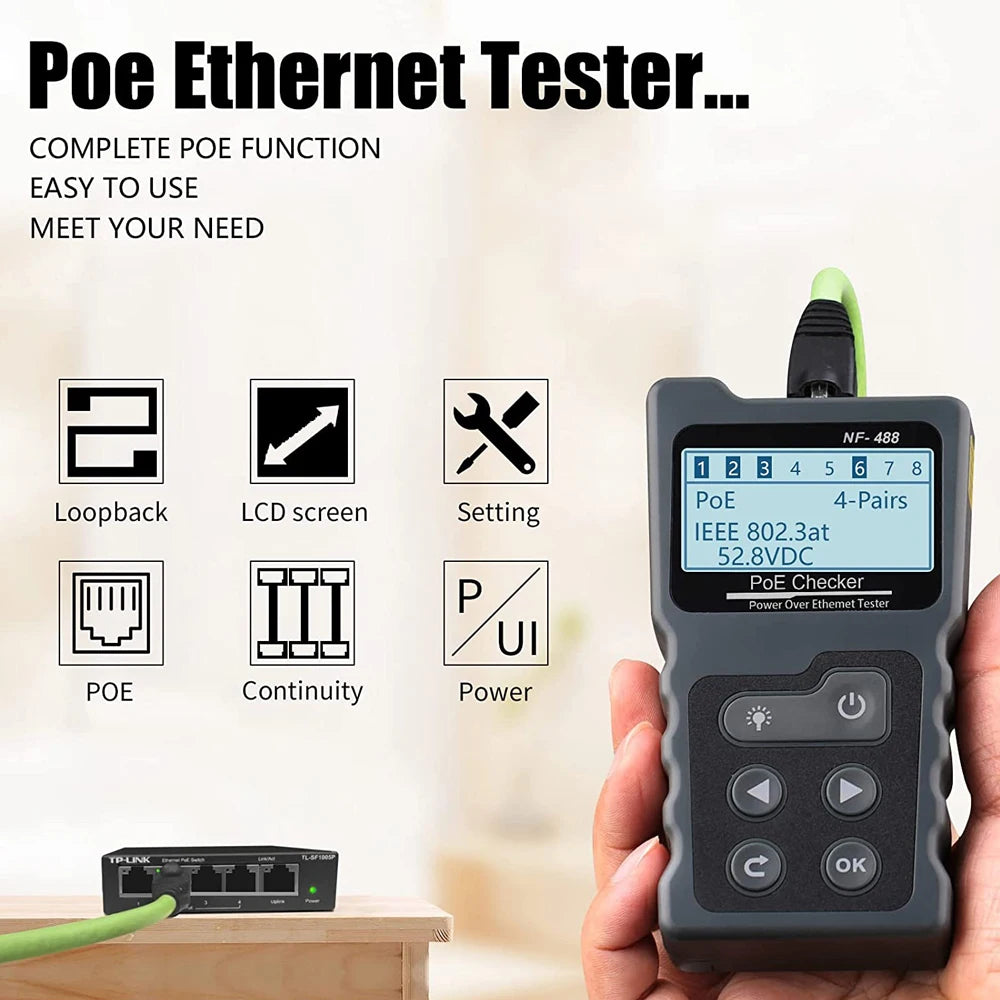

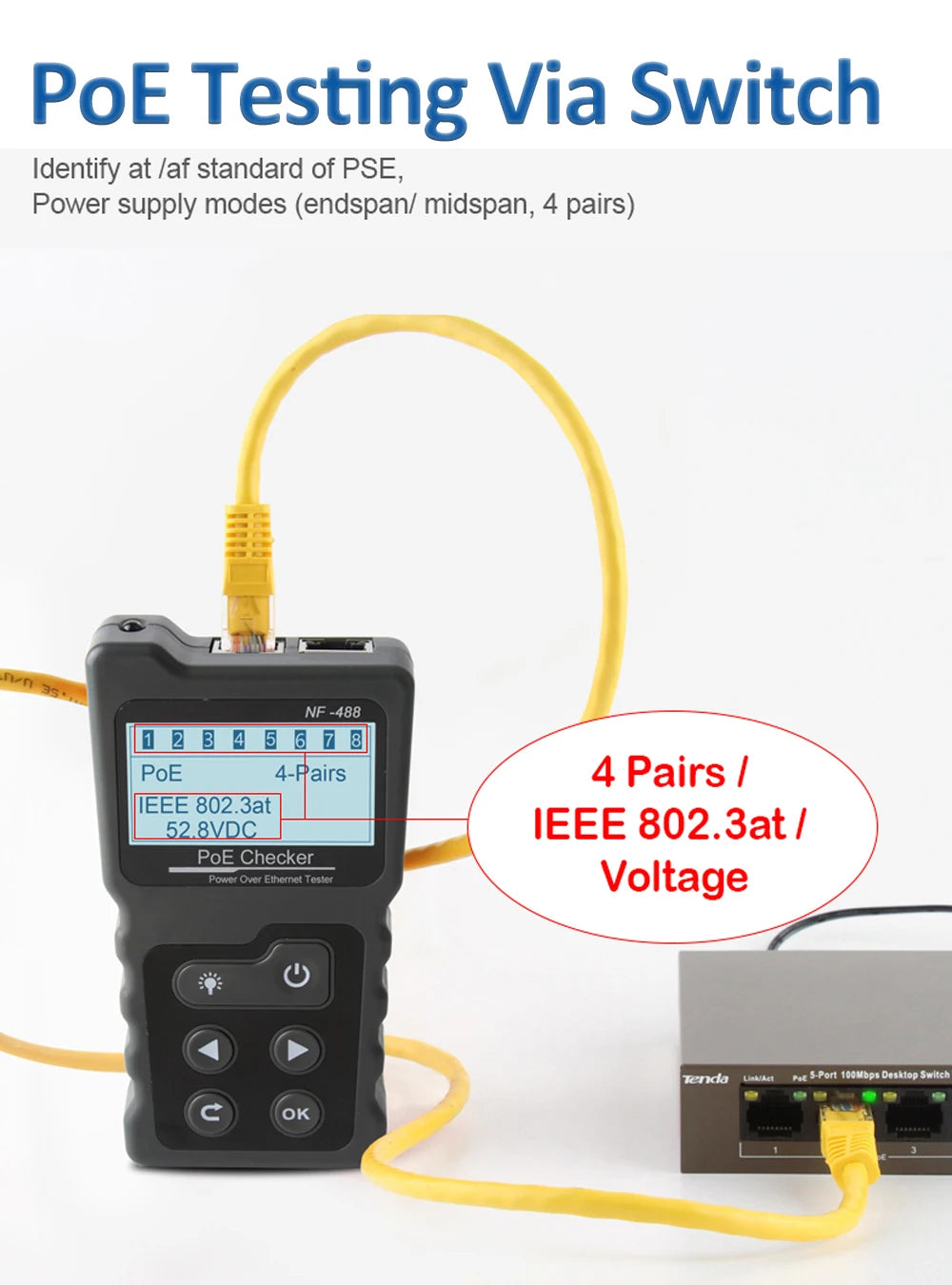

1. Test the information ofstandard/non-standard PoE device such as voltage, polarity, midspan or endspan.

2. Identify the type of PSE,it is af or at standard.

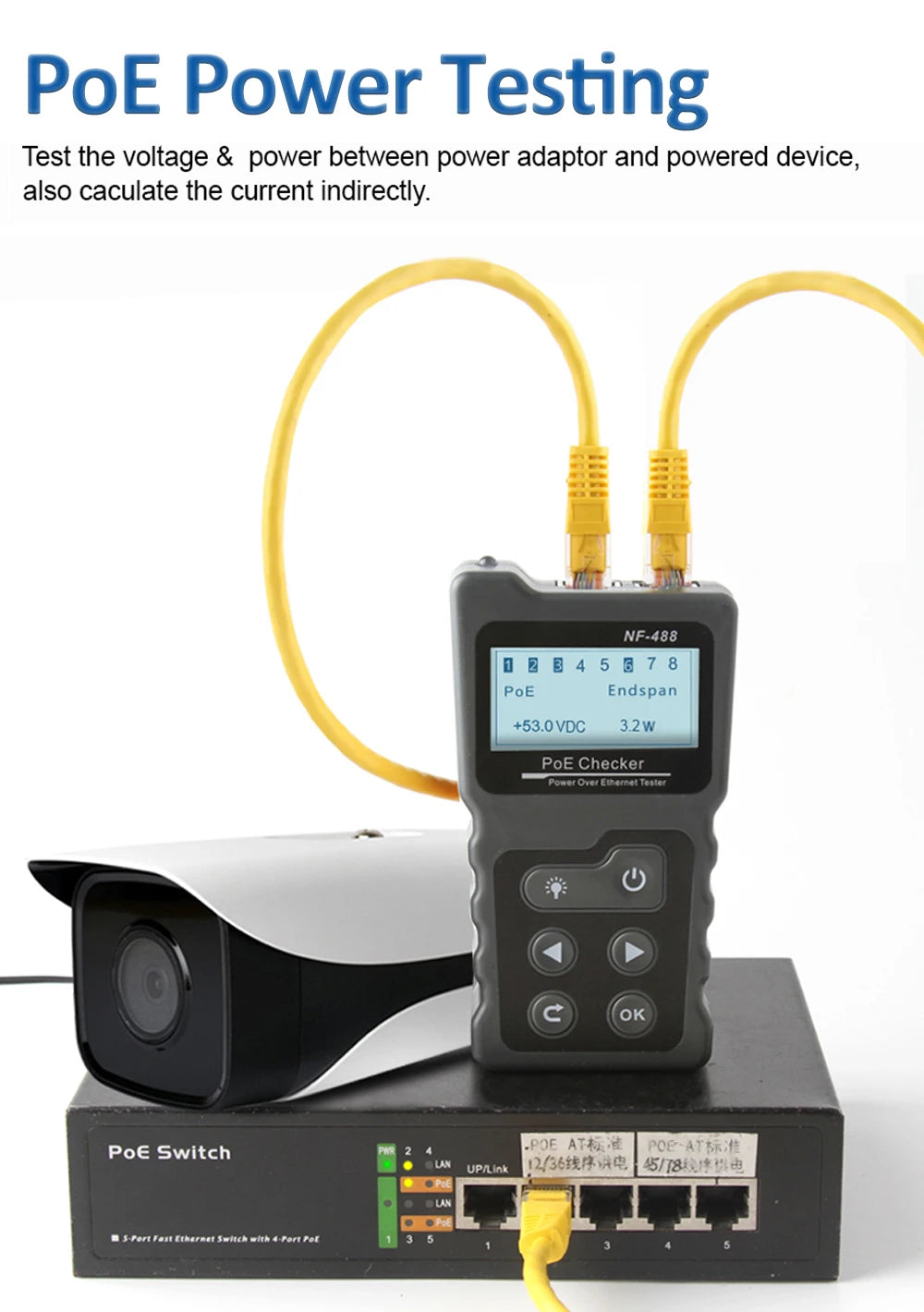

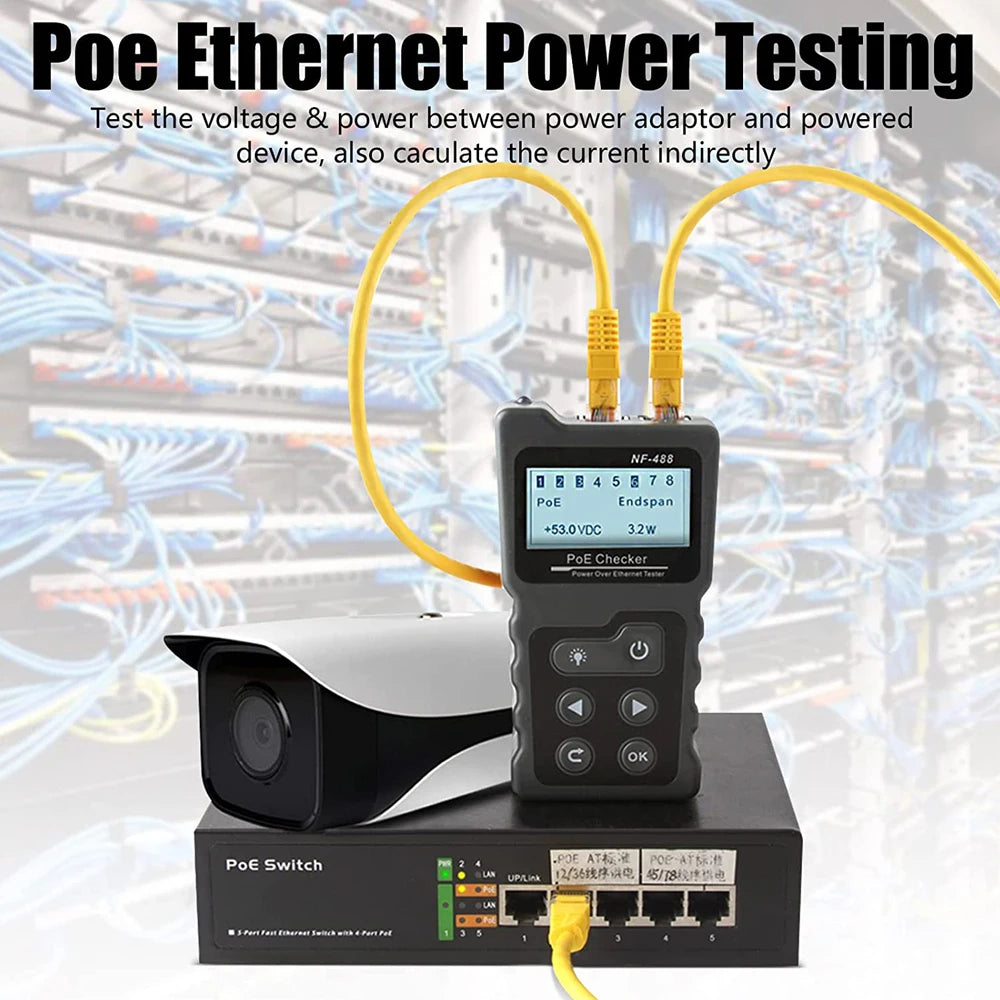

3. Online test of real-time power consumed by PD devicesin PoE power supply systems.

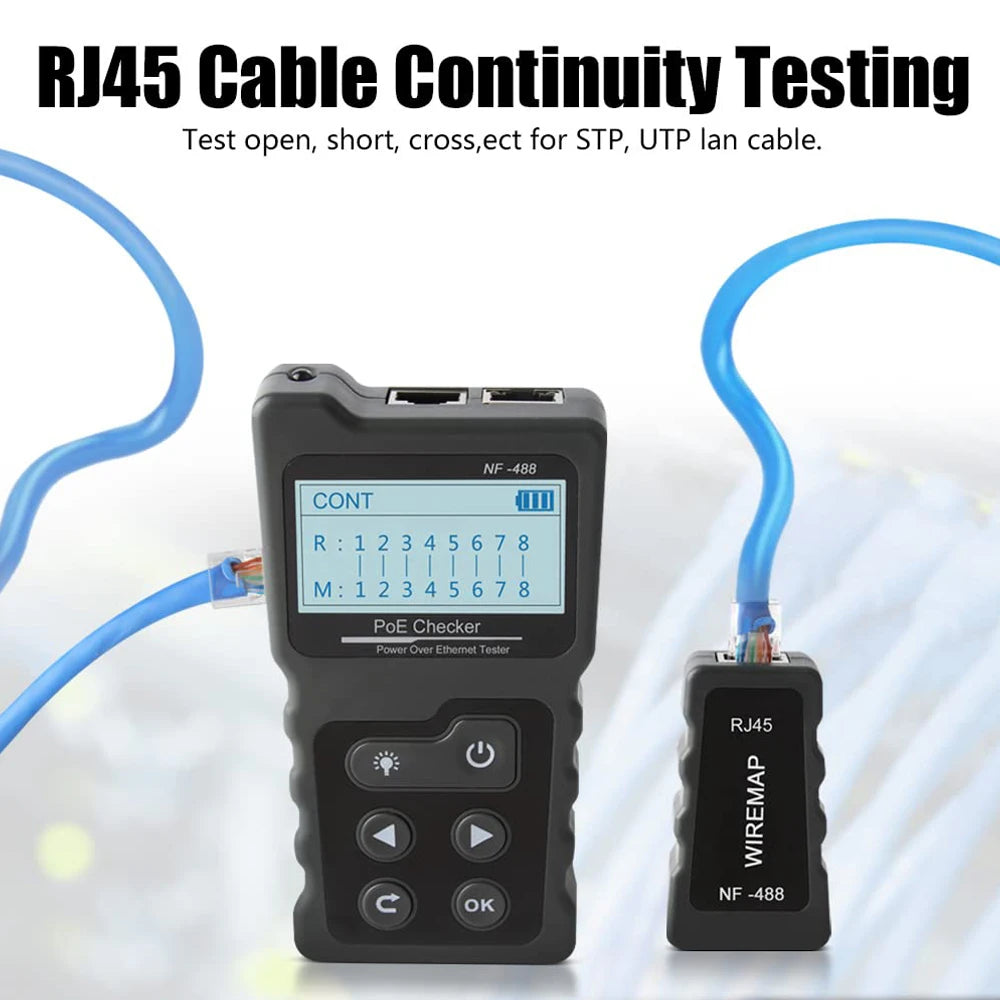

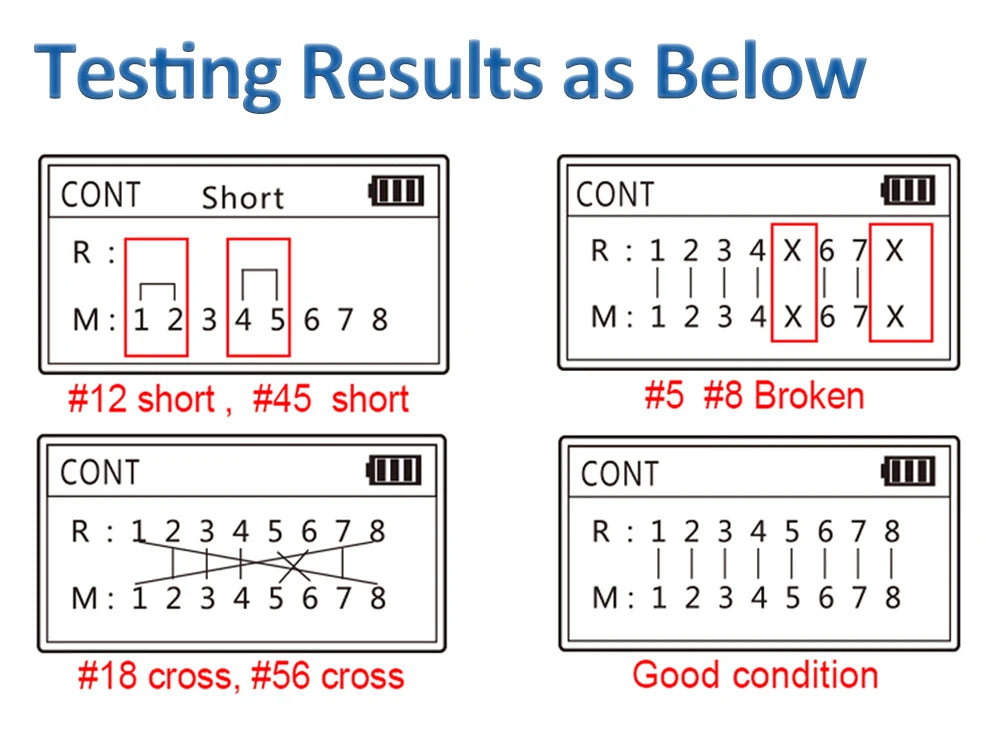

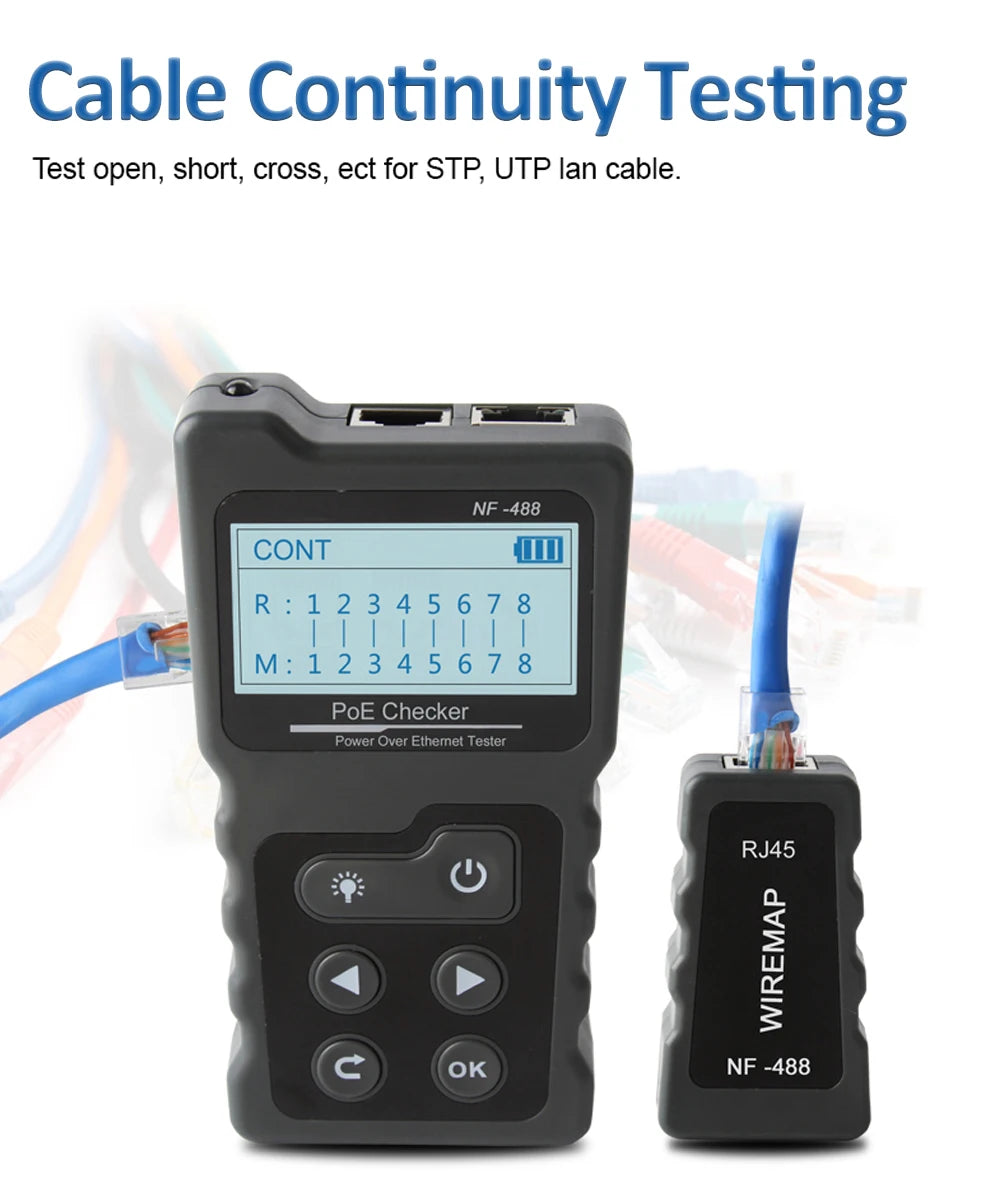

4. Test the open, shortcross, cross status in the network cable.

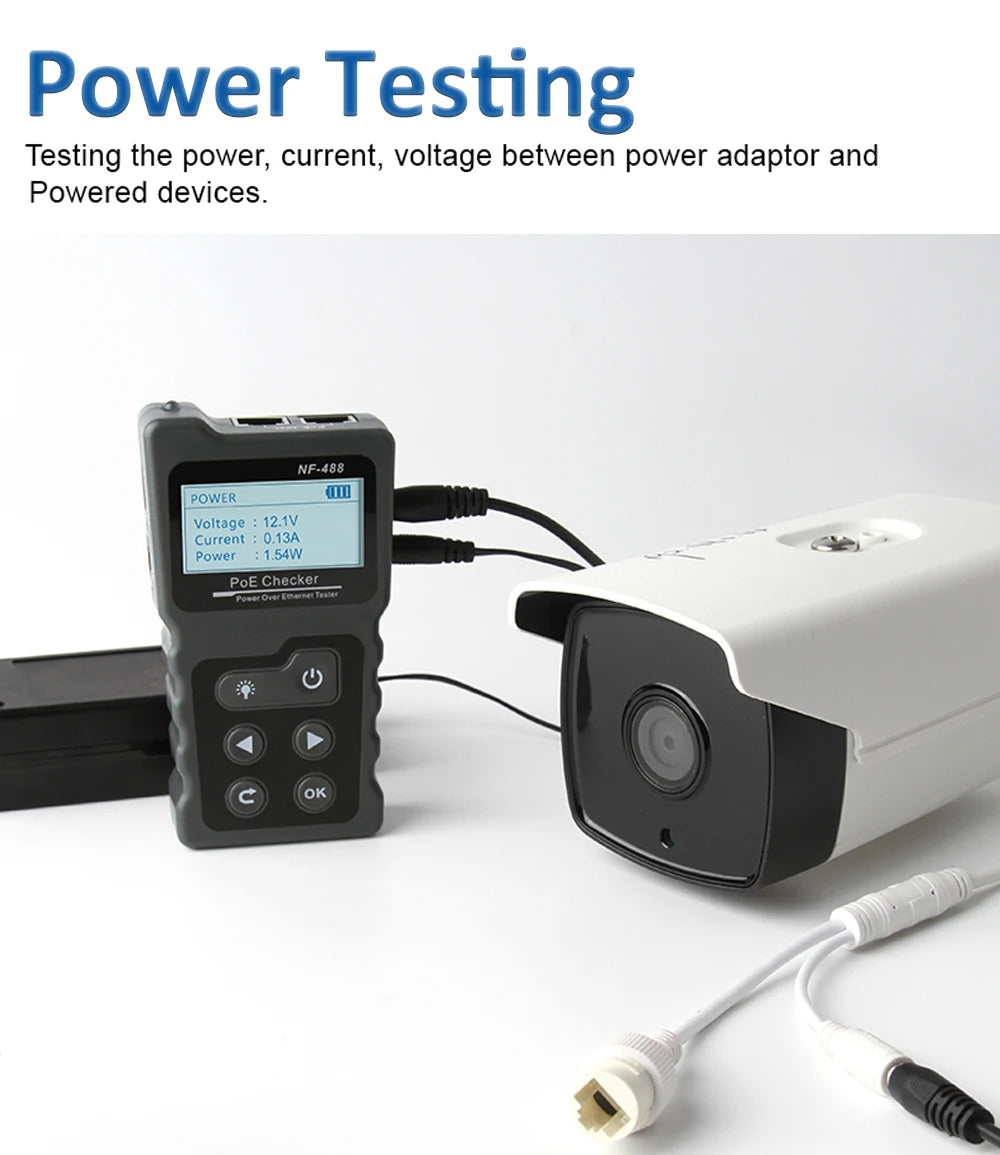

5. Test the power consumed by DC appliances.

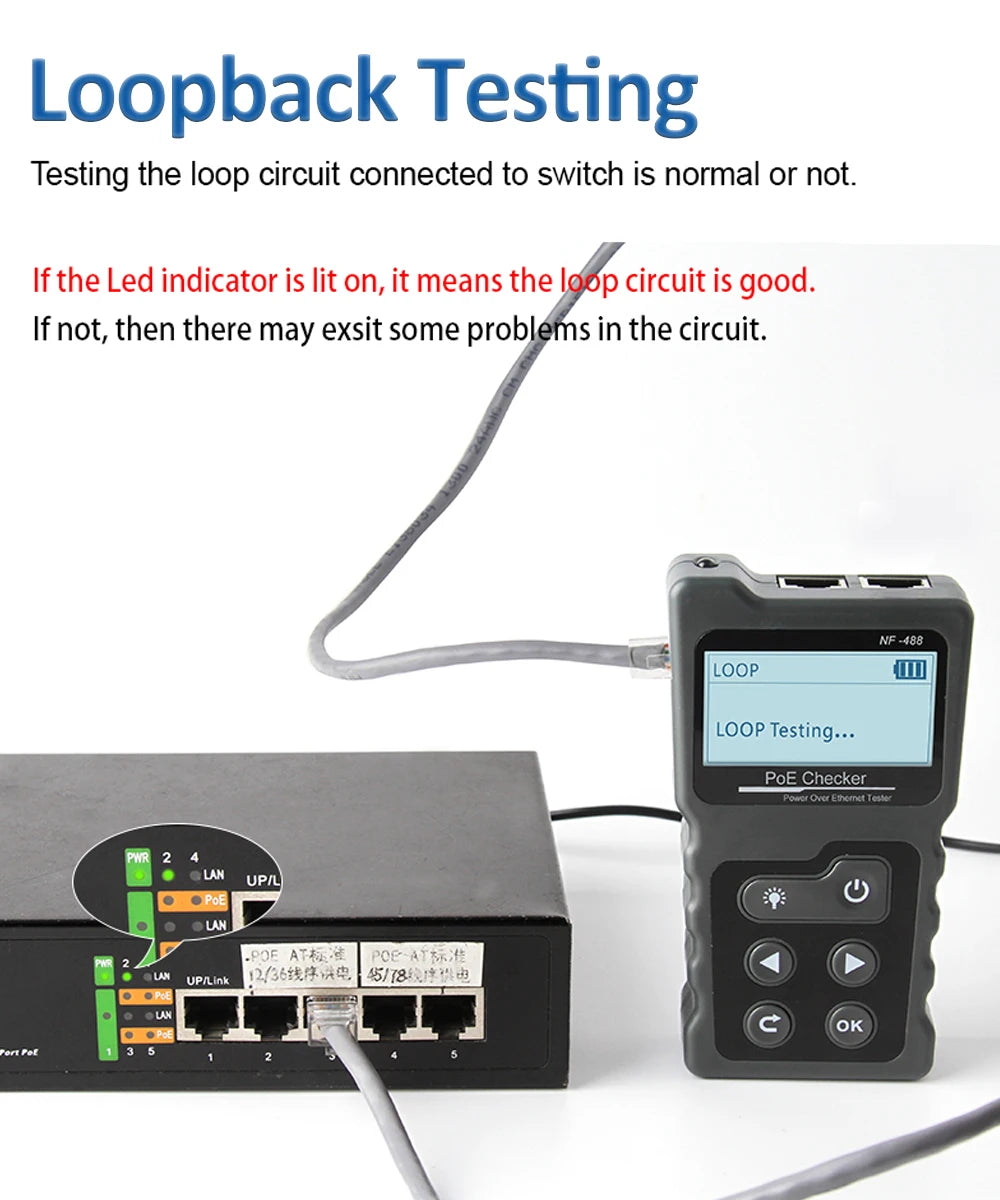

6. The loop test function of the switch.

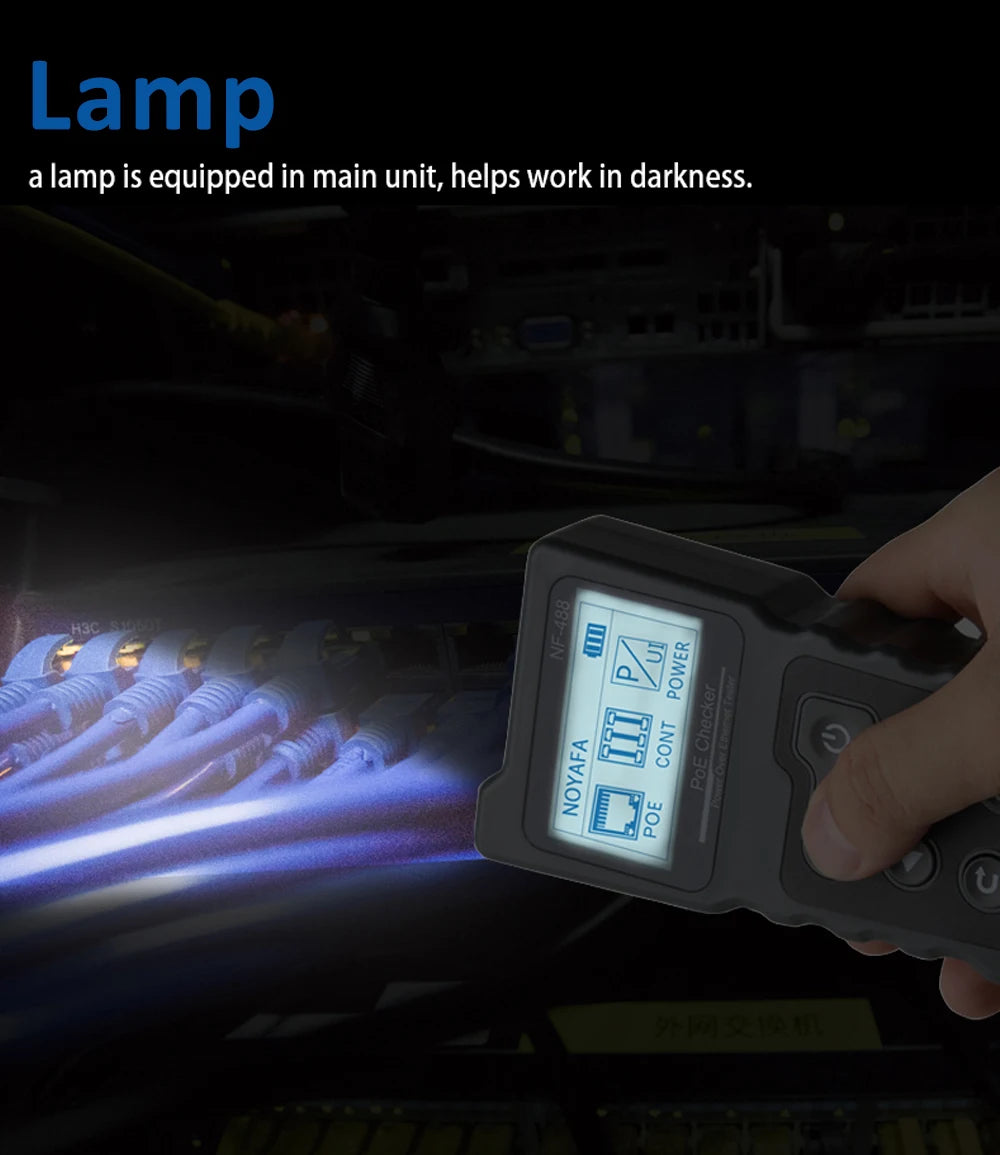

7. Lighting Function, convenient to work in dark environment.

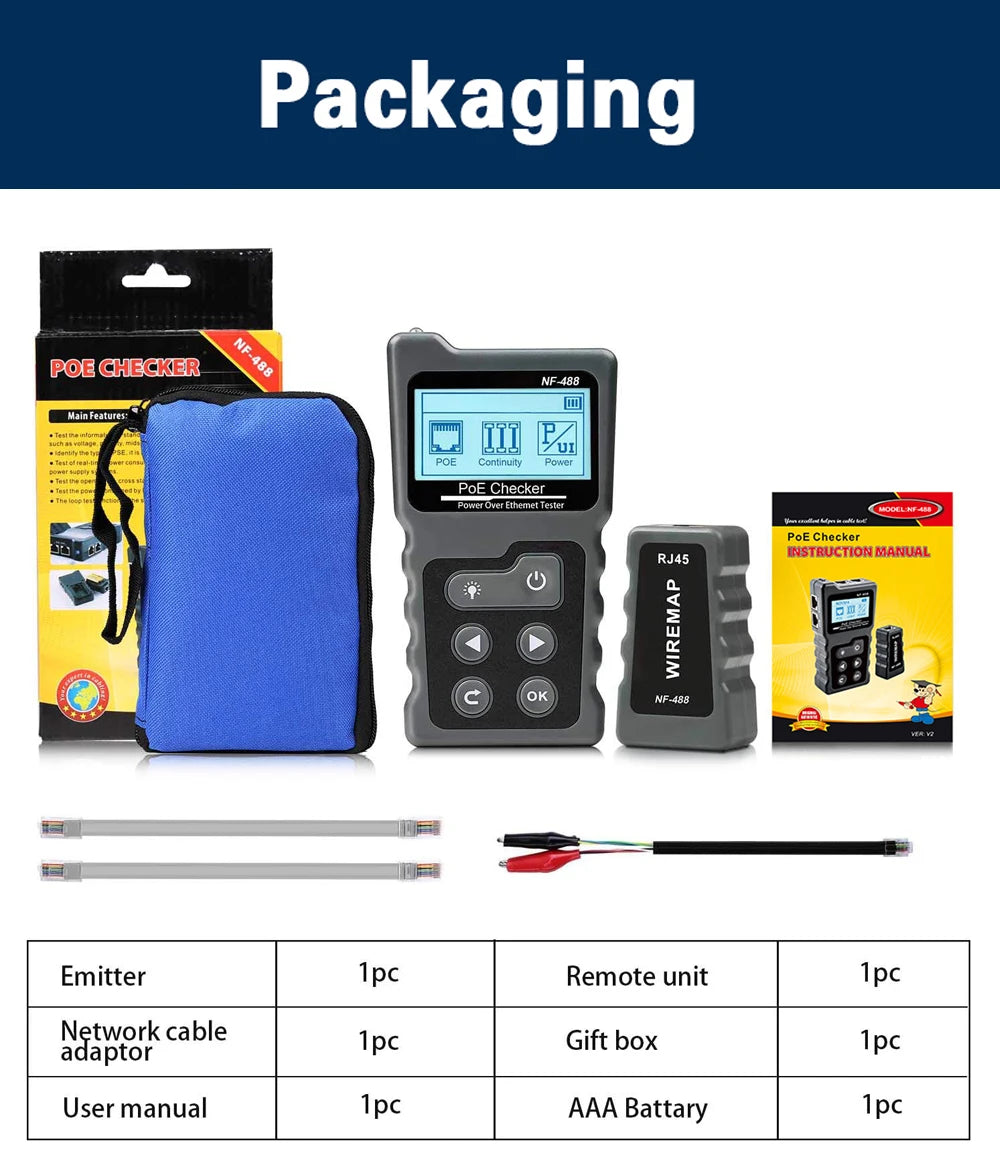

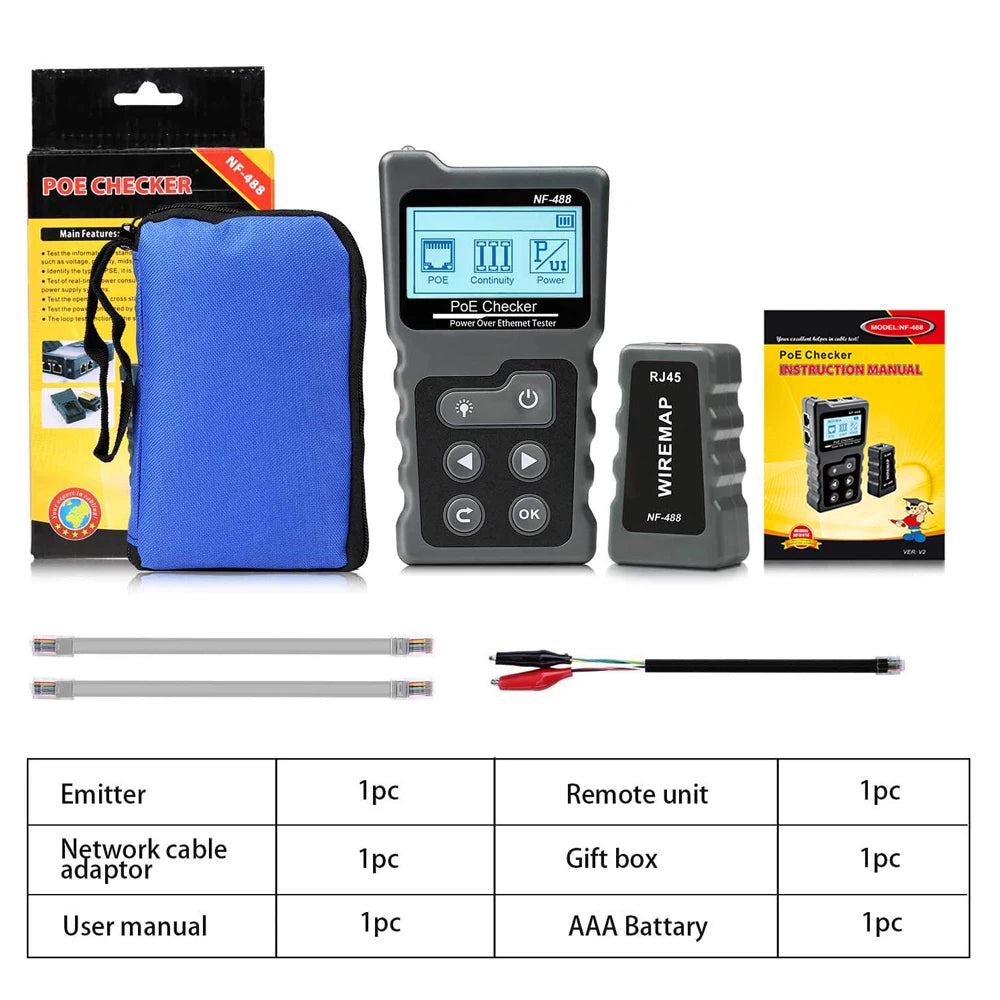

Package Include:

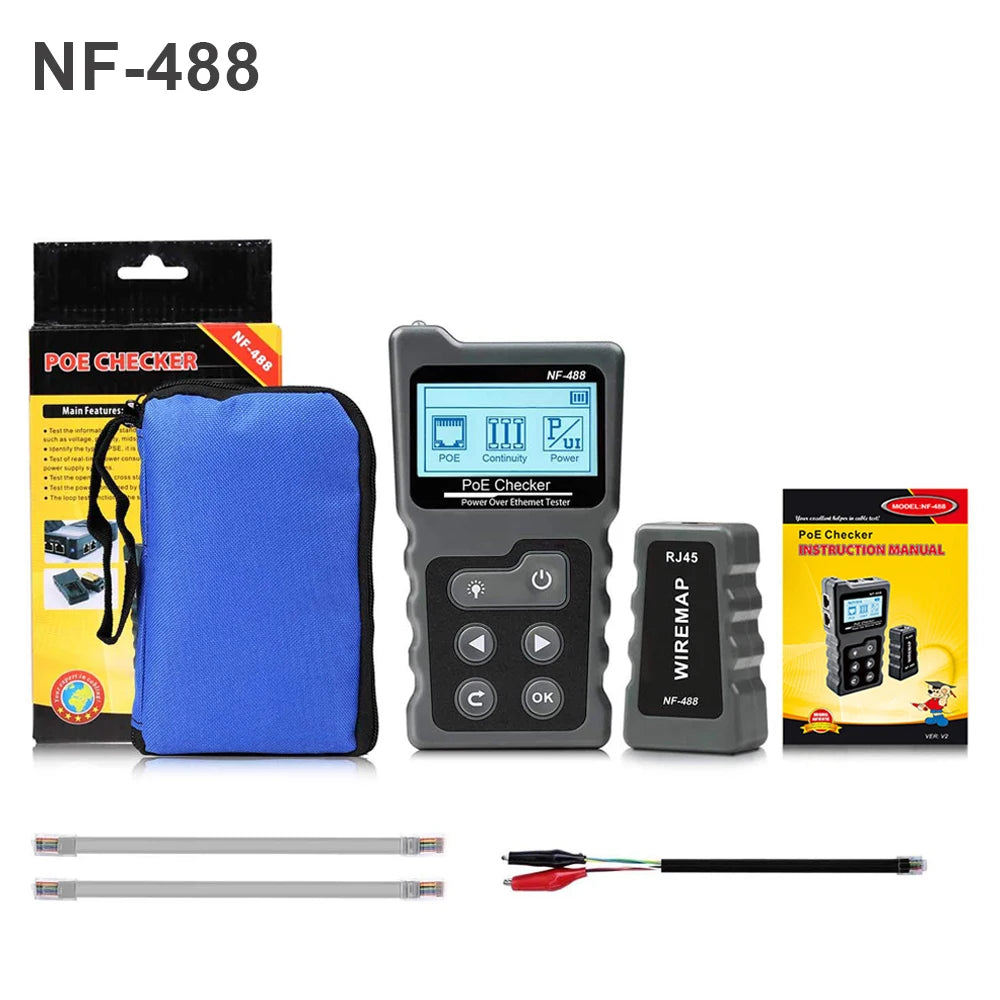

1Set x NF-488 Network Cable Tester

Please Note:

1. Due to the light and screen difference, the item's color may be slightly different from the pictures.

2. Please allow 1-3mm differences due to manual measurement. If you have any questions, please contact us in time.
