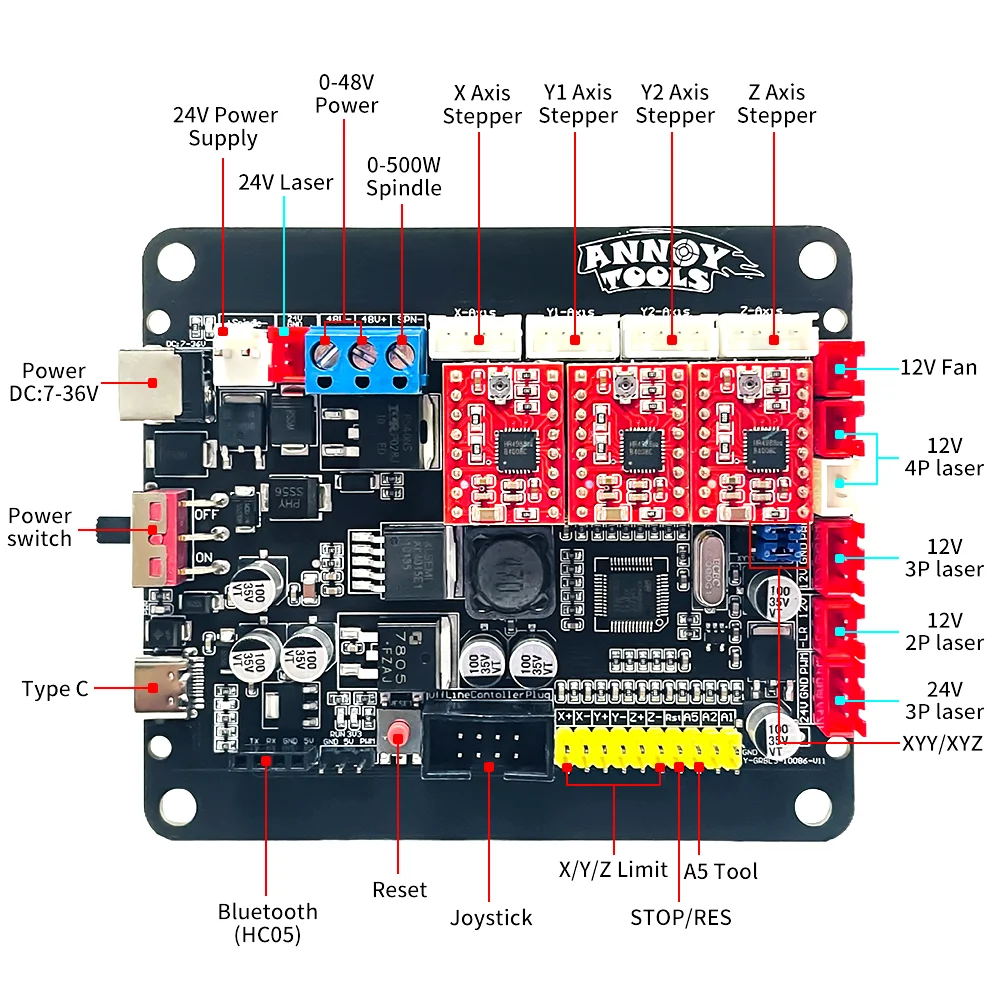

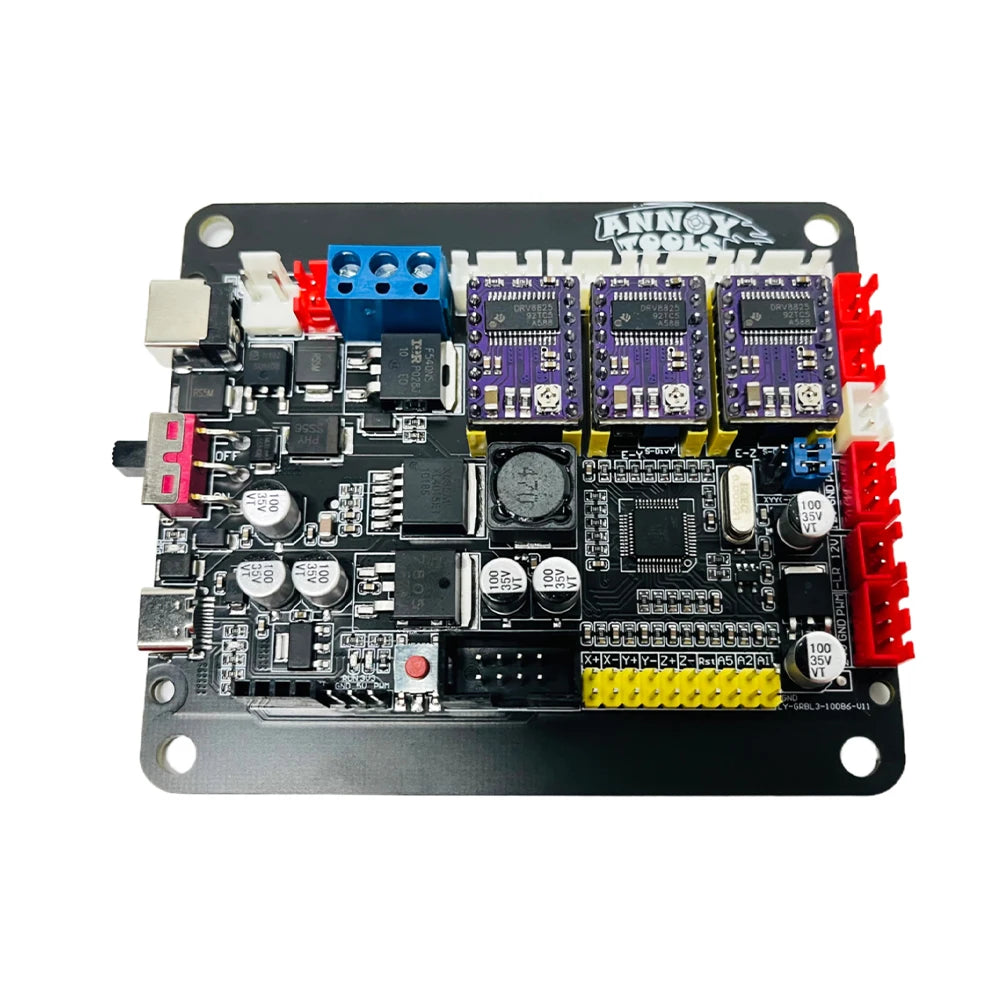

Features:

▶GRBL 32-bit, stable performance, faster speed and better accuracy

▶Dual y-axis, all-round use, XYZ or XYY.

▶Stepper drive setup.

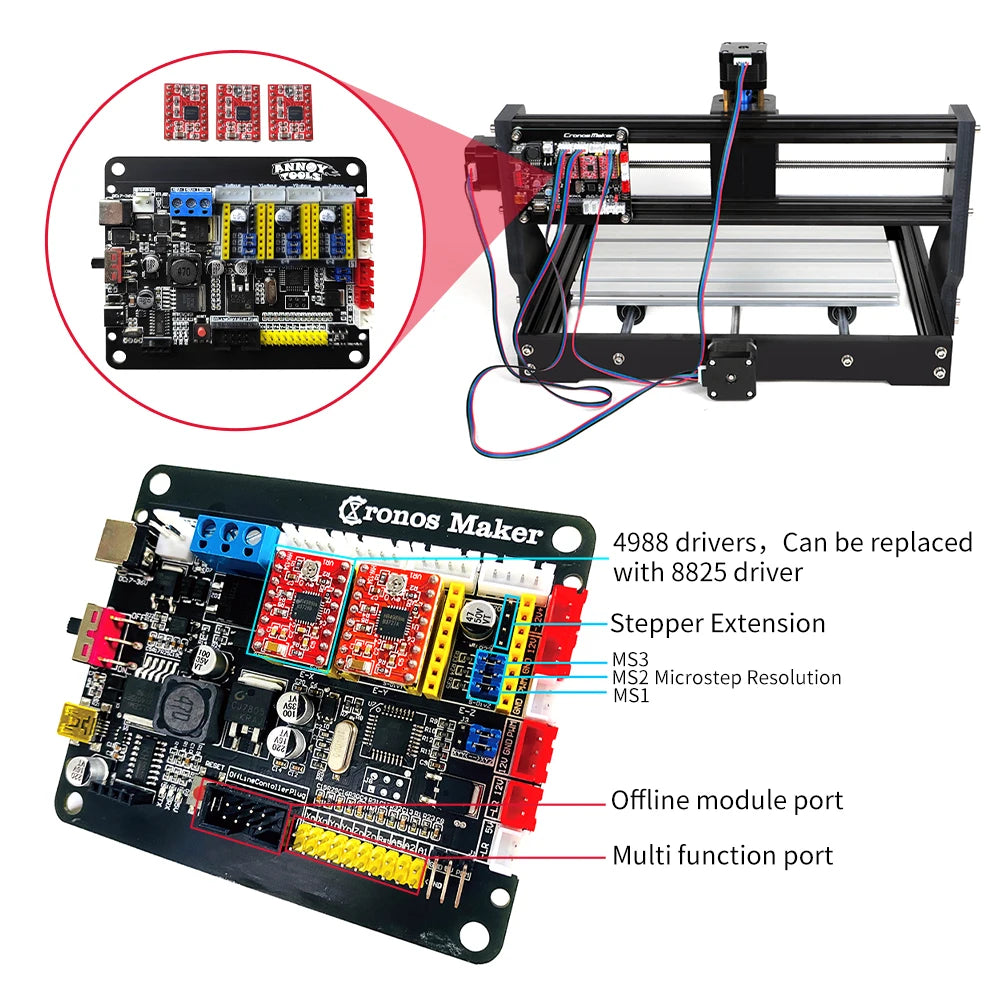

▶Integrated 3 A4988/8825 drivers, directly connect to the four-wire stepper motor.

▶Laser or spindle support.

▶Support 24V, 12V, 5V with TTL and without TTL laser.

▶Adjustable driver separation.

▶Supports xyz limit switch, probe interface.

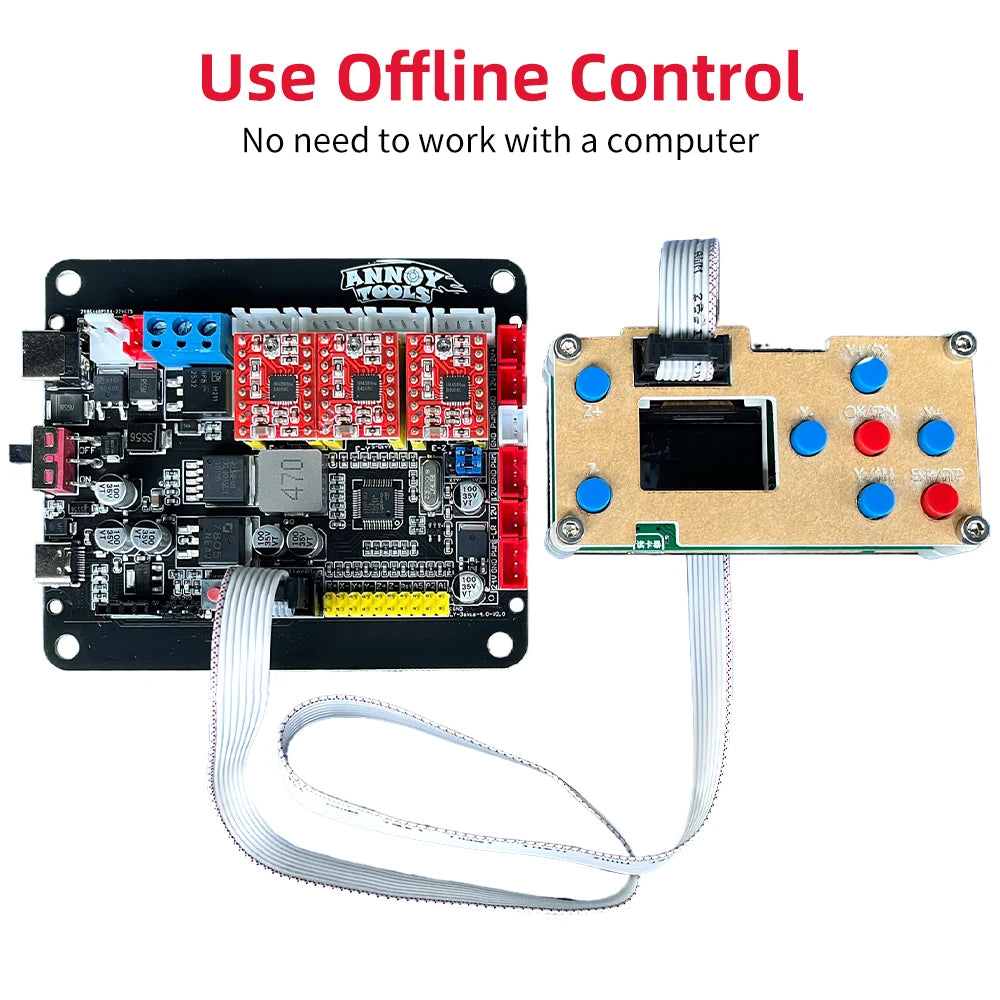

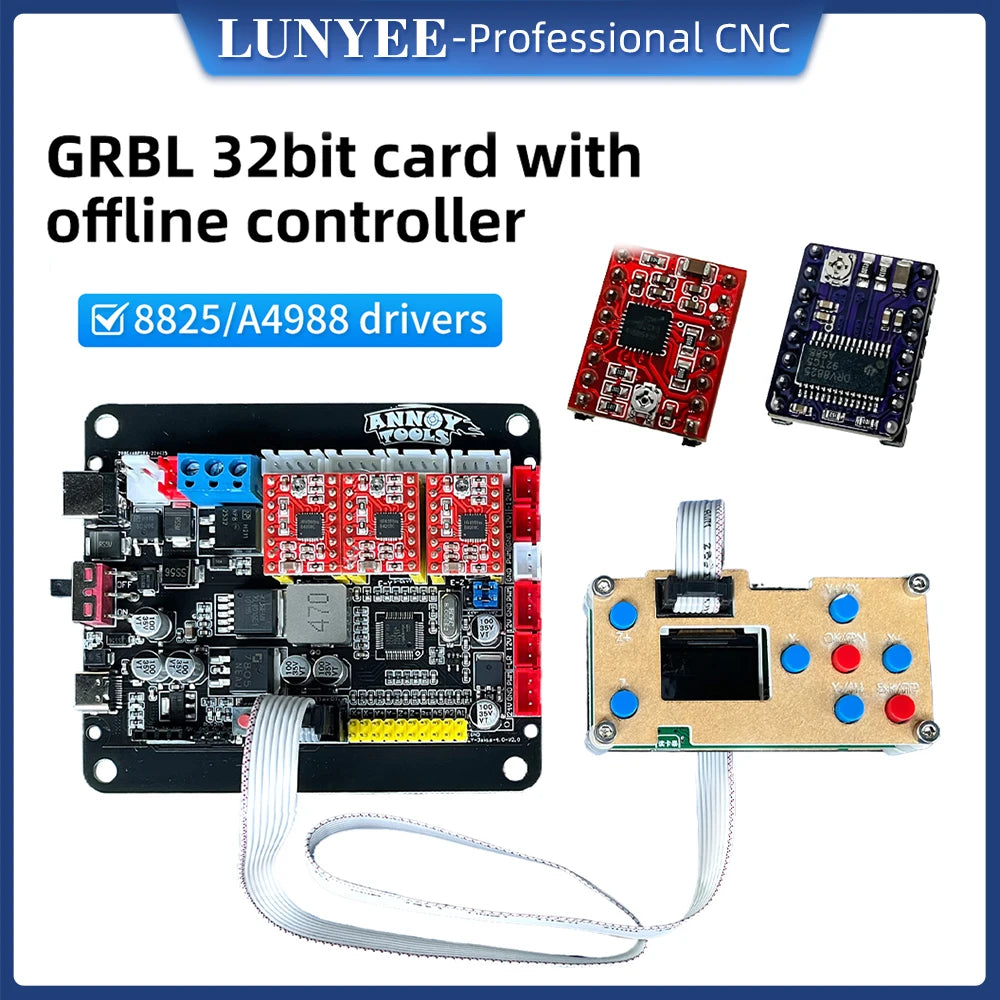

▶Support external offline controller (optional).

▶Add Fan and Control Board Enclosure

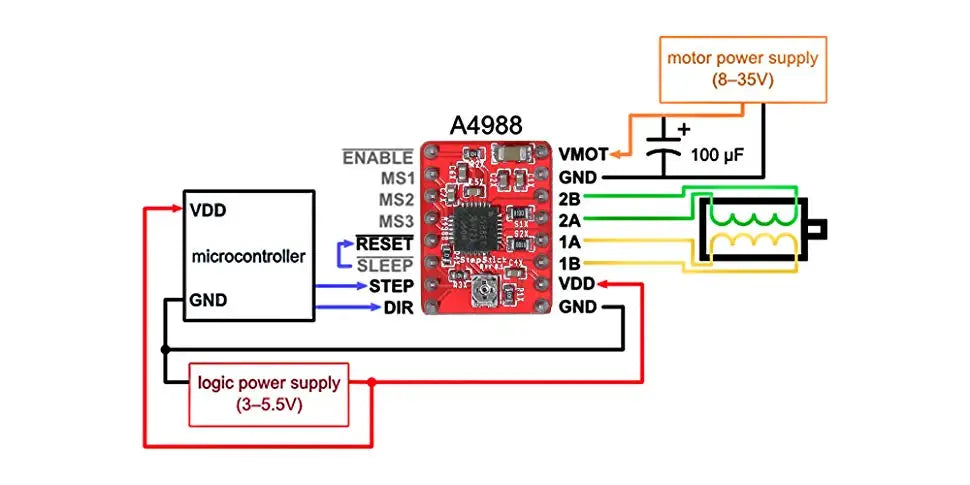

4988 Driver Features

• Low RDS (on) output

• Automatic current decay mode detection/selection

• Mixed and slow current decay mode

• Low power dissipation synchronous rectification

• Internal UVLO

• Cross current protection

• 3.3 and 5 V compatible logic power supplies

• Thermal shutdown circuit

• Ground short circuit protection

• Load short circuit protection

• Five optional step modes: Full, 1/2, 1/4, 1/8 and 1/16

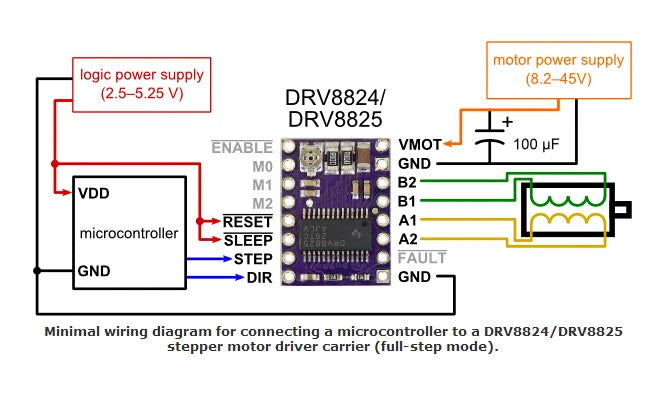

DRV8825 Driver Features

• The maximum current is 2.5A.

• the highest support for 32 subdivisions.

• 4 layer PCB board, better heat dissipation performance.

• the chip internal resistance is smaller, lower heat, better heat dissipation.

• Size: 1.5mmX2mm (same as 4988)

• Driven current: 2.5A

• Subdivision: 1, 1/2, 1/4, 1/8, 1/16, 1/32

• Manufacturing process: SMT placement machine manufacturing, non-manual welding, higher yield, more stable performance

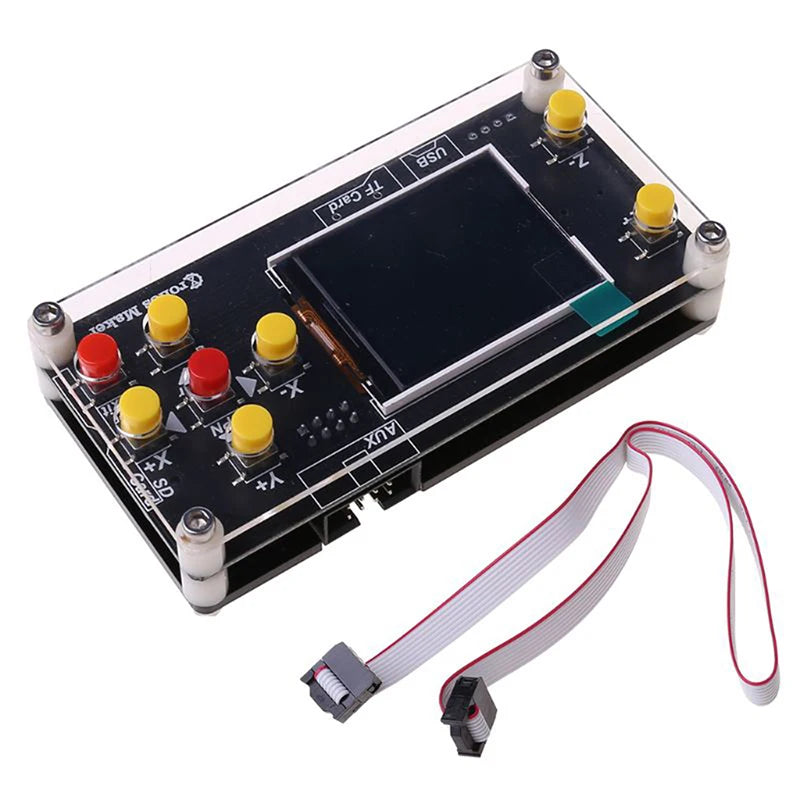

Offline appearance update: acrylic shell is transparent, buttons are red and yellow.

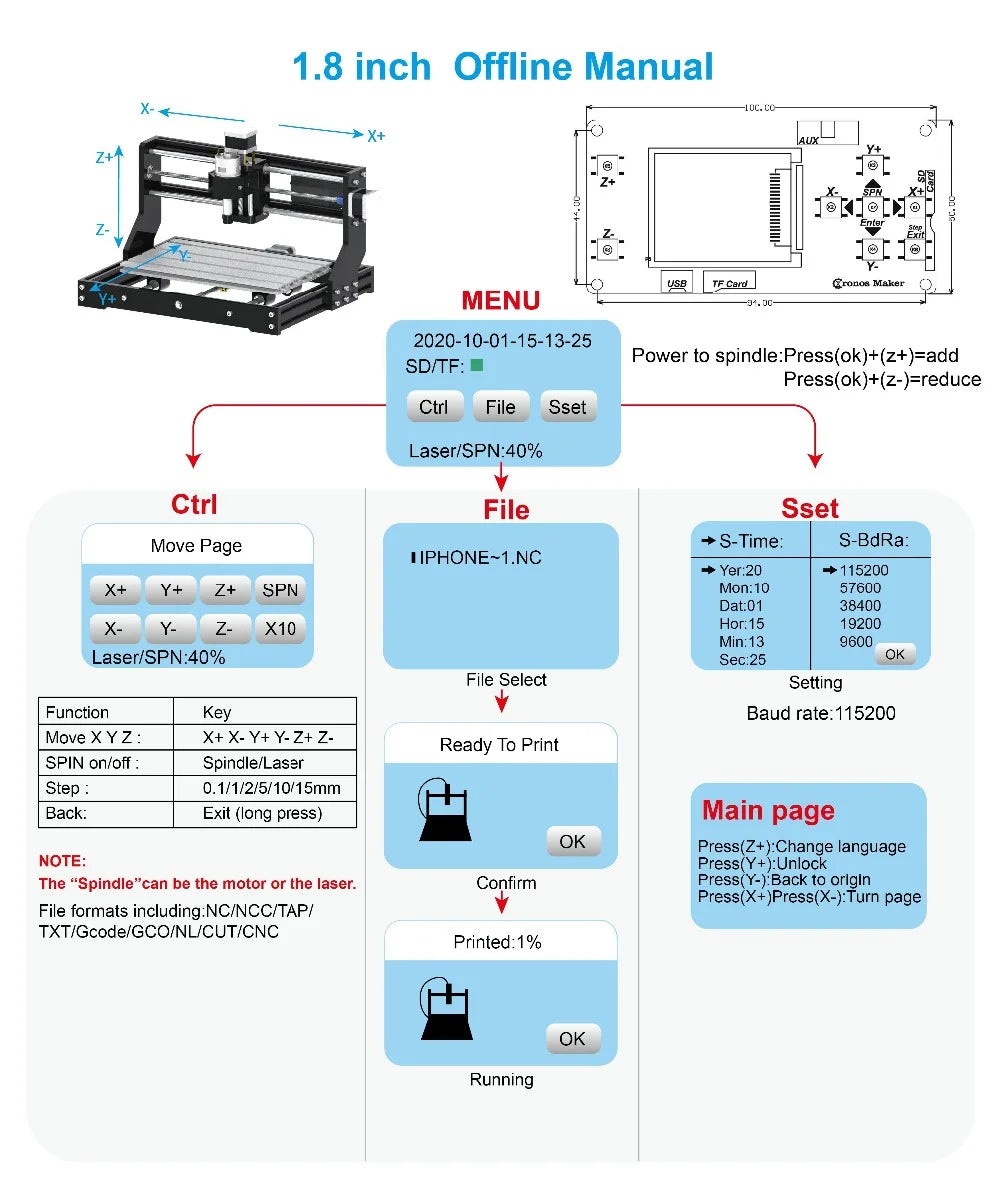

1.8 inch offline

• Y+Unlock
• Y-return to zero
• Z+Chinese and English switching
• Can control four-axis XYZA axis
• Supporting files: NC, NCC, TAP, TXT, Gcode, GCO, NL, CUT, CNC
• File page turning: Short press X+/ X- on the File page
• Built-in battery time adjustment
• Free 128MB memory card
• Support SD/TF memory card
• Press Z+ for 5 seconds: Change the Language to English.
• Press SMOD: return.
• SD card: SD card reader is to write into the root directory G-code files
