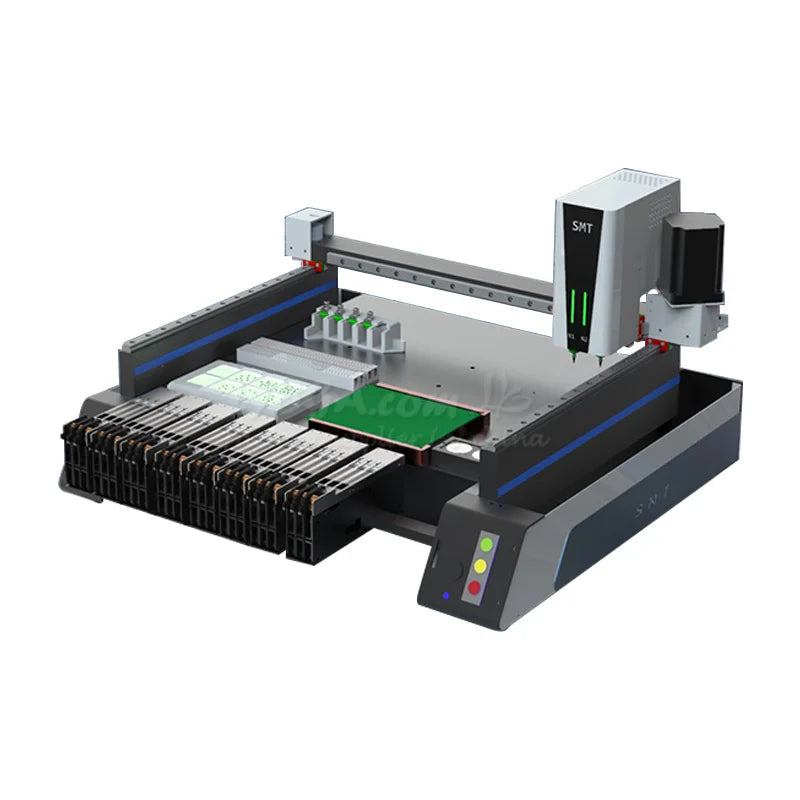

K1-PRO Triple Vision Camera System High Speed Desktop Mini Automatic SMT Pick And Place Machine Chip Mounter LED SMD Dual Heads Nozzles For PCB Assembly Line

Main difference between
K1 & K1 Pro:

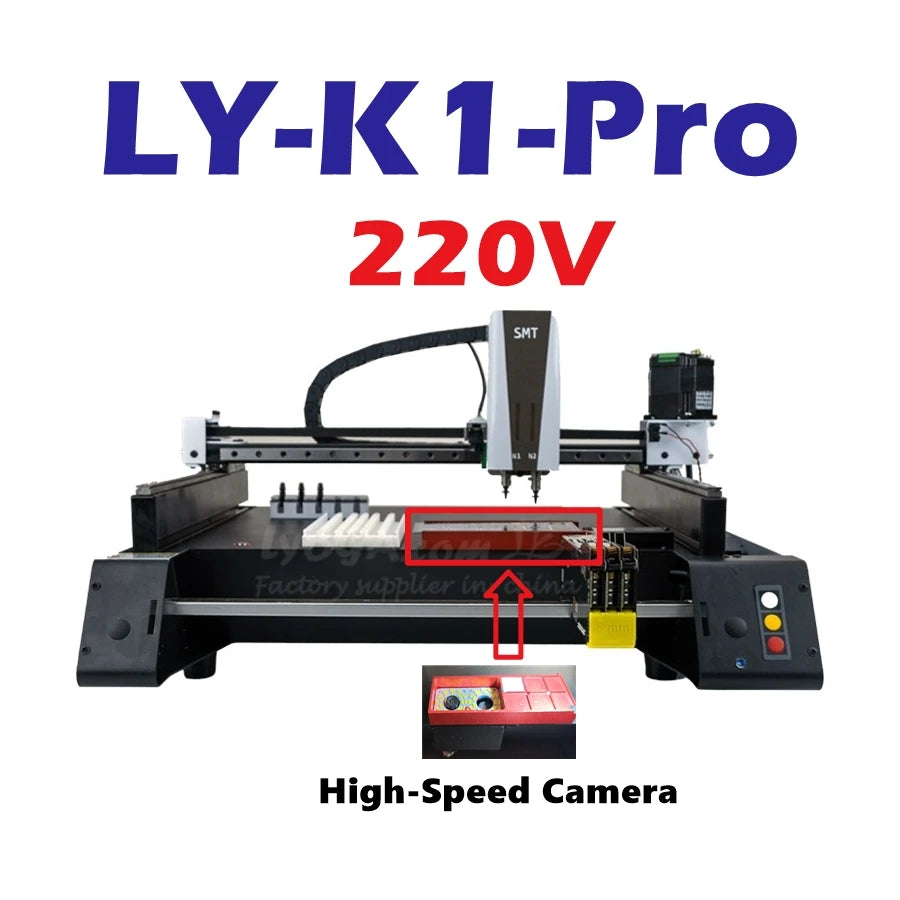

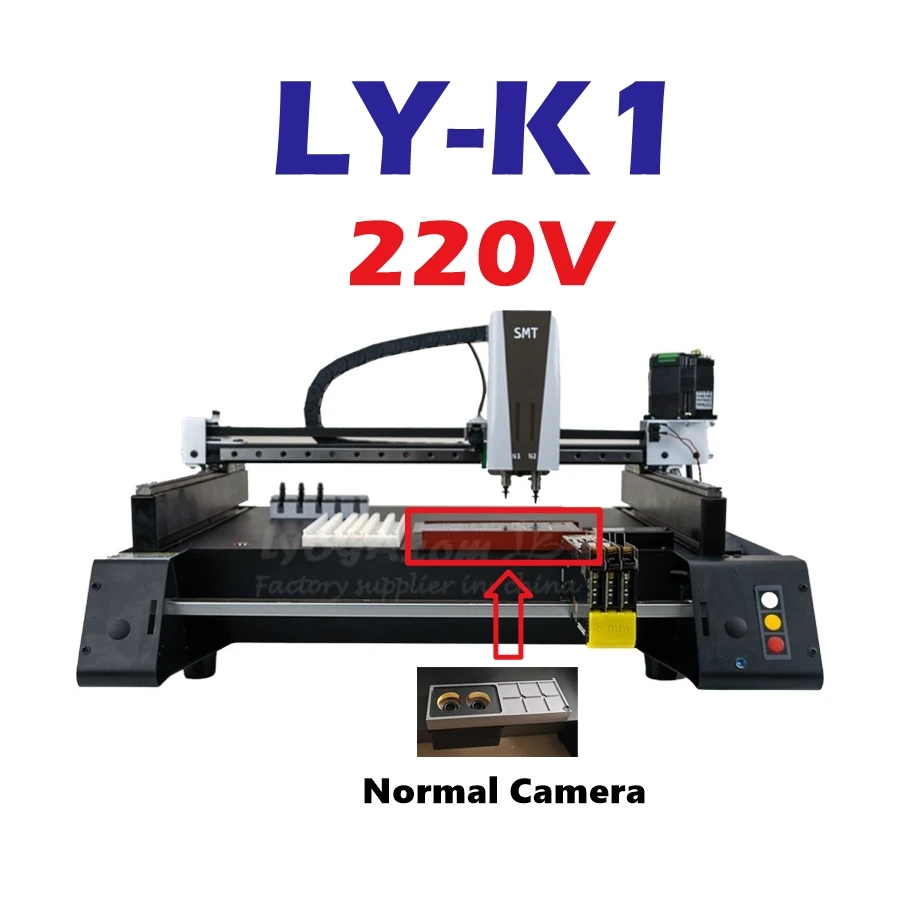

1. K1: Dual Normal Cameras

    K1 Pro: Single High-Speed Camera

2.K1 Max Speed: 3000pcs/Min

   K1-Pro Max Speed: 4000pcs/Min

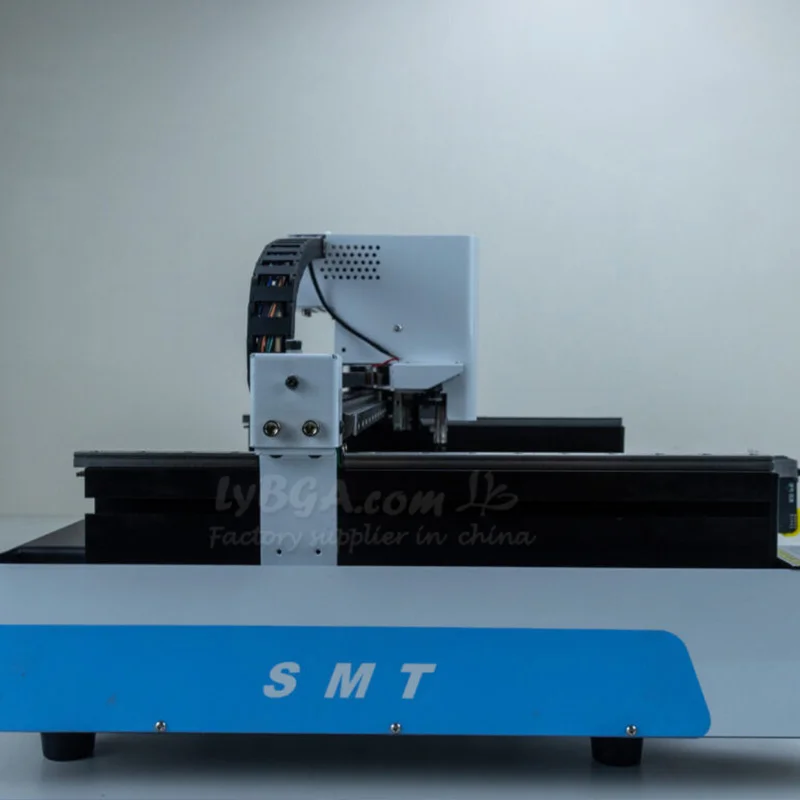

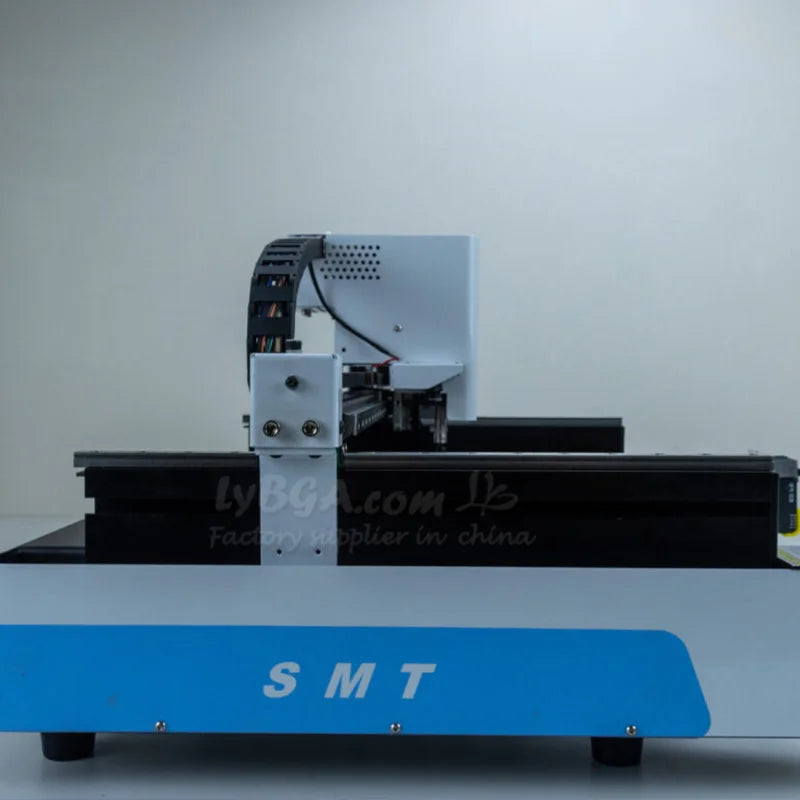

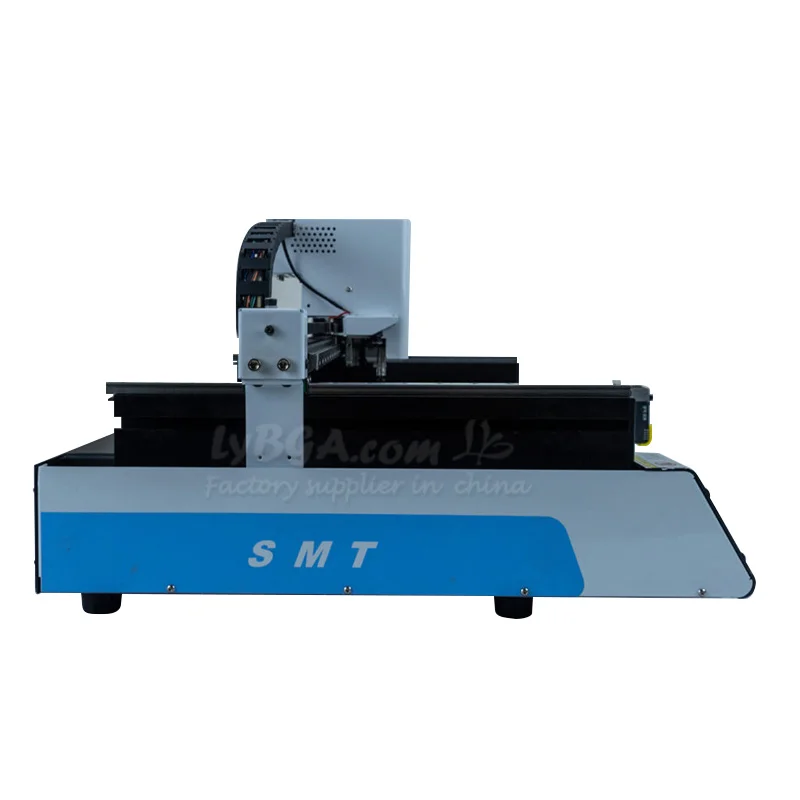

1.Overview

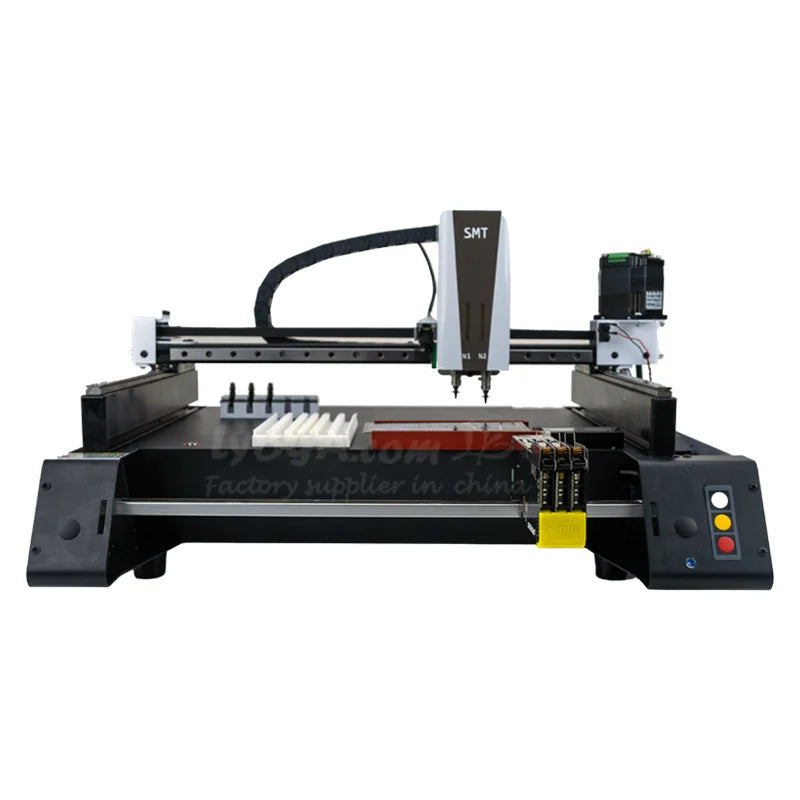

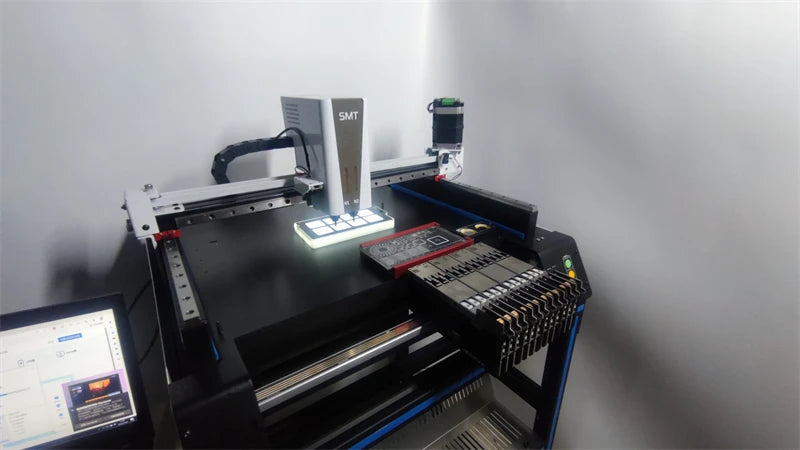

It is an advanced desktop pick-and-place machine designed for precise and efficient PCB assembly. With a

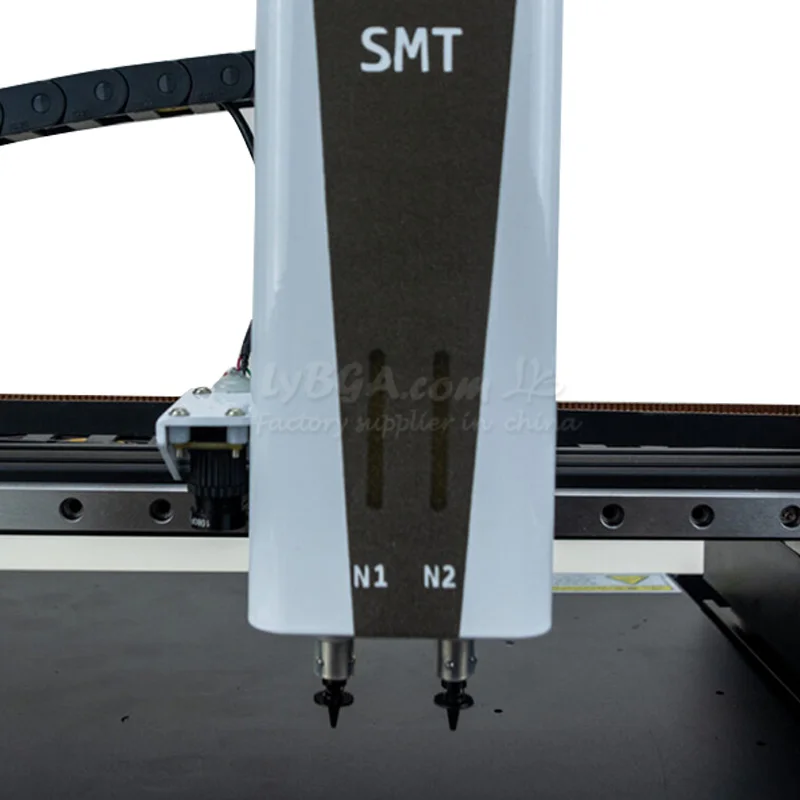

three-vision camera system, automatic feeders, and dual placement heads.

Its compact design suits both home and professional environments, offering intelligent, high-speed features for
small-scale prototyping and diverse production needs. *Work flow: 1) Solder pasteprinting/dispensing solder paste 2) SMT 3) Reflow soldering.

2.Feature

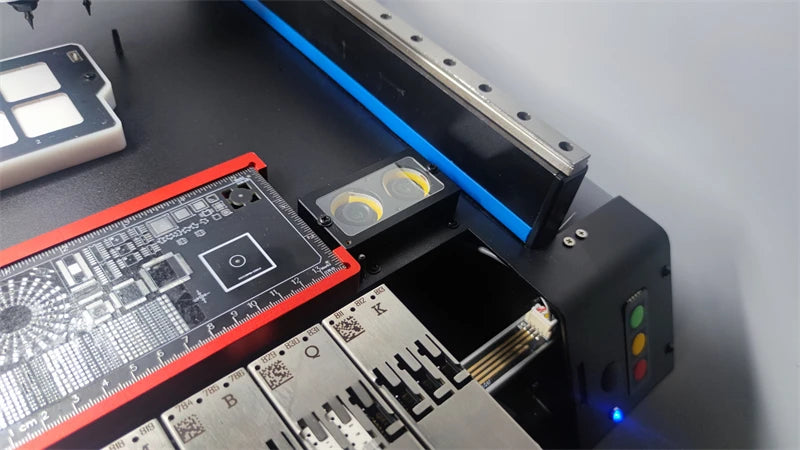

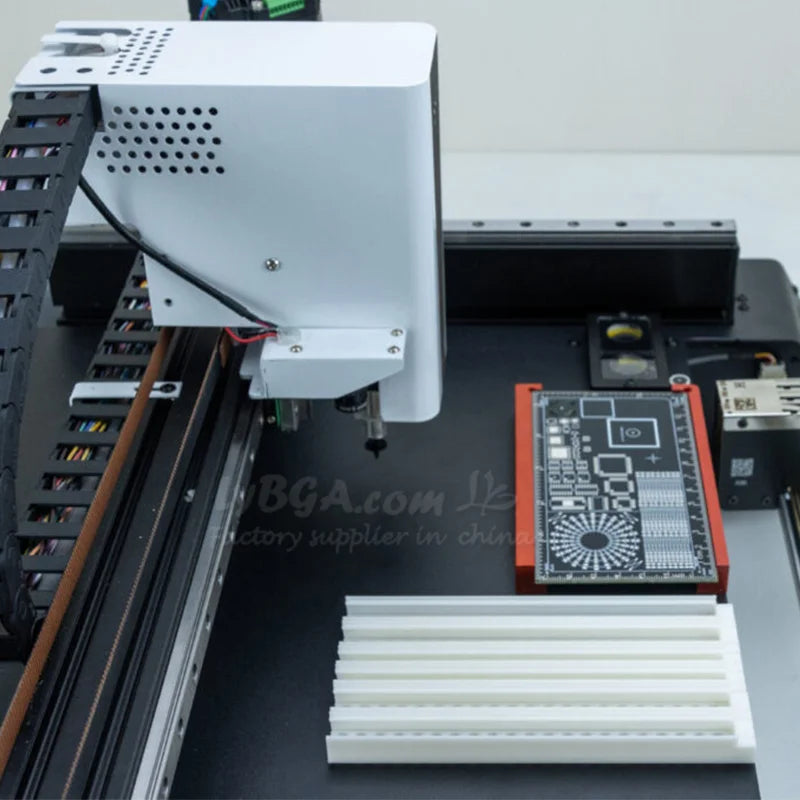

2.1. High Precision: Simultaneous top and bottom camera capture, with up to three cameras on the machine.

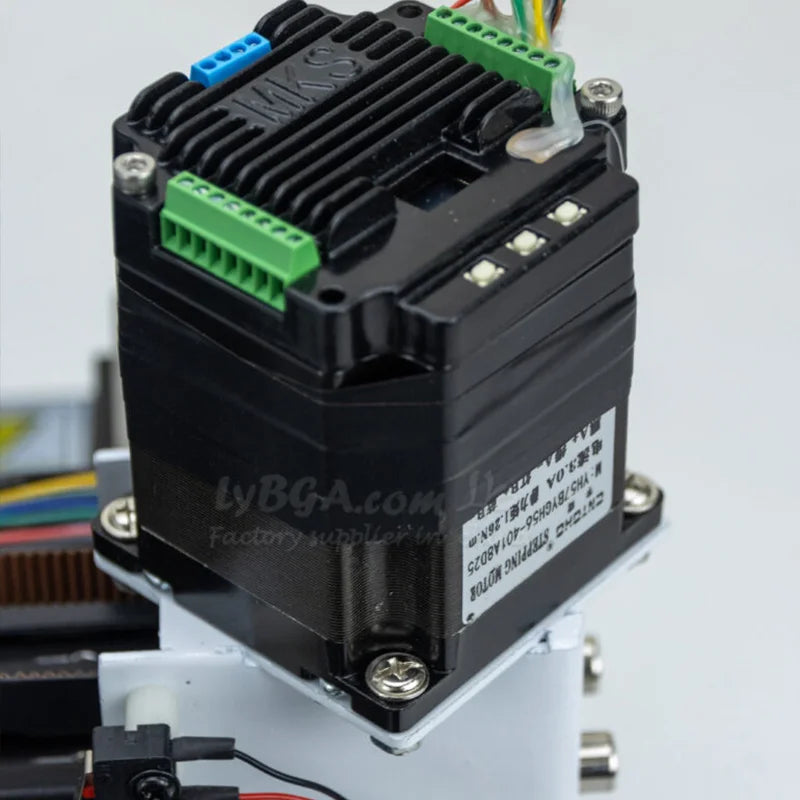

Closed-loop stepper motor control ensures stability with no missed steps.
Custom nozzle motor is durable, and the linear guide structure ensures smooth movement.

2.2. Fast & Efficient: Thanks to powerful S-curve motion control, speed is 80% faster thansimilar machines,
with a maximum placement speed of up to 3000 CPH, ensuring stabilityand minimal vibration.

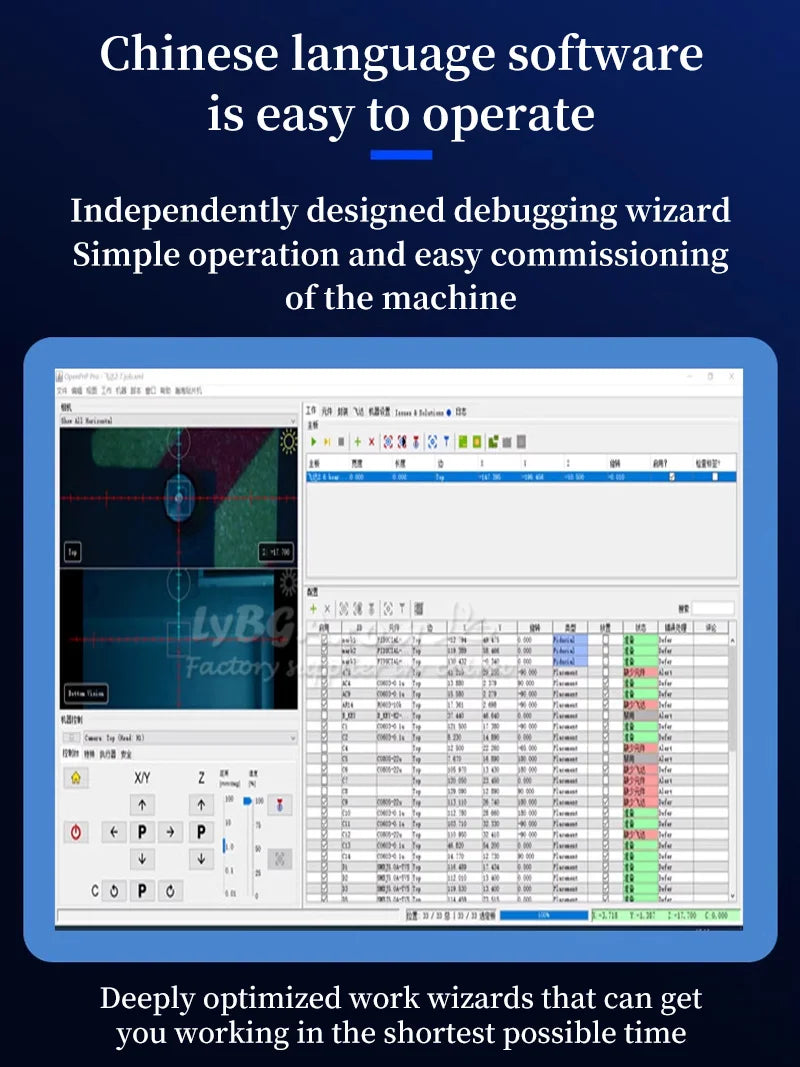

2.3. Easy Operation: Proprietary intelligent placement software with a simple interface andclear logic. Guided
tutorial-style help files are available. Supports passive automatic headchange and multiple types of Mark recognition.

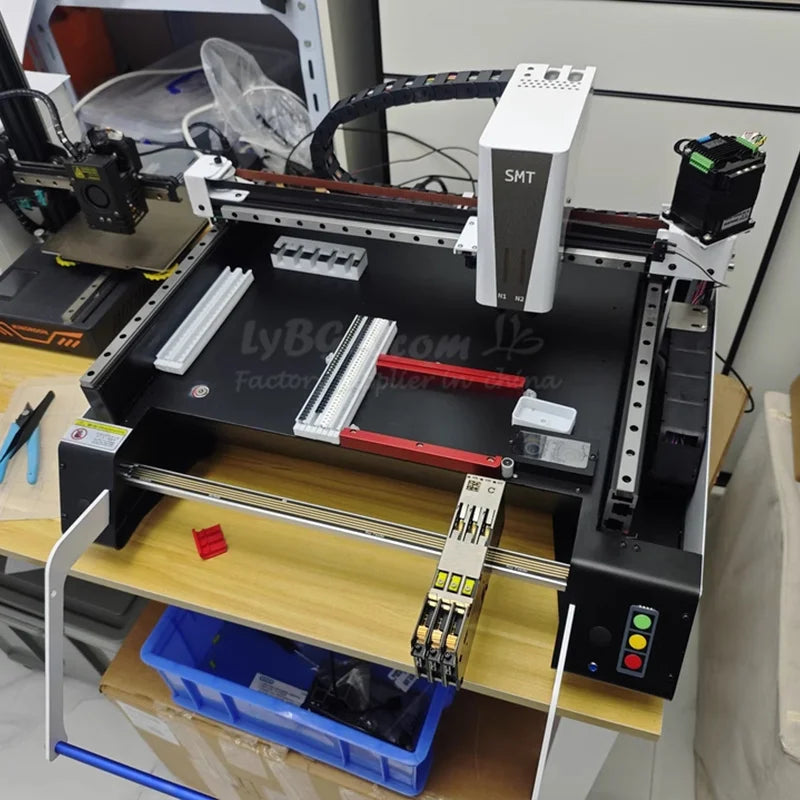

2.4. Versatile Feeding: 1.Vision-assisted loose part feeder, capable of handling polarizedcomponents with ease. 2.Electric
feeder with automatic barcode marking, driven by all-metal gears, compact and supports 0402 components. 3.Loose part feeder. 4.Tray feeder.

2.5. Sturdy &Stable: Integrated welded sheet metal frame, stable at high speeds with no vibration. Linear guide ensures smooth and steady motion.

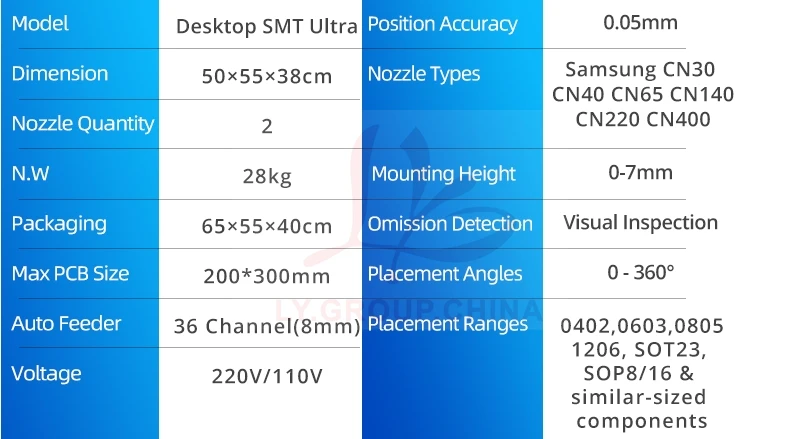

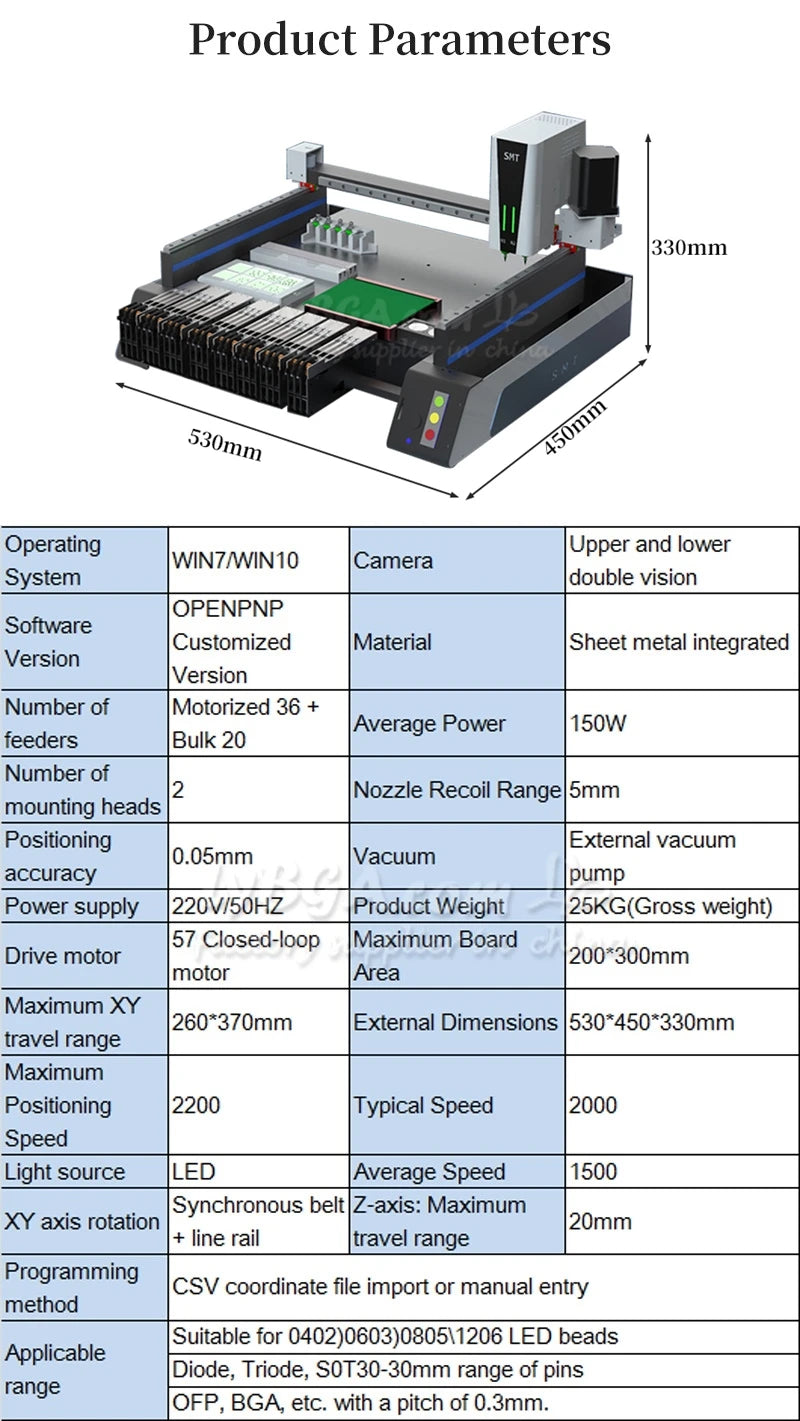

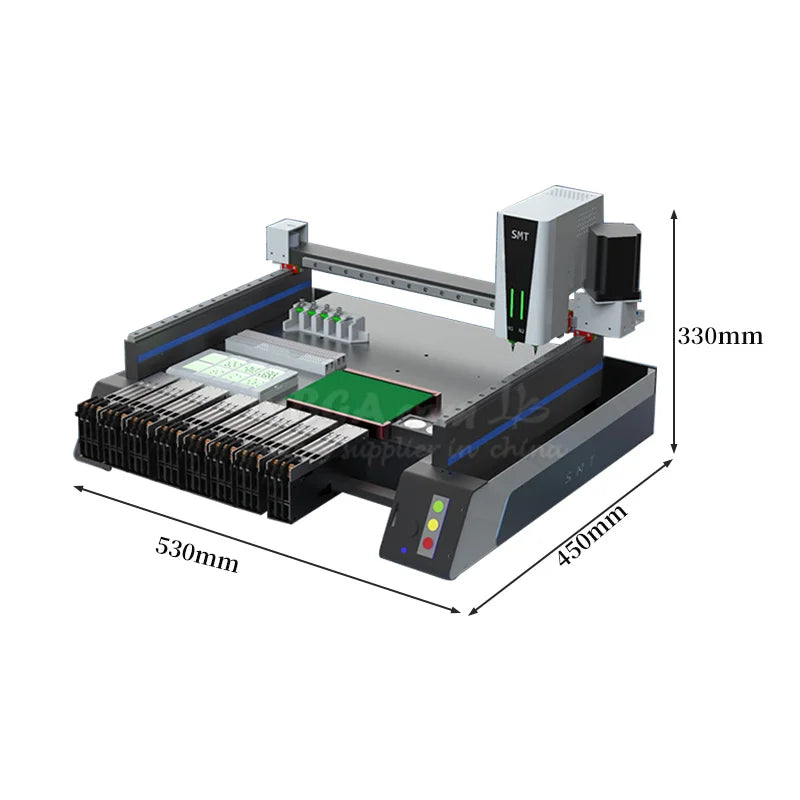

Parameters

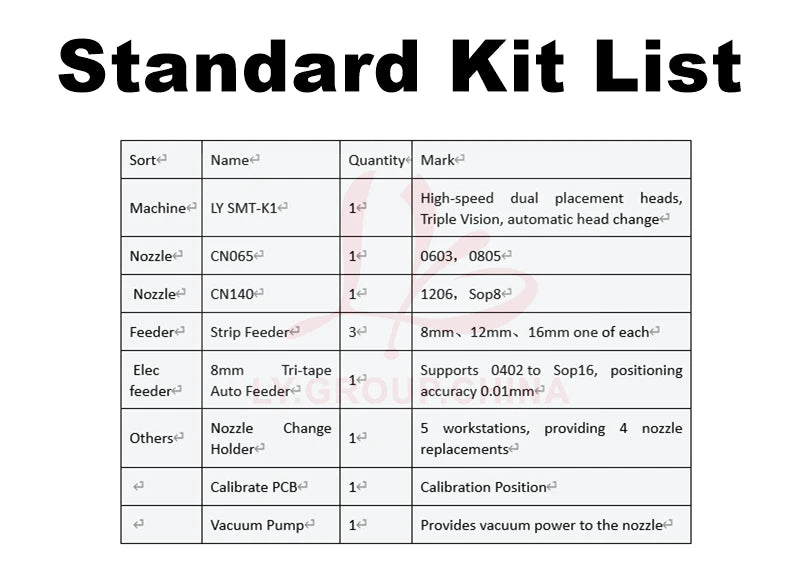

Standard Kit Packing List:

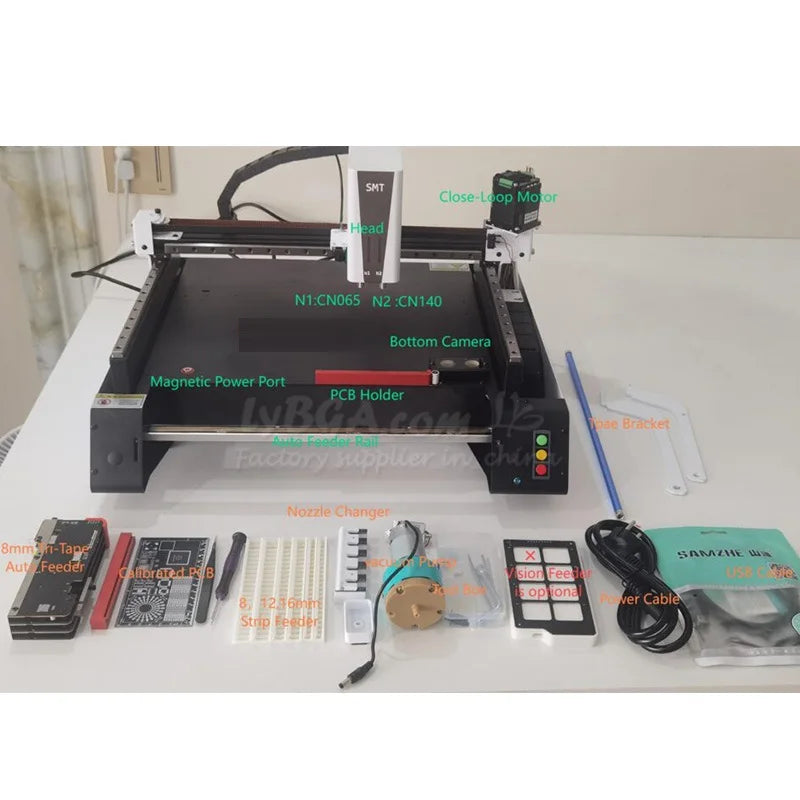

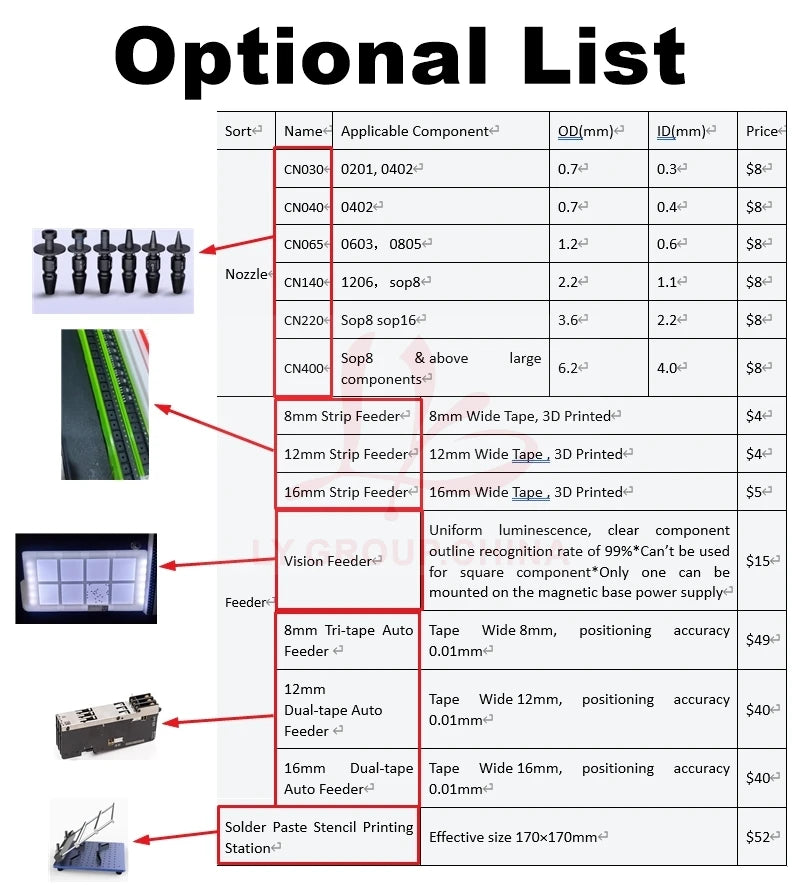

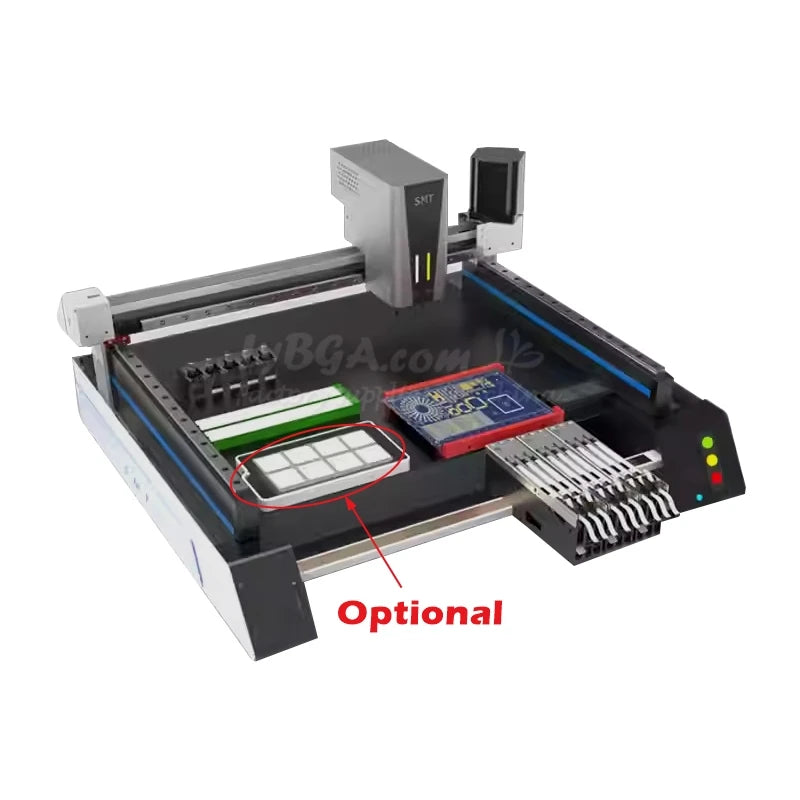

Optional Accessories:

(RE: If need to buy optional accessories pls contact with sales to change total or
pay extra.

Machine max support 12 electric feeders.)

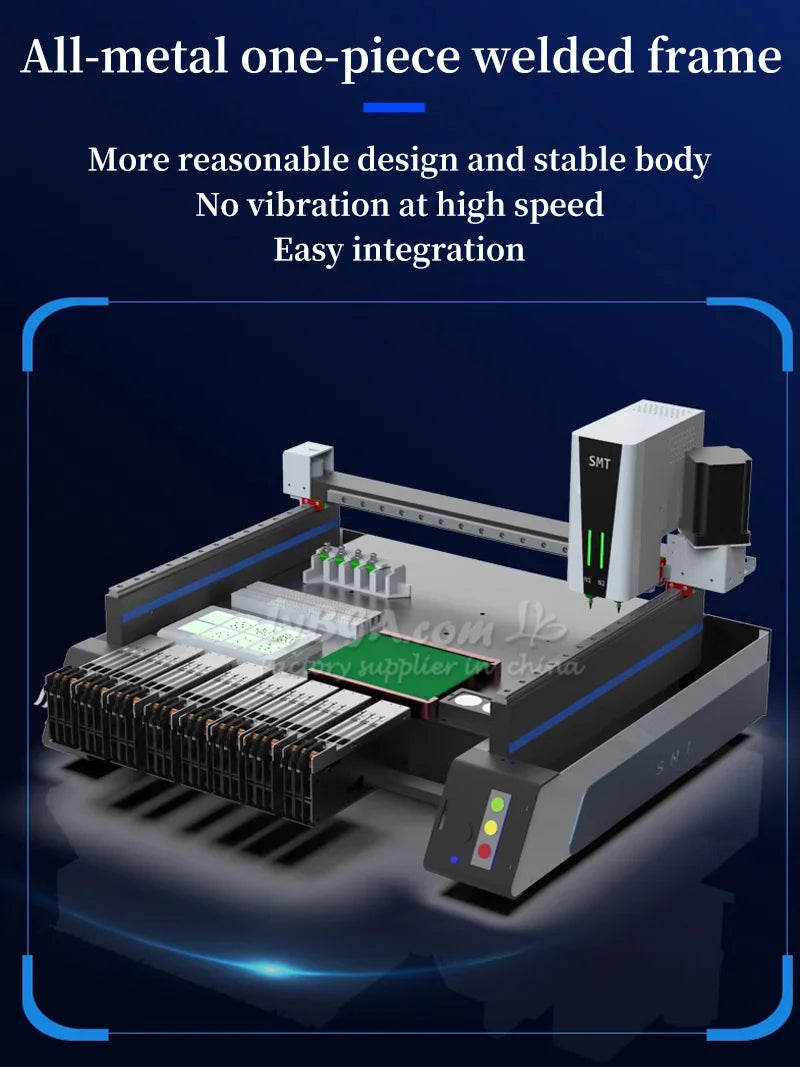

All-metal one- piece welded frame

More reasonable
design and stable body

No vibration at
high speed

Easy integration

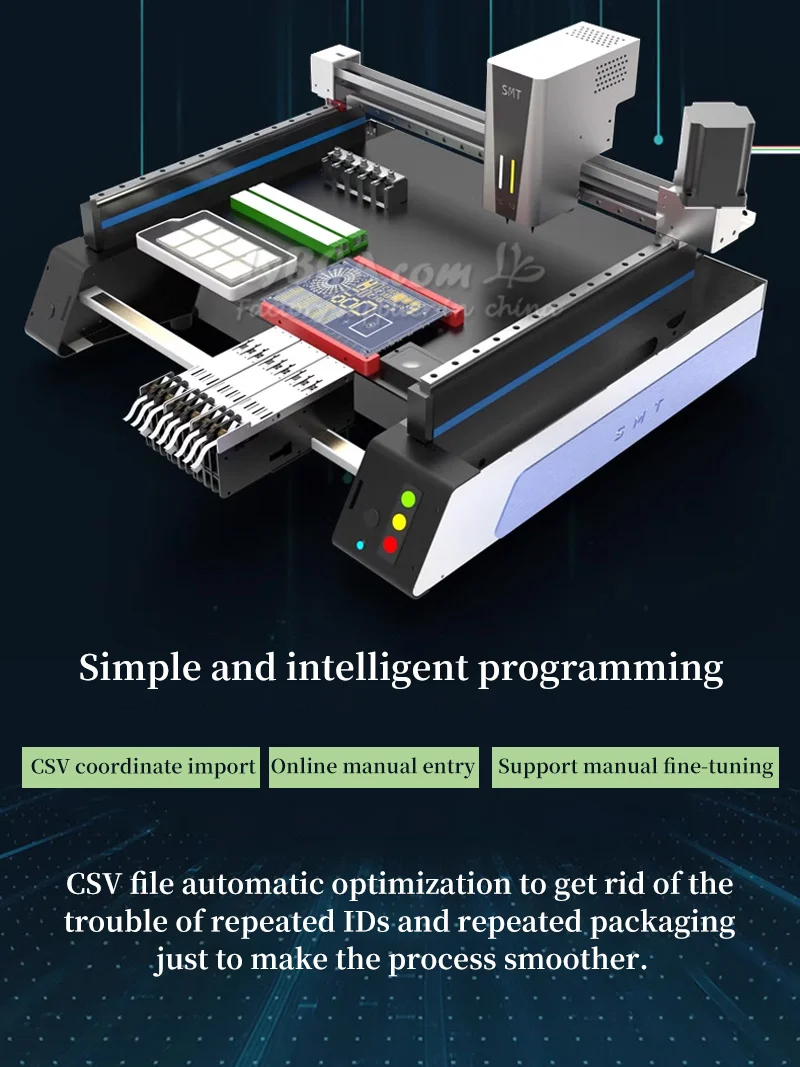

Simple and intelligent programming

1.CSV coordinate import

2.online manual entry

3.Support manual fine tuning

CSV file automatic optimization to get rid of the trouble of repeated IDs and repeated packaging just to make the process smoother.

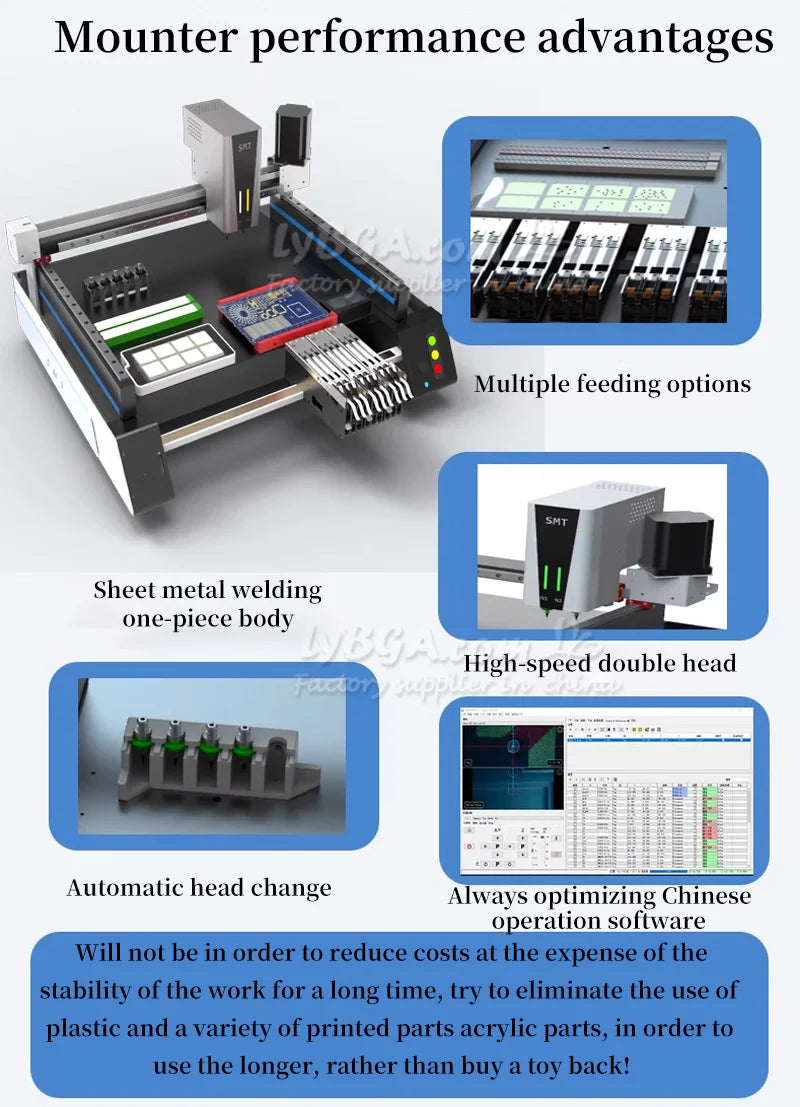

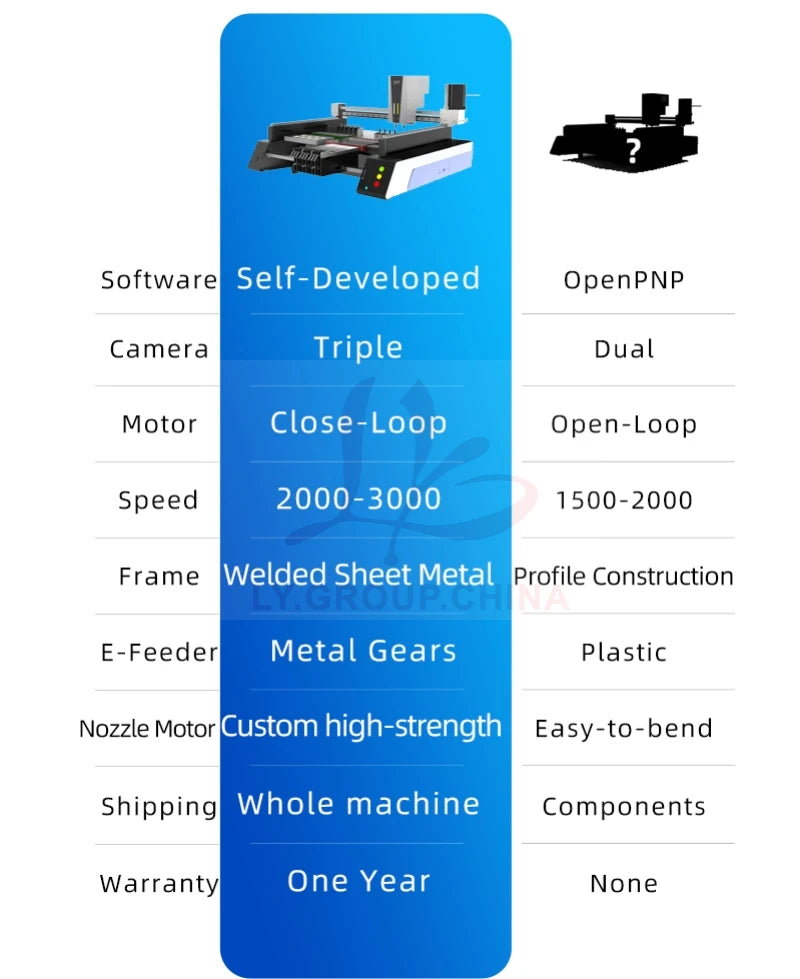

Mounter performance advantages

Multiple feeding options

Sheet metal welding one-piece body

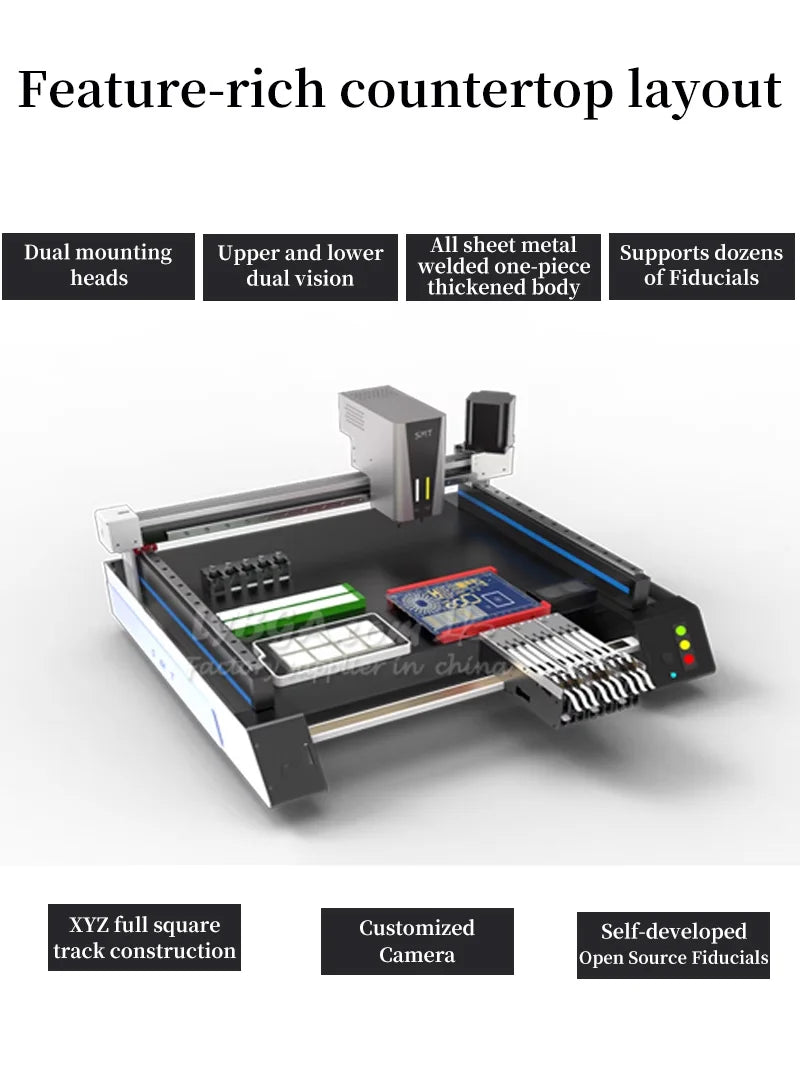

High- speed double head

Automatic head change

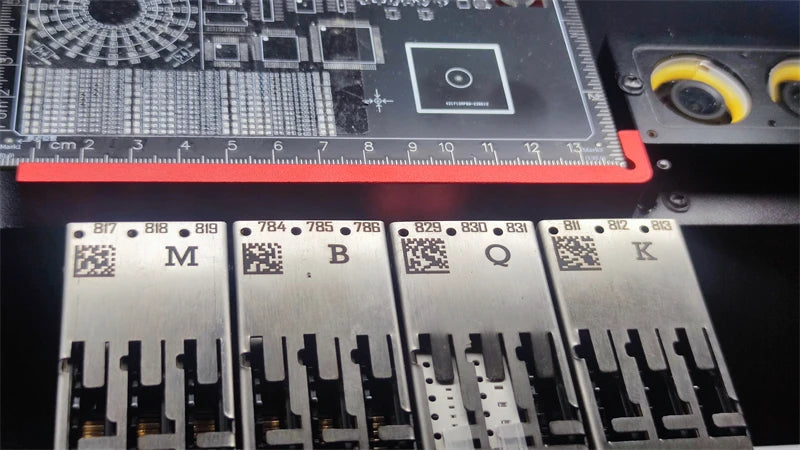

Auto Feeder

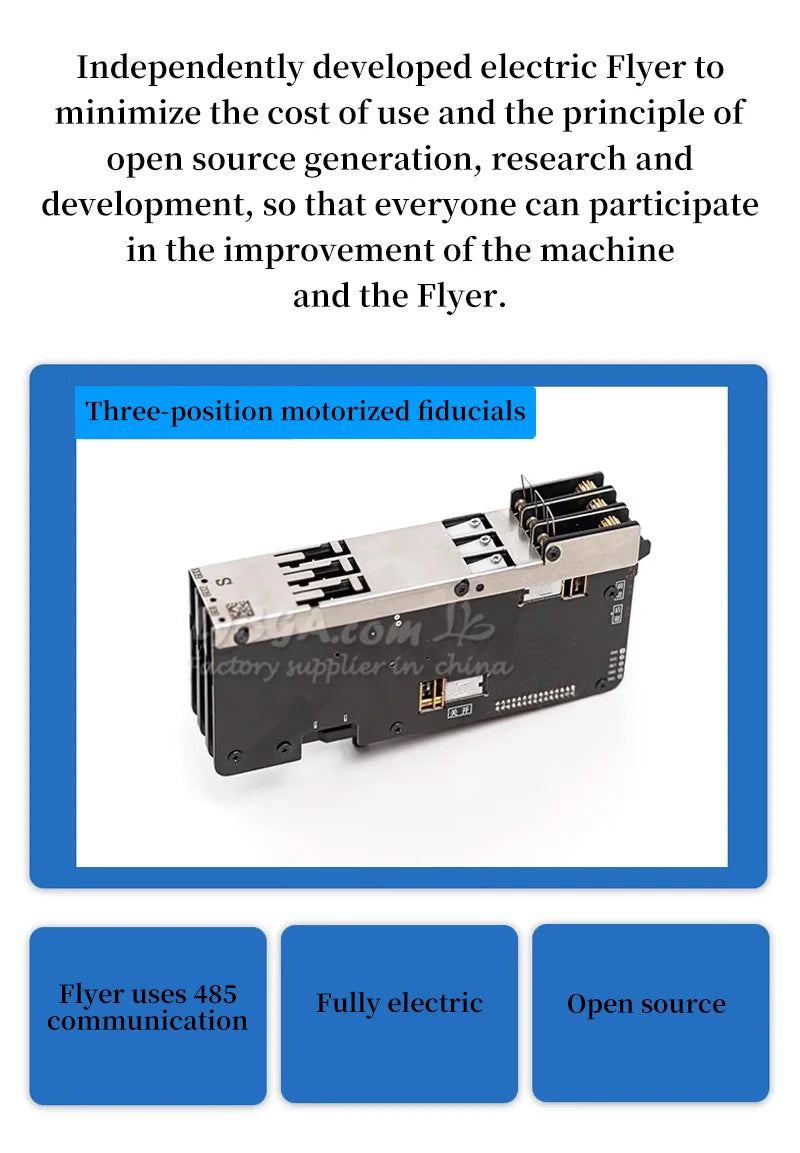

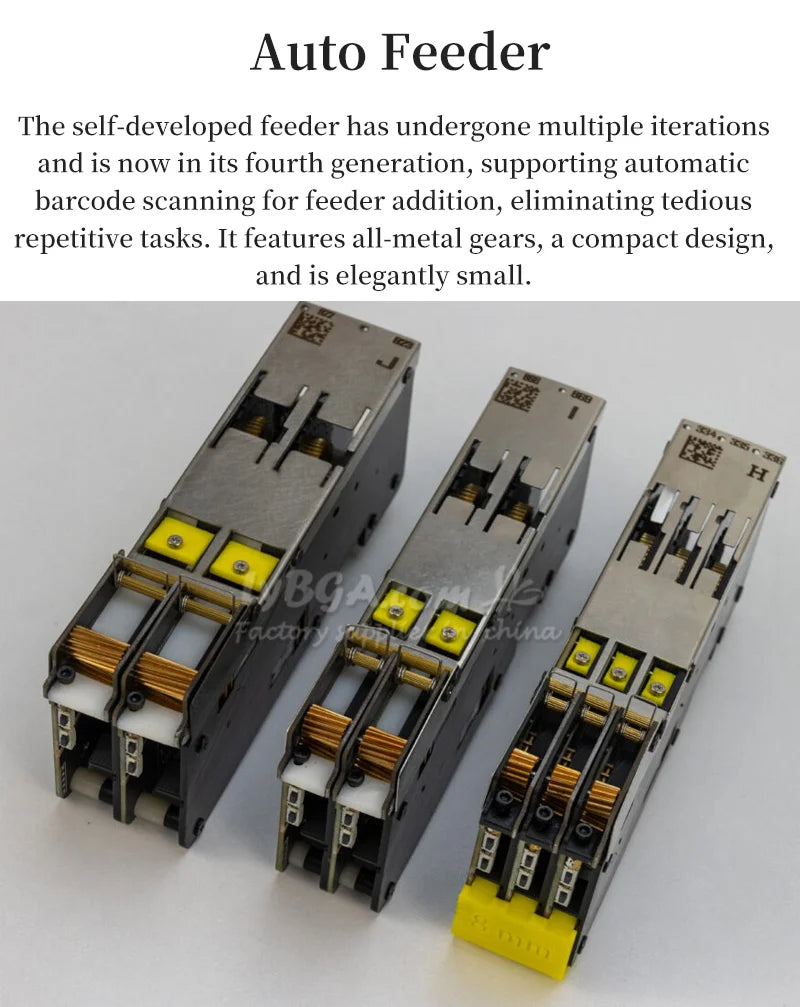

The self-developed feeder has undergone multiple iterations and is now in its fourth generation, supporting automatic barcode scanning for feeder addition, eliminating tedious repetitive tasks. It features all-metal gears, a compact design, and is elegantly small.

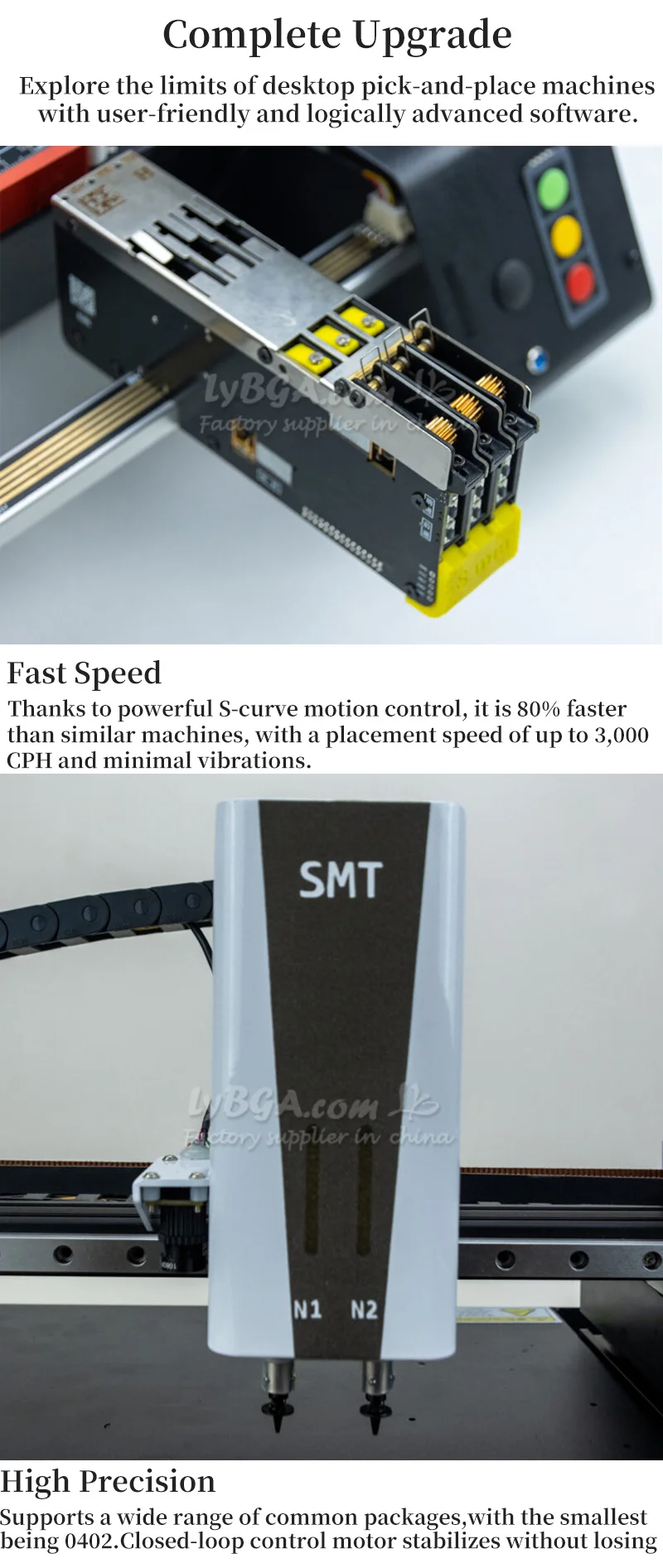

Complete Upgrade

1.Fast Speed

Thanks to powerful S-curve motion control, it is 80% faster than similar machines, with a placement speed of up to 3,000 CPH and minimal vibrations.

2.High Precision

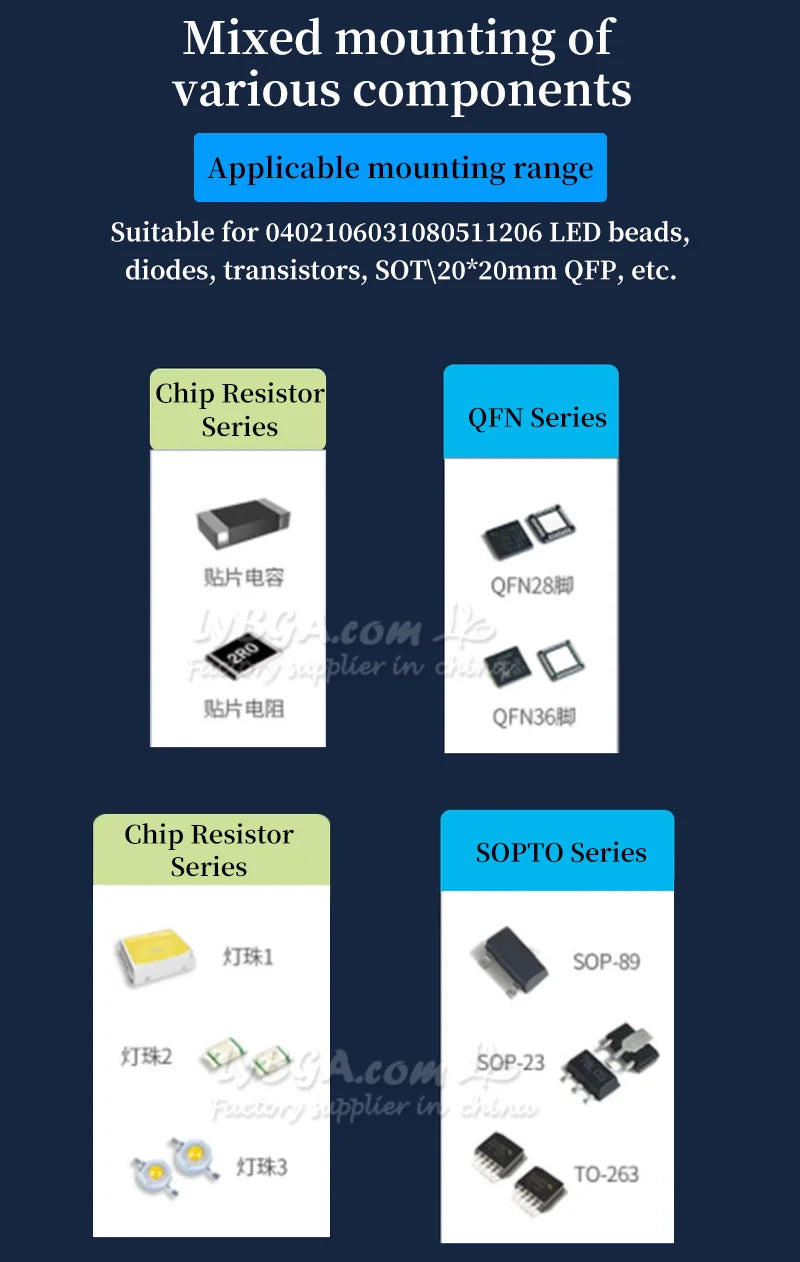

Supports a wide range of common packages, with the smallest being 0402.Closed-loop control motor stabilizes without losing

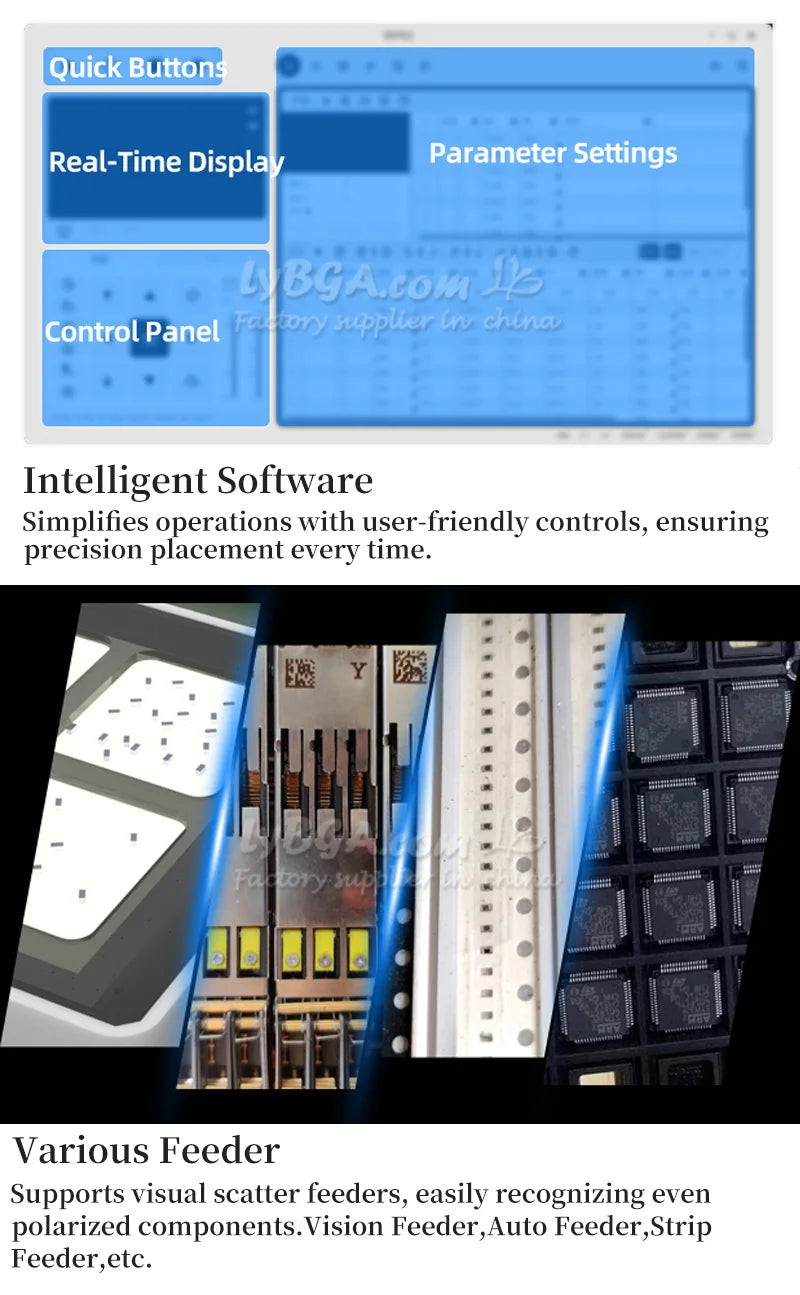

3.Intelligent Software

Simplifies operations with user-friendly controls, ensuring precision placement every time

4.Various Feeder

Supports visual scatter feeders, easily recognizing even polarized components, Vision Feeder, Auto Feeder, Strip Feeder, etc

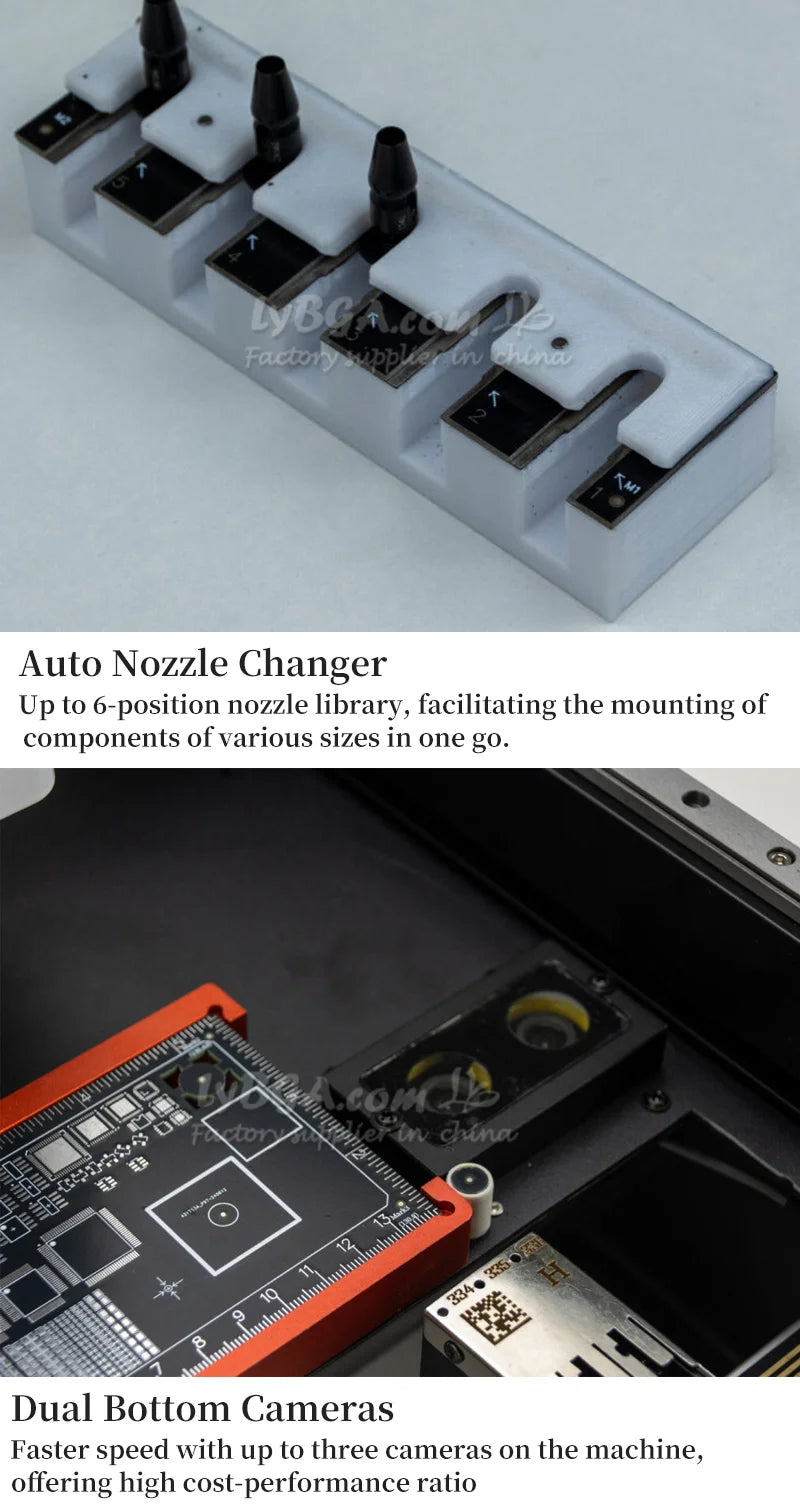

5.Auto Nozzle Changer

Up to 6- position nozzle library, facilitating the mounting of components of various sizes in one go.

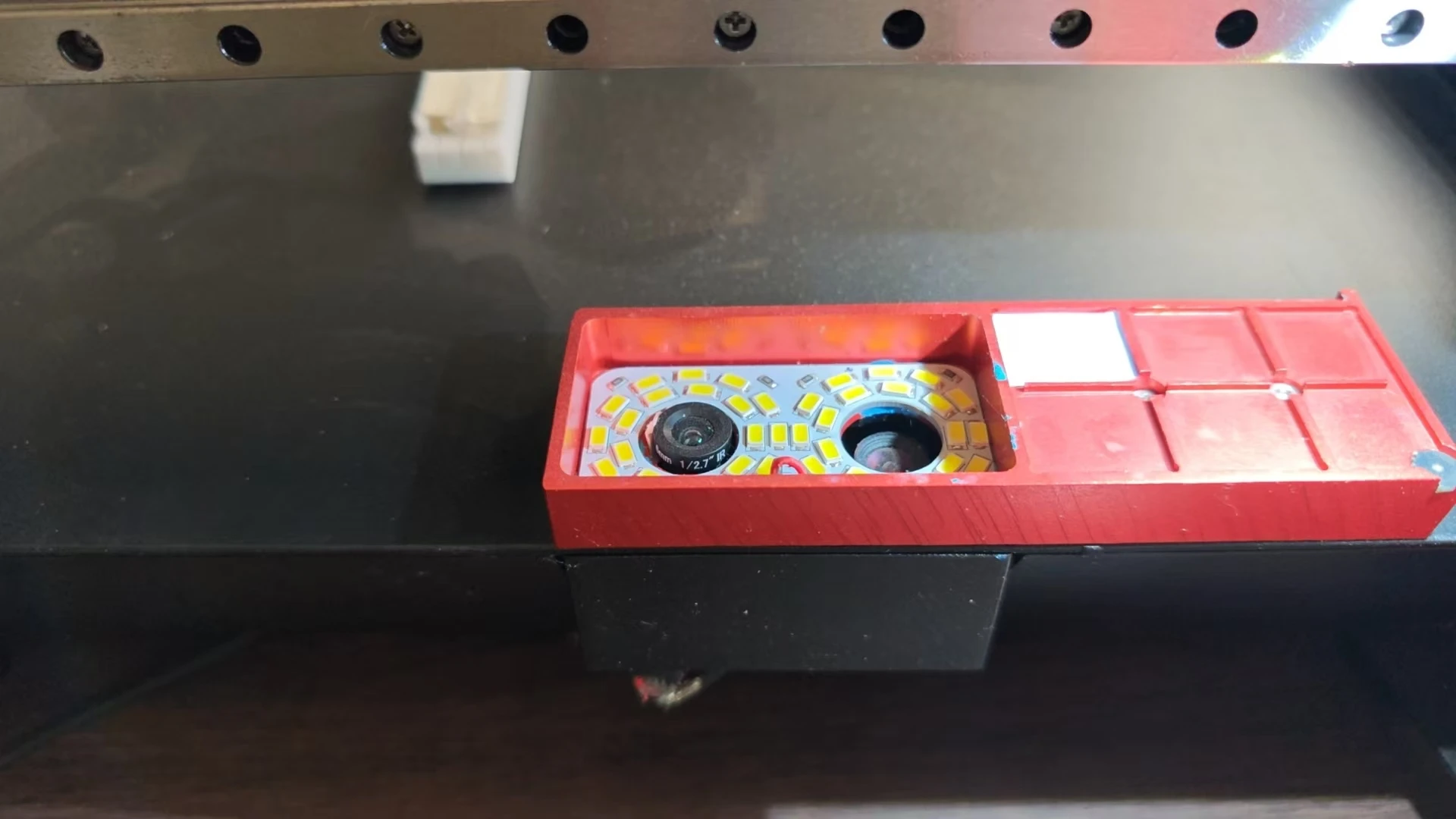

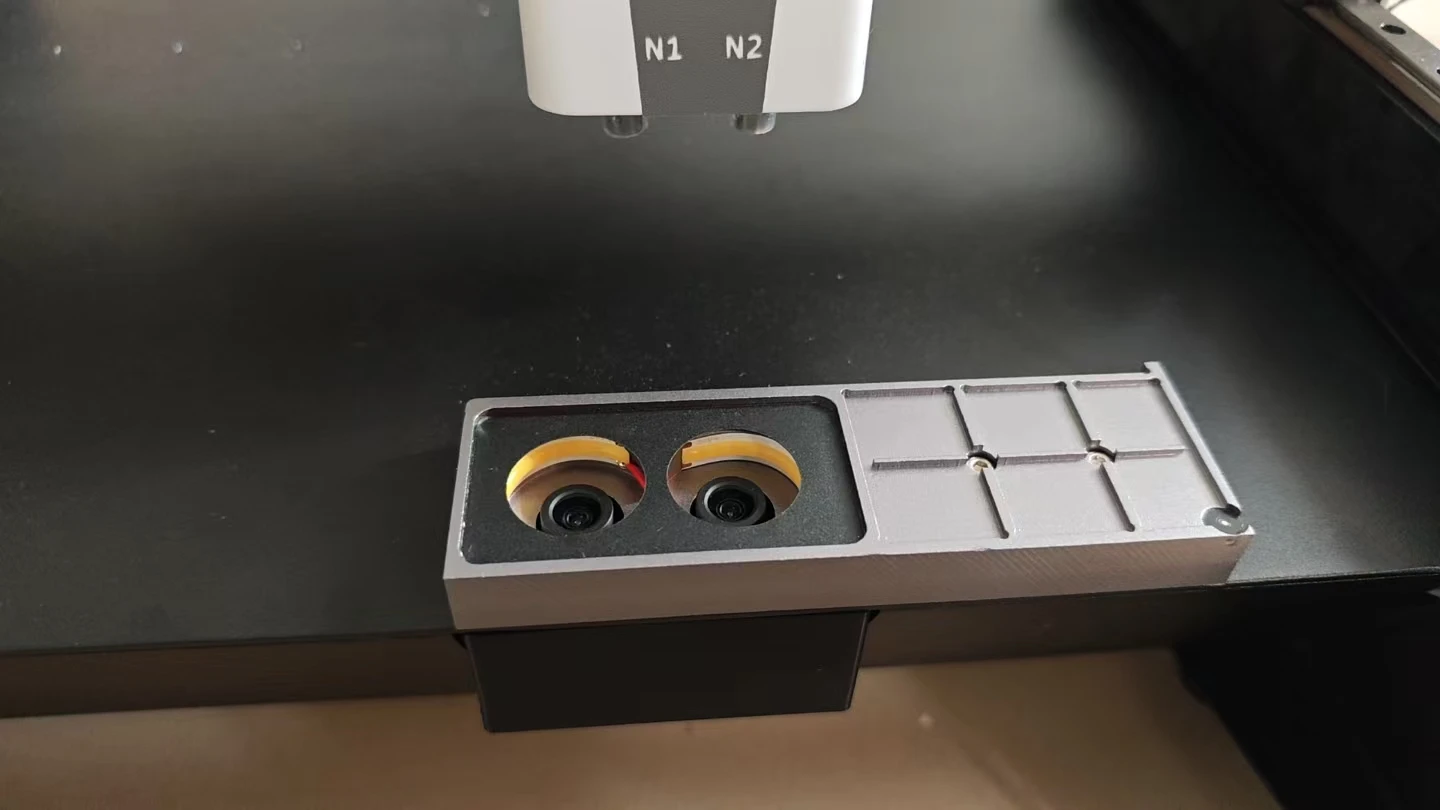

6.Dual Bottom Cameras

Faster speed with up to three cameras on the machine, offering high cost-performance ratio
