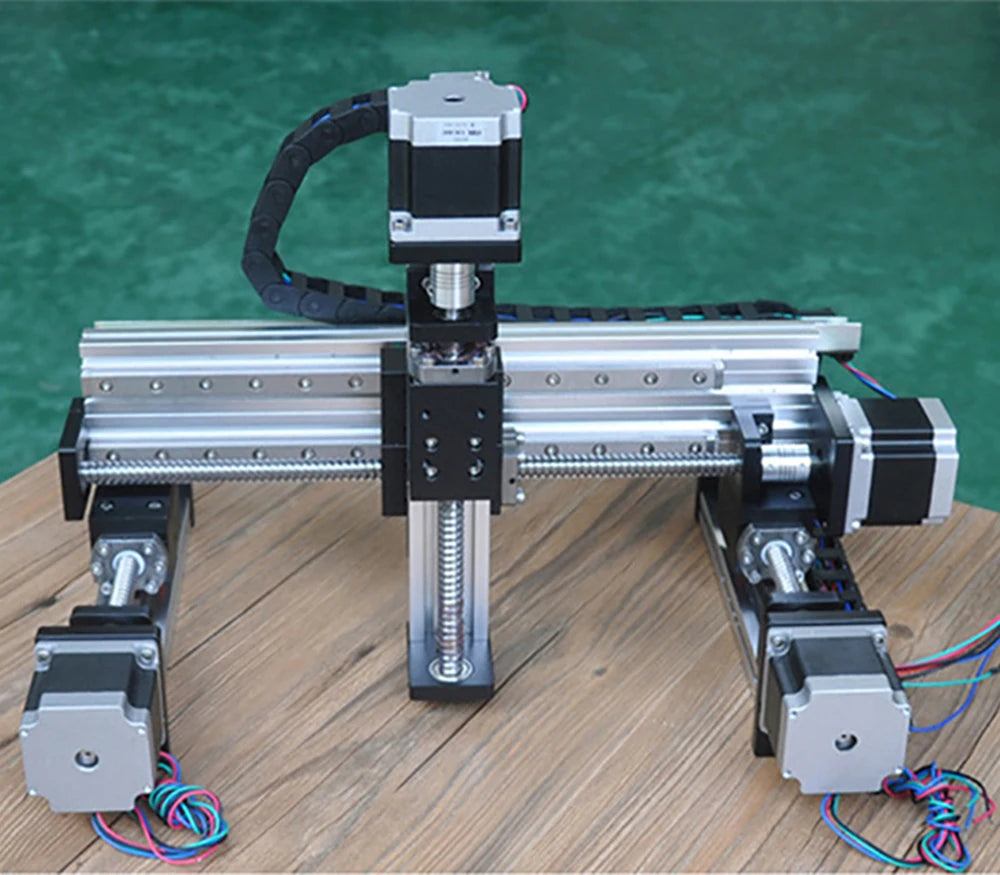

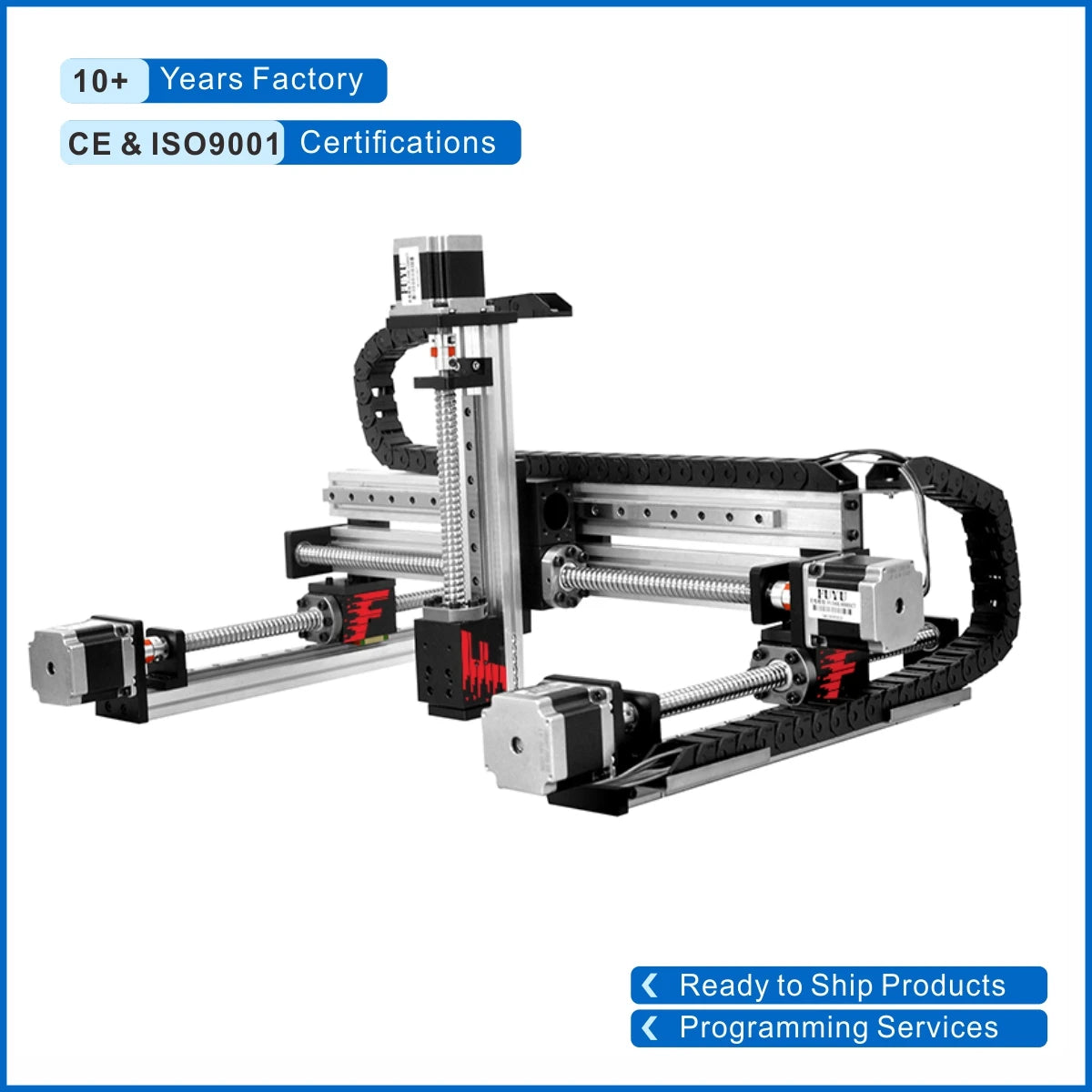

FUYU Gantry Robot XYZ Stage CNC Router Motorized 3 Axis Table Linear Motion Ball Screw Guide Rail With Stepper Motor
FUYU Gantry Robot XYZ Stage CNC Router Motorized 3 Axis Table Linear Motion Ball Screw Guide Rail With Stepper Motor
Couldn't load pickup availability
SPECIFICATIONS
Brand Name: FUYU
Certification: CE
Guide Width or Diameter: 40mm
High-concerned chemical: None
Load Capacity: 25kg
Model Number: FSK40XYZ-L
Origin: Mainland China
Position Accuracy: 0.03mm
Speed Range: 255mm/s
Stroke Length: 50mm - 1000mm
Contacu us when need other series and stroke of linear guide rail.
Accept 3-axis gantry system xyz positioning stage custom design.
Please scroll down the page to find the store banne, Contact button is on the right side.

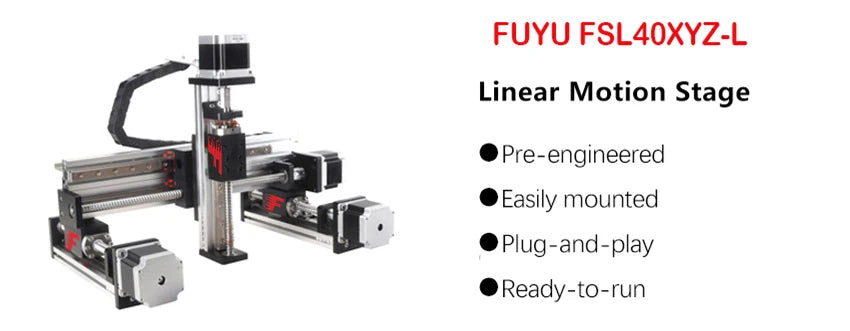

SPECIFICATIONS FOR FSK40XYZ-L LINEAR MOTION STAGE | |||
|
Mechanical Dimensions |
Stroke length Lx |
mm |
50 -1000 |
Stroke length Ly |
mm |
50 -1000 |
|
Stroke length Lz |
mm |
50 -500 |
|
Highly recommend you to tell us the load and speed you want for the XYZ table before your order, so that our tech could give you our best advice to ensure the performance.Please kindly leave messages to us and we will response asap!

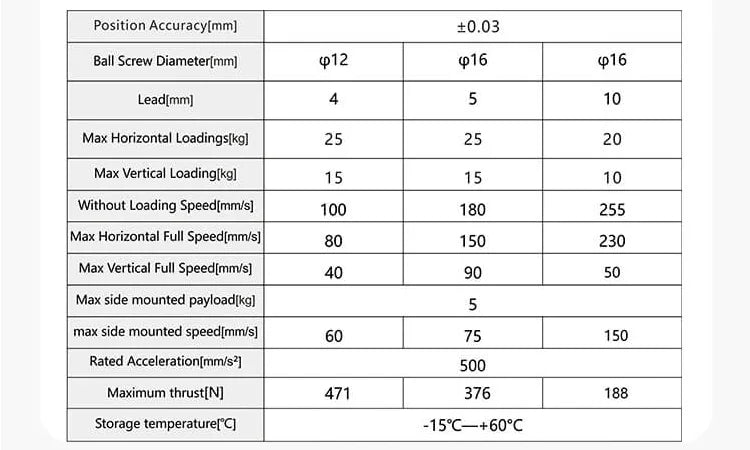

Model No. |
Dia.(mm) |
Lead(mm) |
Load(KG) |
Speed(mm\s) |
Accuracy Class |
G1610(Default) |
16 |
10 |
10 |
0-90 |
C7 |
G1605 (Customized) |
16 |
5 |
Contact us |
Contact us |
C7 |
G1616 (Customized) |
16 |
16 |
Contact us |
Contact us |
C7 |
Contact us when you need G1605\G1616 or any other question.
Model |
Step Angle |
Flange Size |
Body Length |
Torque |
Current |
Resistance |
Inductance |
Rotor Inertia |
Lead |
(°) |
(mm) |
L (mm) |
( N.m) |
(A) |
( Ω) |
( mH) |
(g.cm⊃2;) |
(No.) |
|
FM5756SSD04 |
1.8 |
57 |
56 |
0.93 |
2.0 |
1.32 |
3.19 |
188 |
4 |

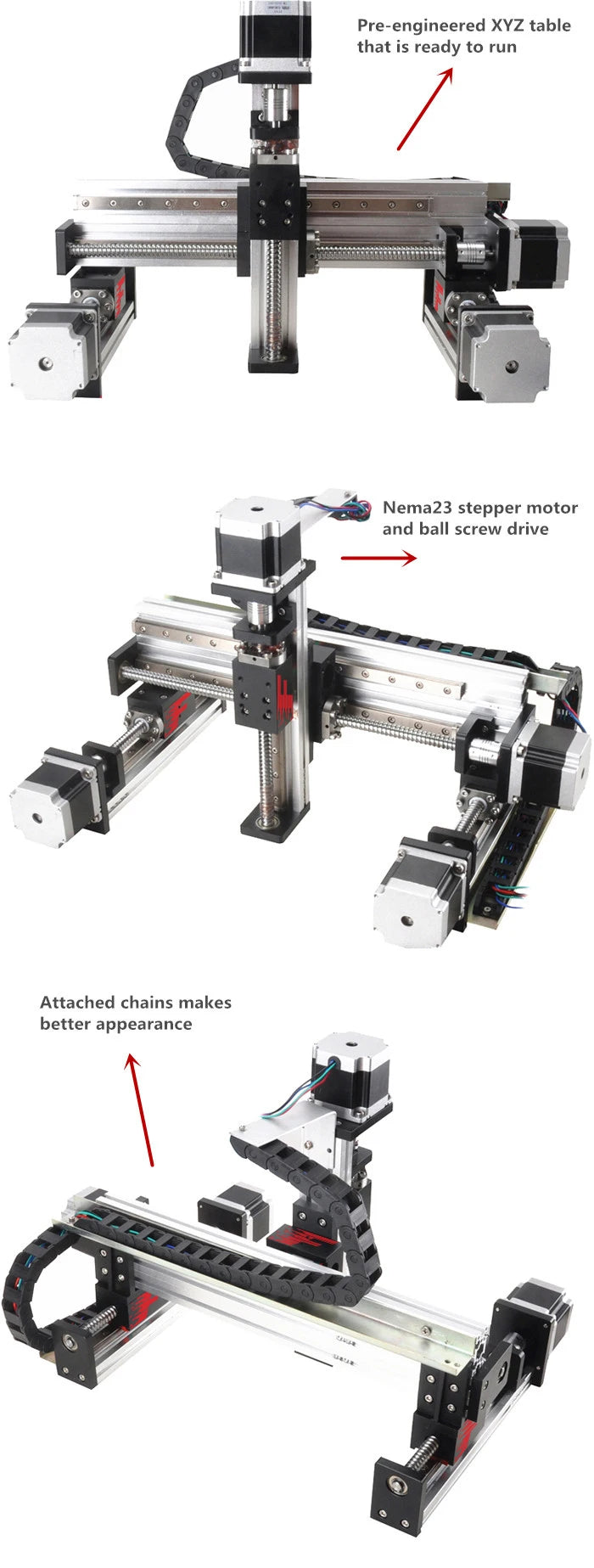

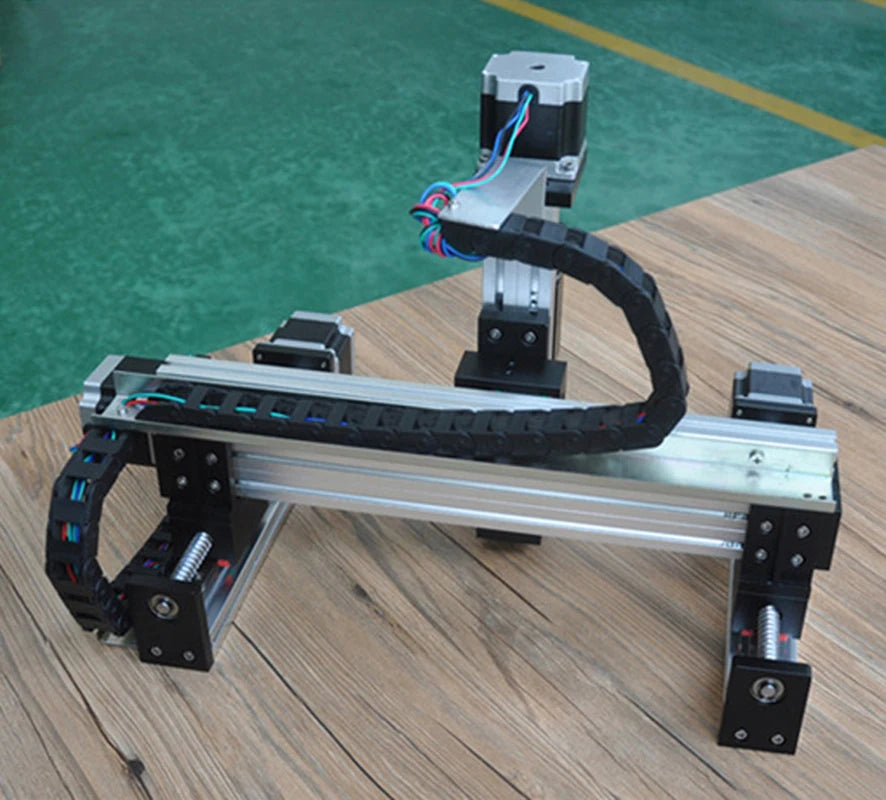

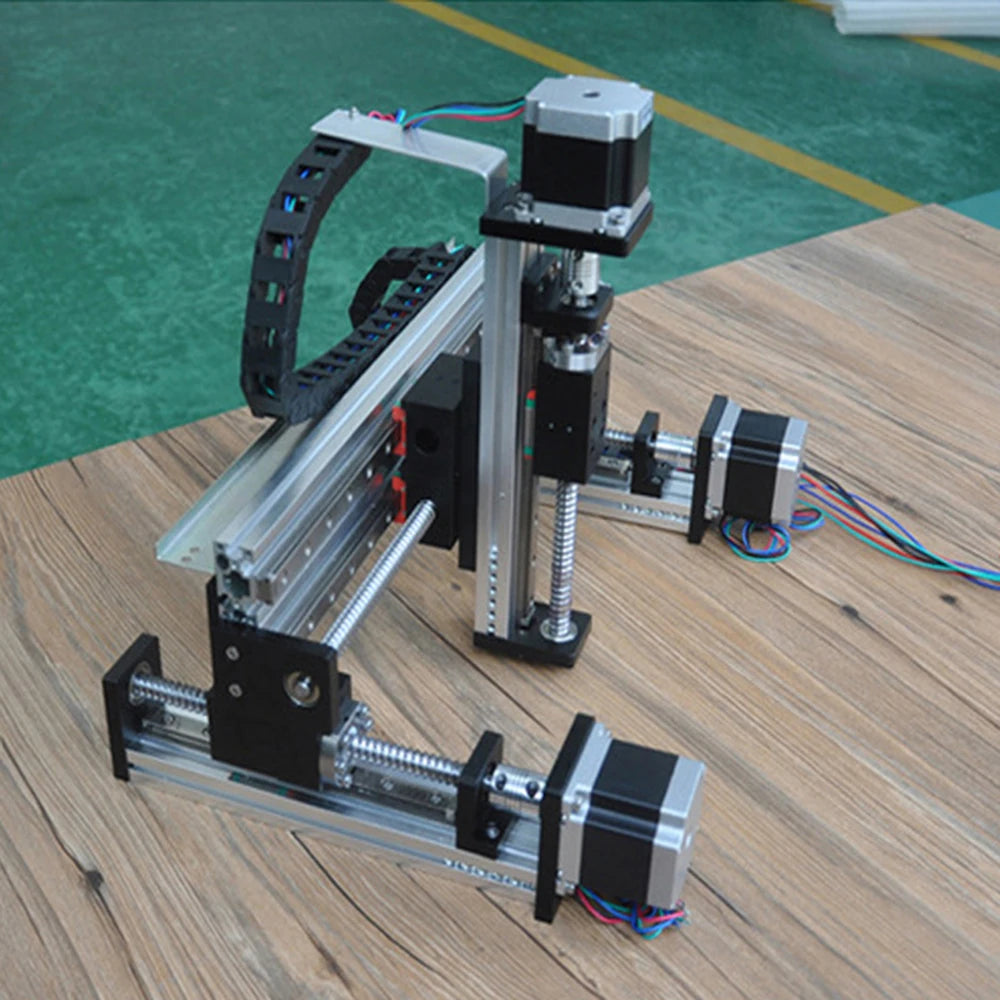

The XYZ stage comes with CNC accessories,such as drag chain,brackets,connector,nuts..., the driver & controller & power supply are optional.
click the above picture to learn more
-
1,Product sources
All the products sold in this store are FUYU brand, factory-direct sale, no branch.
-
2, Model selection
Before purchasing, please contact us to confirm the model no and specifications to avoid any misunderstanding. Before our production, we will offer drawings for you to confirm.
-
3,Payment
Sample fee should be fully paid before production, for bulk order, 50% advance is needed and balance before shippment. Paypal is accepted.
-
4,Delivery
Samples in stock will be delivered within 7 days and customized samples will be delivered within 30 days. Delivery date for bulk order depends on order quantity.
-
5,After-sale service
Any flaws found by customers within 30 days upon receiving the goods could be changed to new products. Free maintenance within 12 months. Lifetime technical support
