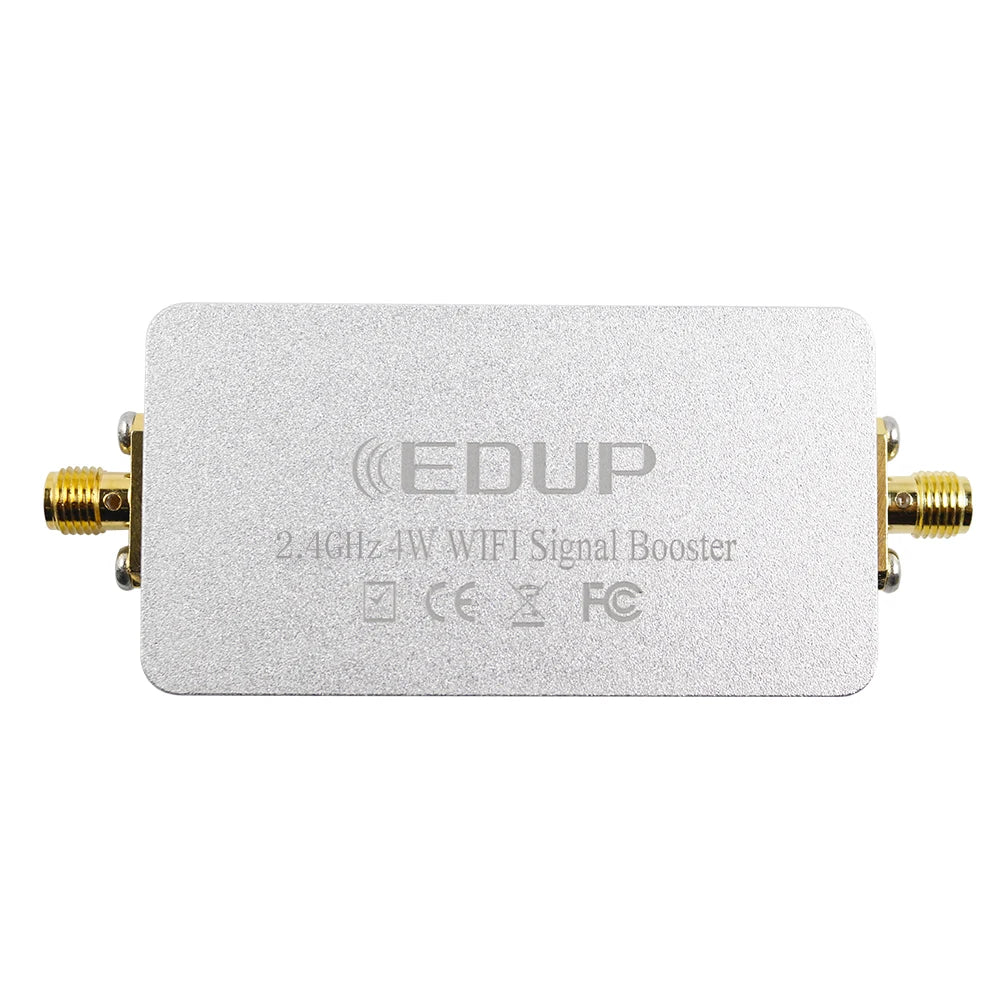

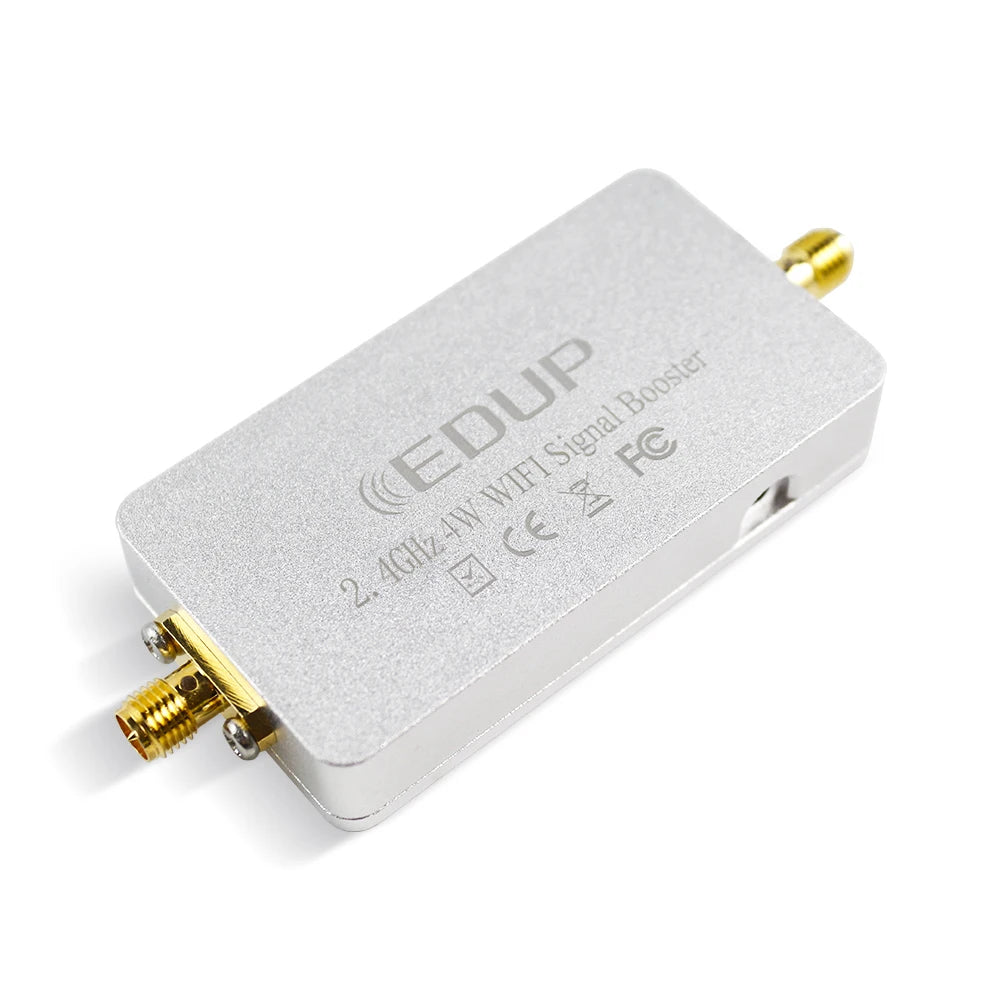

EDUP AB018/AB015 4W Wireless Power Signal Amplifier 2.4GHz WiFi Booster High Power 36dBm Signal Long Range Extend 802.11b/g/n
EDUP AB018/AB015 4W Wireless Power Signal Amplifier 2.4GHz WiFi Booster High Power 36dBm Signal Long Range Extend 802.11b/g/n
Couldn't load pickup availability
SPECIFICATIONS
5G Wi-Fi Transmission Rate: None
Antenna Type: Internal
Application: Home
Brand Name: EDUP
Certification: CE,FCC,RoHS
Frequency: 2.4 GHz
Frequency Band Class: Single-Band
Function: Firewall
High-concerned chemical: None
Input Trigger Power: Min:3dBm Max:20dBm
Number of USB Interfaces: None
Operation Term: ~40°C~70°C
Opertating Humidity: Up to 95°relative humidity
Origin: Mainland China
Package: Yes
RF Output Power: 36 dBm(4W)
Receiver Gain: 11dB typical
Recommended Uses: Home
Standards And Protocols: Wi-Fi 802.11g,Wi-Fi 802.11b,Wi-Fi 802.11n
Support Mesh: Not Supported
Supports WDS: No
Transmit Gain: 17dB typical
Type: WireLess
Wi-Fi Supported Frequency: 2.4G
Wired Transfer Rate: None
Wireless Communication Standard: 802.11.b
Wireless transmission rate: 1800M
With Modem Function: No
Working Voltage: 5-16V

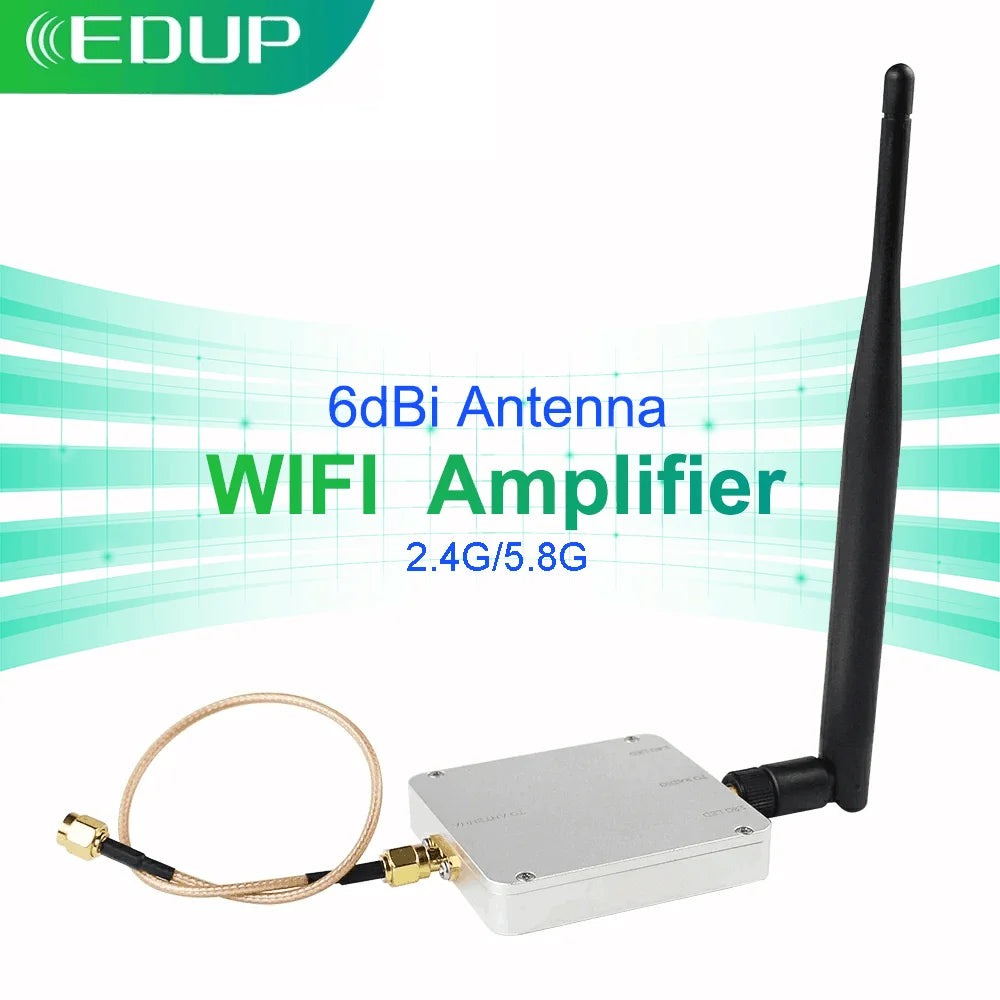

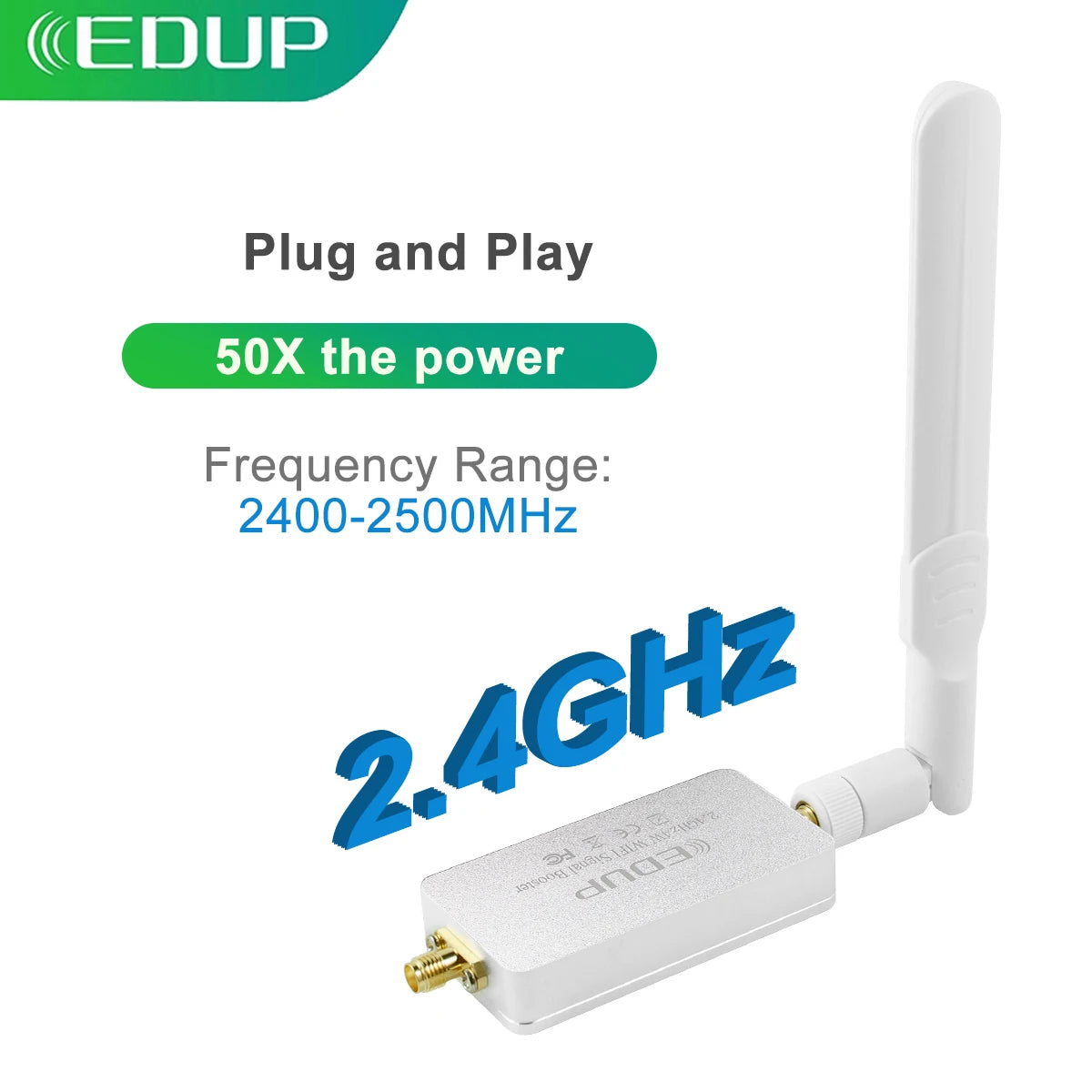

EDUP WiFi Booster 2.4GHz 4W Wireless Power Signal Amplifier Detachable Antenna Signal Range Extend 802.11b/g/n for Router Repeater
Features:
2.5dB ultra-low noise
5V to 16V operating input range
Working with certified IEEE 802.11b/g/n Wireless LAN devices
Simply plug and play, no software is required

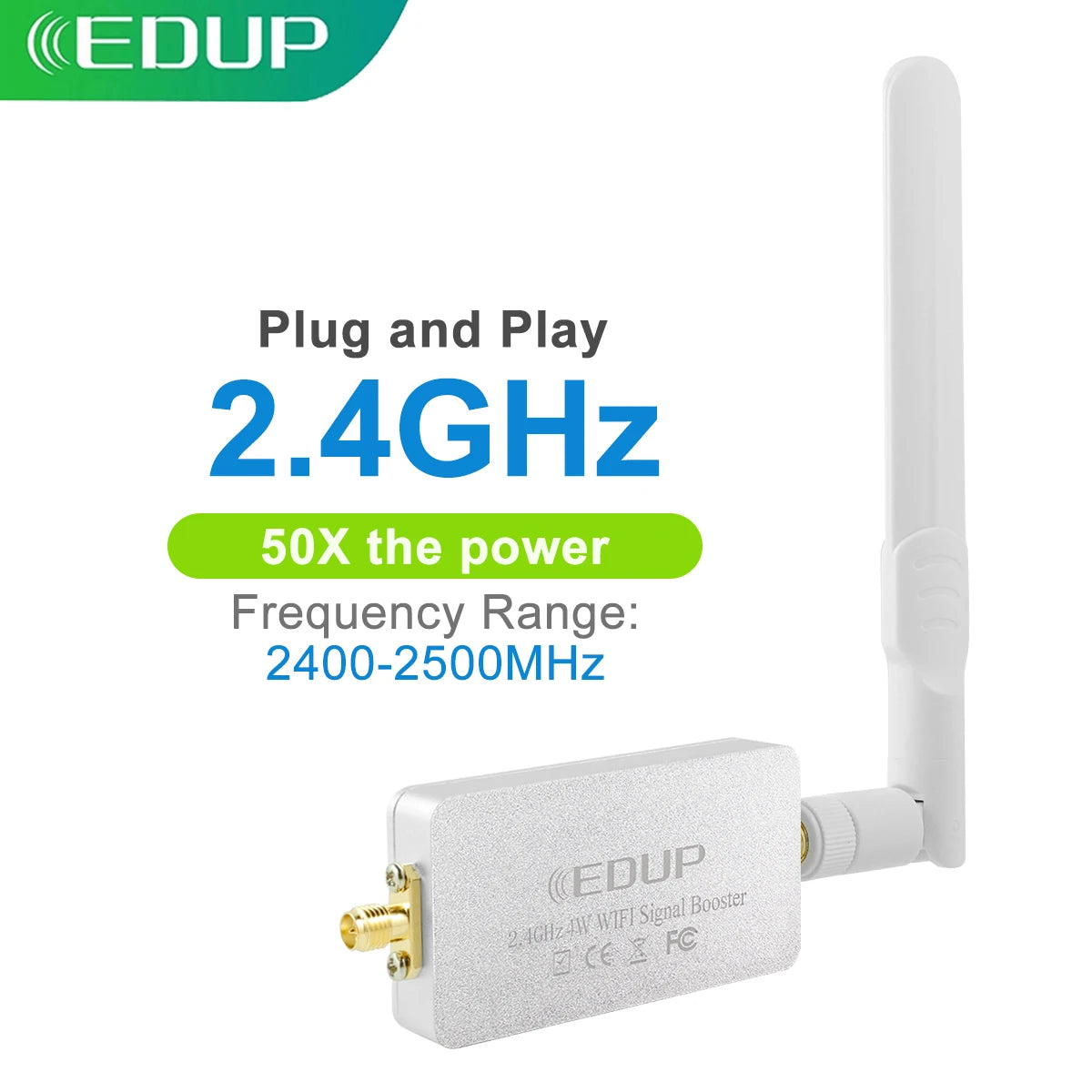

50X the power, improving the link quality and coverage of certified WLAN devices
Specifications:
Frequency Range:2400-2500MHz
Operating Voltage:5-16V
Receiving Gain:19dB±1
Transmission Gain:17dB±1
Max Output Power(P1dB):36dBm(4W)
Input Trigger Power:Min:3dBm Max:23dBm
EVM:3%@28dBm 802.11g 54Mbps OFDM 64QAM BW 20MHz
Noise Figure:<2.5dB
Current Supply:580mA@Pout 28dBm 12V
TX/RX Switch Time Delay:<1 us
LED Indicator:Transmitter: Green; Receiver: red
Operating Temperature:-30℃~+70℃
Storage Temperature:-40℃~+150℃
Operating Humidity:Up to 95% rel. humidity

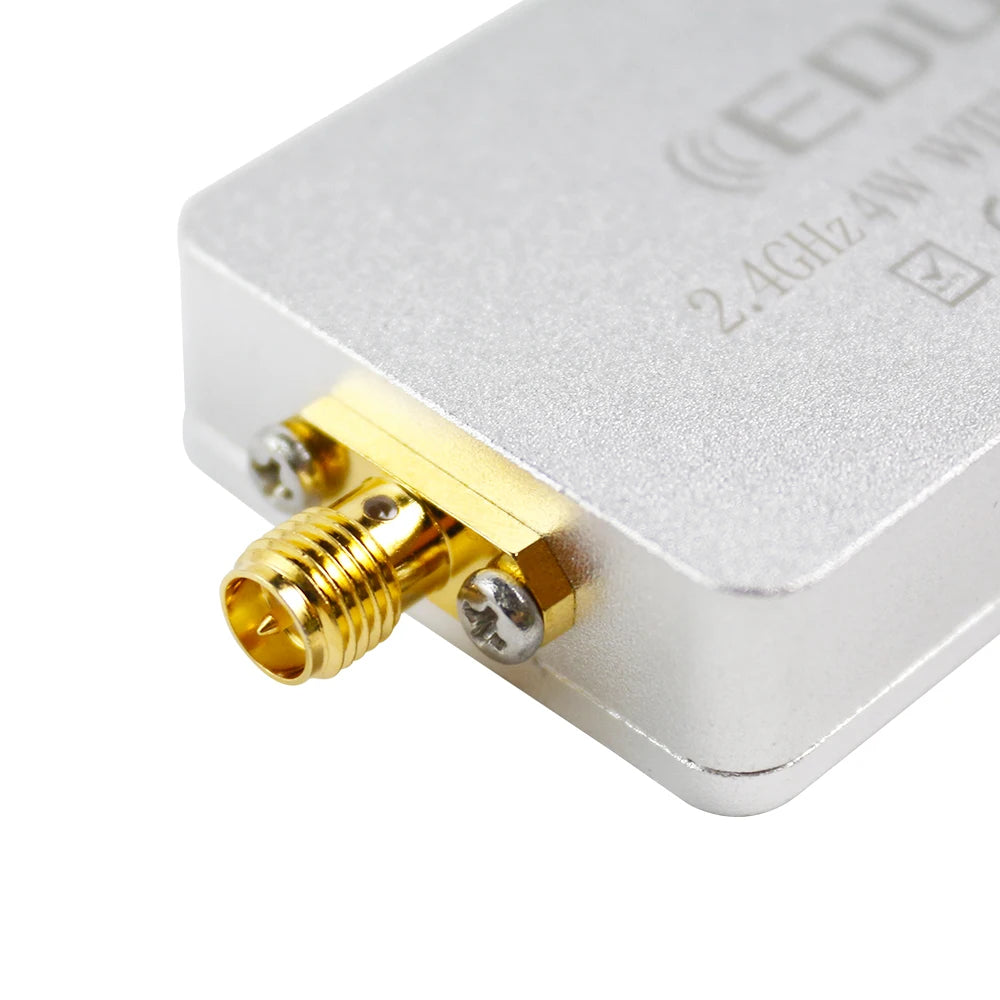

RF Connector:Input: SMA-K; Output: RP-SMA-K

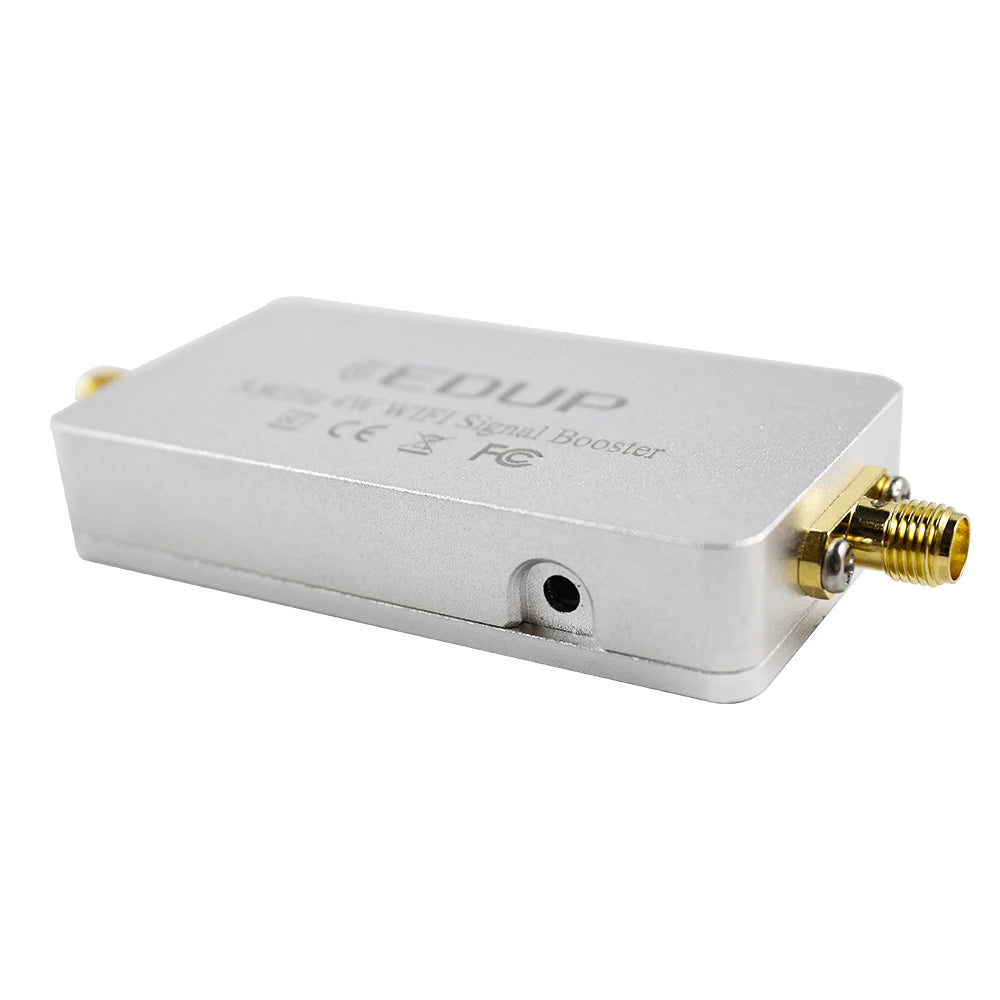

Power Socket:2.5*0.7mm DC
Shell Size:65*35*13(mm)
Shell Material:Aluminum
Net Weight:0.06Kg
Note:
1.12V /1A power supply.
2.Heat dissipation is recommended, such as adding heat sink or radiator fan.
3.Antenna should be screwed first, then plug the power adapter, finally connect the device.
4.The output could reach 36dBm, when input power is 19dBm or 20dBm (default gain is 17dB).
Please use within the input power range, excessive power may burn out the equipment or cause it to malfunction!
AB018 Input Trigger Power:Min: 3dBm Max: 23dBm
AB015 Input Trigger Power:Min: 5dBm Max: 23dBm
