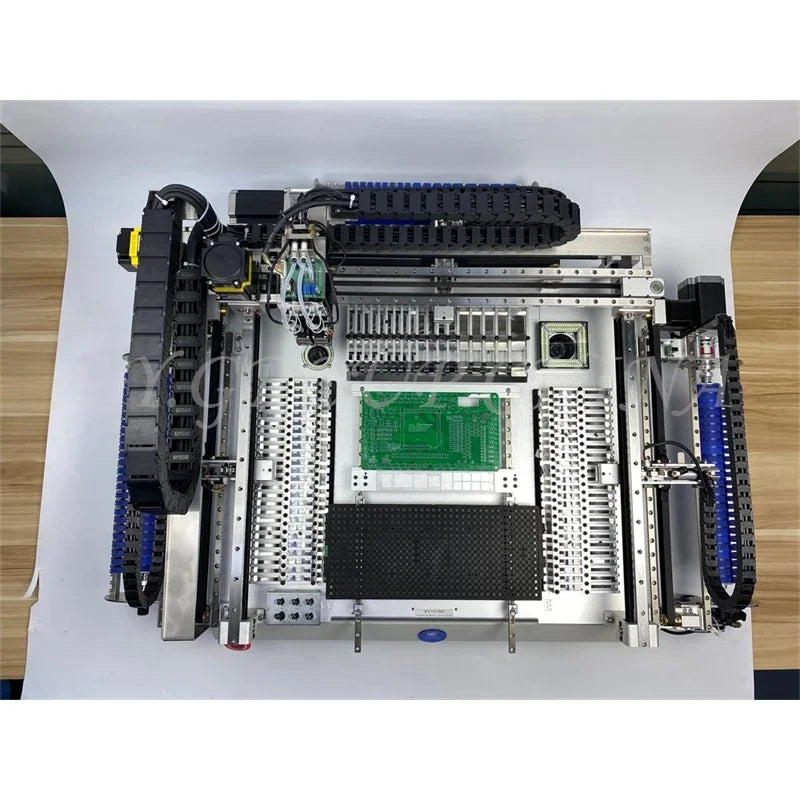

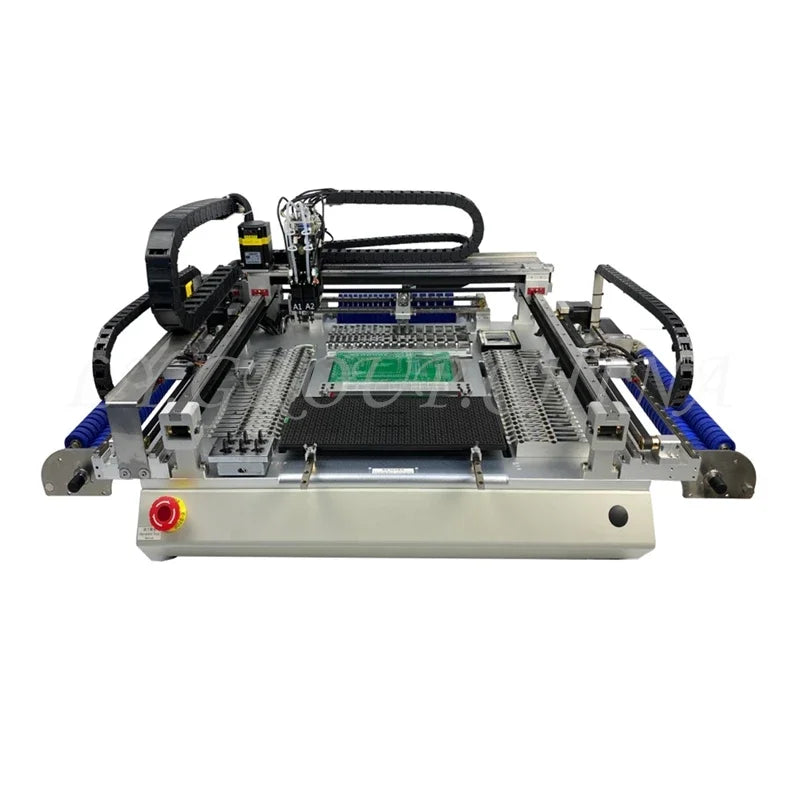

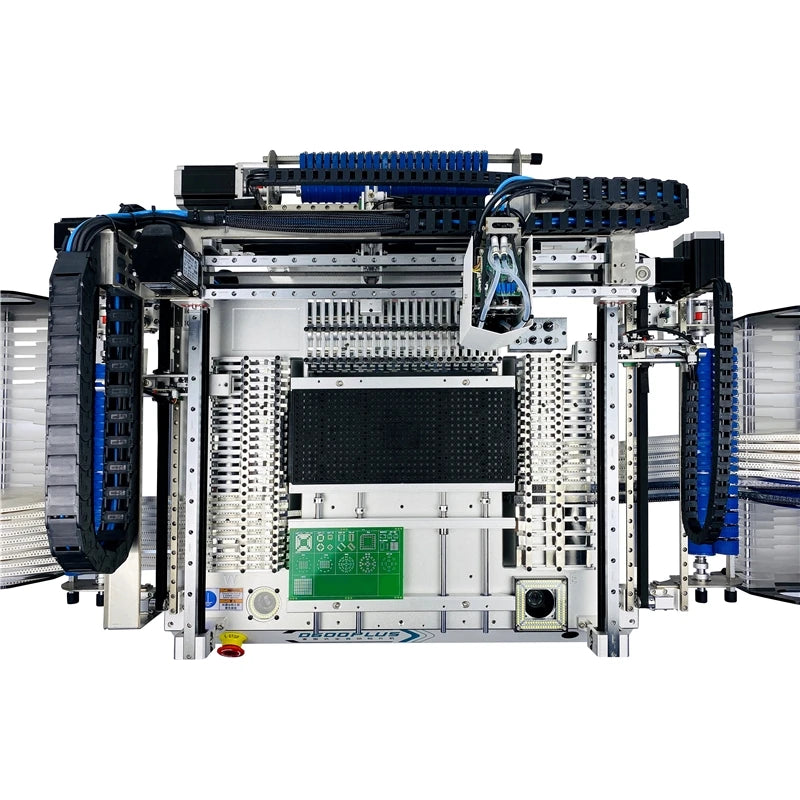

D600Plus 6 Heads 68 Bits Desktop Full Automatic SMT Pick Place Machine Chip Mounter Solder Station
D600Plus 6 Heads 68 Bits Desktop Full Automatic SMT Pick Place Machine Chip Mounter Solder Station
Couldn't load pickup availability
SPECIFICATIONS
Application: --
Brand Name: NONE
Certification: CE
High-concerned chemical: None
Model Number: D600PLUS
Origin: Mainland China
RE:

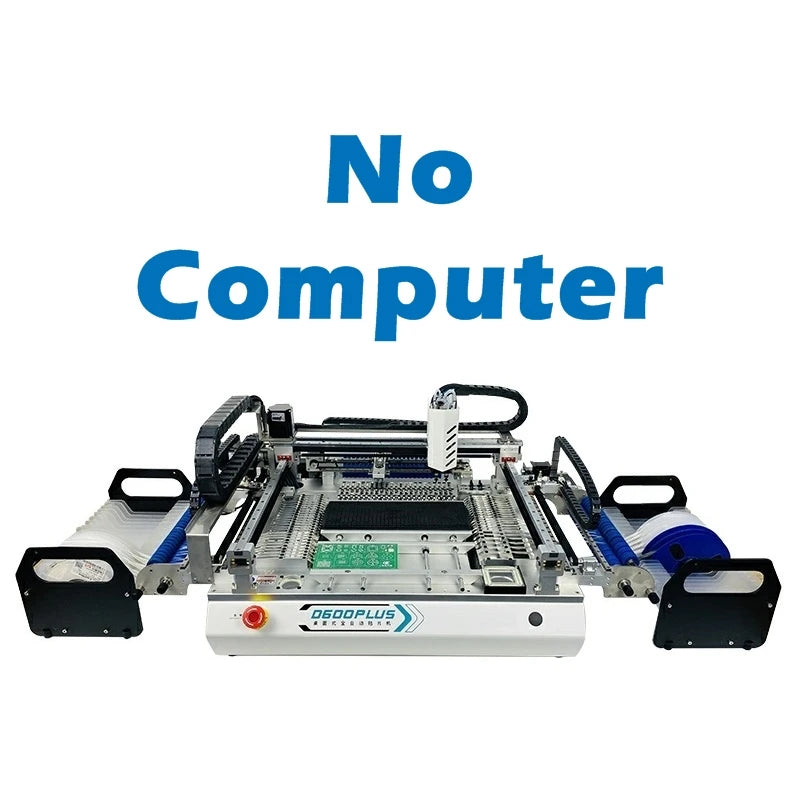

1.Without computer:
Need to link with external computer to use.

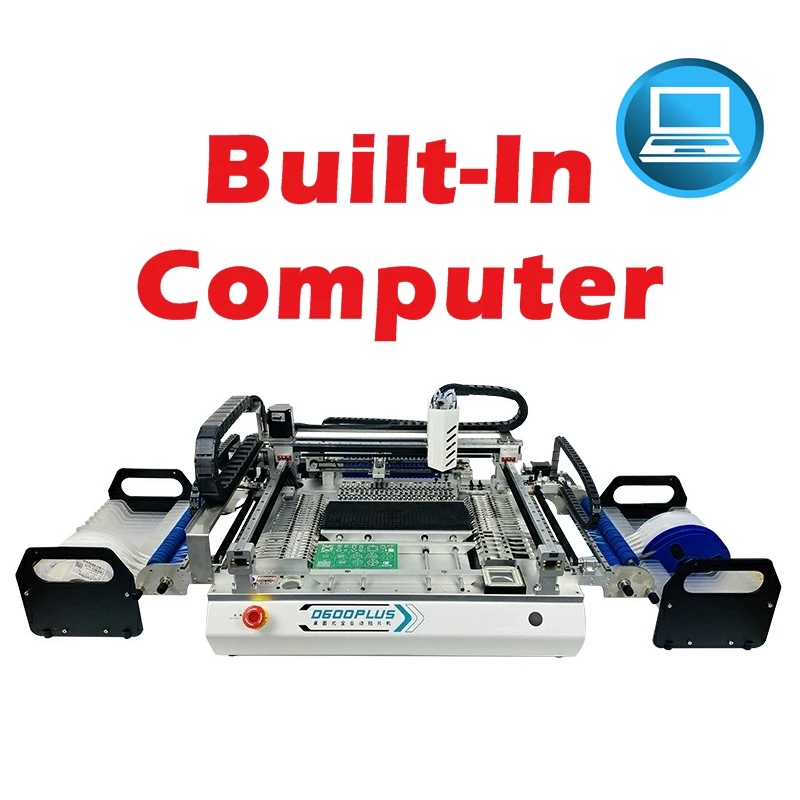

2.Built-in computer:
With 2 USB ports, customer need to prepare keyboard & mouse by themselves.
3.The left & right 2 feed trays in Demo pictures not included in real package.
4.Need to connect with air compressor to use.

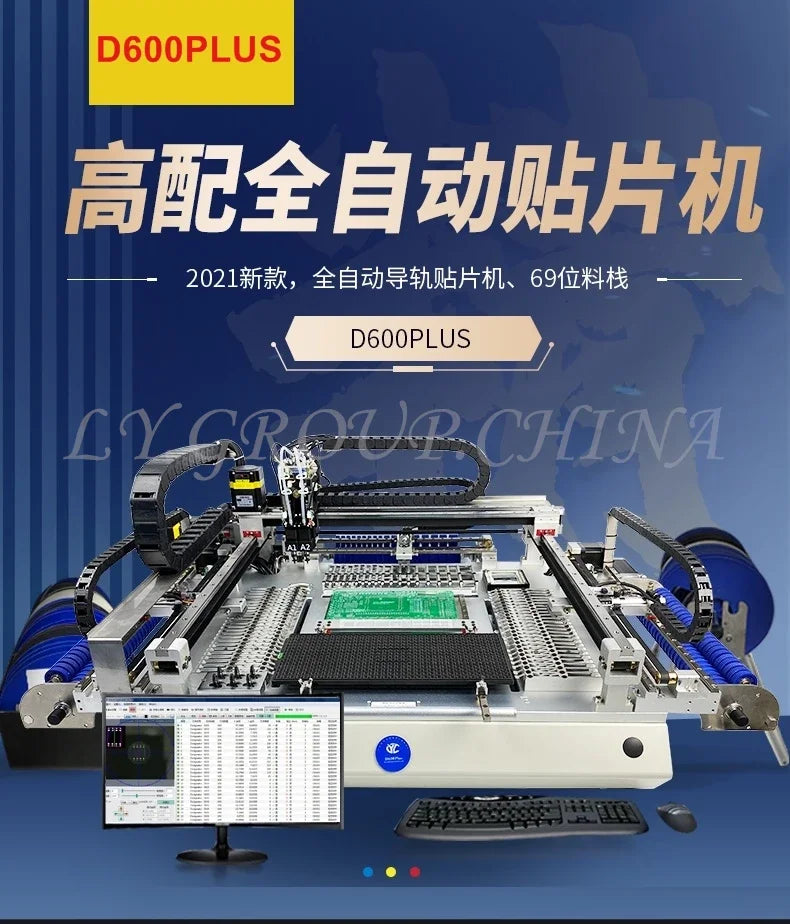

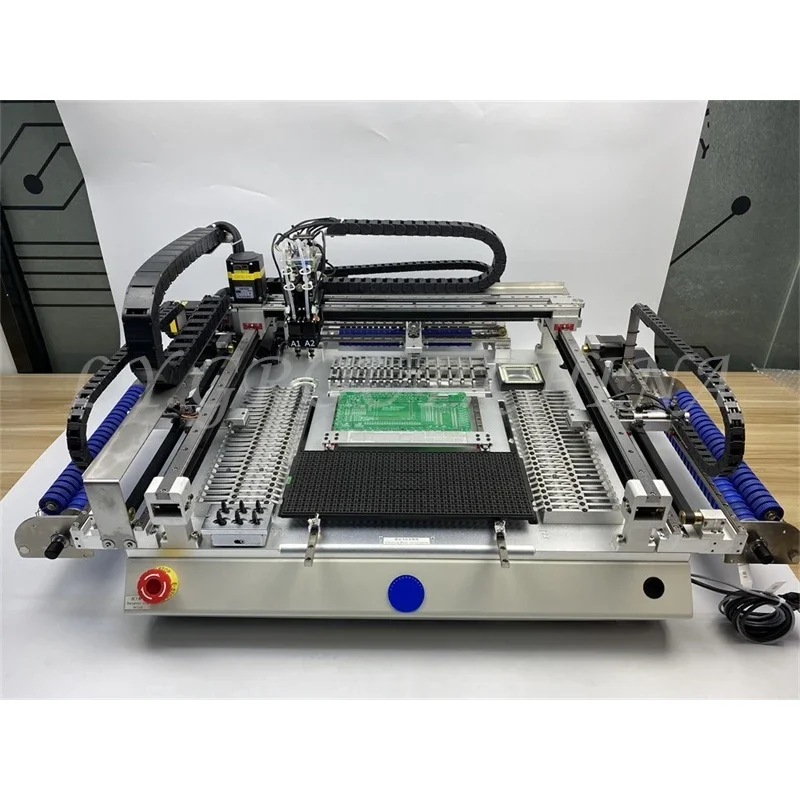

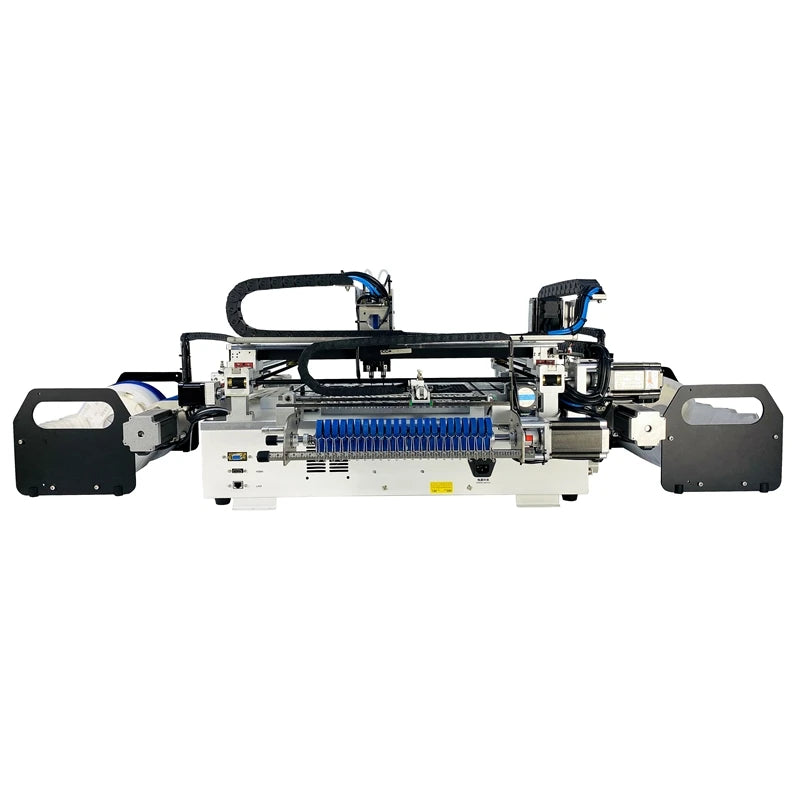

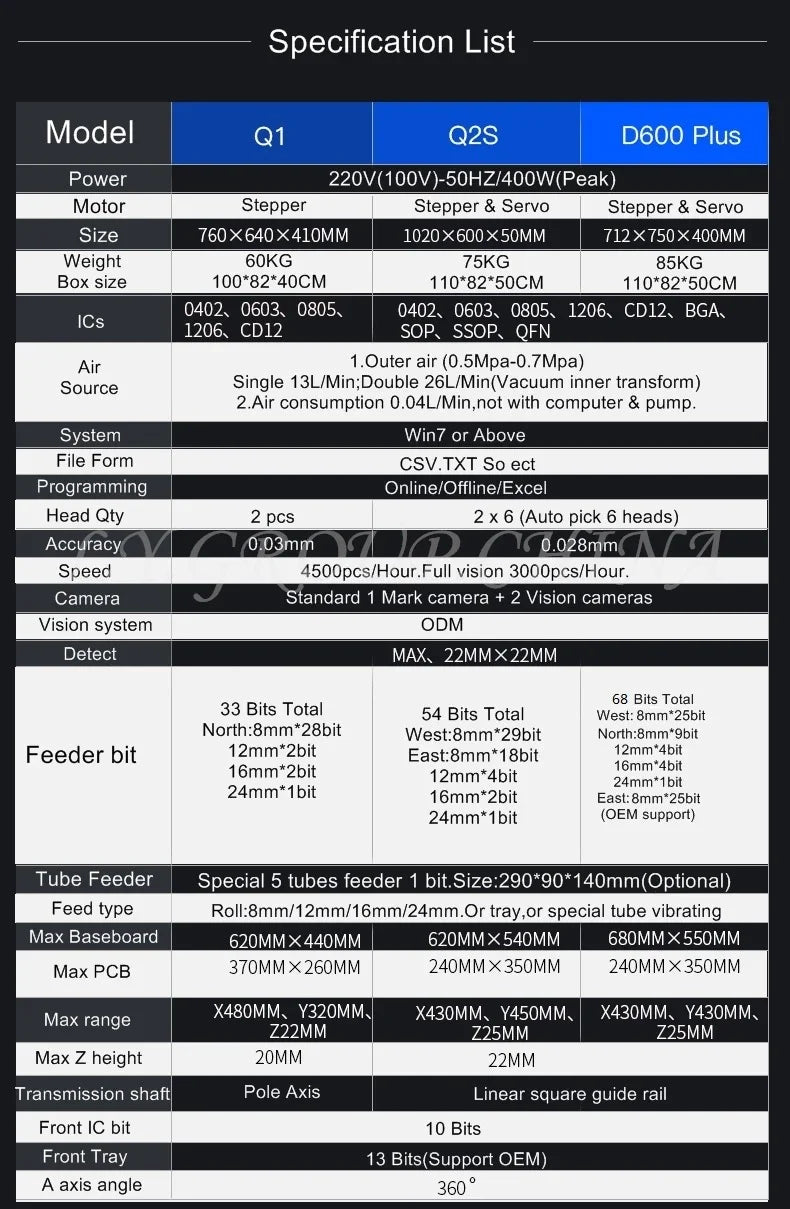

D600Plus 6 Heads 68 Bits Desktop Full Automatic SMT Pick And Place Machine :
Need to use with air compressor.
Power: 220V or 110V. 50HZ/400W
Motor: Stepper And Servo
Size:100*75*40CM
Cartoon size: 110*82*50CM

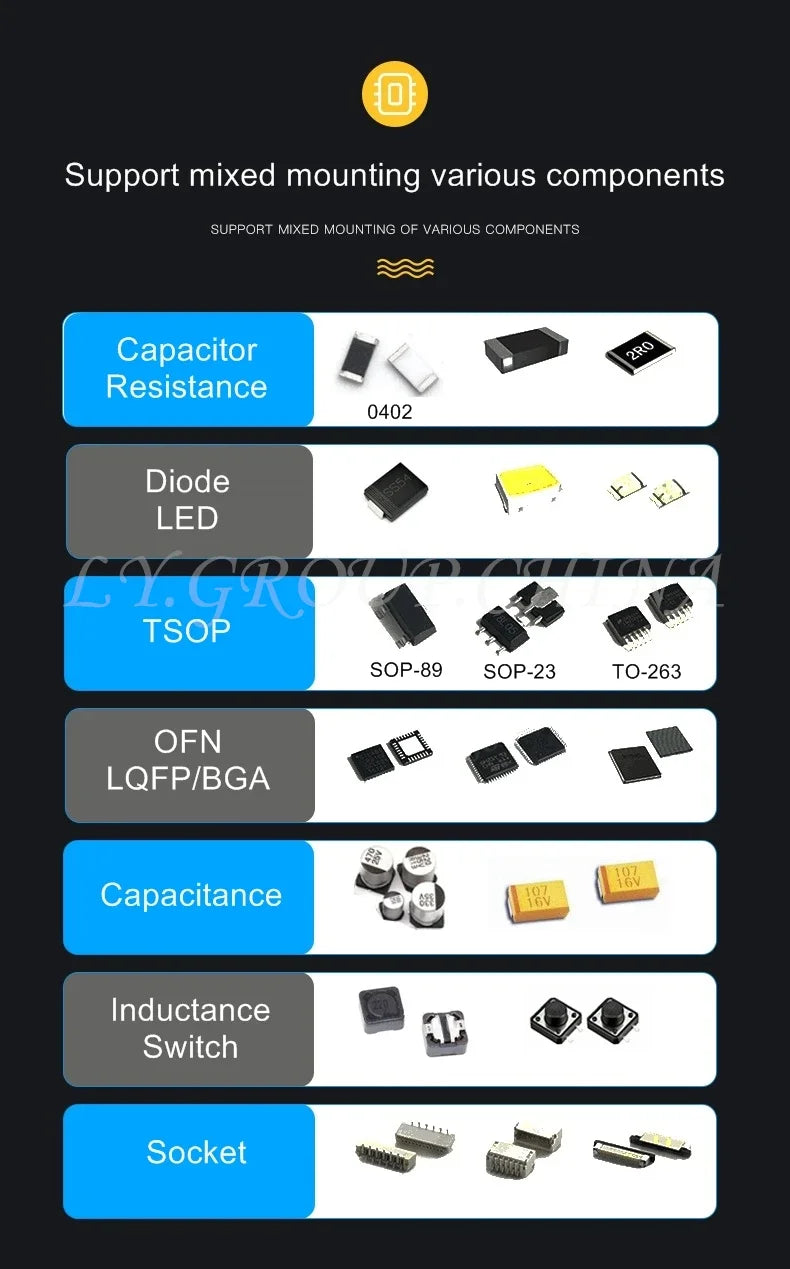

QFP Type: 0402,0603,0805,1206,CD12, BGA,SOP,SSOP,QFN, High Capacitor
Air In: Air Compress 0.5MPA-0.7MPA,0.04L/Min
Operation: Win7 or above
File form: CSV,TXT

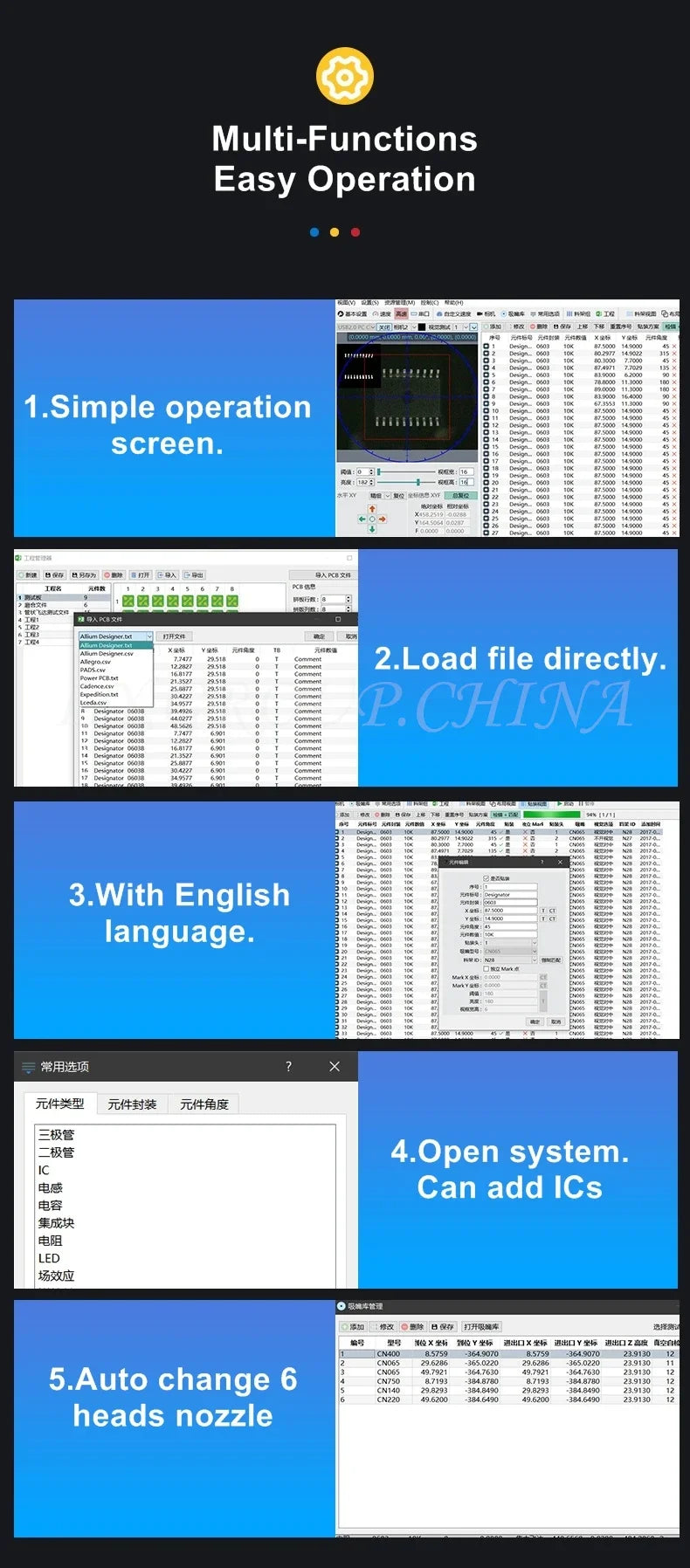

Program way: Online/ Offline/ Excel

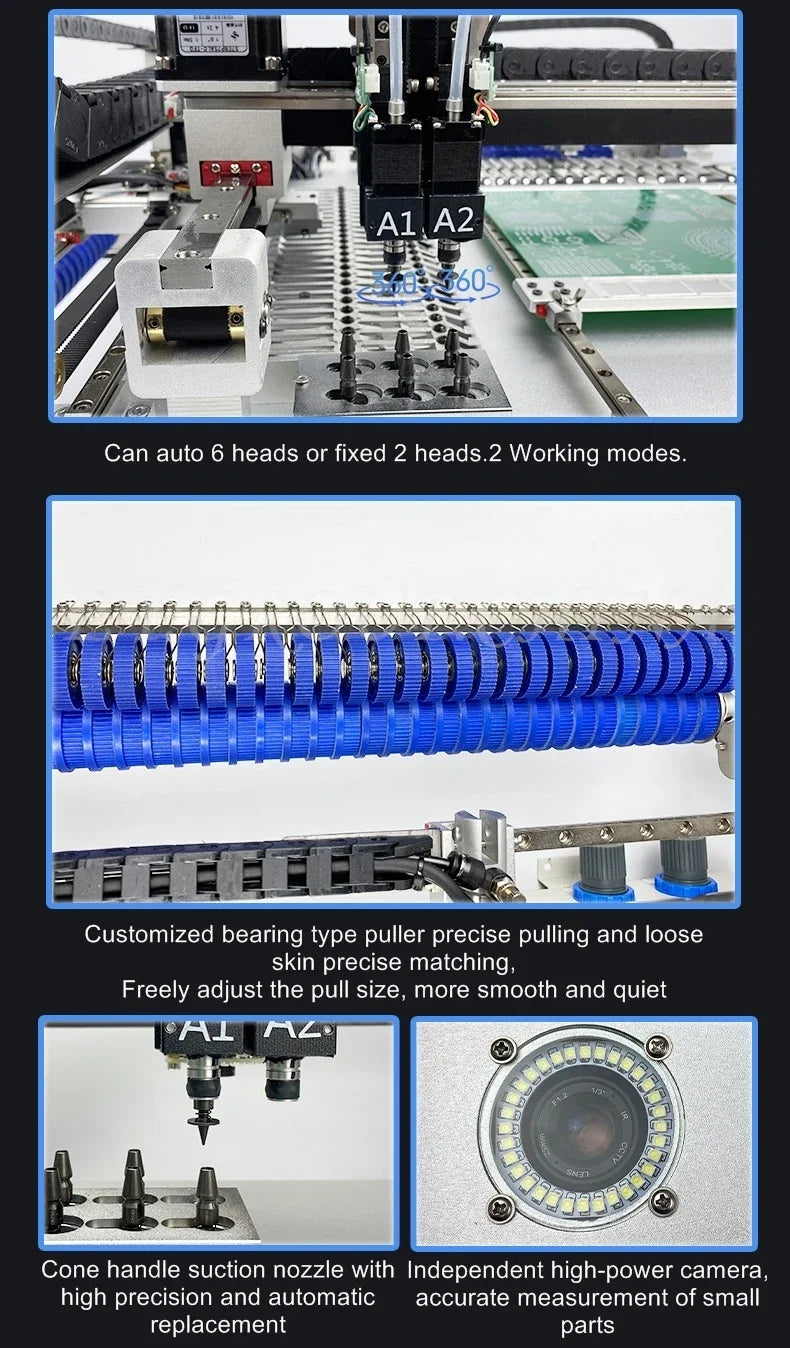

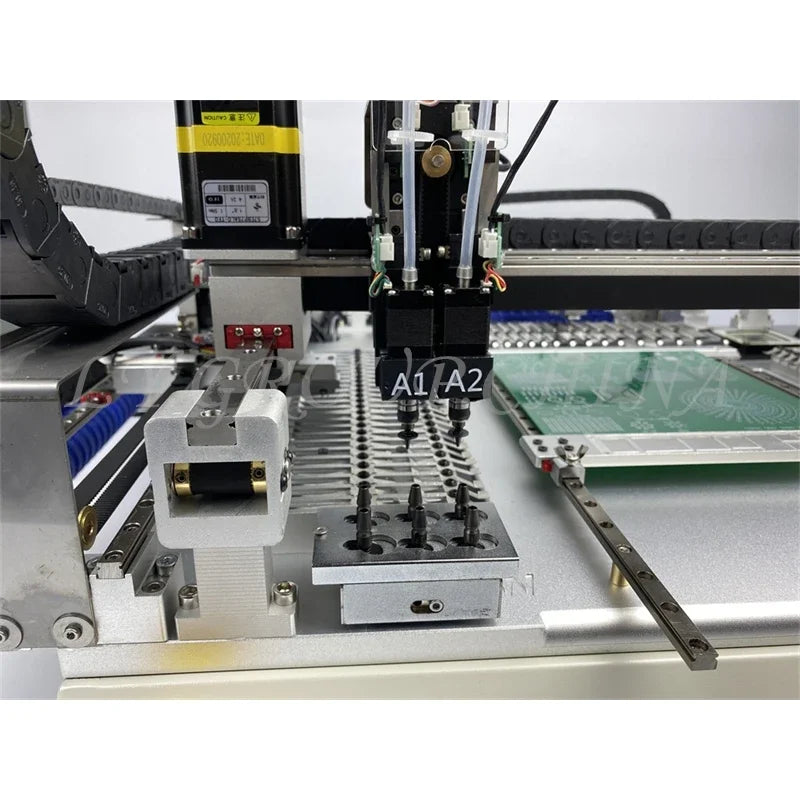

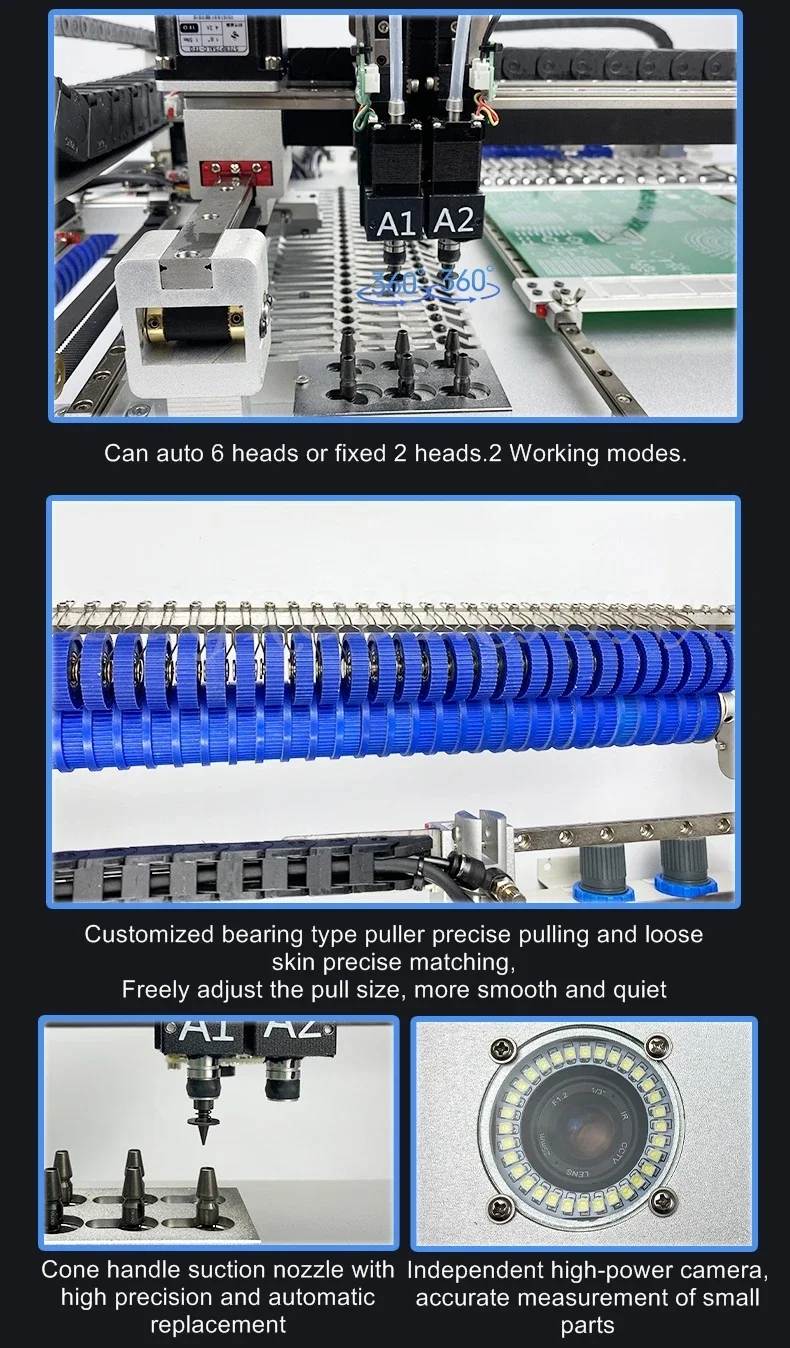

Nozzle QY: 2 x 6 (Auto change 6 pcs)
Accuracy: 0.028mm
Speed: Resistance 3500pcs/hour, Full vision 2500pcs/hour
Camera: 3pcs (Mark camera*1, vision camera*2)
Recognition : MAX, 17*17MM

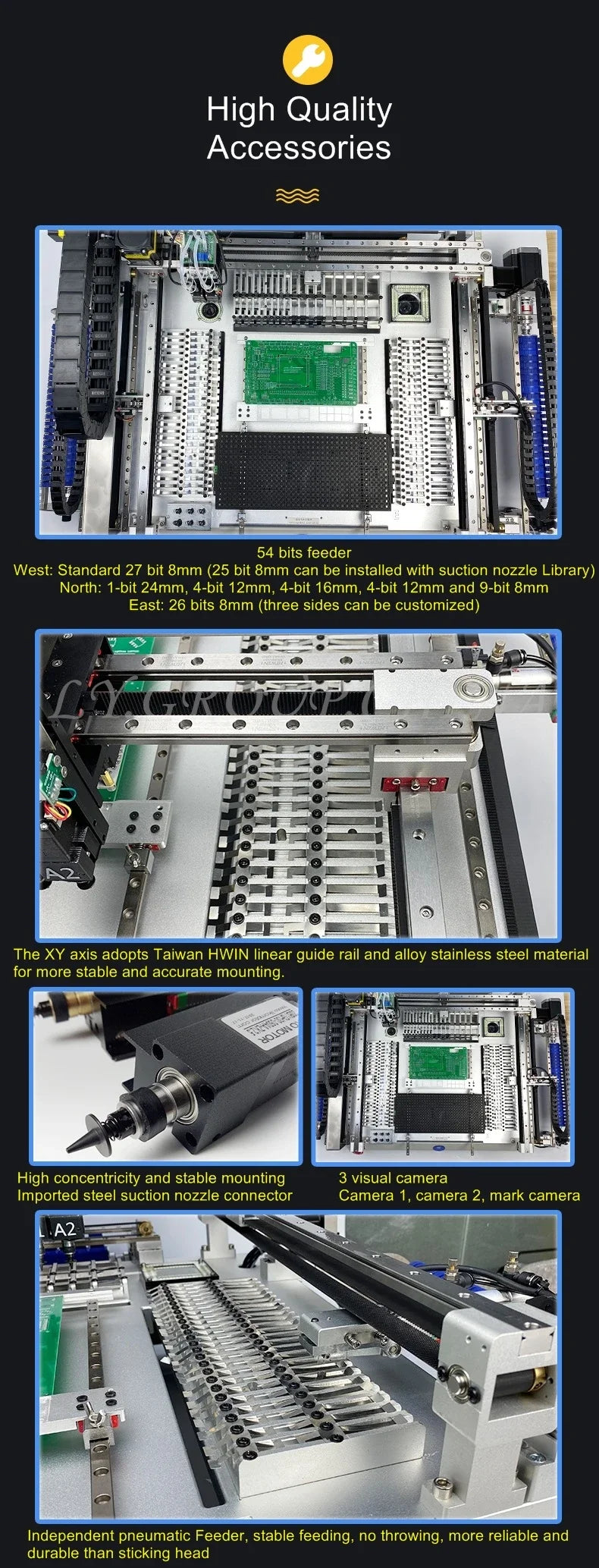

Feeder: 68 Bits (OEM Support)
West:8mm*25 bits/East:8mm*25bits/North:8mm*9 bits; 12mm*4 bits;16mm*4bit,24mm*1 bit
Tube feeder: 5 tubes, Size: 290*90*140mm (Optional)
Max Base board: 680*550mm
Max PCB Size: 240*350mm
Max range: X:430MM/ Y:430MM/ Z:22MM
Front IC Feeder: 10 Bits
Weight:85KG

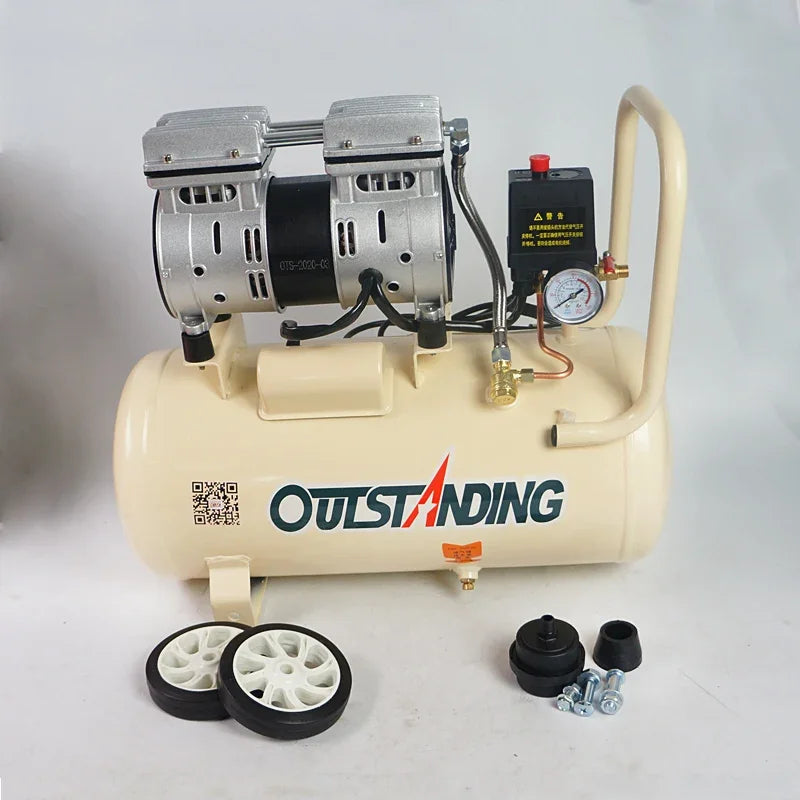

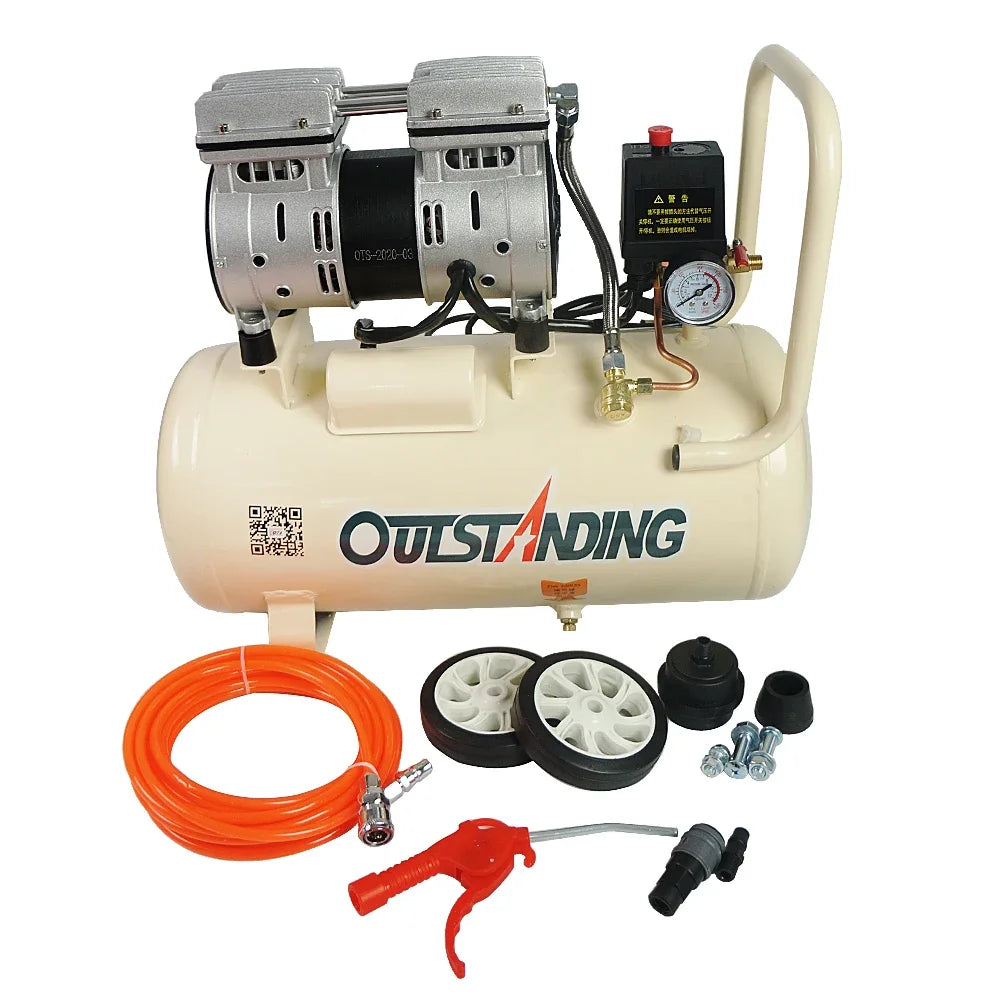

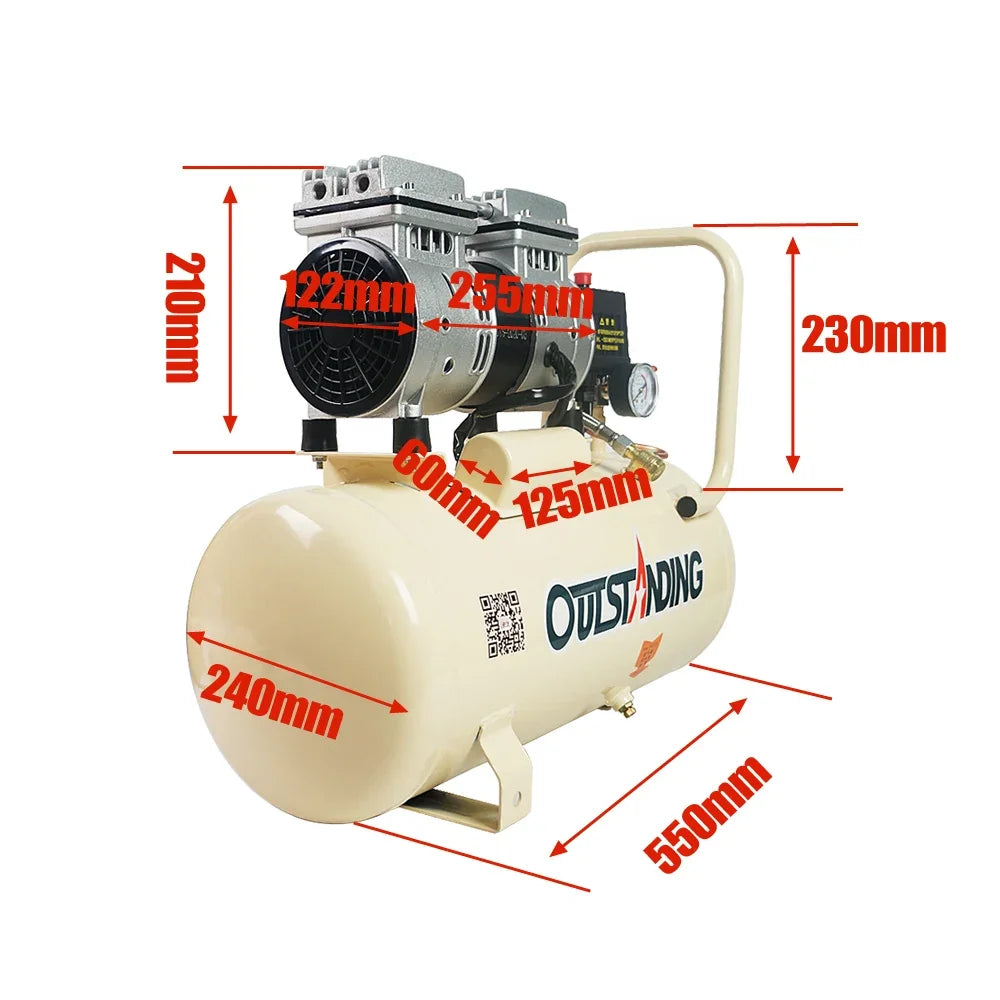

Industrial Outstanding oil-free air compressor 550W 30L:
Specifications:
Plug Type: EU
Voltage: 220-240V/50Hz;
Speed: 50Hz: 1450 Speed/min; 60Hz: 1700 Speed/min
Type: Single Cylinder Piston Compressor
Power:550W
Air Flow: 40L/min
Air Tank: 30L
Pressure:0.7MPA
Low Noise: ≤ 50db
Material: Aluminium + Copper + Steel
Power Cable Length: Approx. 1.9m / 6.2ft
Item Size: 550 * 250 * 510mm
Item Weight: 17kg
Package Size: 510 * 260 * 560mm
Package Weight: 20kg
Package
List:
1 * 550W-30L Air Compressor
1 * User Manual(English)
Free gifts:
1*Air pipe
1* dedust /Air blow gun
1*Connector
1*Teflon

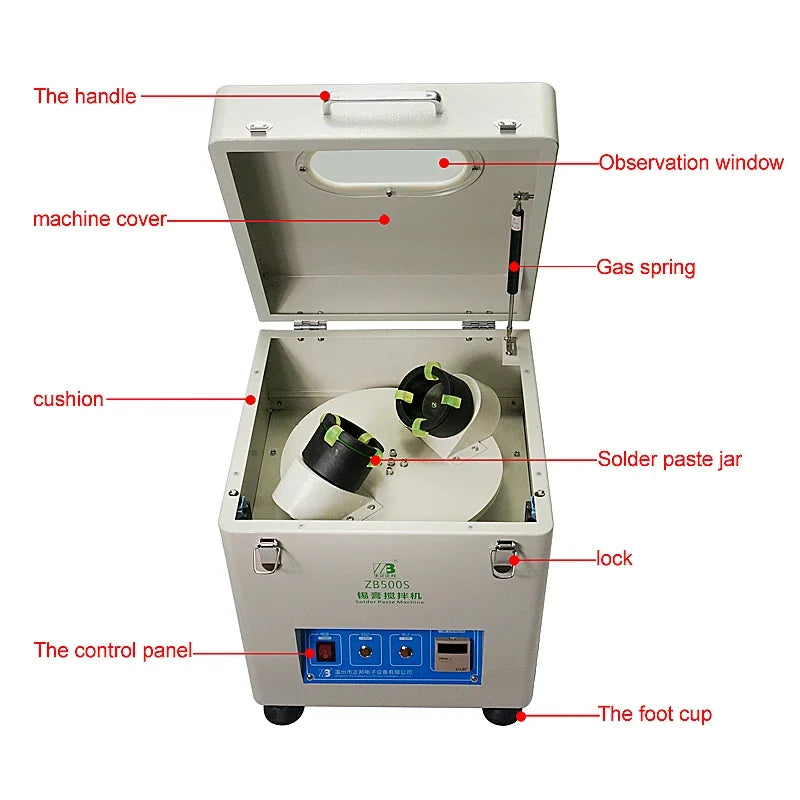

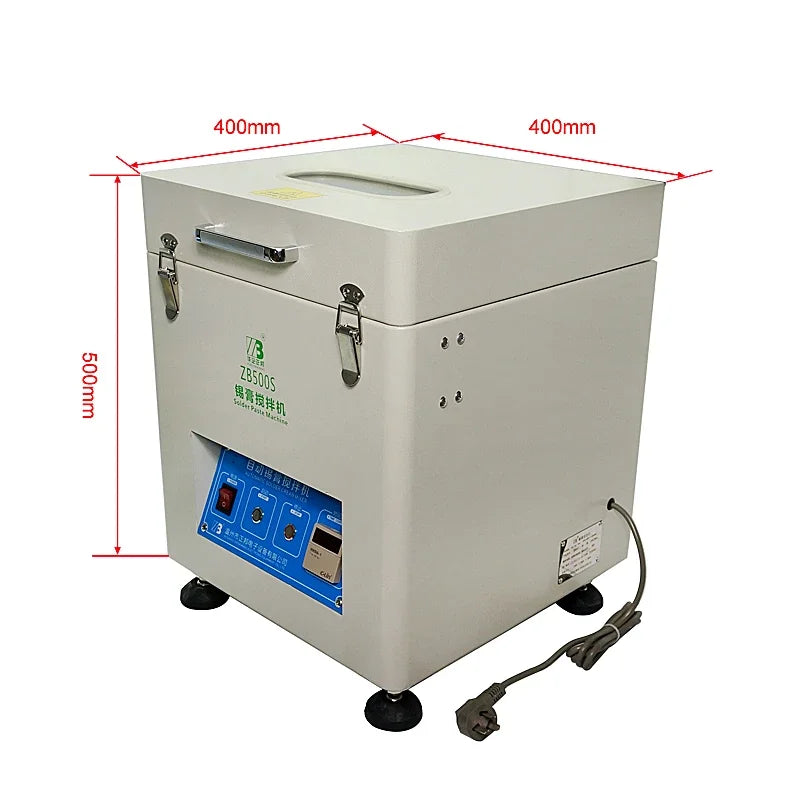

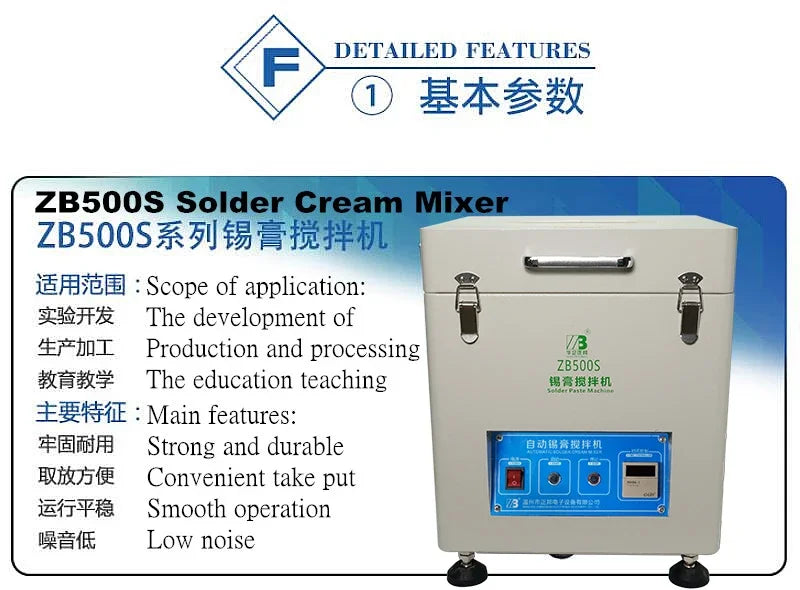

Automatic Solder Paste Mixer 500g-1000g ZB500S for repair PCB:
Technical parameters
Type |
ZB500S |
Operating speed |
Motor speed: 1350RPM |
|
One revolution: 400RPM; Two rotations: 300RPM | |
Operational capability |
0-1000 g* 2 tanks |
Acceptance of solder cream pot |
Tank diameter Φ60-Φ67 standard configuration (suitable fo general 500 g solder cream bottle) Other specifications, please contact us for customization. |
Time setting |
0.01s～99H99s, minute and second set |
Display mode |
LED digital display |
Rated power |
Constant speed60W |
Working power supply |
AC220V±10％50Hz |
Boundary dimension |
400×400×500mm |
Machine weight |
50kg |
Attachment list
1. Adjustment belt2PCS
2. Rotation belt2PCS
3. Balance weights 500g1PCS
4. Instruction book1PCS
5. Certificate of quality1PCS
6. Lining2PCS
