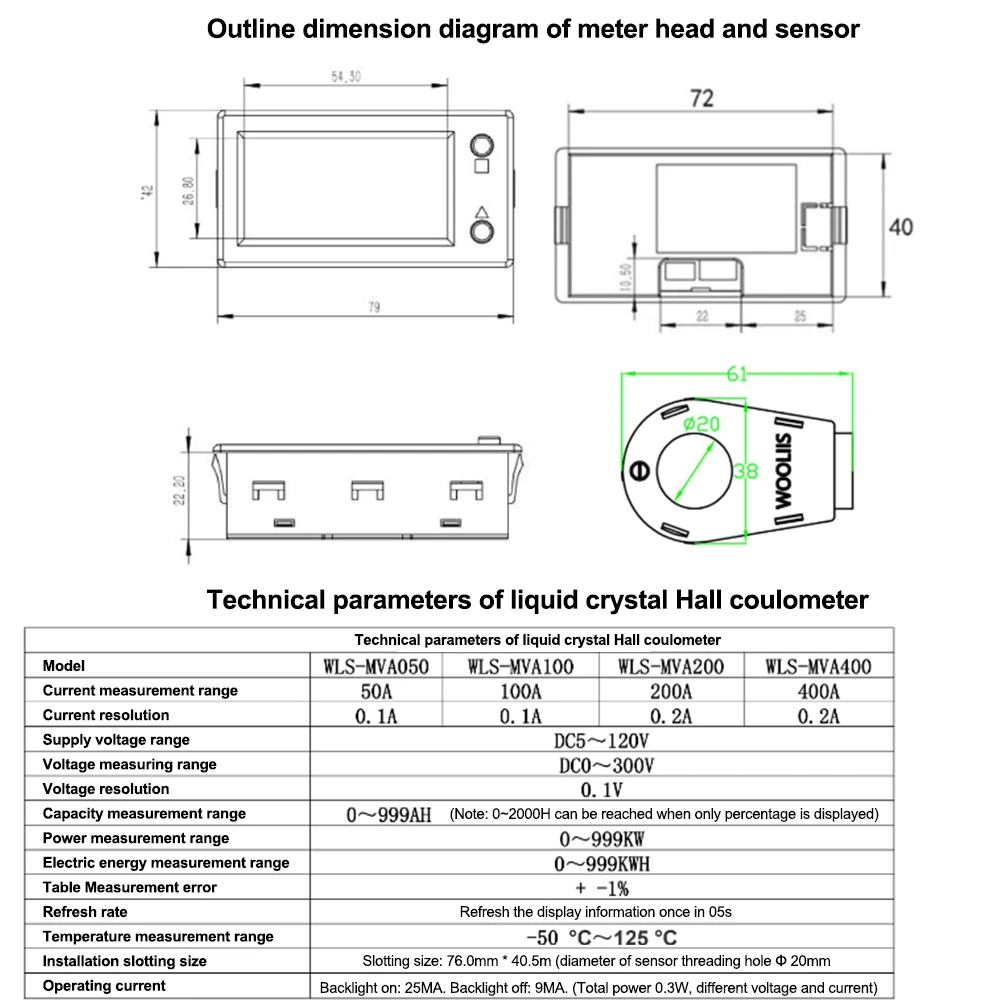

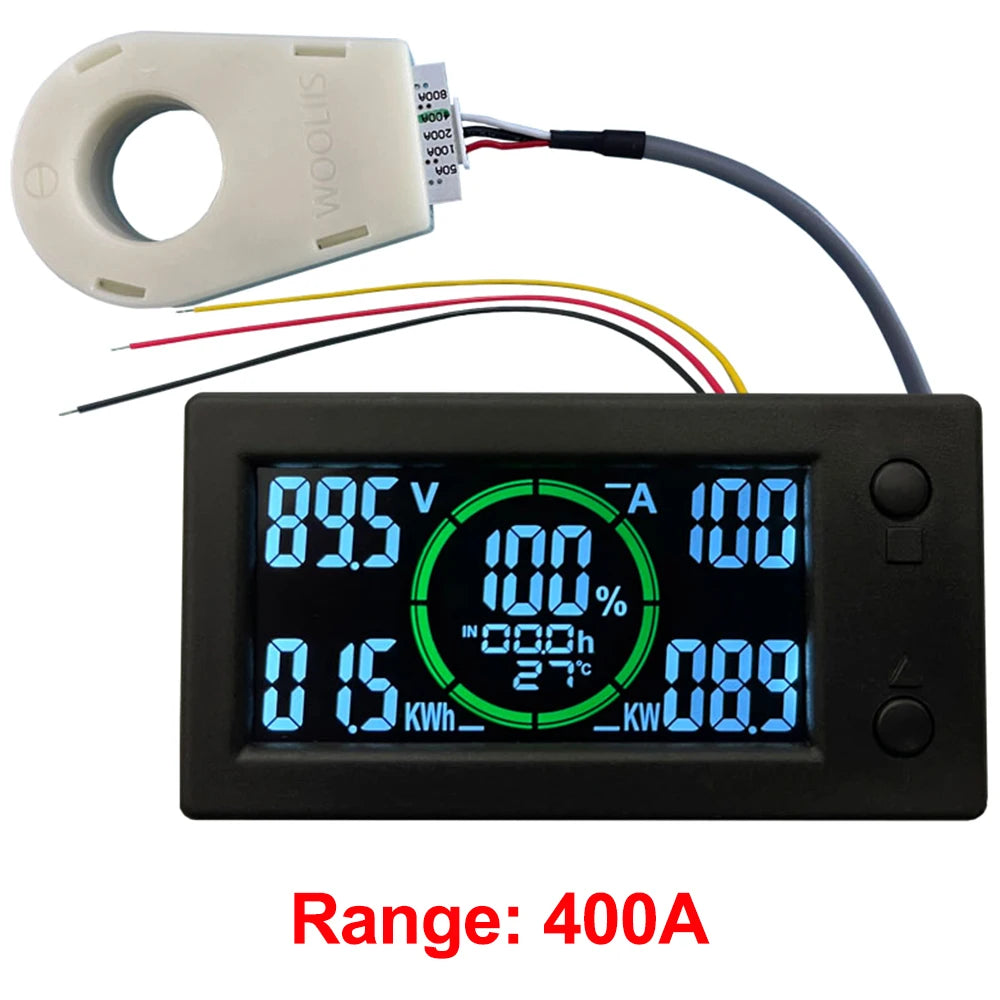

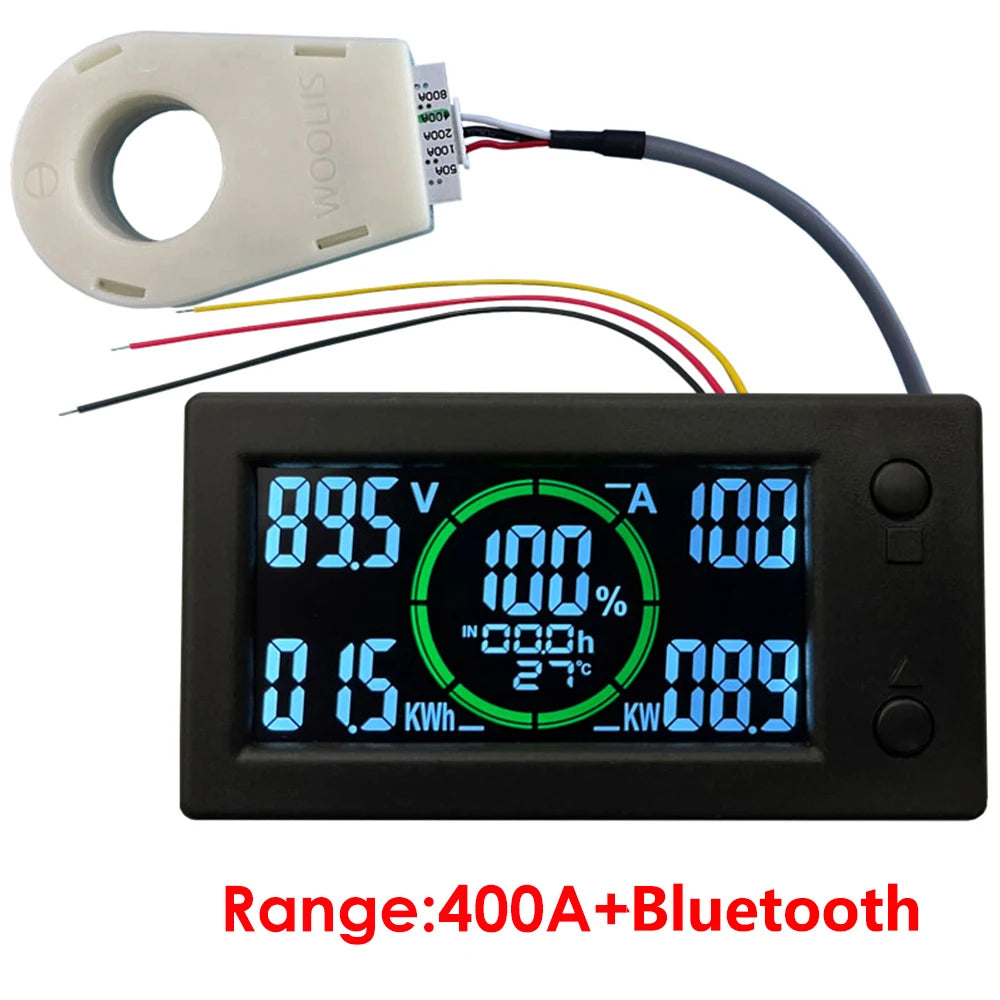

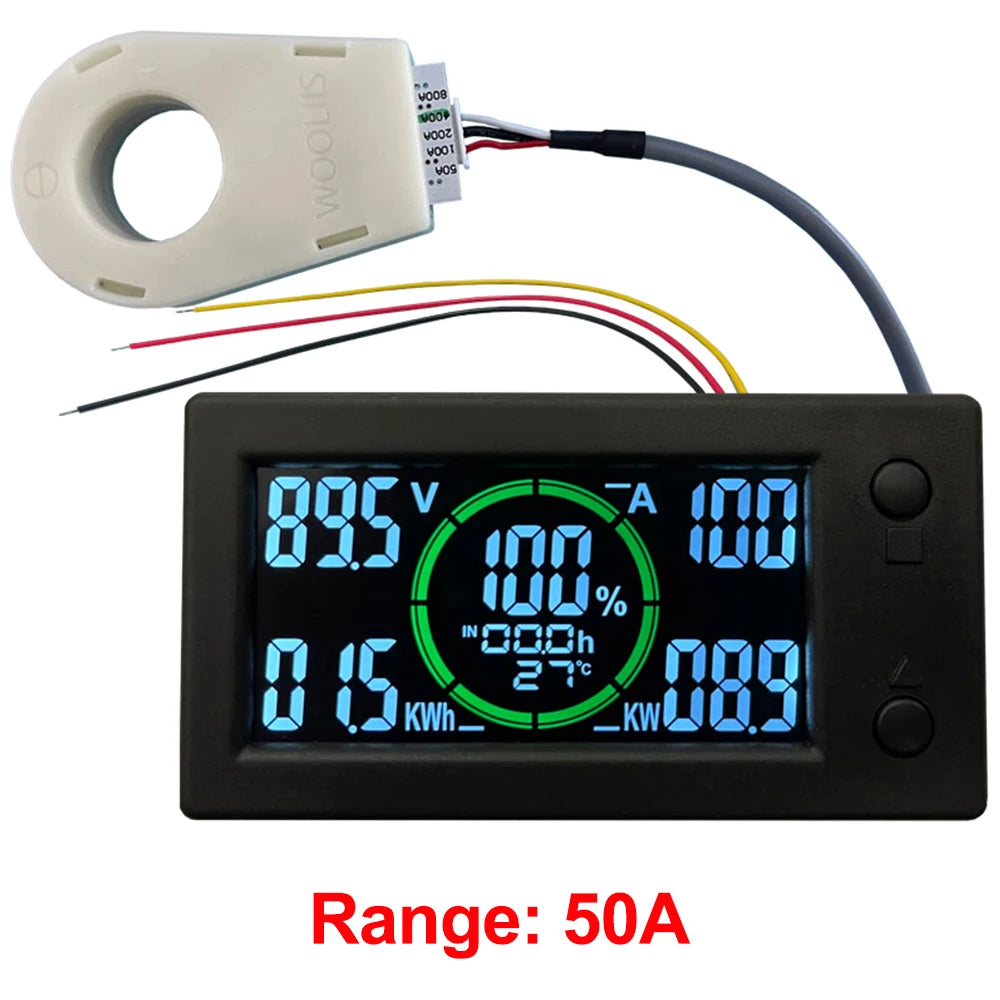

Specification:

Current measurement range: 50A/100A/200A/400A (optional)

Power supply voltage range: DC5-120V

Voltage measurement voltage: DC0-300V

Voltage resolution: 0.1V

Capacity measurement range: 0~999AH (Note: 0~2000AH can be reached when only percentage is displayed)

Power measurement range: 0~999KW

Electric energy measurement range: 0~999KWH

Table Measurement error:+- 1%

Refresh speed: 0.5S to refresh the information displayed once

Temperature measurement range: - 50 ° C~125 ° C

Installation slotting size: slotting size: 76.0mm * 40.5mm (20mm in the diameter of sensor threading hole)

Working current: Backlight on: 25MA. Backlight off: 9MA (total power 0.3W, different voltages and currents)

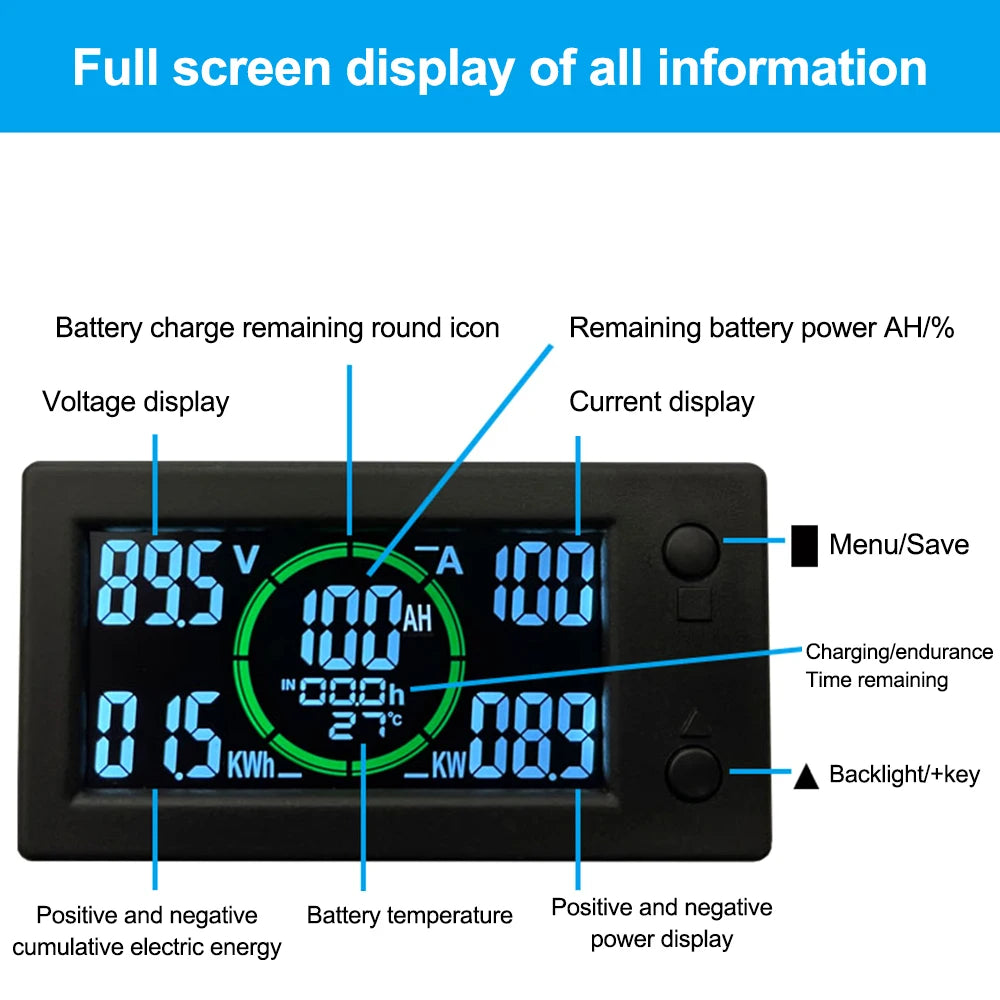

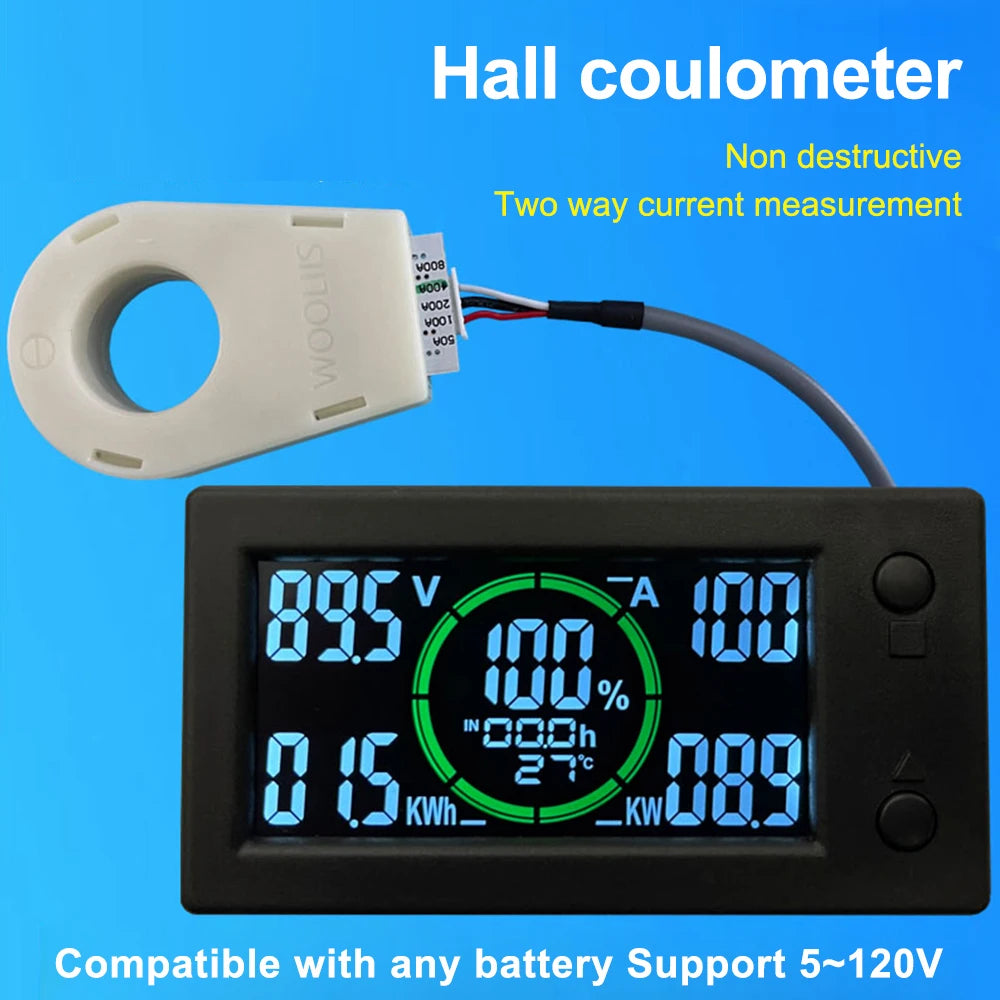

Function introduction:

1. Measure the percentage of remaining battery power (%) and the number of remaining battery power (AH).

2. Measure the DC positive and negative bidirectional current. Measure the DC voltage.

3. Measure the DC positive and negative power.

4. Measure the cumulative electric energy in positive and negative DC directions.

5. Over voltage alarm function, alarm voltage size parameters can be set by yourself. (With alarm sound and alarm output control CN2)

6. Low voltage alarm function, alarm voltage size parameters can be set by yourself. (With alarm sound and alarm output control CN2)

7. Over current alarm function, alarm current size parameters can be set by yourself. (With alarm sound and alarm output control CN2)

8. Low battery remaining power alarm function, and the power icon will flicker constantly, prompting the user to charge. (With alarm sound and alarm output control CN2)

9. Battery over temperature alarm function, and the alarm temperature can be set automatically. (There is an alarm sound and alarm output control CN1, which can be used to control the battery cooling fan. Note: All control output signals are weak signals of 10MA, and the drive equipment needs to be amplified by the customer's external amplifier circuit for control.)

10. Power failure data saving function.

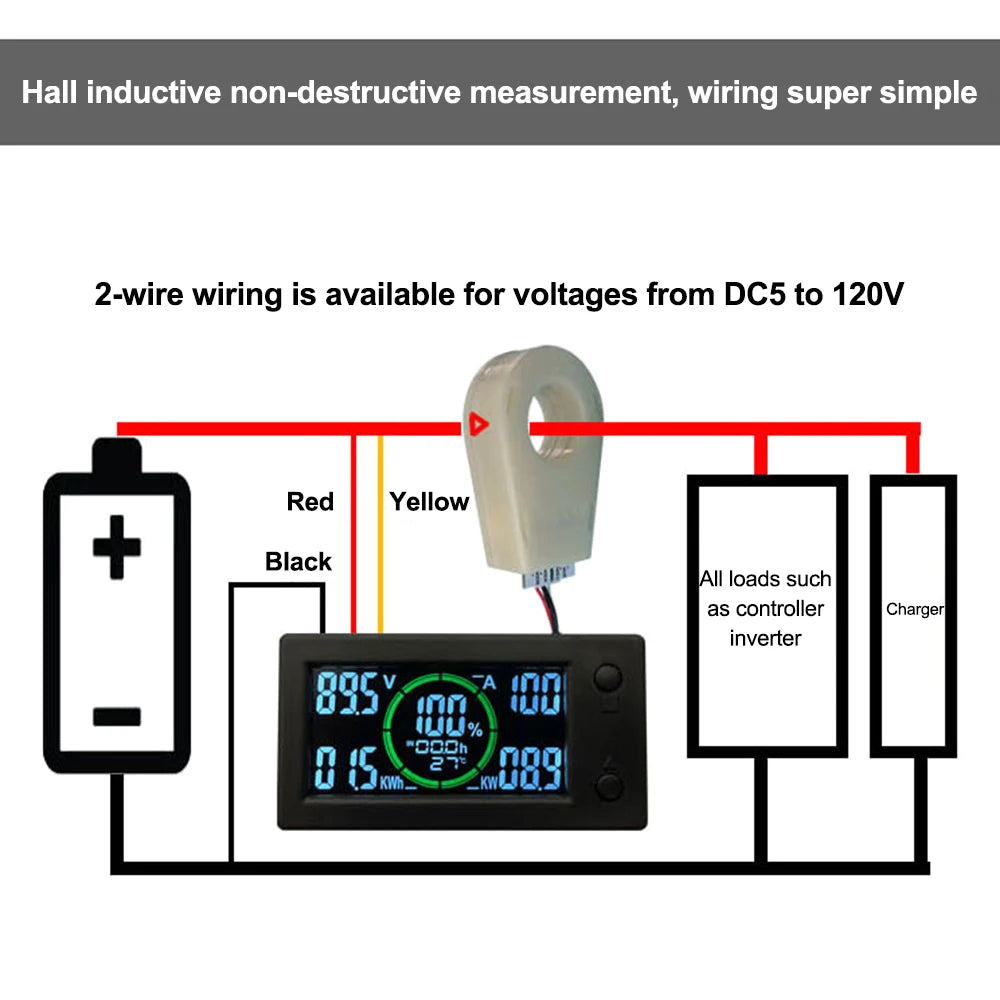

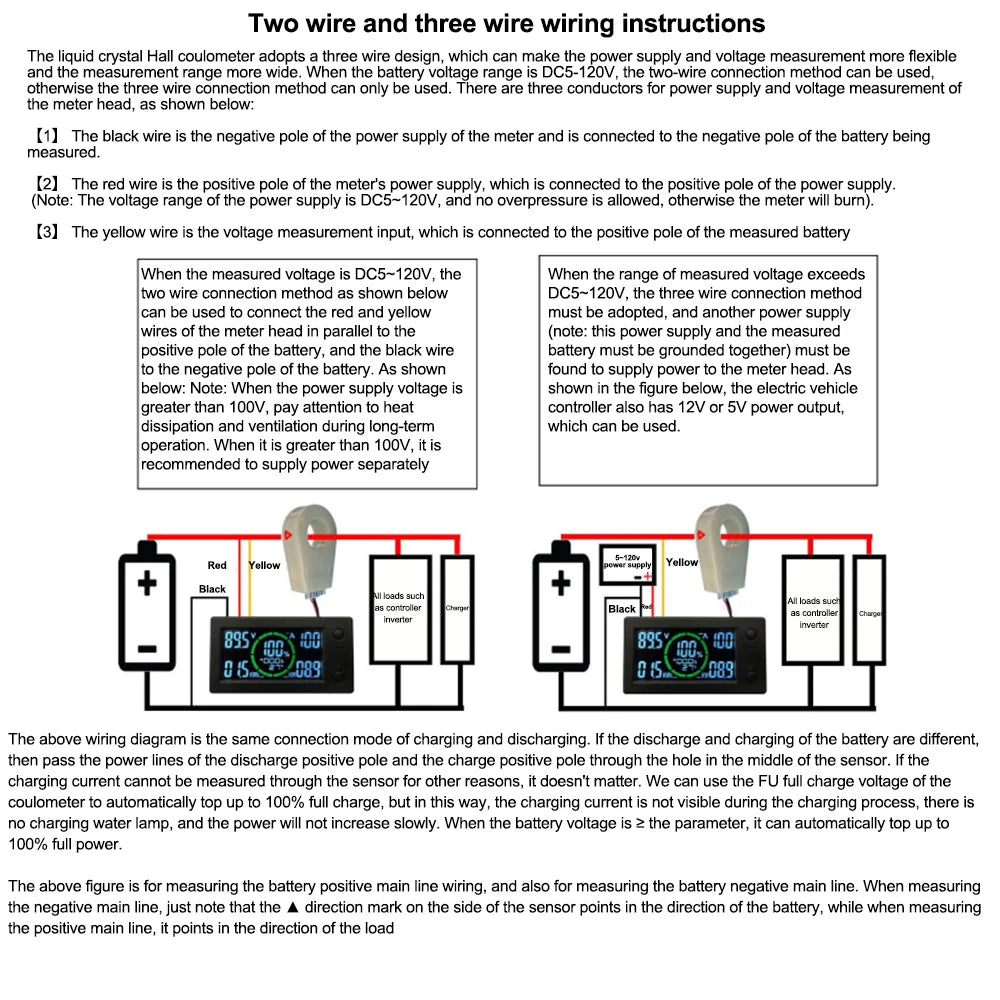

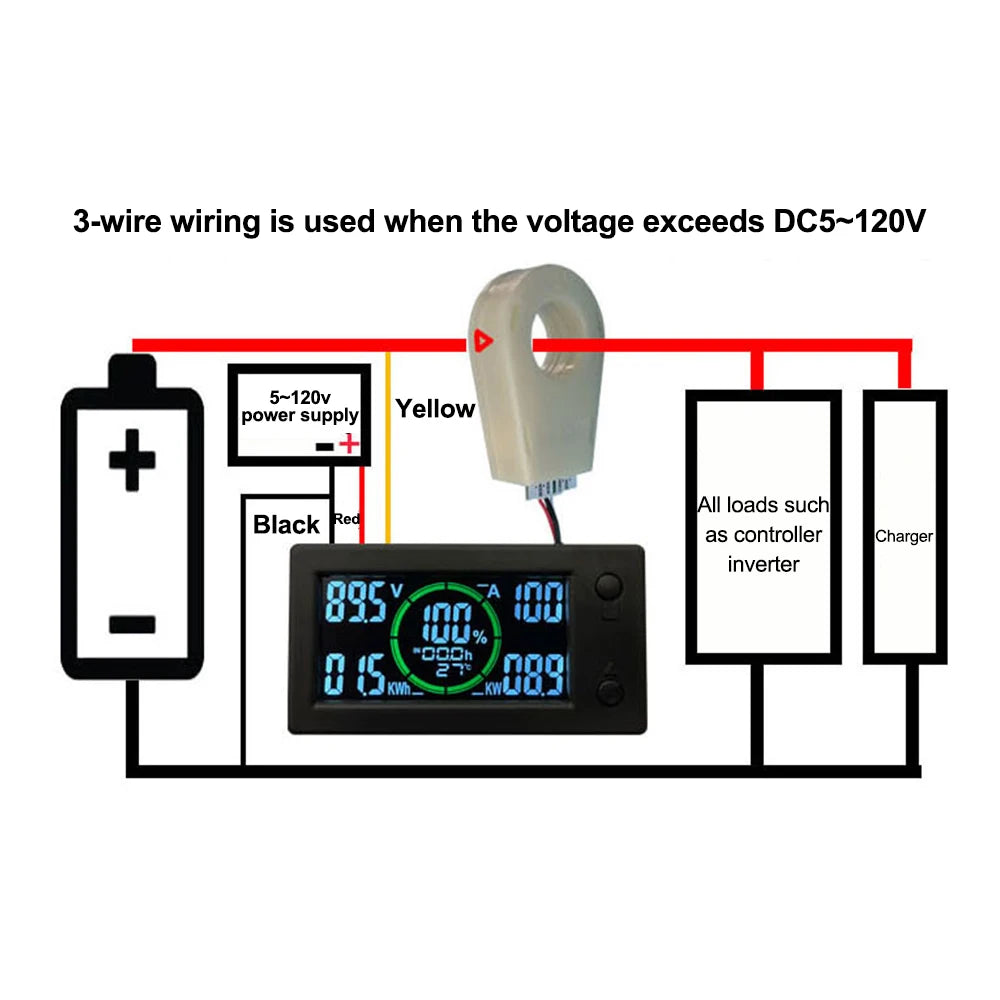

11. Hall sensor is used for isolated measurement, which is safe and reliable, and the wiring installation is very simple and convenient.

Note: Do not interchange sensors!!!

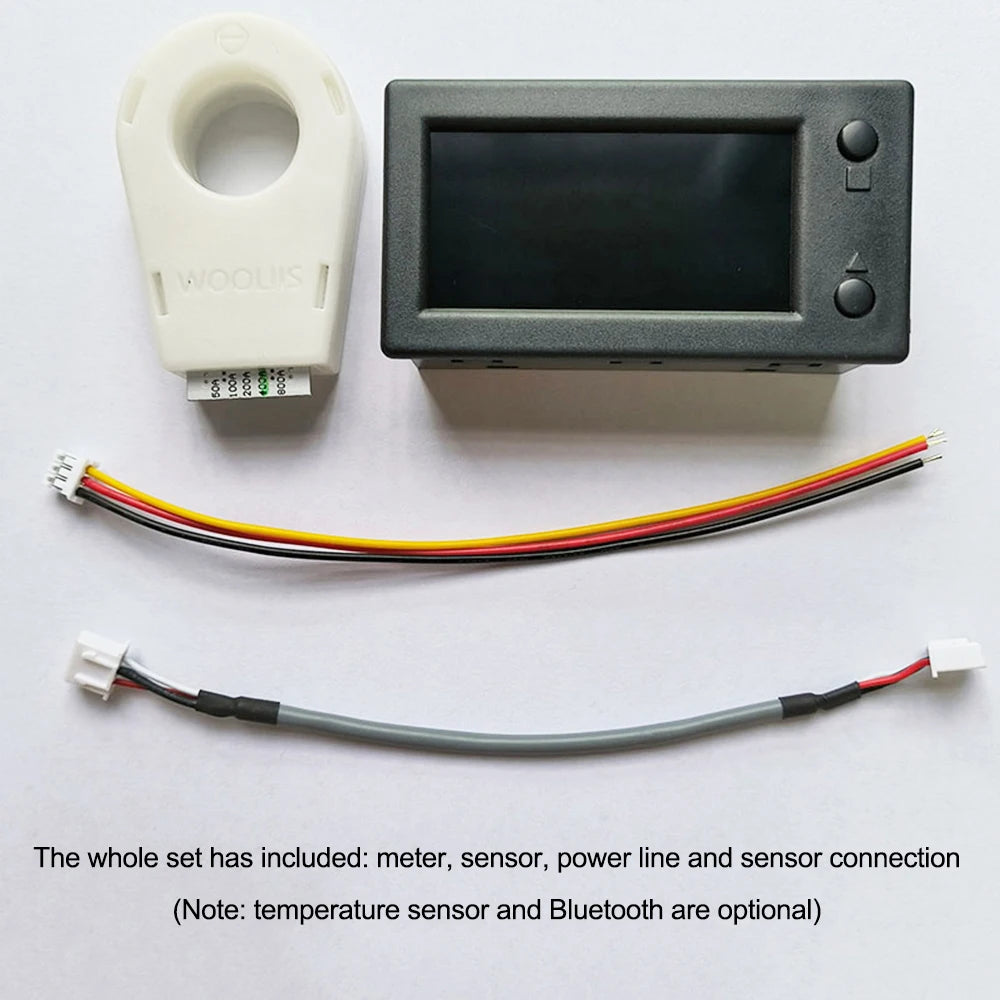

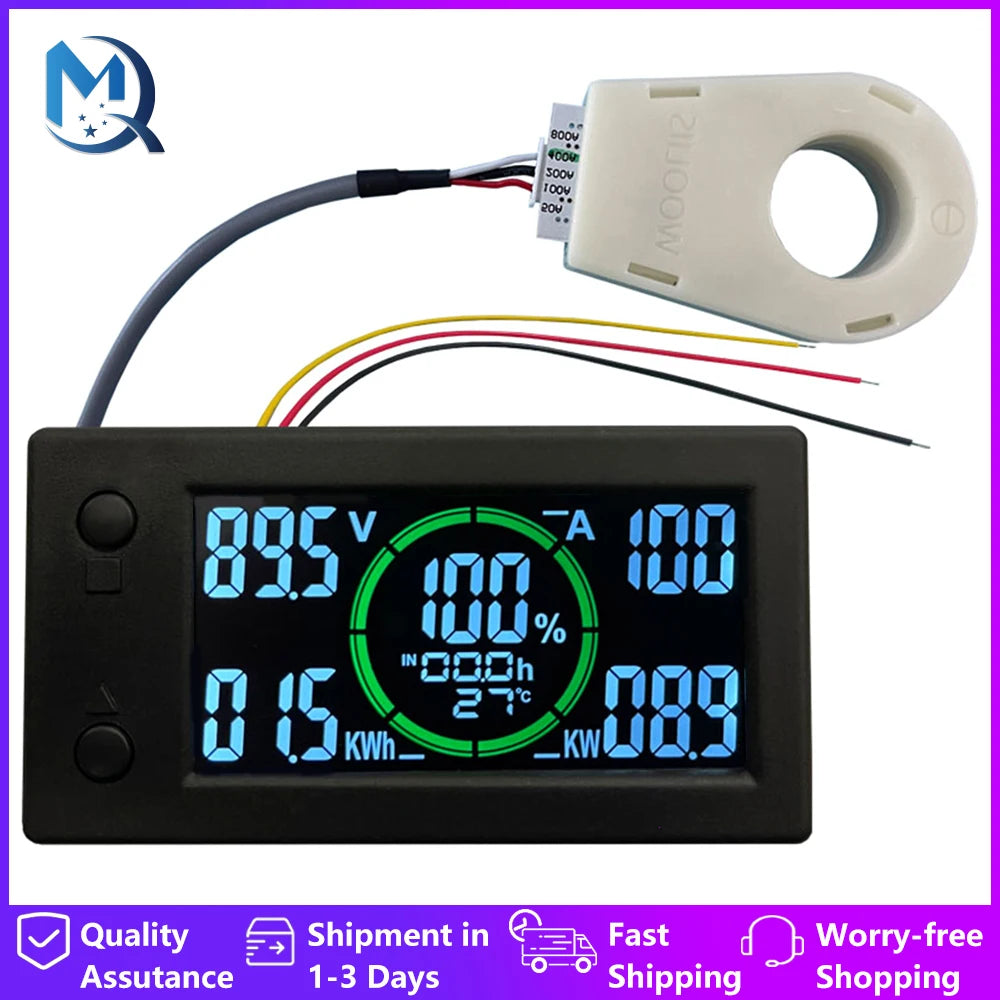

Package Contents:

Coulometer * 1

Diverter * 1

Connecting wire * 1

Power cord * 1

Only the above package content, other products are not included.

Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
