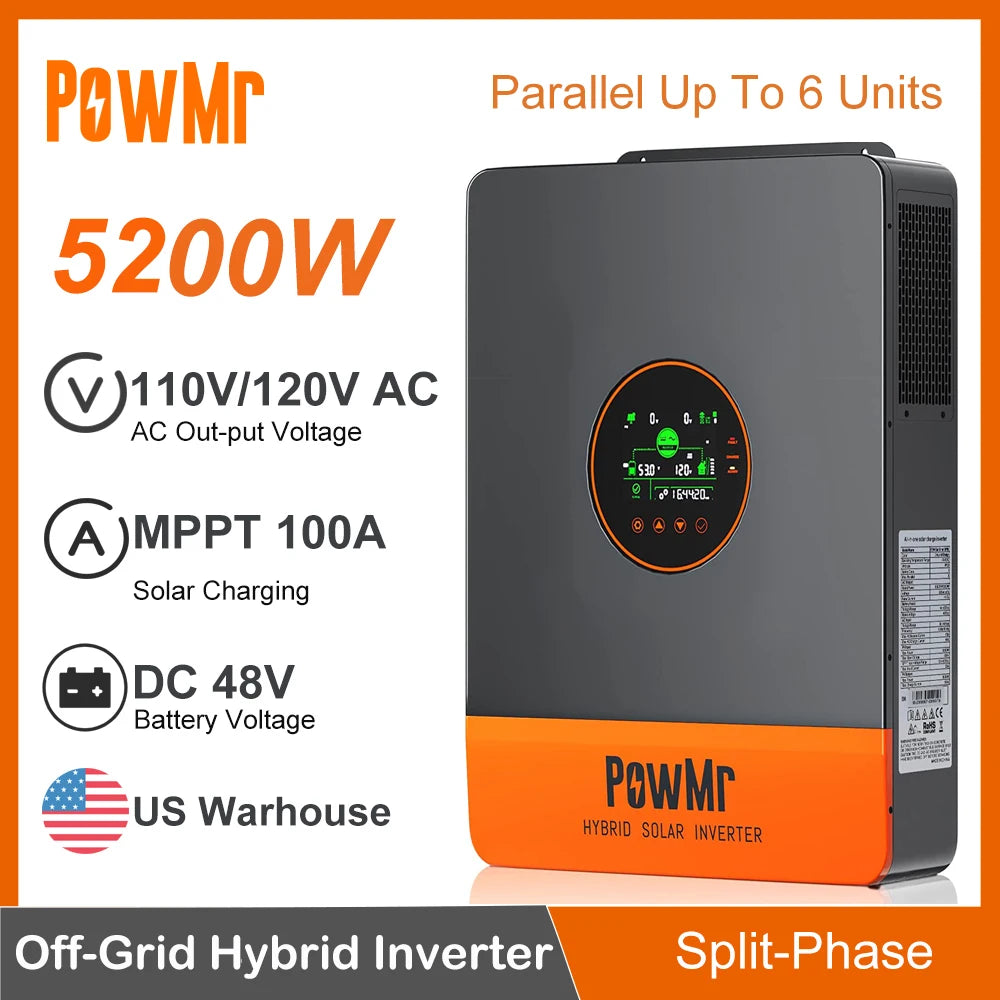

5KW Single Phase 120V 110V AC Off-Grid 48V All In One Hybrid Inversor Built 80A/100A MPPT Solar Charger Controller Fit for Home

$1,182.90 USD

~~$1,477.95 USD~~ $1,182.90 USD

Sale Sold out

Taxes included.

Color LV5KW No WIFI SP5.2KW and WIFI LV5KW and WIFI SP5.2KW No WIFI

Ships From United States

SPECIFICATIONS

Brand Name: PowMr

Certification: CE

High-concerned chemical: None

Is Smart Device: Yes

Model Number: POW-SunSmart SP5.2K

Origin: Mainland China

Output Current: MPPT 80A

Output Frequency: 50Hz/60Hz

Output Type: SINGLE

Size: 450*353*133(cm)

Weight: 15KG

is_customized: Yes

Please Note:

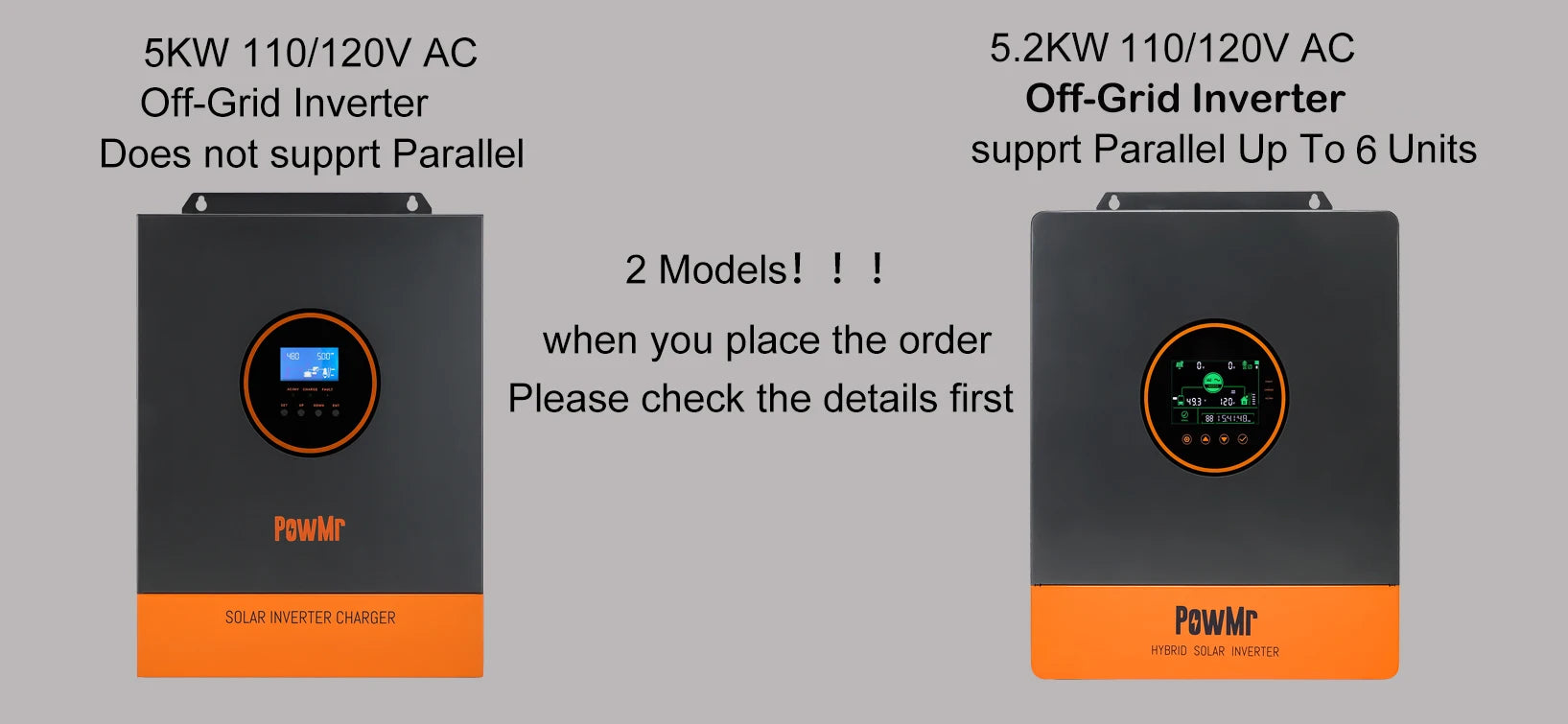

This Link has 2 models, one is a LV5KW Off-Grid version, and another is a SP5.2KW Off-Grid Version, it support parallel up to 6 units.

please don't mix it up and avoid ordering the wrong model not what you want. if you have any questions, please feel free to contact us, thank you.

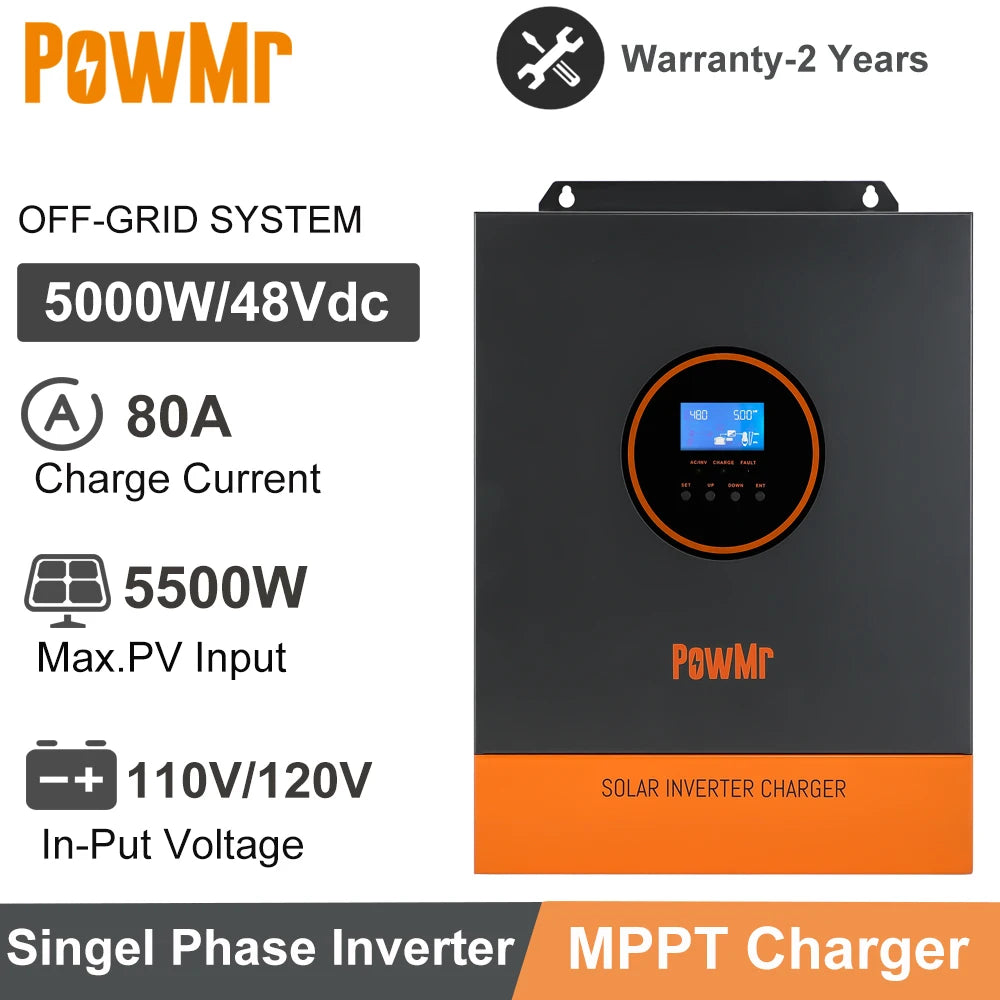

PowMr Single Phase 5000W 110V/120VAC Output Pure Sine Wave Power Inverter DC 24V 48V with 80A MPPT Solar Charge Controller Off-Grid

5200W Split Phase120V 110V AC Off-Grid 48V All In One Hybrid Inverter Built 100A MPPT Solar Charger Max Parallel 6 Inverters

1.Off-grid pure sine wave inverter.

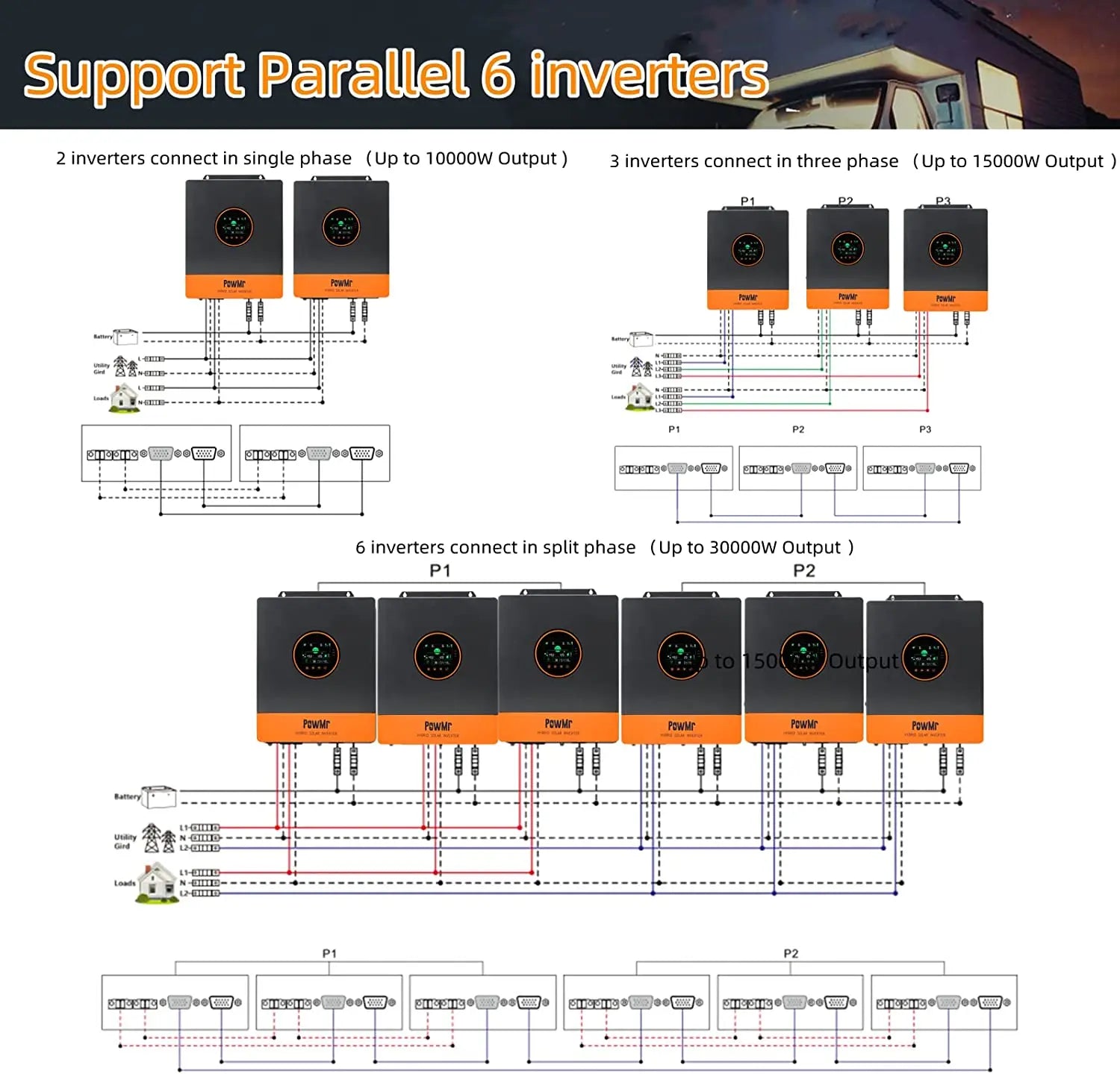

2. Maximum number of parallel connections is 6.

3. Higher output power up to 5200W.

4. 120/208/240VacAC output.( only can achieve in Parallel system)

5. Supports single-phase/split-phase/three-phase devices.

6. Fast switching time of 10ms.

7. Compatible with 48V lithium-ion and lead-acid battery, support user-define.

8. Max. PV charging current up to 100A.

9. Max. AC charging current up to 40A.

10. Max. hybrid charging current up to 100A.

11. 90~140Vac AC input voltage range.

12. 120~500Vdc wide voltage range for PV access.

13. Higher input DC current up to 22A in a single circuit.

15. Energy saving mode function to reduce no-load energy losses.

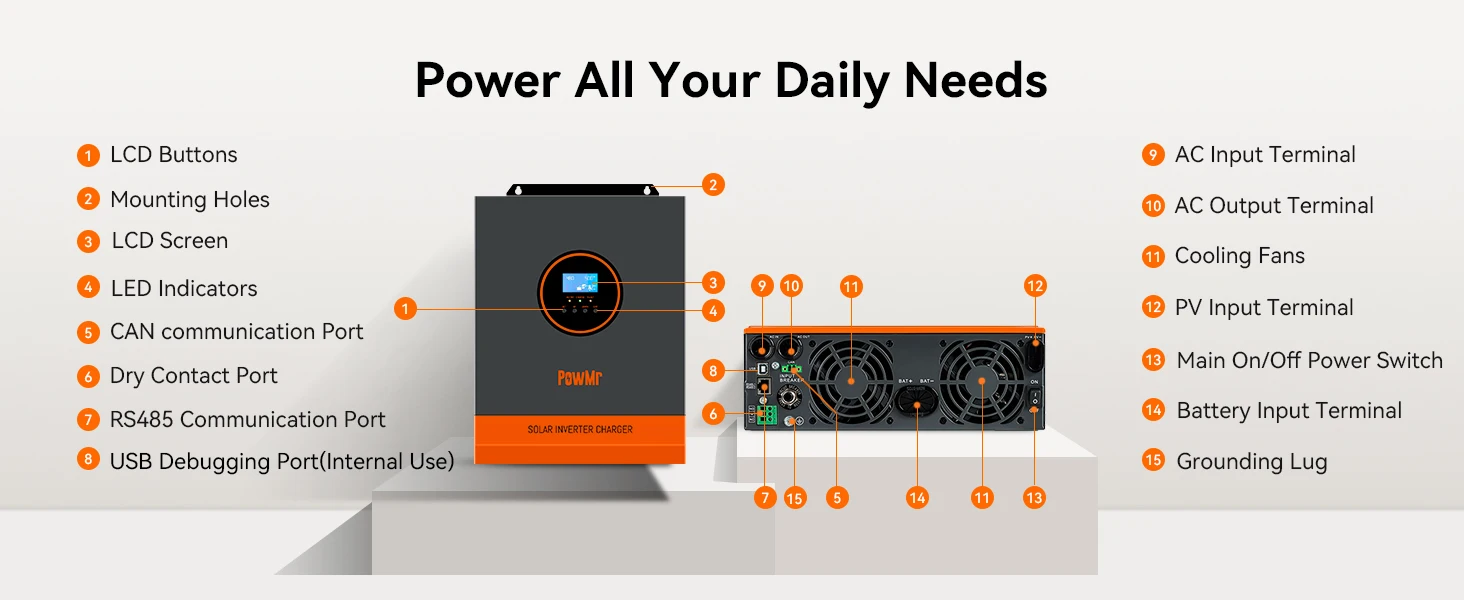

16. Configure multiple communication interfaces (RS485/USB/Dry contact).

17. Durable finish with high anti-corrosion.

18. Effective forced air cooling to ensure that the equipment runs stably.

Models	POW-SunSmart SP5.2K
AC Mode
Rated input voltage	110/120Vac
Frequency	50Hz/ 60Hz (Auto detection)
Overload/short circuit protection	Circuit breaker
Efficiency	>95%
AC reverse protection	Available
Maximum bypass overload current	63A
Inverter Mode
Output voltage waveform	Pure sine wave
Rated output power	5200VA
Rated output power	5200W
Power factor	1
Rated output voltage	120Vac Rated output voltage (100/105/110Vac Settable)
Maximum Efficiency	>92%
Peak power	10400VA
Loaded motor capability	4HP
Rated battery input voltage	48V (Minimum starting voltage 44V)
Battery voltage range	Undervoltage alarm/ shutdown voltage/ overvoltage alarm/ overvoltage recovery... settable on LCD screen
Power saving mode self-consumption	Load ≤ 50W
AC Output (Grid)
Rated Output Power	5200W
Max. apparent power	5200VA
Max. output current	41.7A
Rated voltage	120Vac
AC Charging
Battery type	Lead acid or lithium battery
Maximum charge current (can be set)	0-40A
Charge voltage range	40–58Vdc
Circuit breaker specifications	63A
Overcharge protection	Alarm and turn off charging after 1 minute
PV Charging
Maximum PV open circuit voltage	500Vdc
PV operating voltage range	120-500Vdc
MPPT voltage range	120-450Vdc
Battery voltage range	40-60Vdc
Maximum PV input power	6000W
Maximum PV input current	22A
PV charging current range (can be set)	100A
Hybrid charging Max charger current specifications (AC charger + PV charger)
Max charger current(can be set)	100A
Certified specifications
Certification	CE(IEC62109-1)
EMC certification level	EN61000
Operating temperature range	-10°C ~ 55°C
Storage temperature range	-25°C ~ 60°C
Noise	≤60dB
Heat dissipation	Forced air cooling, variable speed of fan
Communication interface	USB/RS485(WiFi/GPRS)/Dry contact control
Dimension (LWD)	446.9mm350mm133mm
Weight	15kg

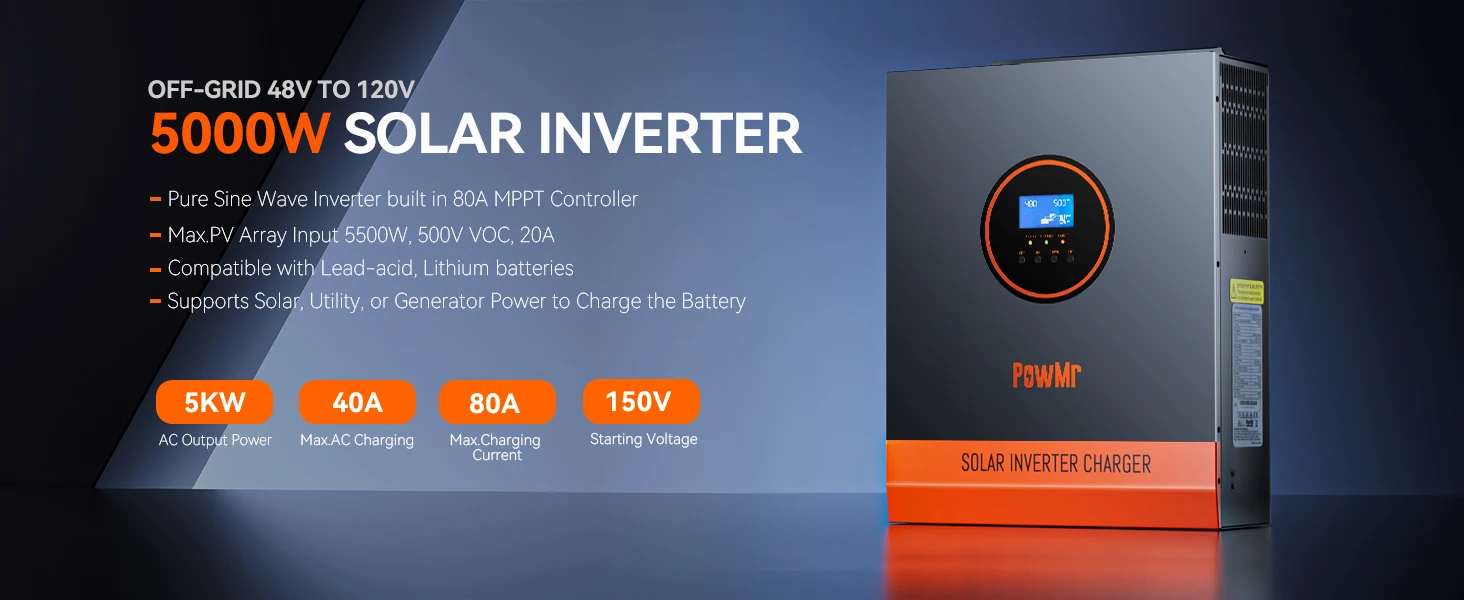

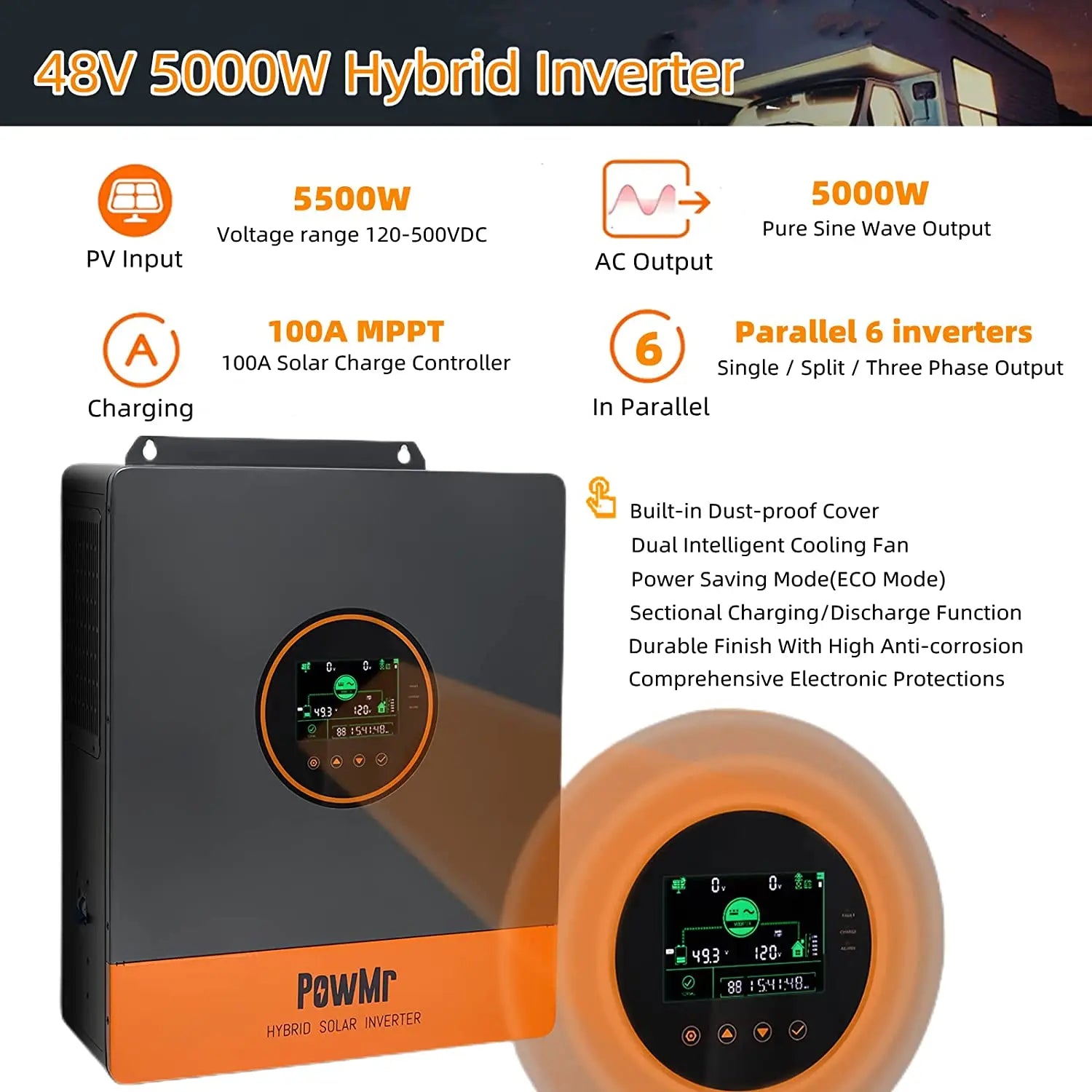

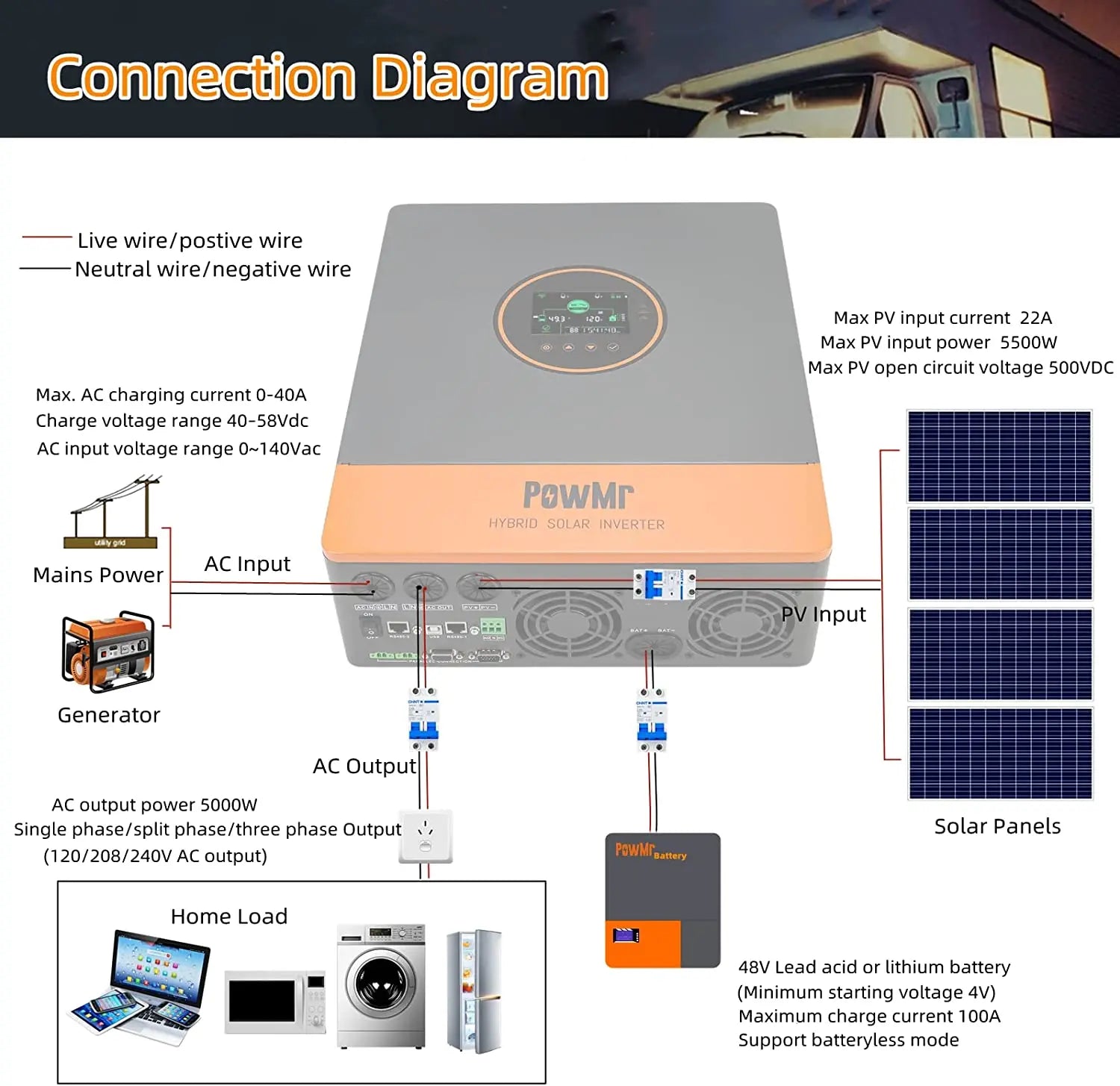

Pure sine wave All-in-One inverter5000W DC 48V hybrid solar inverter, 120/208V/240Vac Output . ( single-phase,split Phase and three-phase ), Built-in 100A MPPT solar charge controller

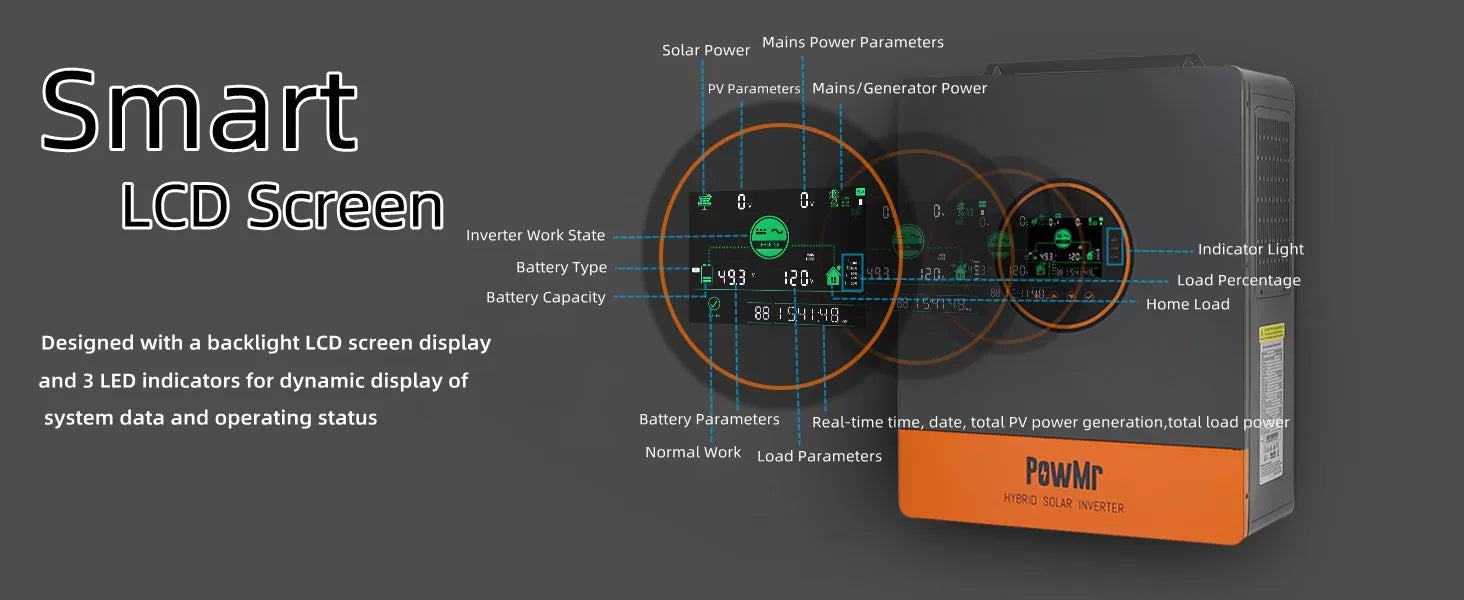

Multiple protection Designed with a LCD screen and 3 LED indicators for dynamic display of system data and operating status, and complete protections, including short circuit protection, over voltage and under voltage protection, overload protection, reverse protection, etc.

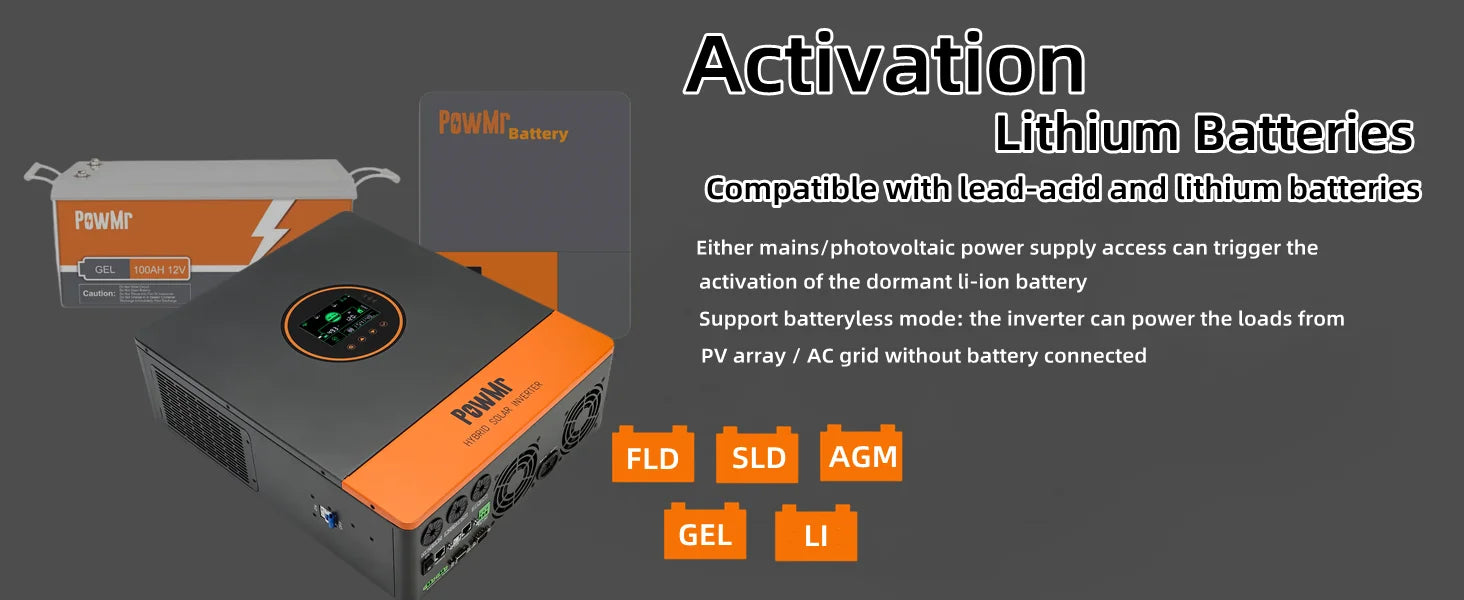

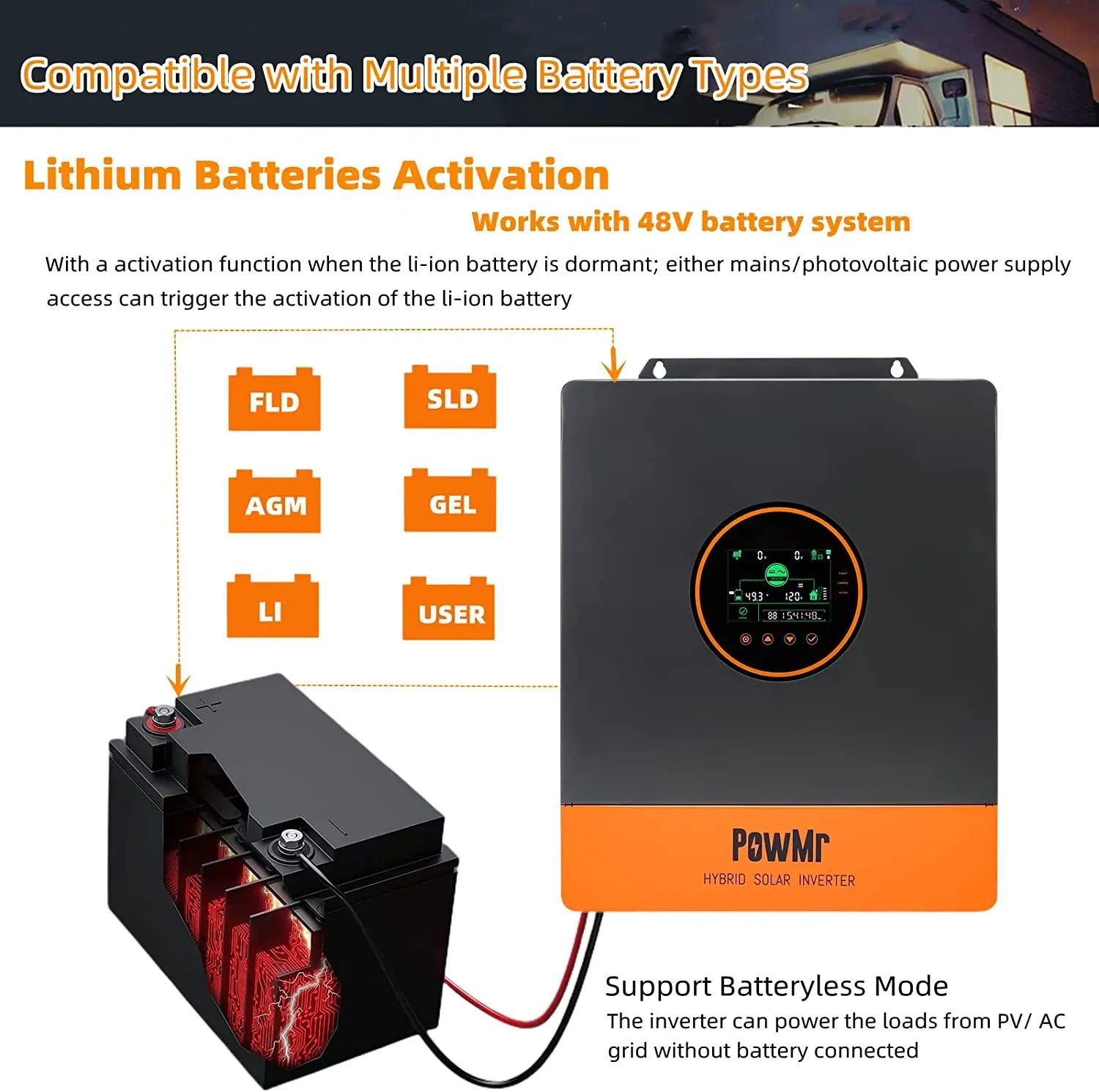

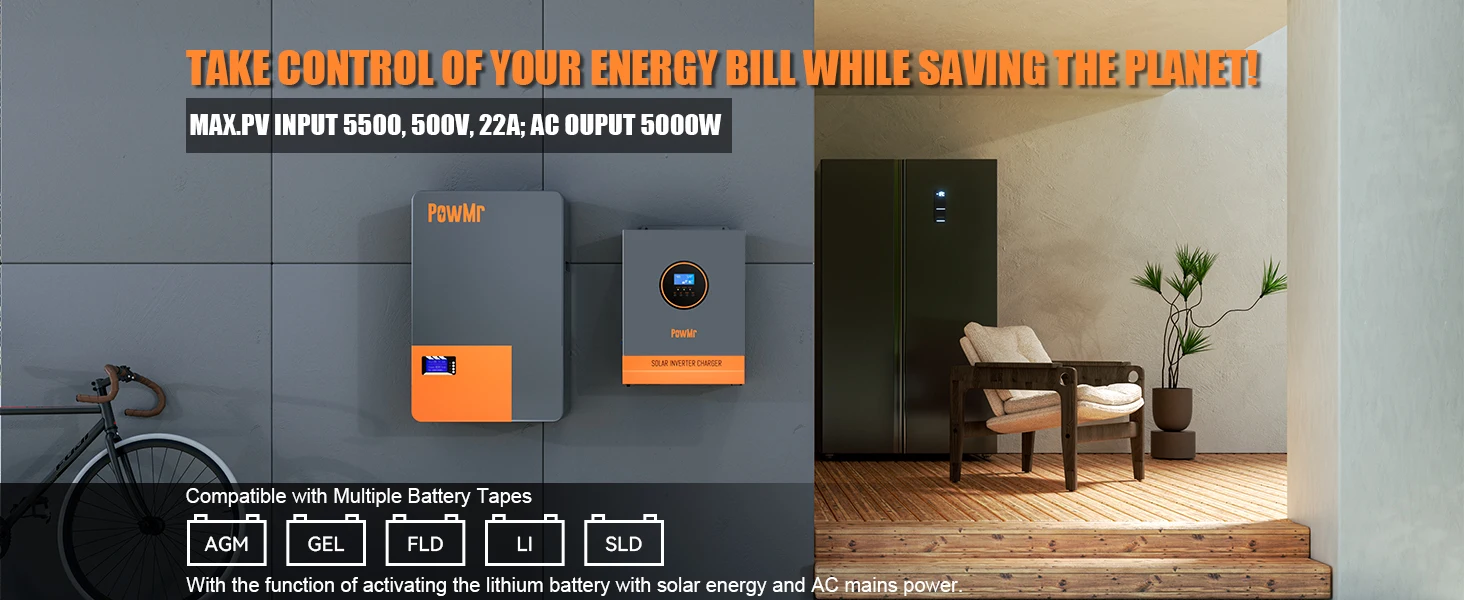

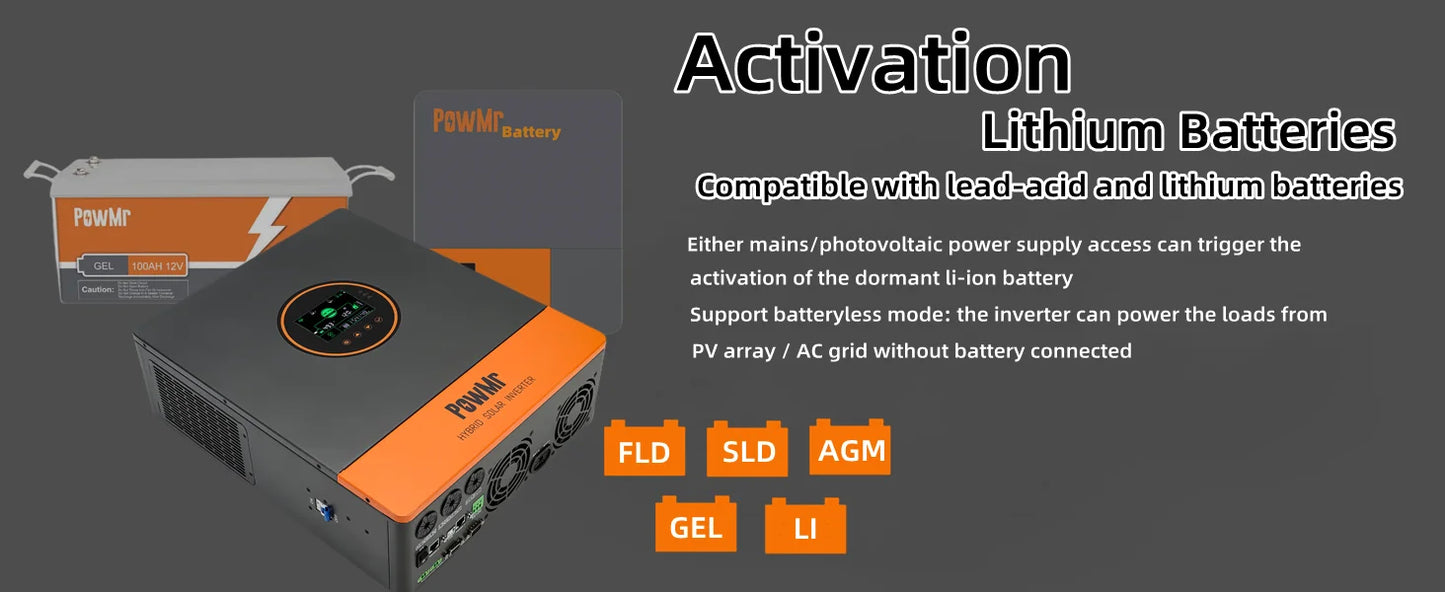

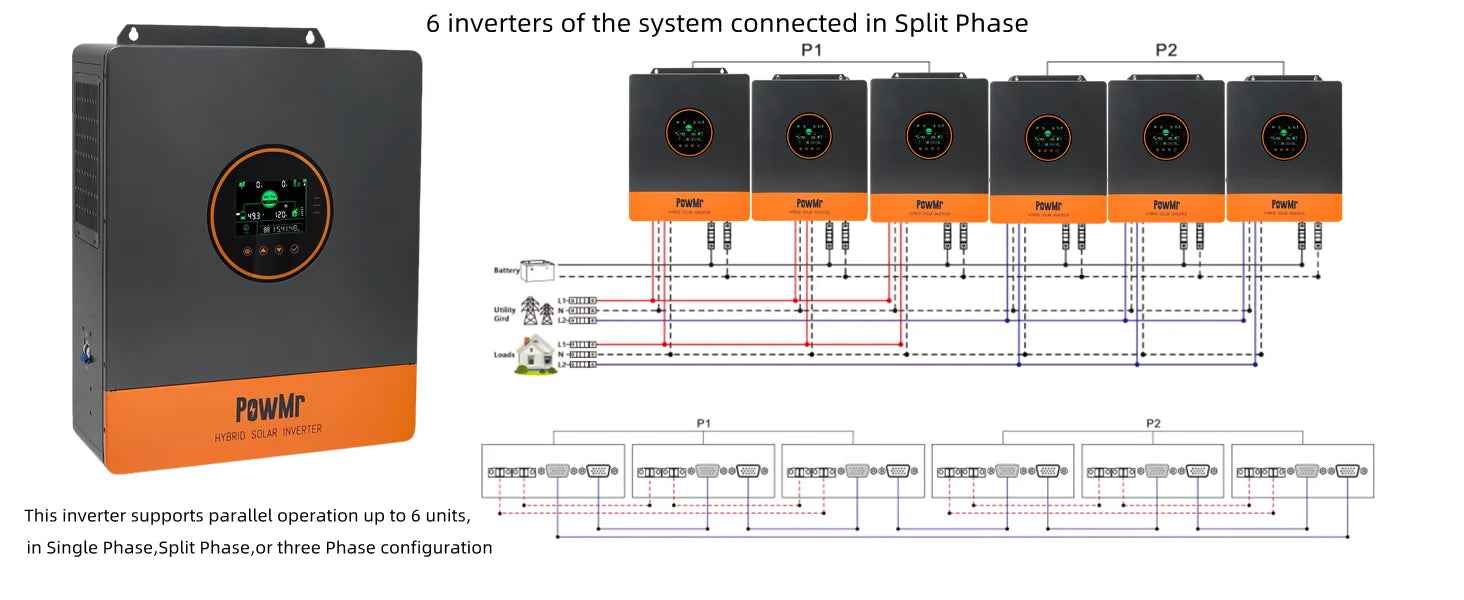

Support 48V Lead acid or lithium battery or batteryless mode, Support Parallel up to 6 inverters.

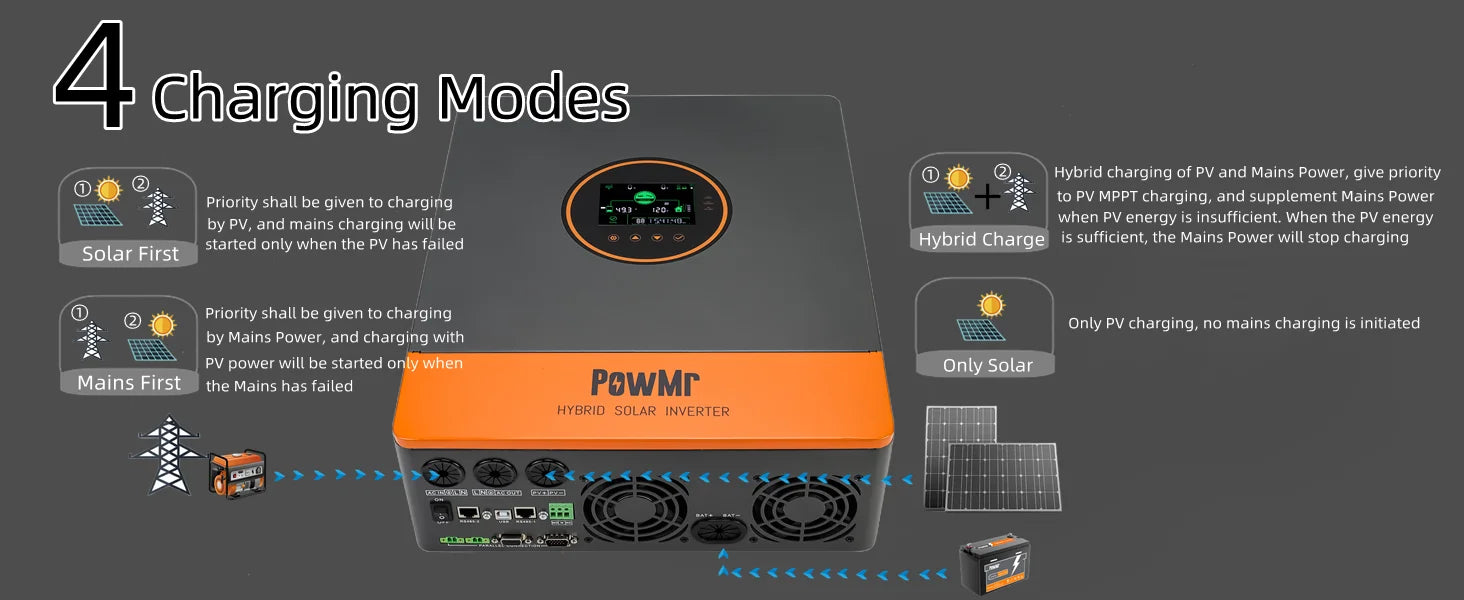

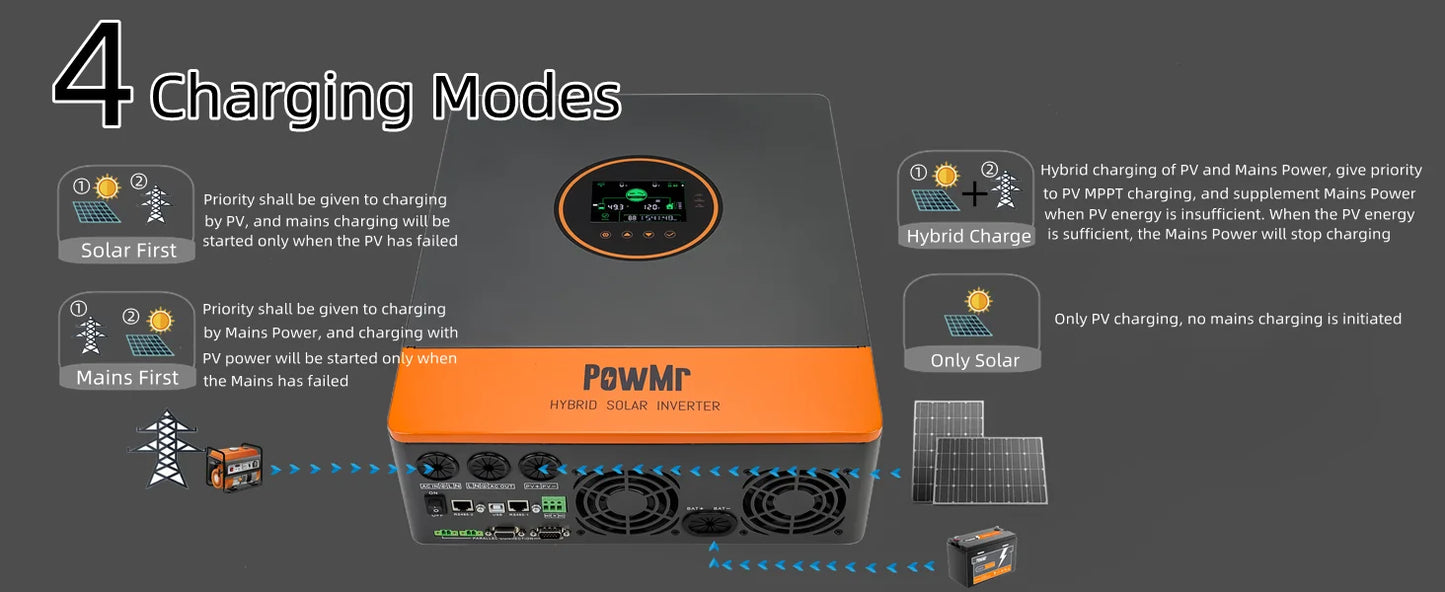

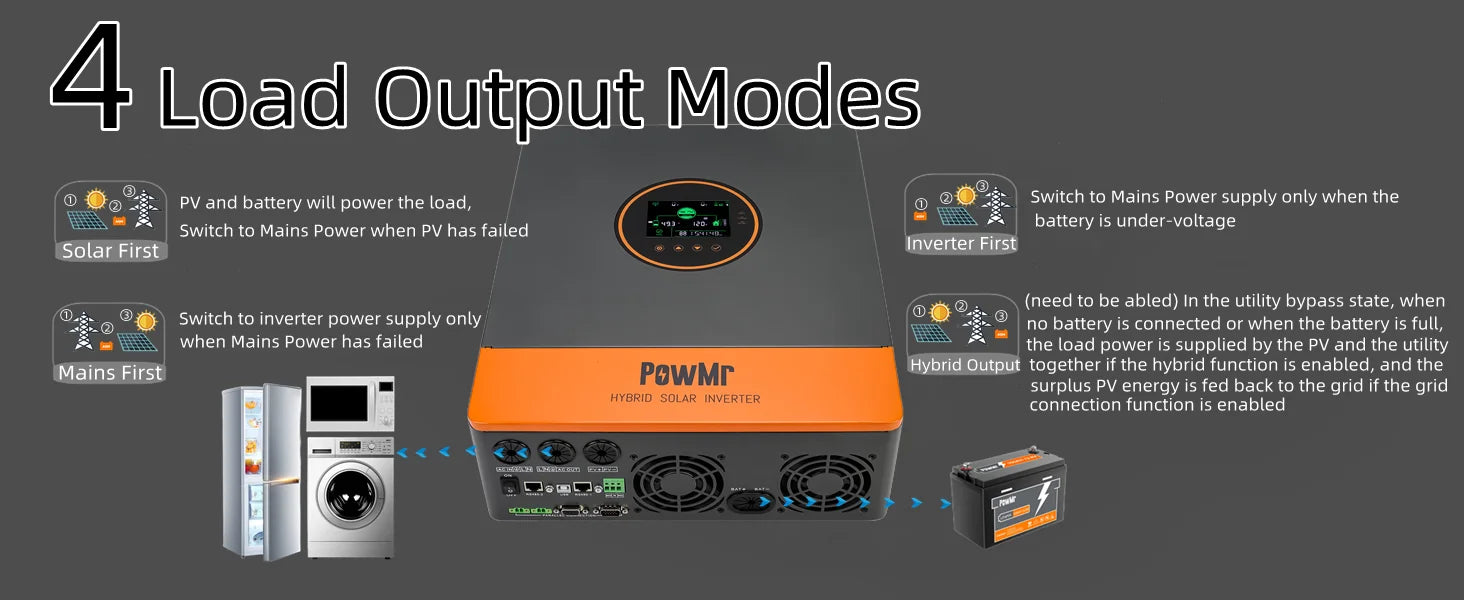

4 charge/ 2 discharge modes Support 4 charging modes:Only Solar, Mains Priority, Solar Priority and Mains & Solar hybrid charging; mains bypass and inverter output two output mode, uninterrupted power supply; Anti-backflow grid connection function, support for use without battery, can be set up for on-grid power generation.

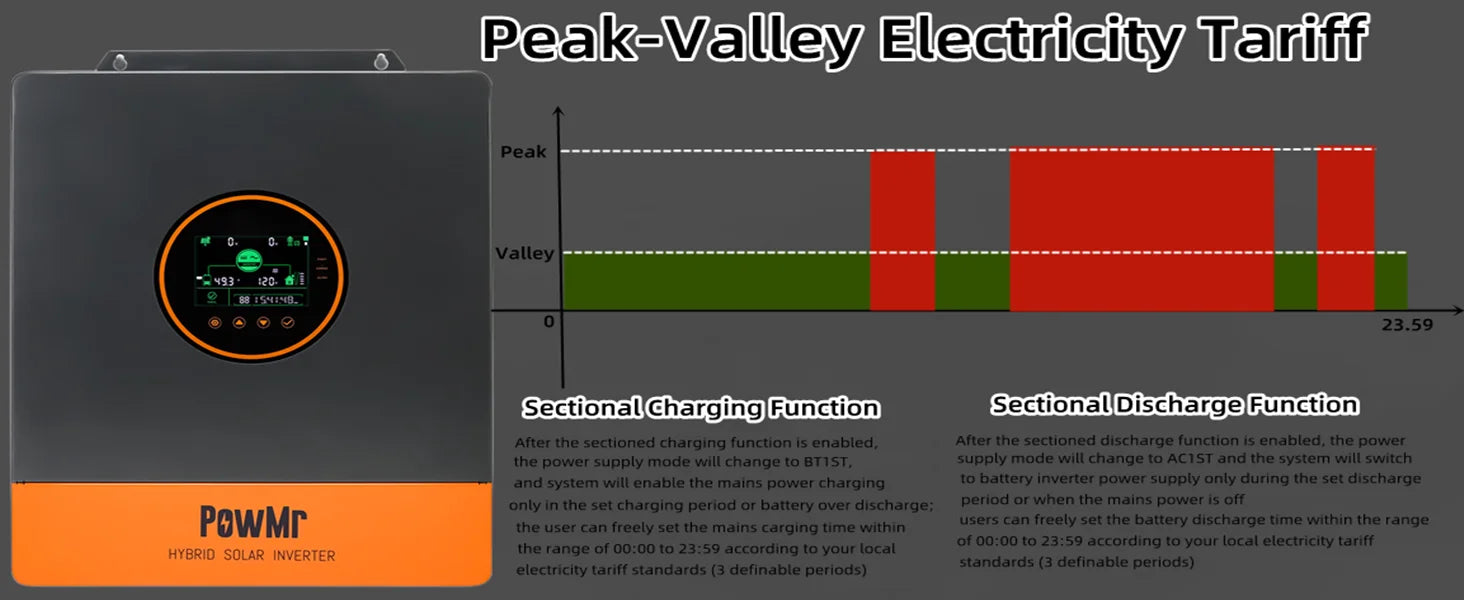

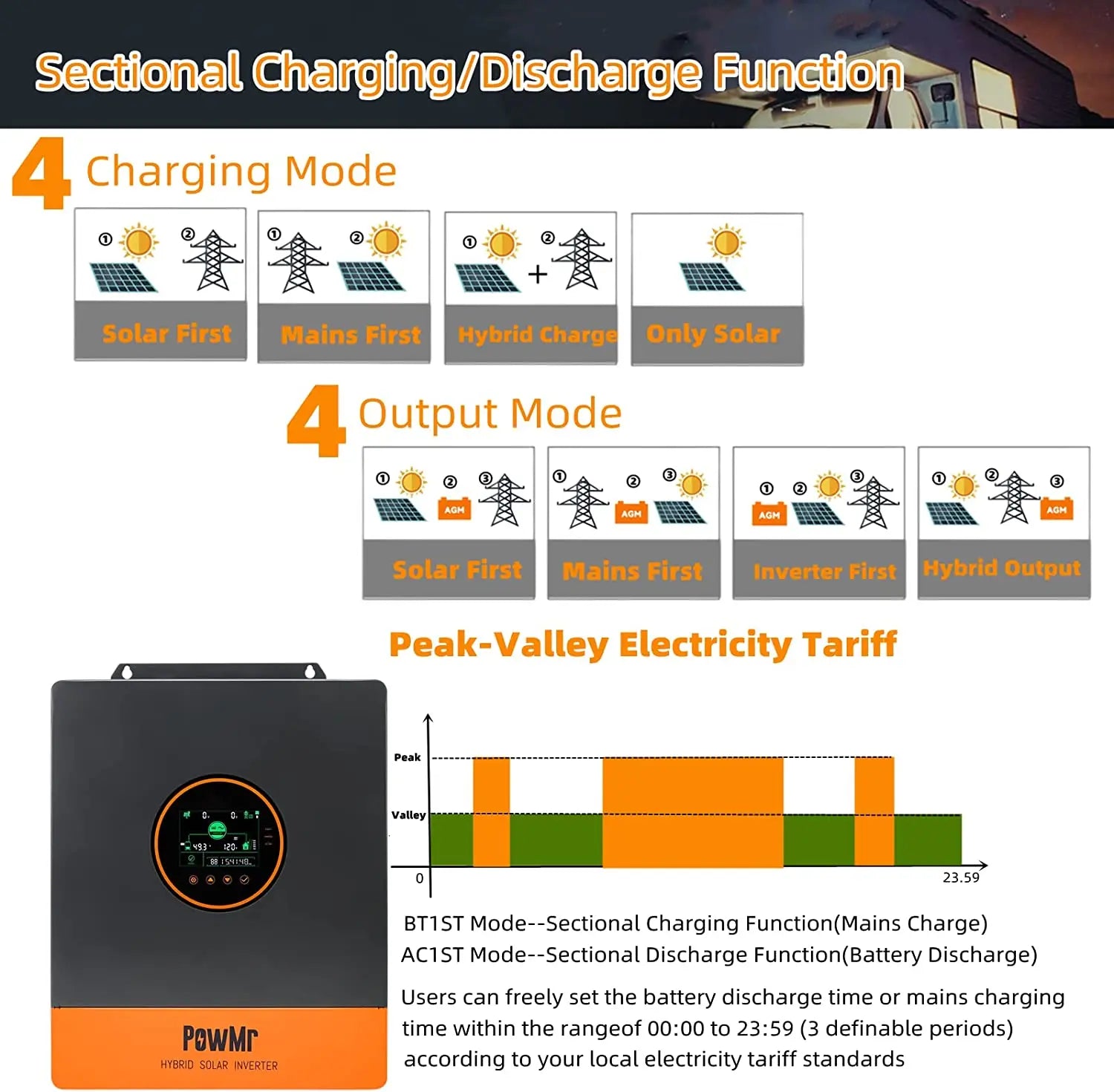

Intelligent power saving Power saving mode available to reduce no-load loss, With time slot control, you can set the priority of using the mains and battery according to the time slot in conjunction with the local peak and valley tariffs.
