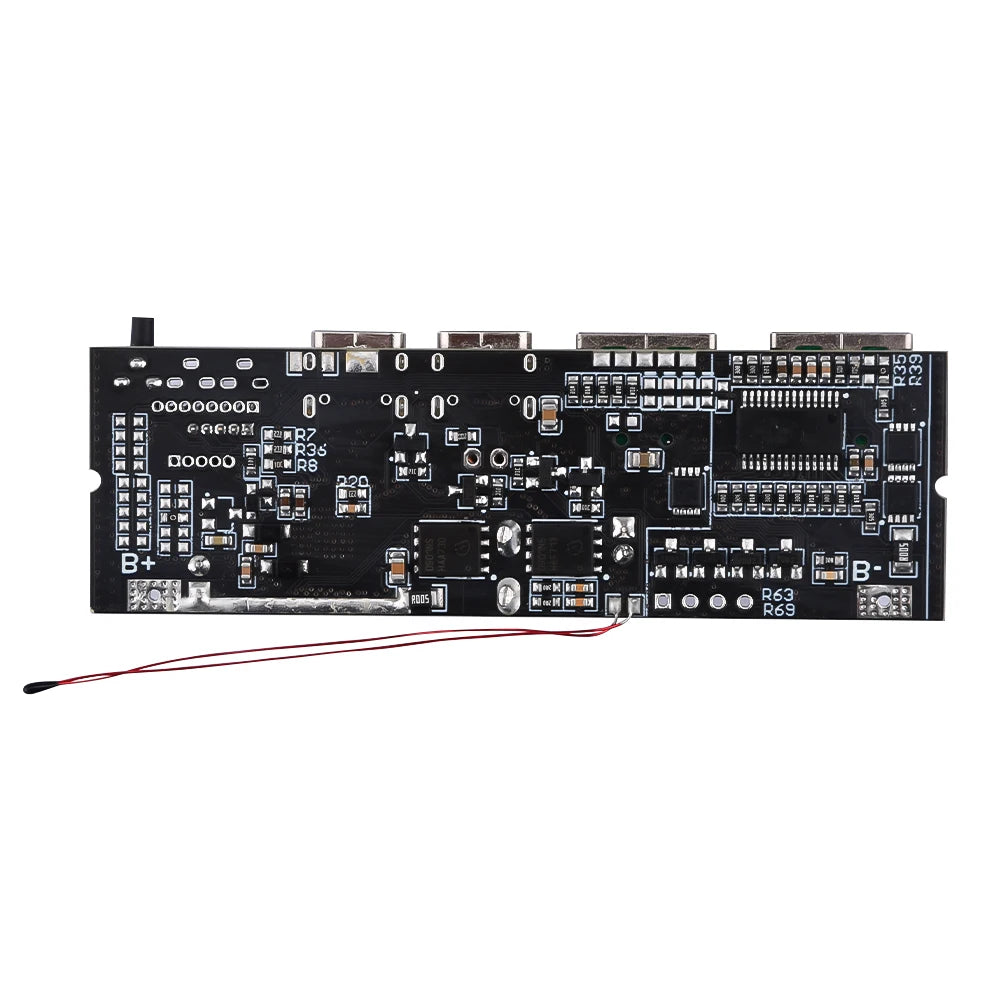

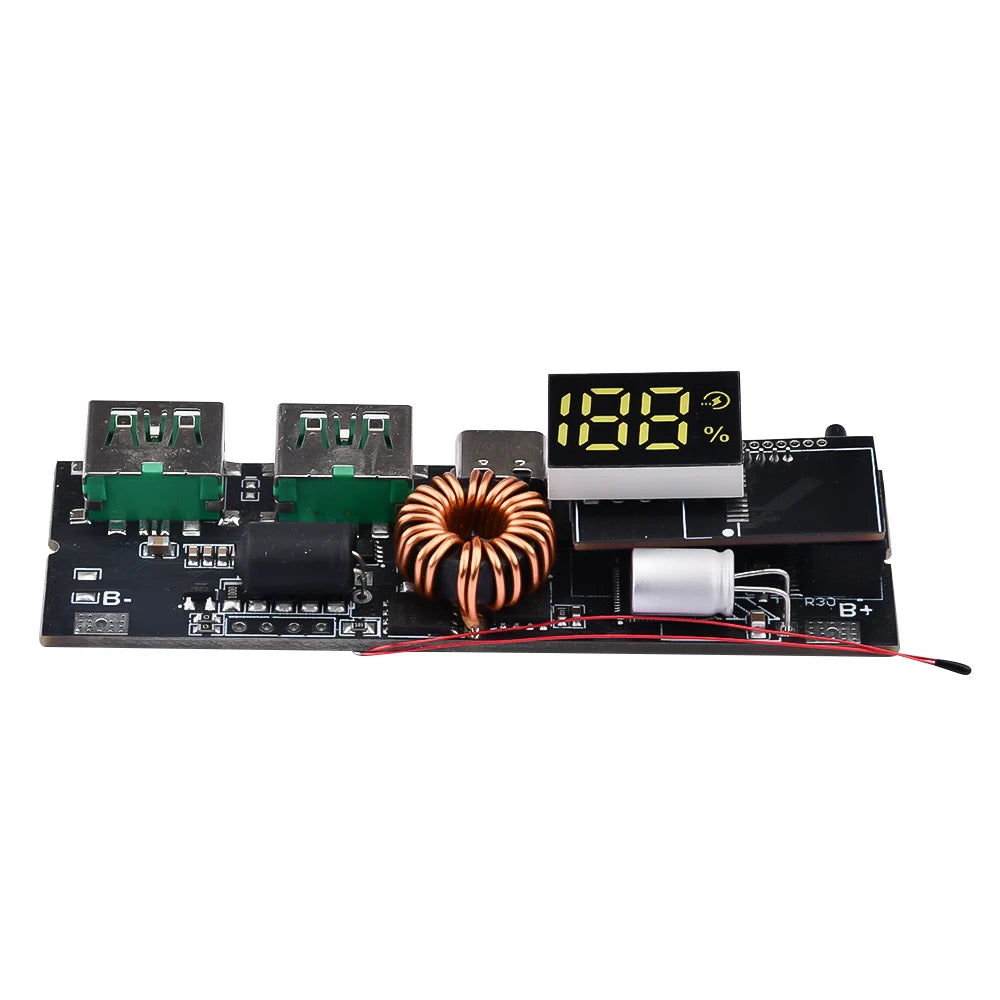

18650 Battery Charger Protection Module Power Bank PCB Module Board Dual USB Fast Charging with BMS Protection
18650 Battery Charger Protection Module Power Bank PCB Module Board Dual USB Fast Charging with BMS Protection
Regular price
$27.90 USD
Regular price
$38.01 USD
Sale price
$27.90 USD
Taxes included.
Quantity
Couldn't load pickup availability
SPECIFICATIONS
Application: MOBILE PHONE
Brand Name: Ziqqucu
Condition: New
Dissipation Power: diy power bank 18650
Model Number: fast charging module
Operating Temperature: arduino micro
Origin: Mainland China
Package: SMD
Supply Voltage: quick charger module
Tpye 1: arduino pro micro
Tpye 2: usb module
Tpye 3: charge controller 18650
Type: Voltage Regulator
Ues 1: power bank board
Ues 2: charging module
is_customized: Yes

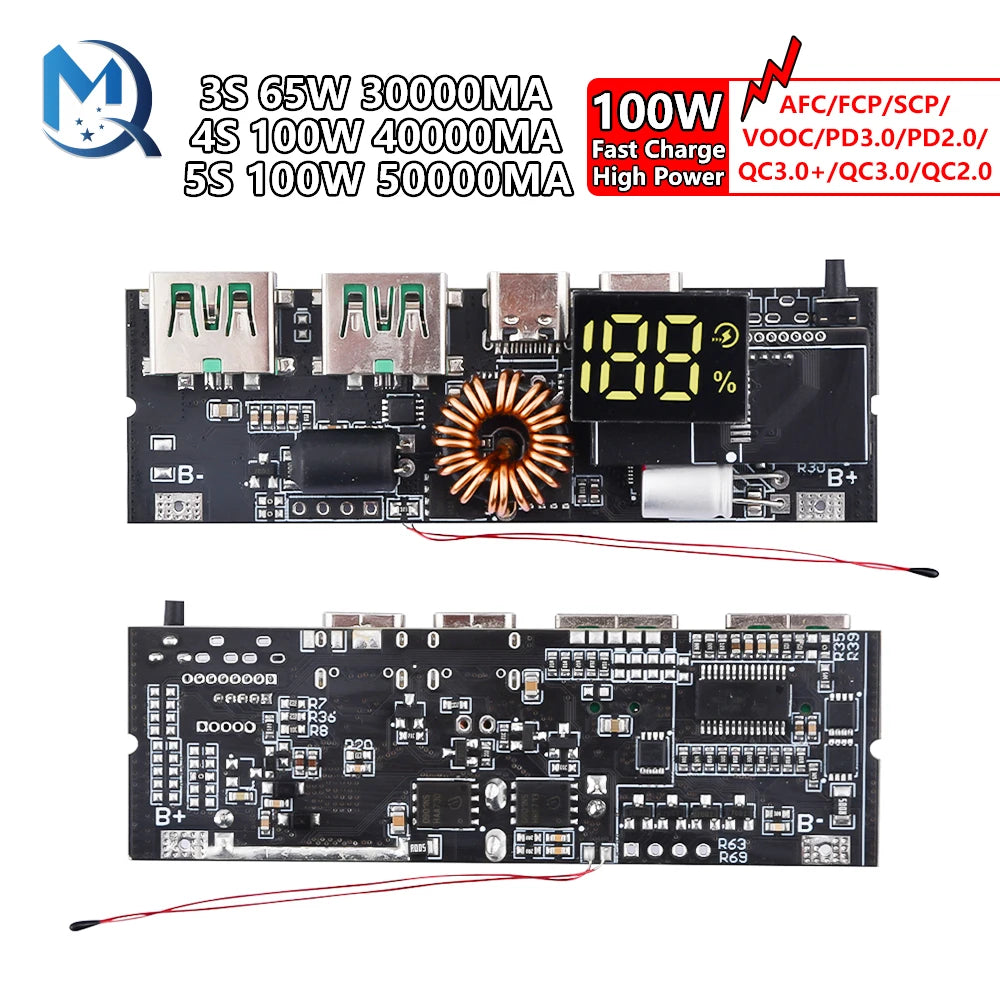

Specification:
：Multi-interface design：with 4 USB ports, Type-C1, Type-C2, Type-A1
：Battery type: lithium polymer battery
：Maximum output power: 65W/100W

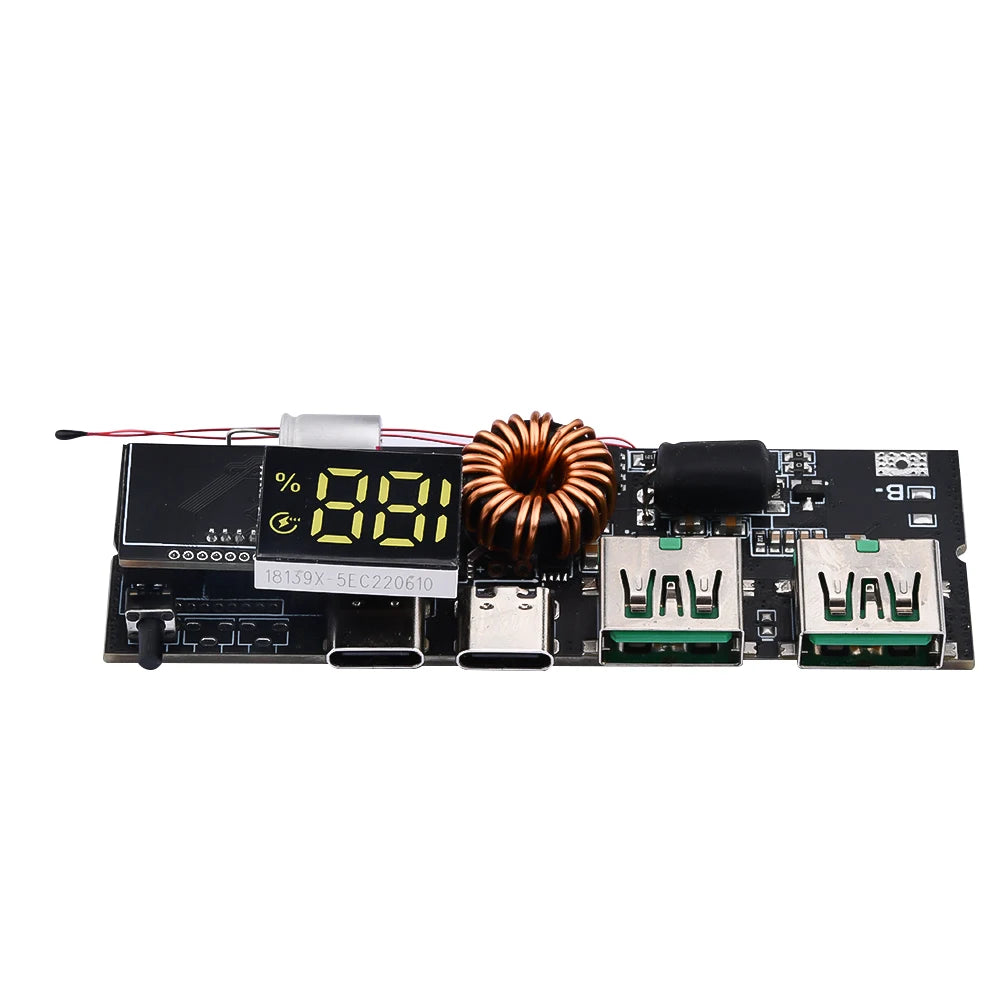

：The default is Nixie tube power display:
：The motherboard has 4 USB ports by default, Type-C1, Type-C2, Type-A1 and Type-A2.
：Type-C1 and Type-C2 support AFC/FCP/SCP/voOC/PD3.0/PD2.0 fast charging input.
：Support PPS/PD3.0/PD2.0/AFC/FCP/QC3+/QC3.0/QC2.0/SCP fast charging output.
：Type-A1/Type-A2 supports Apple/AFC/FCPvoOC/QC3+/QC3.0/QC2.0/SCP fast charging output.
：Type-C1 and Type-C2 support input and output bidirectional fast charging.
：Input support: 5V/9V/12V/15V/20V voltage.
：PPS output support: 3.3V-21V/3A.
：PD3.0/PD2.0 output support: 5V3A/9V3A/12V3A/15V3A/20V5A. (Type-C2 only supports 60W)
：QC2.0 output support: 5V3A/9V3A/12V3A.
：QC3.0 supports: 5V-12V output voltage, 200mV/Step.
：AFC output support: 5V3A/9V2A/12V2A.
：Input support: 5V/9V/12V voltage.
：FCP output support: 5V3A/9V2A/12V1.5A.
：Input support: 5V/9V/12V voltage.
：SCP output support: 5V4.5A, 10V2.2A.
：Input support: 5.5V3A.
：VOOC output support: 5V@4A 。
：The Type-A1/Type-A2/Type-C interface can be discharged simultaneously.
：maximum 5V@3A , please use single port for quick charging.

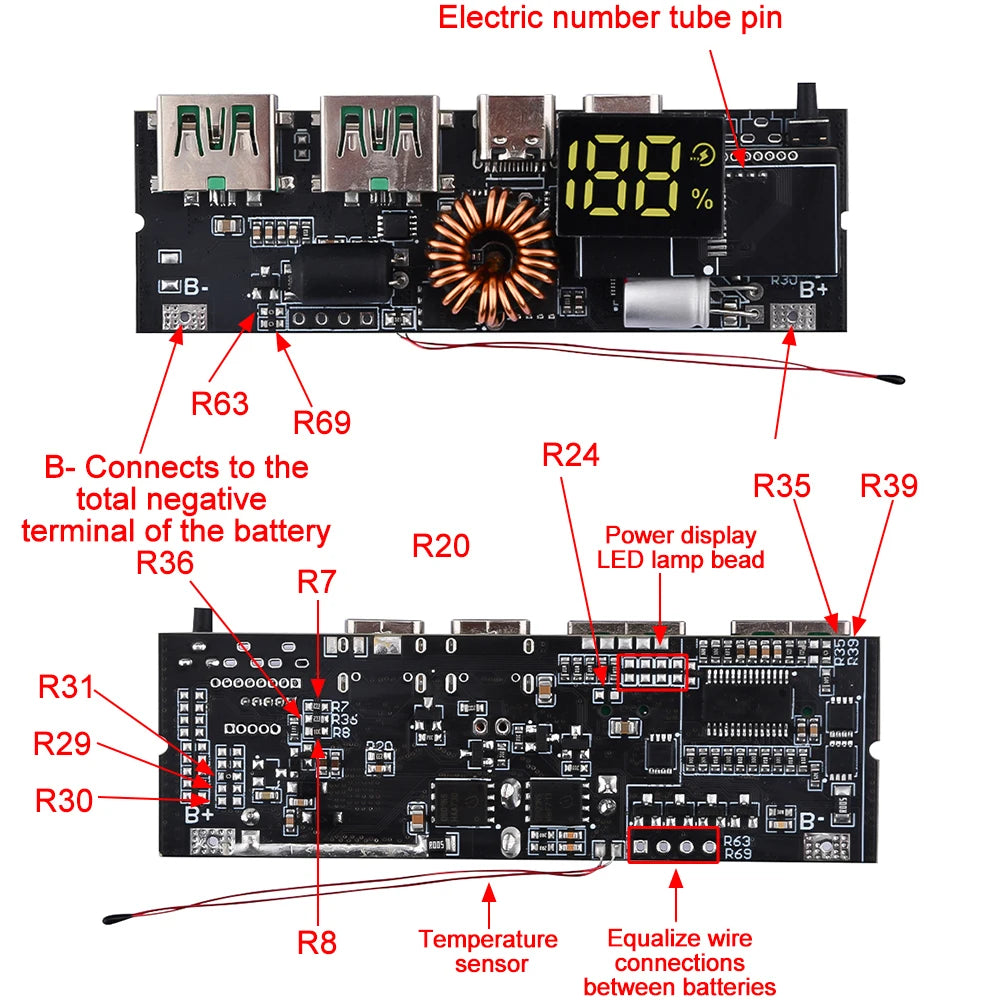

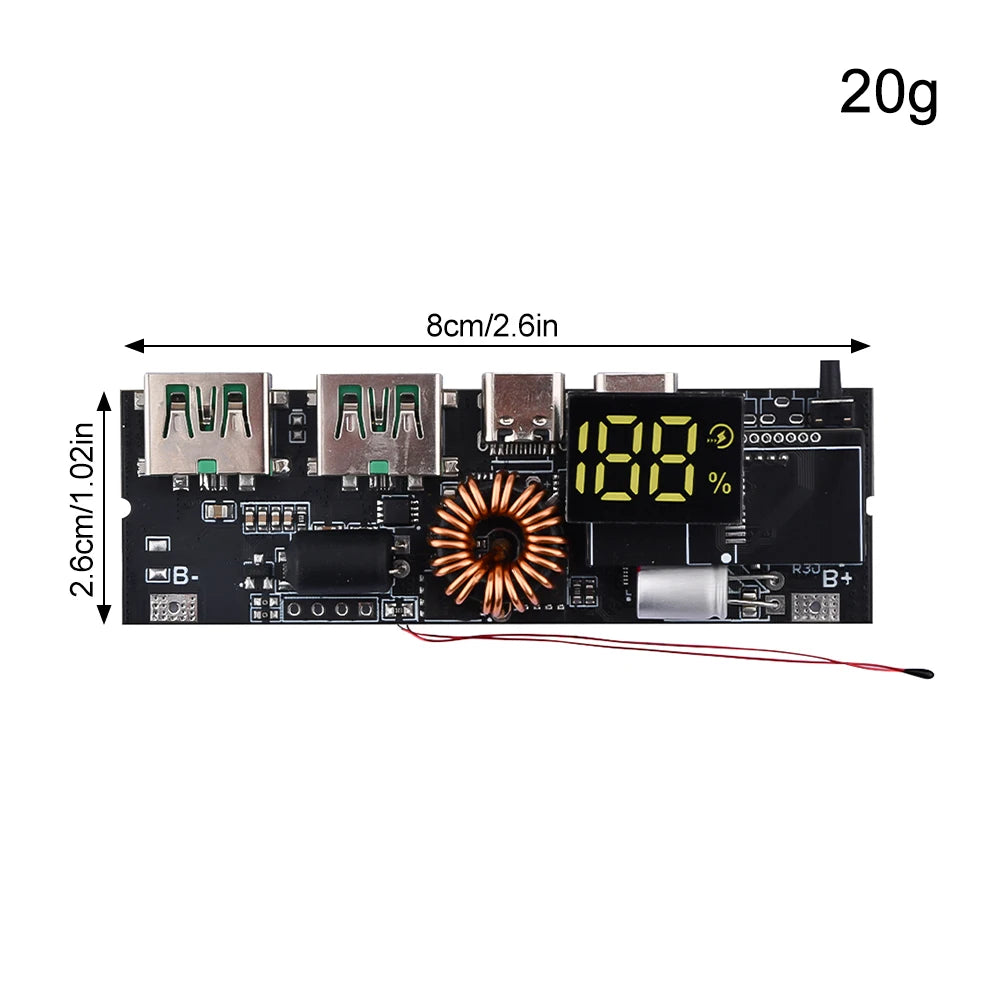

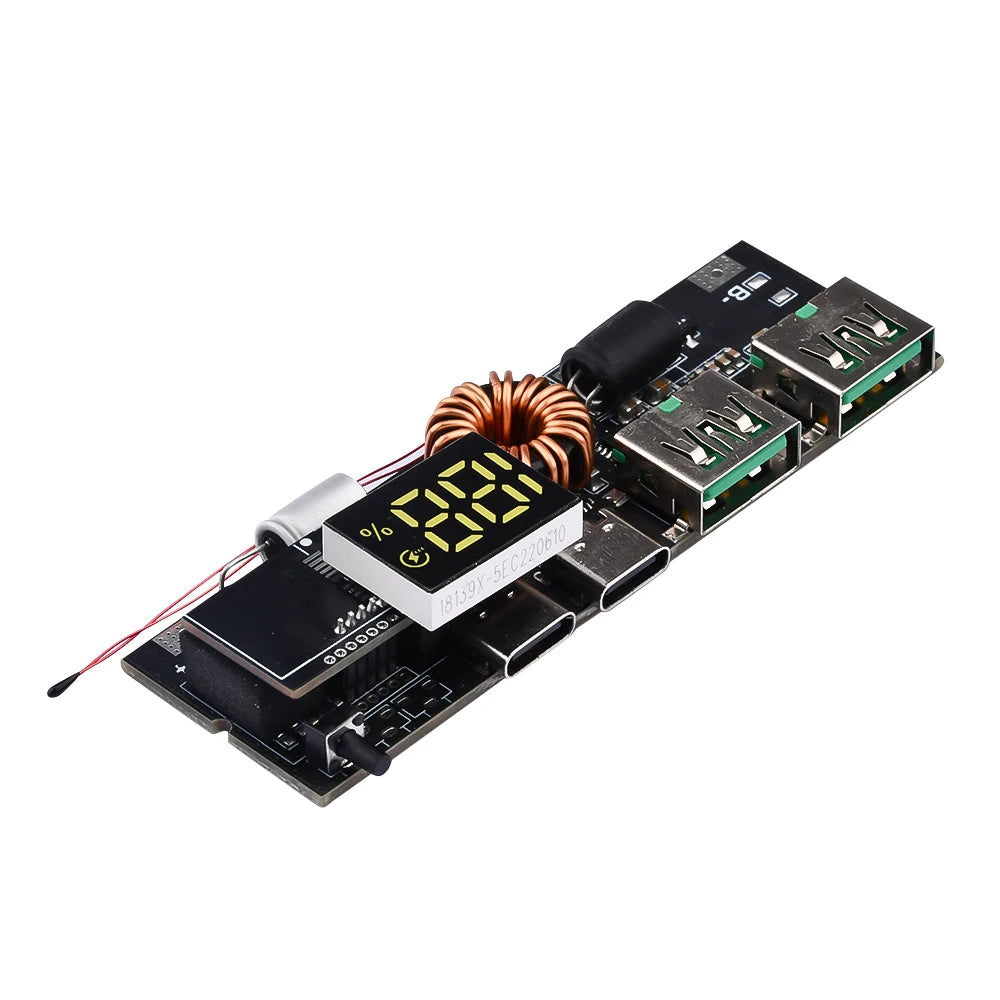

：Product size: 72x27x6mm
Matters needing attention:

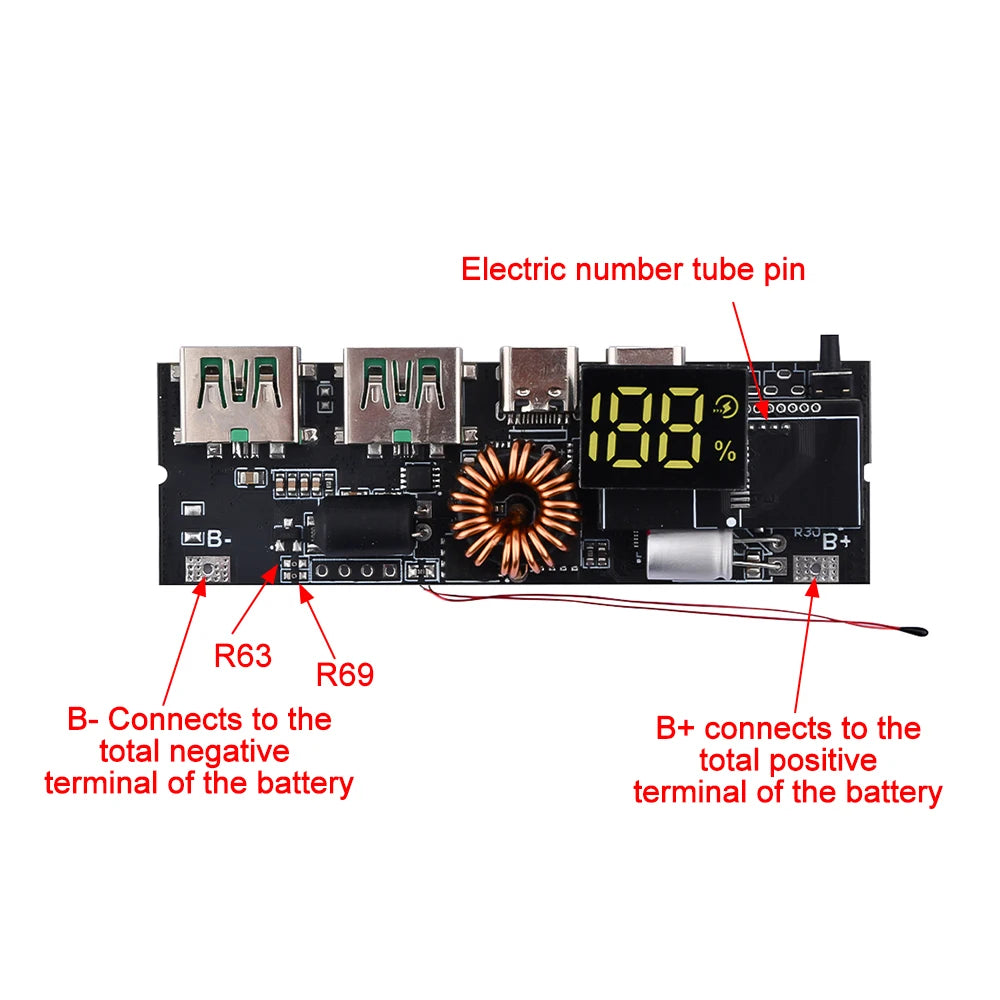

1: The wire connected to the battery outside the main board must be able to withstand 10A current, and at least use more than 1 square meter of copper wire, and 1.5 square meters of ordinary wire. It is not necessary to be too thick, but it cannot be too thin. Too thin will have potential safety hazards. (Because the battery terminal current is high)16AWG wire is recommended.

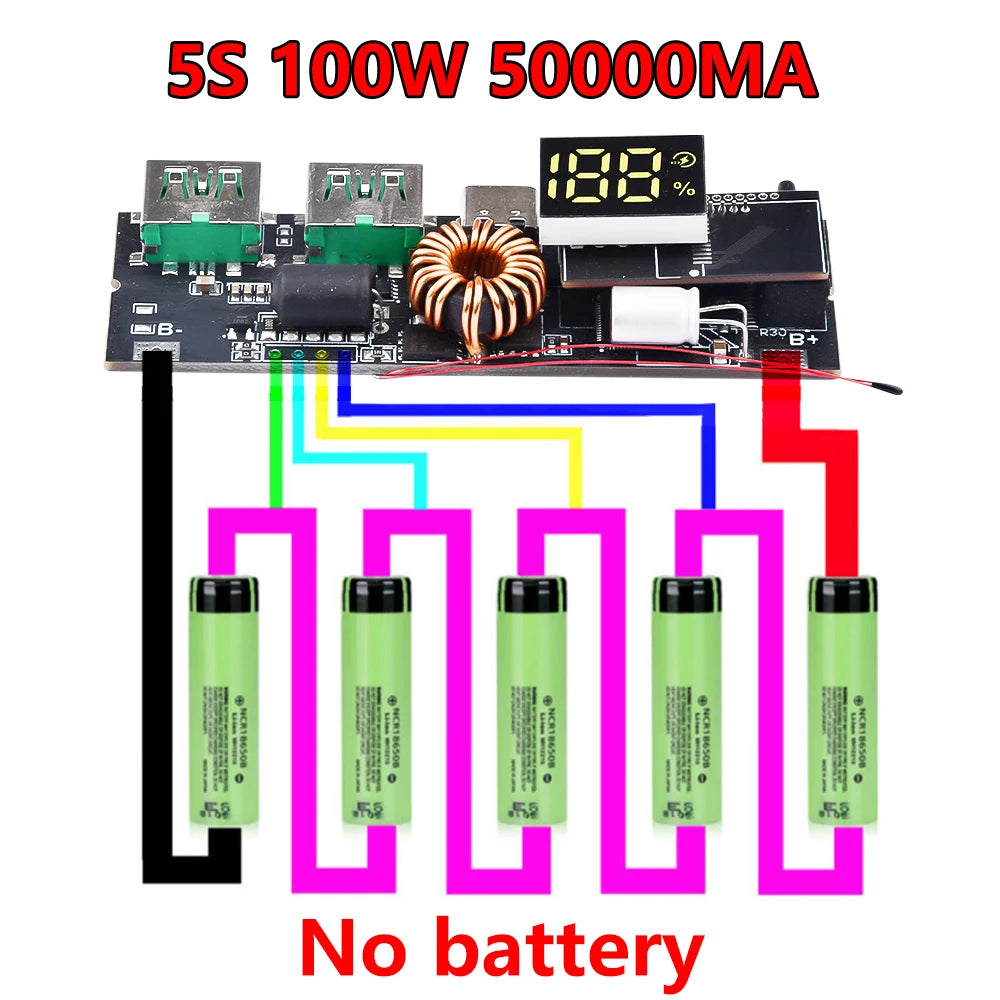

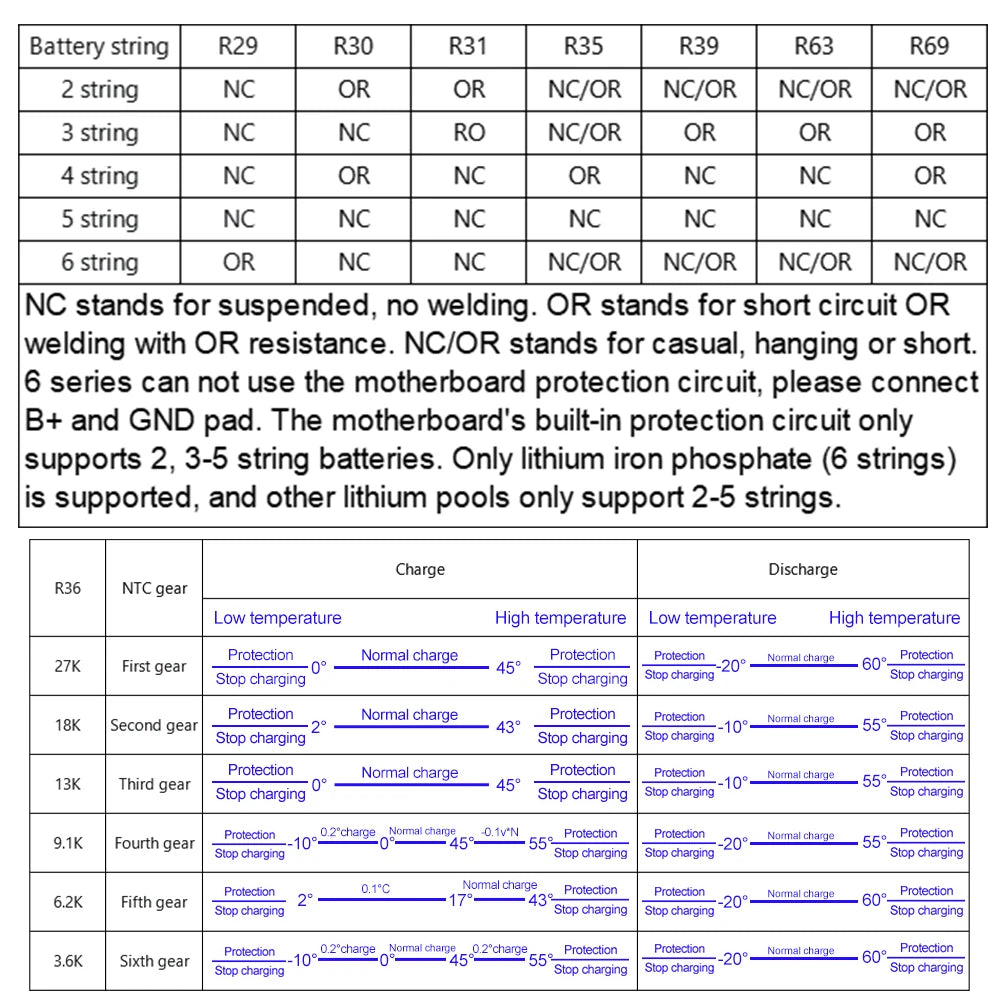

2: The motherboard has its own protection chip, which only supports 2-5 strings of batteries. The 6-string lithium iron phosphate battery needs its own protection board, and the overcurrent protection current of its own protection board must be greater than 15A, otherwise it can not work normally, which will seriously damage the motherboard chip.
3: Because the current at the battery end is too large, the battery must be welded with thick wire to test. It is not allowed to use crocodile clip to clamp the pad to test the charge and discharge. We refuse after-sales service if we must do this.

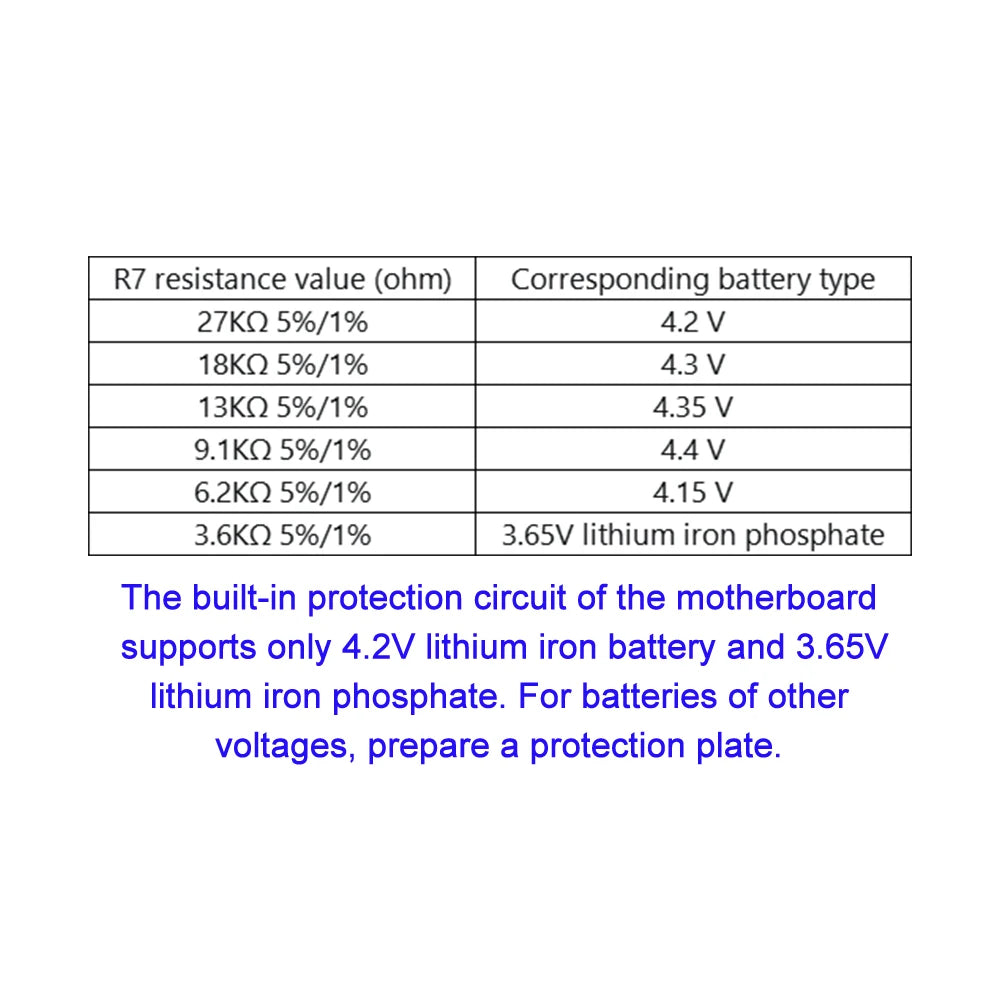

4: 4.15V/4.2V/4.35V/4.4V 18650, polymer and ternary lithium battery can be used for selecting battery. Large monomer can be used. The capacity of single battery string is not more than 25000mAh, and the display will be inaccurate if it exceeds the capacity. Support 3.65V lithium iron phosphate, not disposable dry batteries, nickel hydrogen, nickel chromium, lead acid batteries, etc. The battery shall be at least 2 strings and at most 6 strings, and the total voltage shall not exceed 23V. The minimum charging and discharging current of a single battery string should be more than 10A. If not, please lower the power.

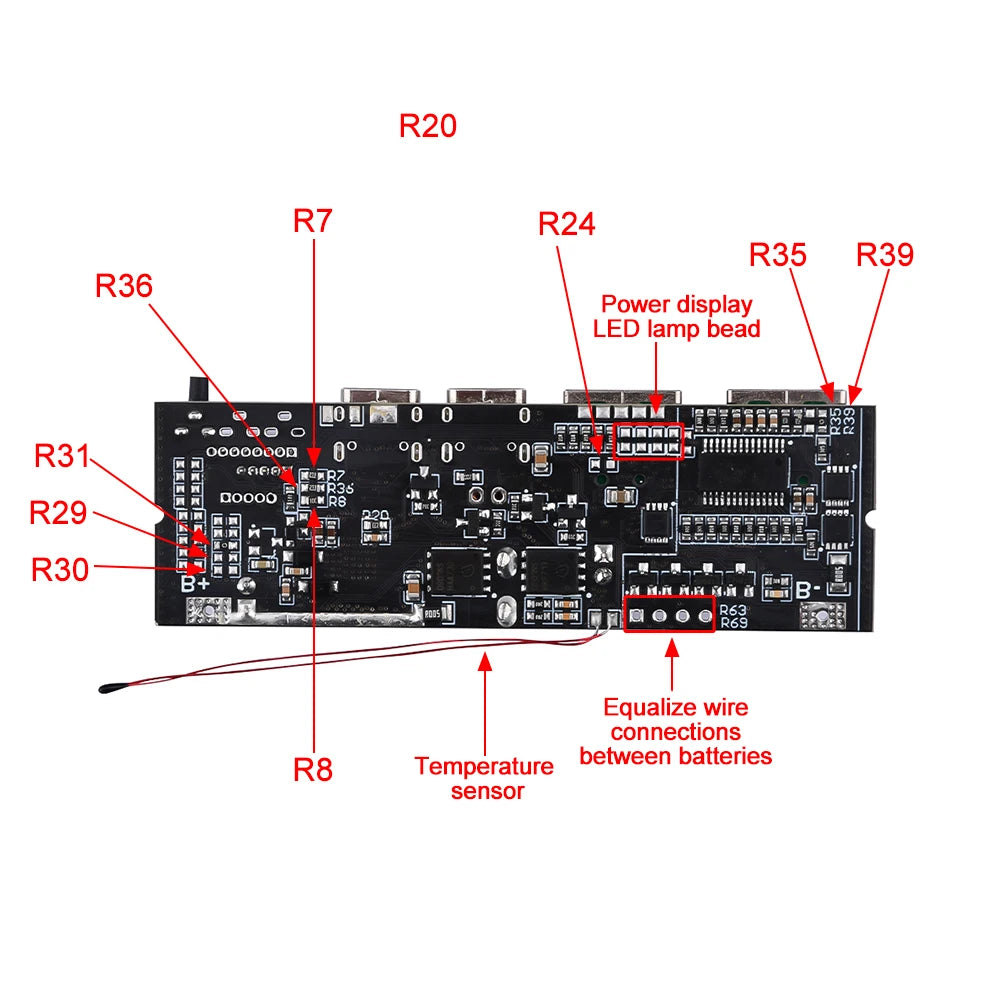

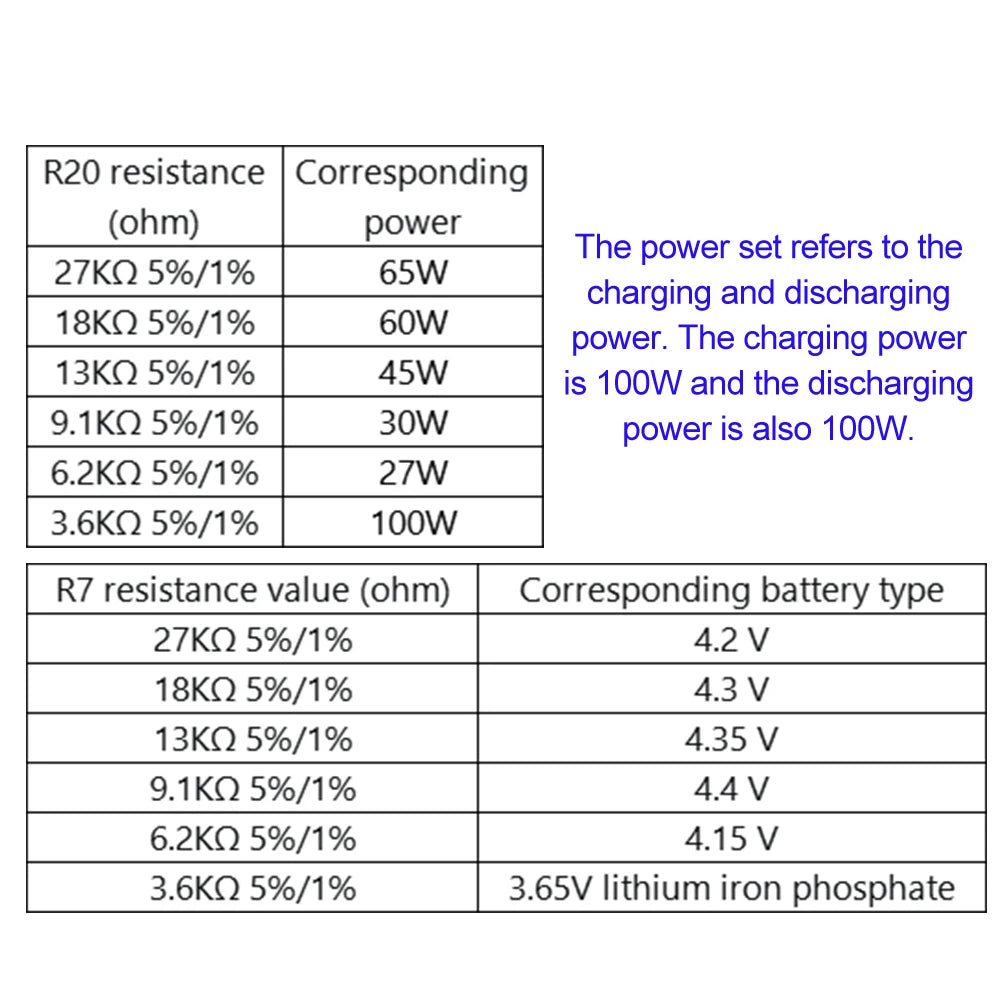

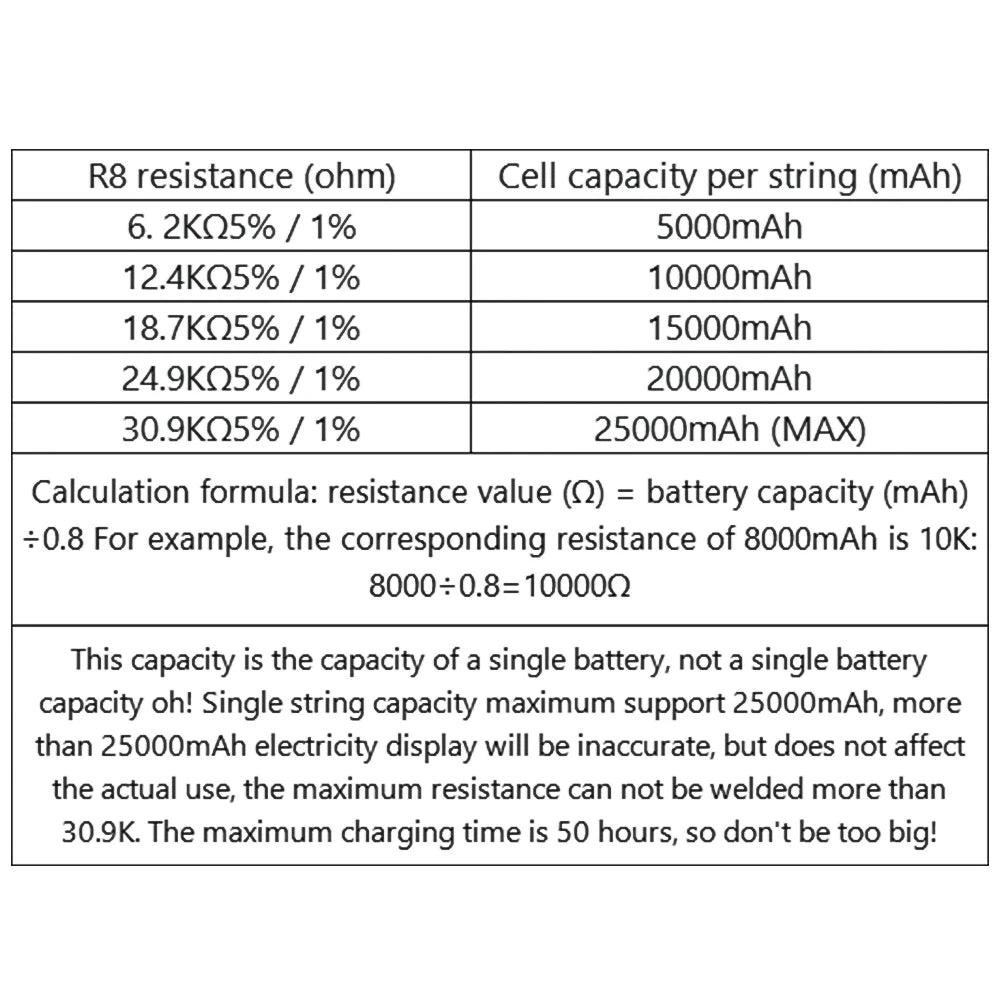

5: The battery capacity of the motherboard must be preset. Please see the introduction in the details.
6: It supports OPO flash charging and HW super fast charging. Different protocols have different power. 65W and 100W are the power of PD protocol. VOOC is 20W and SCP is 22.5W. Please confirm the demand before taking the picture. We will not accept the return of your mobile phone if it does not support your mobile phone. All welded products are not supported for return and replacement. (Unsupported mobile phones are not available to third parties because their own protocols are not disclosed.)

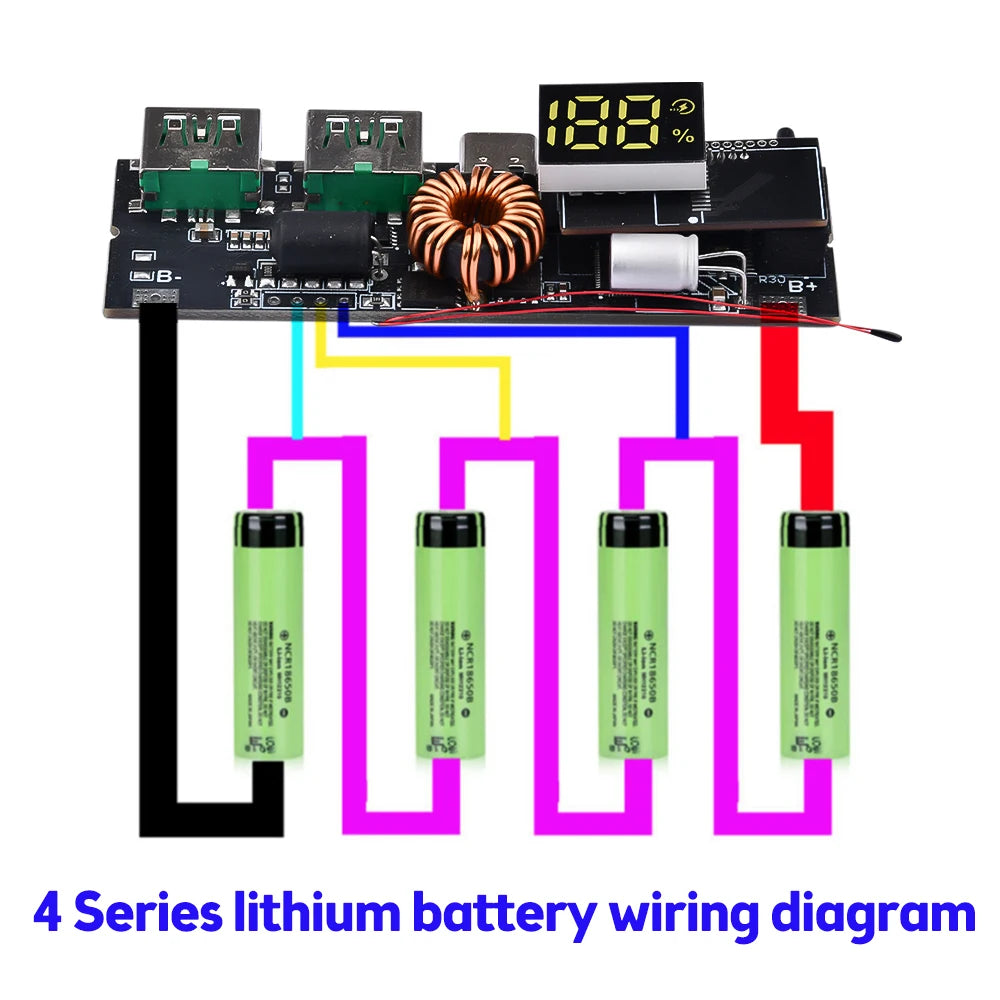

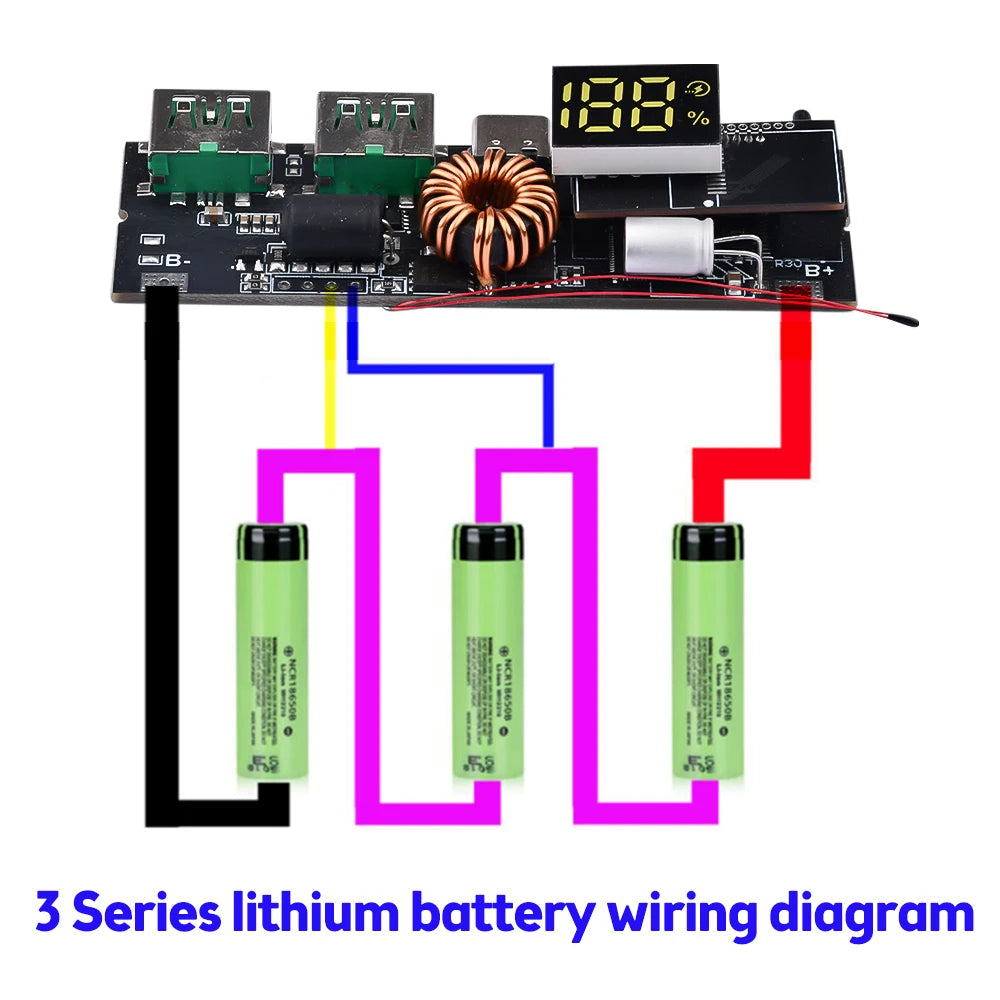

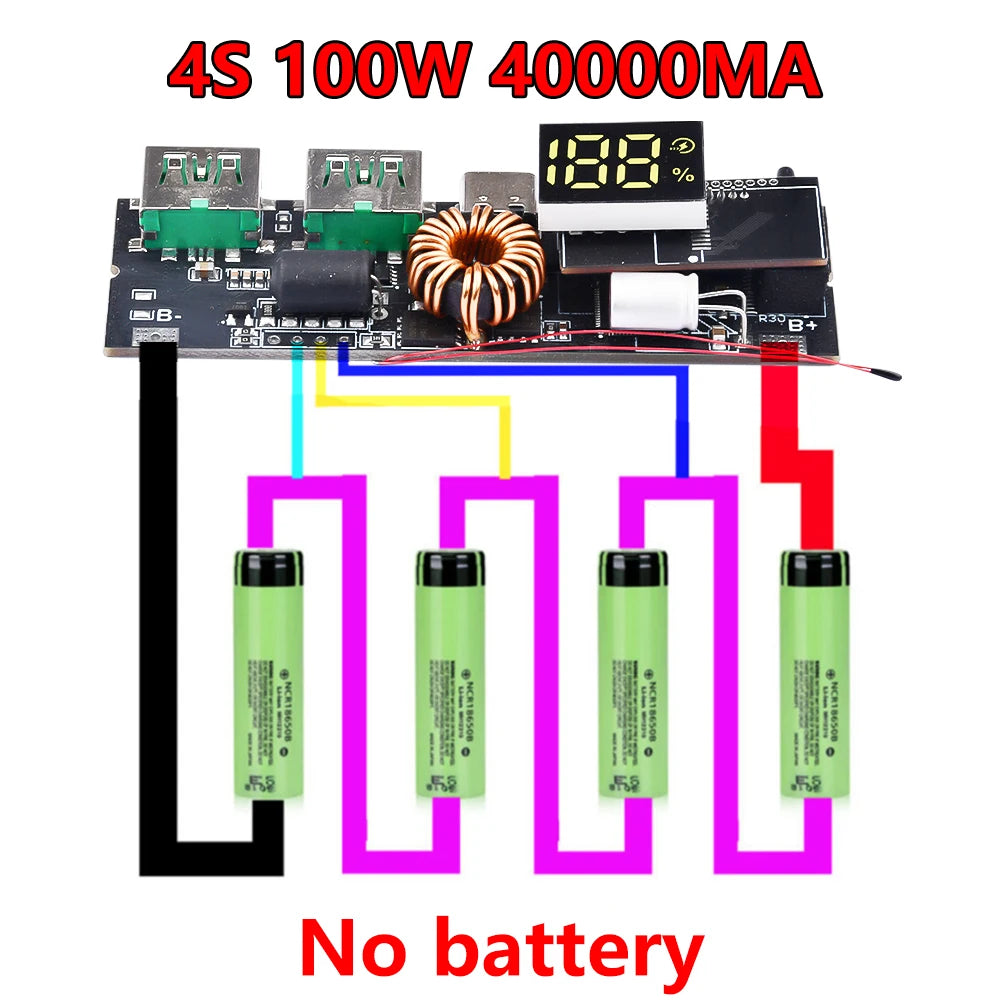

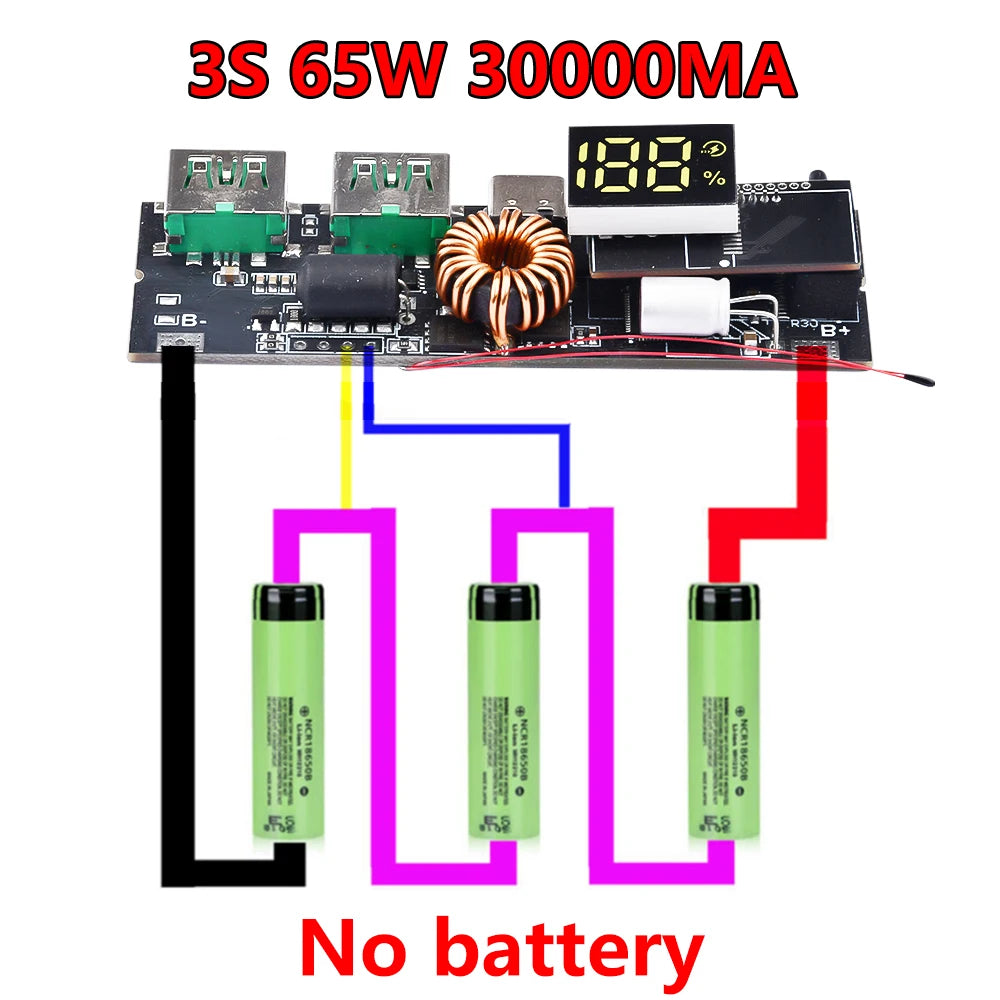

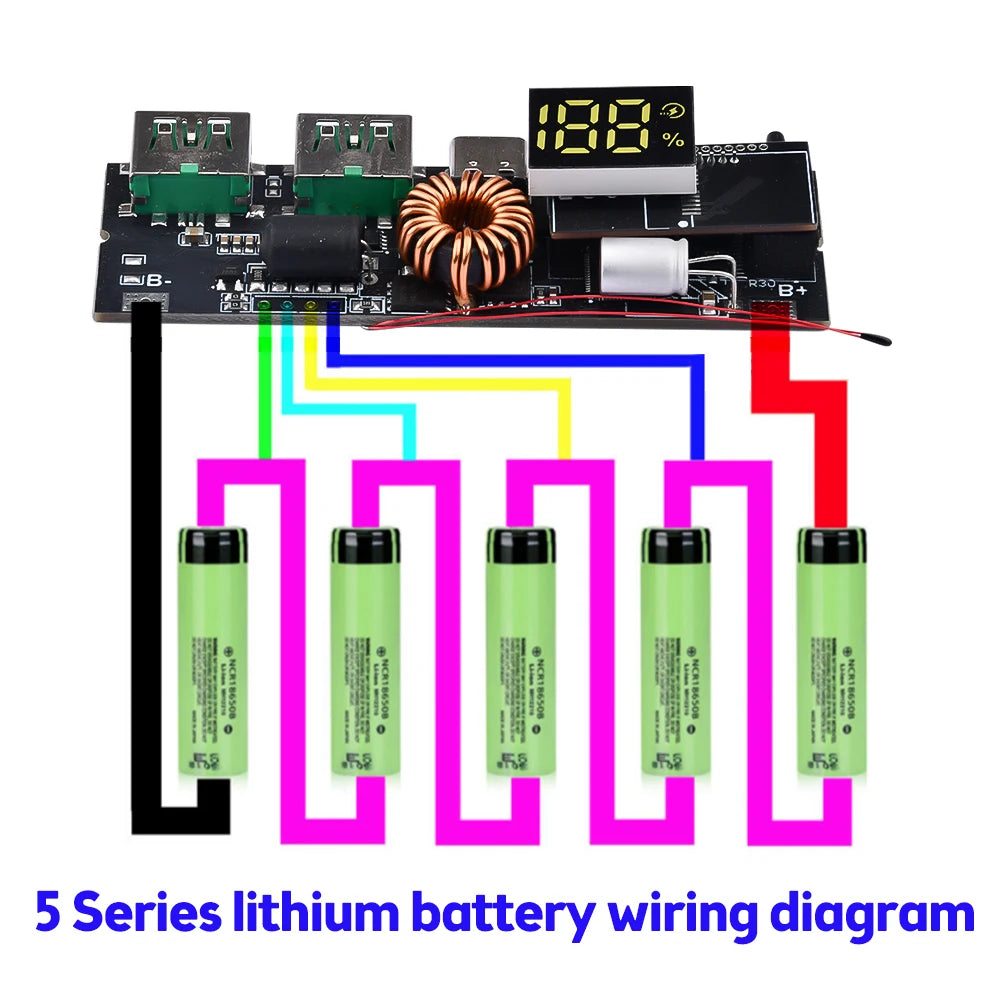

7: The battery connected to this motherboard must meet the requirements and be connected in series. If your battery is a common capacity small current single or multiple parallel batteries, please refer to other motherboards.
Package Contents:
：1X module
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
：Multi-interface design：with 4 USB ports, Type-C1, Type-C2, Type-A1
：Battery type: lithium polymer battery
：Maximum output power: 65W/100W
：The default is Nixie tube power display:
：The motherboard has 4 USB ports by default, Type-C1, Type-C2, Type-A1 and Type-A2.
：Type-C1 and Type-C2 support AFC/FCP/SCP/voOC/PD3.0/PD2.0 fast charging input.
：Support PPS/PD3.0/PD2.0/AFC/FCP/QC3+/QC3.0/QC2.0/SCP fast charging output.
：Type-A1/Type-A2 supports Apple/AFC/FCPvoOC/QC3+/QC3.0/QC2.0/SCP fast charging output.
：Type-C1 and Type-C2 support input and output bidirectional fast charging.
：Input support: 5V/9V/12V/15V/20V voltage.
：PPS output support: 3.3V-21V/3A.
：PD3.0/PD2.0 output support: 5V3A/9V3A/12V3A/15V3A/20V5A. (Type-C2 only supports 60W)
：QC2.0 output support: 5V3A/9V3A/12V3A.
：QC3.0 supports: 5V-12V output voltage, 200mV/Step.
：AFC output support: 5V3A/9V2A/12V2A.
：Input support: 5V/9V/12V voltage.
：FCP output support: 5V3A/9V2A/12V1.5A.
：Input support: 5V/9V/12V voltage.
：SCP output support: 5V4.5A, 10V2.2A.
：Input support: 5.5V3A.
：VOOC output support: 5V@4A 。
：The Type-A1/Type-A2/Type-C interface can be discharged simultaneously.
：maximum 5V@3A , please use single port for quick charging.
：Product size: 72x27x6mm
Matters needing attention:
1: The wire connected to the battery outside the main board must be able to withstand 10A current, and at least use more than 1 square meter of copper wire, and 1.5 square meters of ordinary wire. It is not necessary to be too thick, but it cannot be too thin. Too thin will have potential safety hazards. (Because the battery terminal current is high)16AWG wire is recommended.
2: The motherboard has its own protection chip, which only supports 2-5 strings of batteries. The 6-string lithium iron phosphate battery needs its own protection board, and the overcurrent protection current of its own protection board must be greater than 15A, otherwise it can not work normally, which will seriously damage the motherboard chip.
3: Because the current at the battery end is too large, the battery must be welded with thick wire to test. It is not allowed to use crocodile clip to clamp the pad to test the charge and discharge. We refuse after-sales service if we must do this.
4: 4.15V/4.2V/4.35V/4.4V 18650, polymer and ternary lithium battery can be used for selecting battery. Large monomer can be used. The capacity of single battery string is not more than 25000mAh, and the display will be inaccurate if it exceeds the capacity. Support 3.65V lithium iron phosphate, not disposable dry batteries, nickel hydrogen, nickel chromium, lead acid batteries, etc. The battery shall be at least 2 strings and at most 6 strings, and the total voltage shall not exceed 23V. The minimum charging and discharging current of a single battery string should be more than 10A. If not, please lower the power.
5: The battery capacity of the motherboard must be preset. Please see the introduction in the details.
6: It supports OPO flash charging and HW super fast charging. Different protocols have different power. 65W and 100W are the power of PD protocol. VOOC is 20W and SCP is 22.5W. Please confirm the demand before taking the picture. We will not accept the return of your mobile phone if it does not support your mobile phone. All welded products are not supported for return and replacement. (Unsupported mobile phones are not available to third parties because their own protocols are not disclosed.)
7: The battery connected to this motherboard must meet the requirements and be connected in series. If your battery is a common capacity small current single or multiple parallel batteries, please refer to other motherboards.
Package Contents:
：1X module
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
